Lowrance 5" Eagle 5 with SplitShot HD Transducer and C-MAP DISCOVER OnBoard - 000-16226-001
Authorized Dealer
Price Match Guarantee
| Our Price | $559.99 CAD |
Or as low as $186.66/month over 3 months. Apply Now
Lowrance 5" Eagle 5 with SplitShot HD Transducer and C-MAP DISCOVER OnBoard - 000-16226-001
000-16226-001
Eagle® was born to make fishing as simple and enjoyable as possible. Easy to use and quick to install, this model features newly designed SplitShot™ HD Transducer with FishReveal technology and autotuning for a quick and optimal set up. A new IPS screen provides higher resolution and visibility from all angles. This model comes pre-loaded with a worldwide basemap chart, and the option to upgrade to CMAP® DISCOVER™.
Easy to use sonar
Eagle® brings the pedigree of enhanced Lowrance® sonar to our most accessible and easy to use fishfinder yet.
New SplitShot™ HD Transducer
Get the best underwater views below the boat with SplitShot™ HD, featuring the fish-finding capability of wide-angle high CHIRP sonar and the high-resolution images of fish-holding structure from DownScan Imaging™.

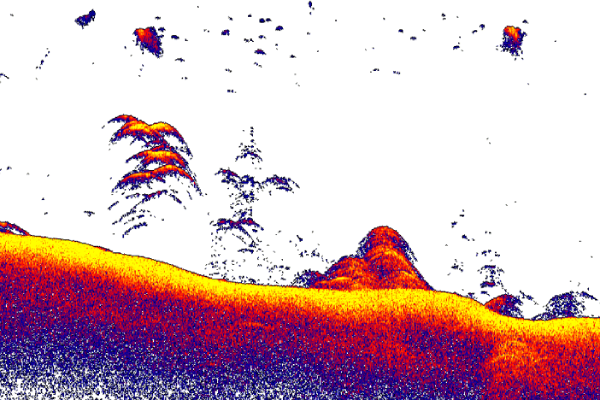

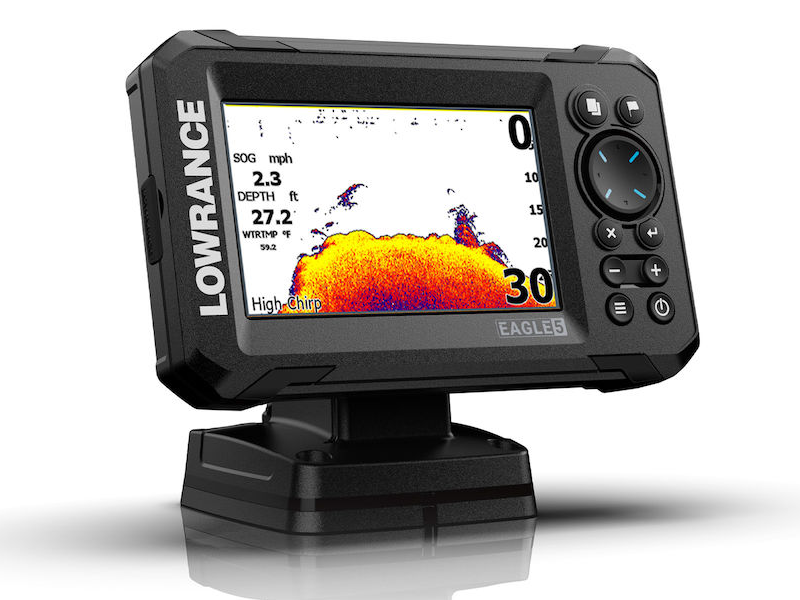

CHIRP Sonar
CHIRP sonar delivers high-resolution views of individual fish targets, even when targets are close to the bottom or suspended in tight schools.

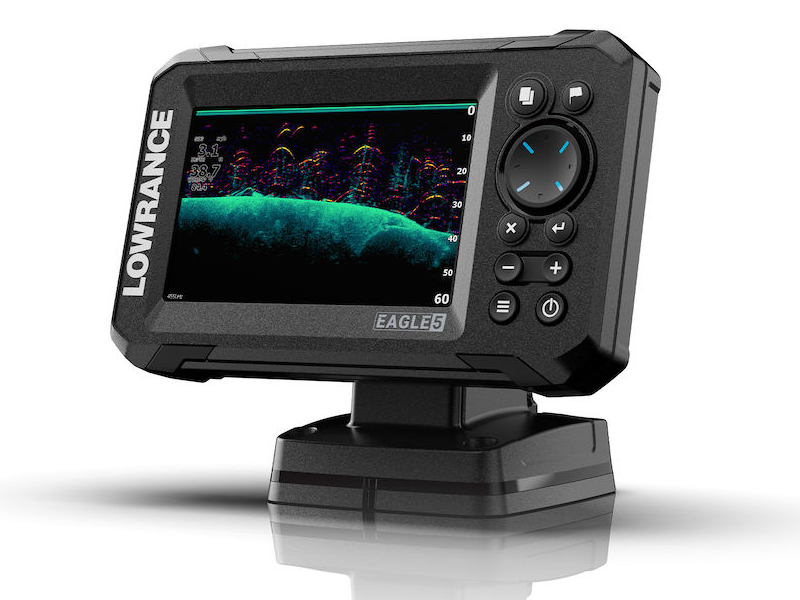

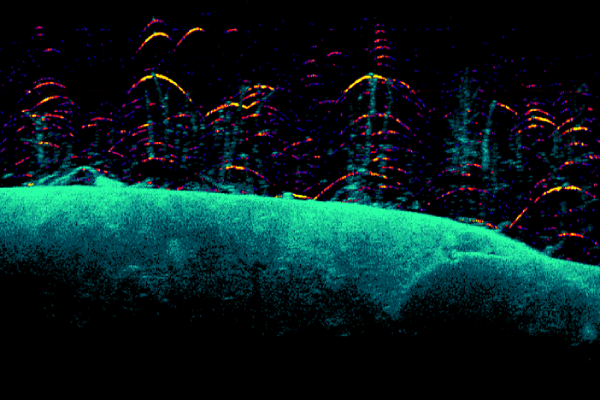

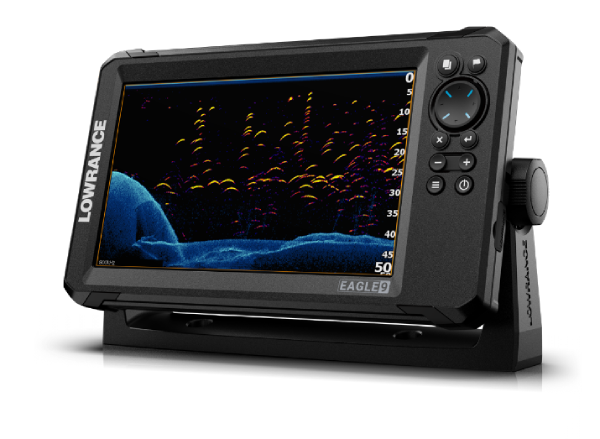

DownScan Imaging™
DownScan Imaging™ makes it easier to identify how fish relate to structure, providing photo-like images of rocks, trees, and other underwater structures directly beneath your boat.
FishReveal™
Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification.
Autotuning Sonar
Simple autotuning sonar gives you the optimal settings from the start so you don’t have to spend time trying to find them yourself.
Detailed charting

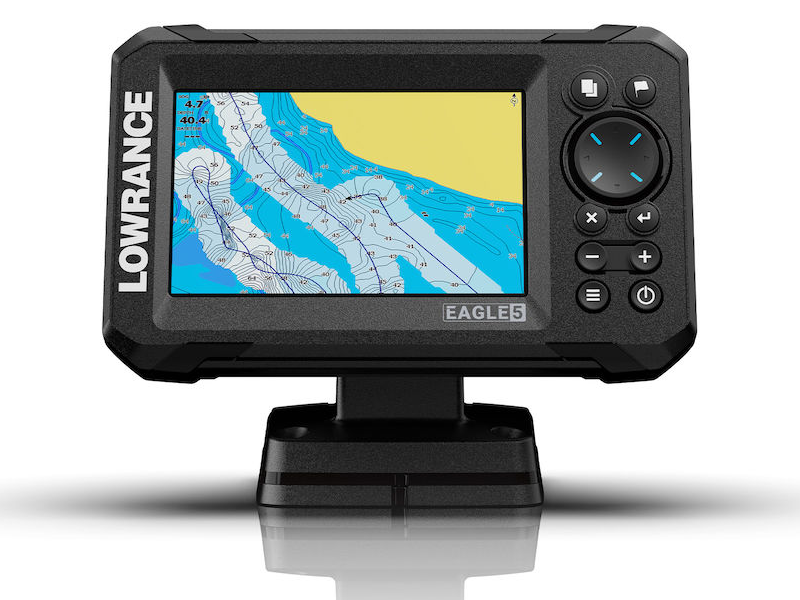

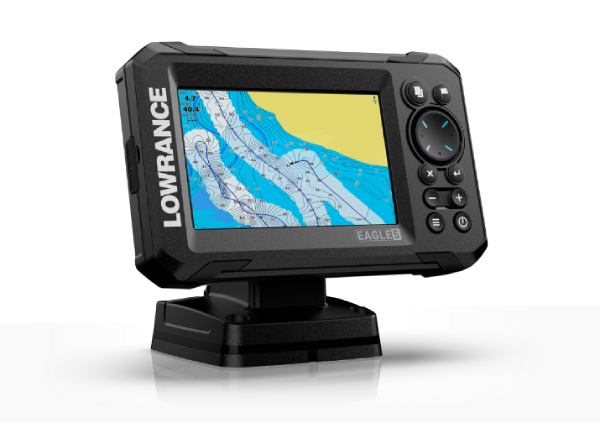

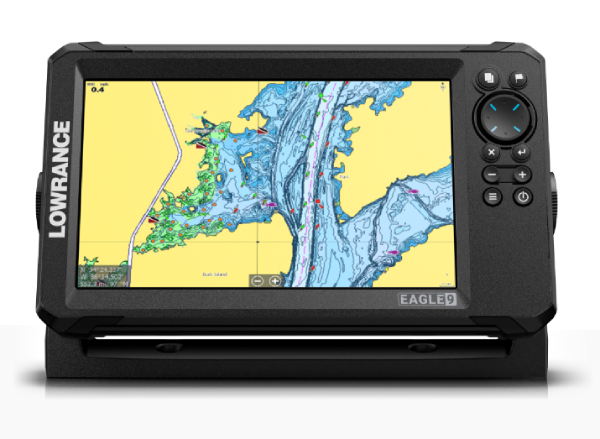

C-MAP® DISCOVER OnBoard™
Spend more time fishing and less time searching, with high-resolution C-MAP® Discover OnBoard™ charts included for the US and Canada. With Eagle, you have all the detail you need to discover and navigate to the best fishing spots, faster.
Genesis Live
Know your local waters better than anyone with the ability to create custom ½-foot contour maps of your local lake or uncharted water in real time.
Designed for fishing
New IPS screens
See clearly wherever you go with a new IPS screen, offering improved resolution, clarity and visibility, even with polarized sunglasses in direct sunlight.

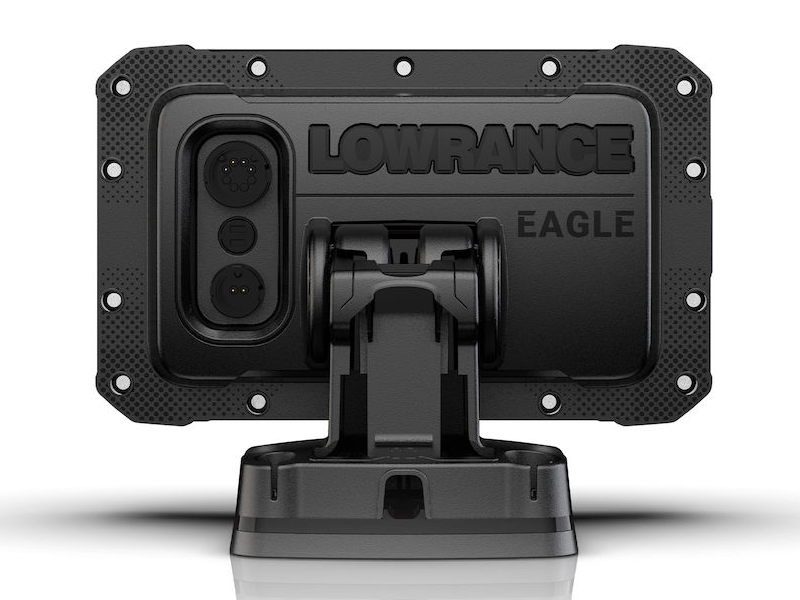

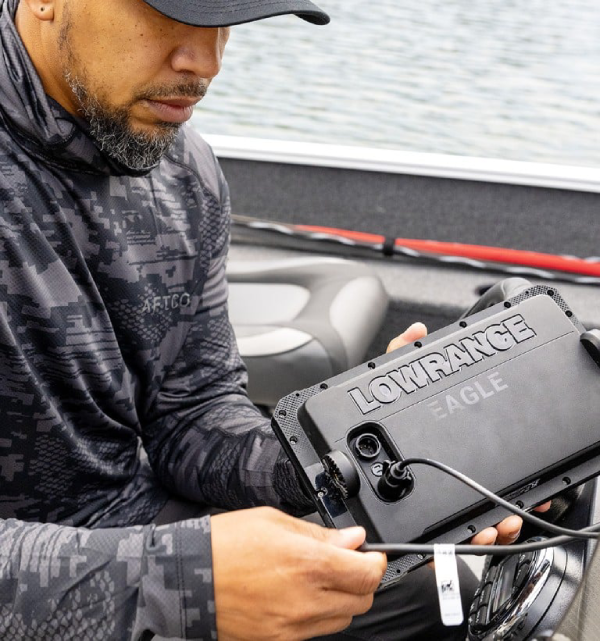

New connector system
Set up in an instant with Eagle’s improved twist-locking connector, promising an easy installation and removal every time.
One-year warranty
Our priority is to give you superior quality products and a stress-free time on the water. Enjoy the feeling of fishing with peace of mind thanks to our one-year warranty guarantee.
| Display | |
|---|---|
| Backlight Color | Pure white LED |
| Display Resolution | 800 x 480 |
| Display Size | 5 inches |
| Screen Brightness | 1000 NITS |
| Viewing Angles | 80° top/bottom, 80° left/right |
| Connectivity | |
| SD Card Storage | 1 slot (microSD® 32 GB maximum) |
| Cartography | |
| Charts supported | C-MAP® DISCOVER™. |
| Electrical | |
| Power Consumption max | 280 mA @ 12 V DC with backlight on full |
| Power Consumption min | 190 mA @ 12 V DC with backlight off |
| Power Consumption typical | 280 mA @ 12 V DC with backlight on full |
| Recommended Fuse Rating | 3A |
| Supply Voltage | 12v DC (10.8-17VDC) |
| Environment | |
| Humidity | 60°C, 95% relative humidity (RH) for 48 hours |
| Operating Temperature Range | 5°F to 131°F (-15°C to 55°C ) |
| Storage Temperature Range | 4°F to 140°F (-20°C to 60°C ) |
| Waterproofrating | IPX7 with card door closed |
| GPS | |
| Correction | SBAS |
| Time to First Fix | 45s |
| MFD | |
| Cartography included | C-MAP® Discover OnBoard™ charts for the US and Canada |
| Waypoints, Routes, Tracks | 3000 Waypoints 100 Routes 100 Trails |
| Physical | |
| Compass Safe | 12" (300mm) |
| Dimensions W x H x D | 182.1 mm (7.17") x 113.2 mm (4.46") x 110.6 (4.35") |
| Mounting Type | Gimbal bracket or dash mount |
| Weight | 0.46 kg (1.01 lb) |
| OTHER | |
| Interface | Keypad:8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power / backlight |
| Warranty Period | 1 Year + 4 additional years of upgrade options totaling 5 years |
