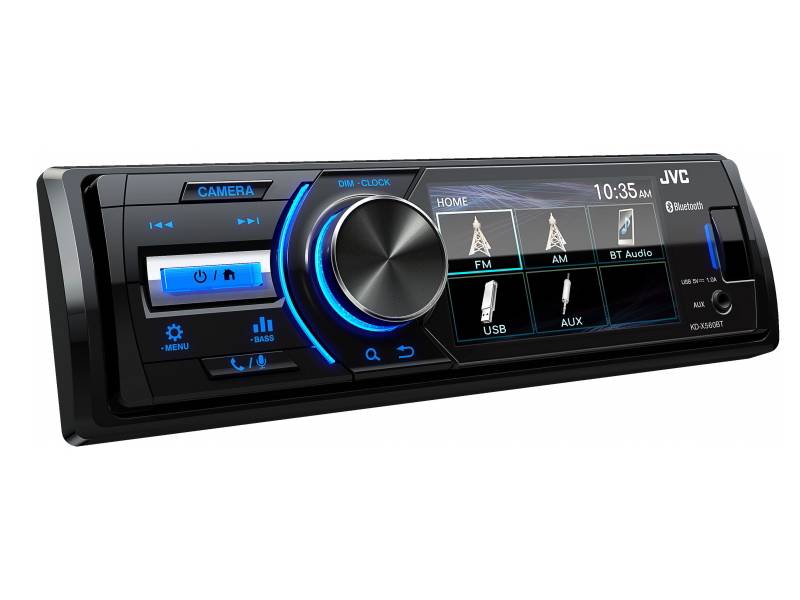

JVC 1-DIN Digital Media Receiver - KD-X560BT
Authorized Dealer
Price Match Guarantee
| Our Price | $229.00 CAD |

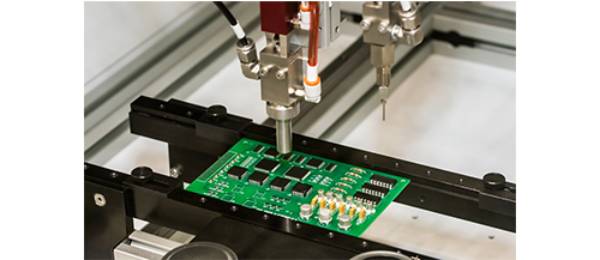

Conformal Coating
A conformal coating is a protective chemical coating to safeguard electronic circuits from harsh environments that may contain moisture or chemical contaminants. It provides a barrier to airborne contaminants from the operating environment, such as salt-spray, thus preventing corrosion.

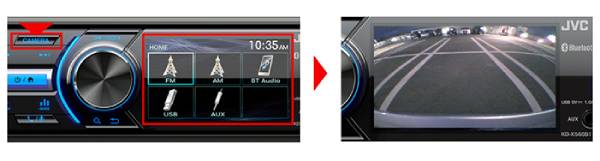

Rear View Camera Input Support
KD-X560BT is equipped with a rear view camera input. With an optional camera connected, you have increased safety while driving UTVs or marine vessels. With the independent CAMERA key, you can always check the backward situation whenever the key is pressed.
Short Body
The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

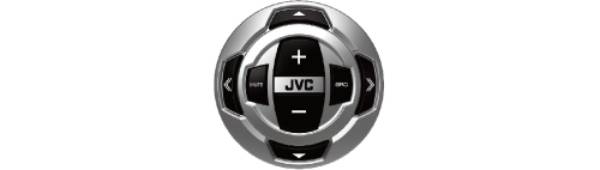

Wired Remote Control (Optional)
IPX7 Waterproof wired remote control (RM-RK62M) is optionally available.
| MONITOR | |
|---|---|
| Screen Size | 3.0" 16:9 QVGA |
| Key Illumination Color | Blue |
| Dimmer | Yes (1/2/Off) |
| Multilingual Display | Yes[2] |
| Media Playback | |
| MP3 Compatible with Tag | Yes |
| WMA Compatible with Tag | Yes |
| WAV Compatible with Tag | Yes ( Up to 96kHz/24bit ) |
| AAC Compatible with Tag | Yes |
| FLAC Compatible with Tag | Yes ( Up to 96kHz/24bit ) |
| H.264 Compatible | Yes |
| MPEG 1/2 Compatible | Yes |
| MPEG 4 Compatible | Yes |
| AVI/MKV Compatible | Yes |
| JPEG File Playback | Yes |
| PNG File Playback | Yes |
| BMP File Playback | Yes |
| Bluetooth Control | |
| Built-in Bluetooth[1] | Yes (Version 3.0, Wired-Mic included) |
| Hands Free Call | Yes (HFP1.5 Wideband Speech) |
| Audio Streaming & Control (A2DP, AVRCP) | Yes |
| Phone Book Access Profile (PBAP) | Yes |
| Android Control | |
| Android Music Playback | Yes (via Bluetooth(R)) |
| iPod/iPhone Control | |
| iPod/iPhone Music Playback | Yes (via USB or Bluetooth(R)) |
| USB | |
| USB Port | x 1 (High speed) |
| Position | Front |
| USB Power Supply | Yes (1.0A) |
| Radio Tuner | |
| Radio Broadcast Data System (RBDS) | Yes |
| Preset Stations | 30 (FM:15,:AM:15) |
| Frequency Range | 87.9 - 107.9MHz |
| Audio | |
| Maximum Power Output (Front & Rear) | 45W x 4 |
| Full Bandwidth Power (Front & Rear) | 16W x 4 |
| EQ | Yes (13-Band Graphic EQ) |
| Preset EQ | Yes (9-Preset) |
| Bass Boost | Yes |
| High-Pass Filter/Low-Pass Filter | Yes/Yes |
| Inputs and Outputs | |
| Front AUX Input | Yes |
| Rear view camera Input | Yes |
| Line Output Terminals | 3 Pairs (Front + Rear + Subwoofer) |
| Pre-output Level/Impedance | 2.0V / 10k ohms |
| General | |
| Wireless Remote Control | Ready (RM-RK258 required) |
| Steering Remote Control Ready | Yes |
| ISO Connector | Yes |
| Dimensions (W x H x D) Installation Size | 7-3/16" x 2-1/16" x 4-5/8" (182 x 52 x 117 mm) |
| Weight | 1.65 lbs. (0.75kg) |
| Unit weight in individual package | 2.45 lbs. (1.11kg) |
