10" JBL Stage 200P 300W Powered Subwoofer - JBL200PWHTAM

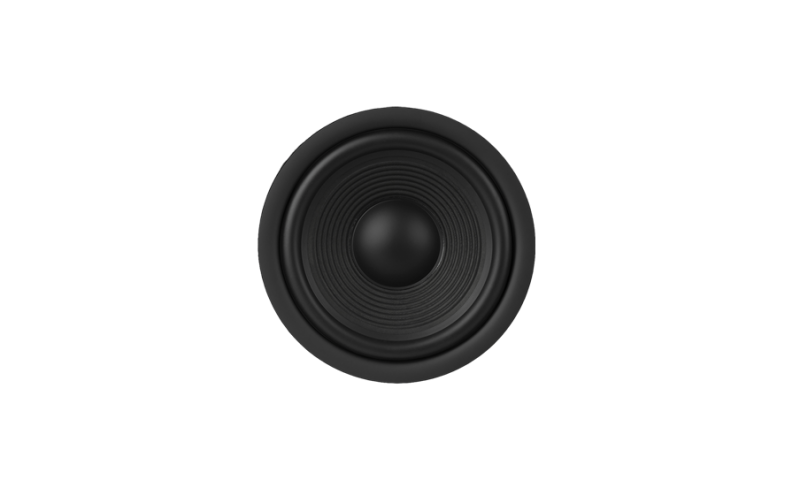

10-inch (250mm) Polycellulose Ribbed Cone Low-Frequency Woofer
Each speaker in the Stage 2 series features Polycellulose ribbed cone woofers. This pure pulp cone has a proprietary mix of other materials added to improve its rigidity and the ribs echo legendary JBL designs. These woofers produce deep, accurate, room filling bass.

150-Watts RMS Amplifier (300 Watts Peak Power)
The built-in high-performance 300-watt amplifier provides impactful and memorable sound quality deserving of the JBL name. The 200P can be placed anywhere in the room and connects to your AVR to create a stereo or multi-channel home theater system with impactful bass and unprecedented performance.

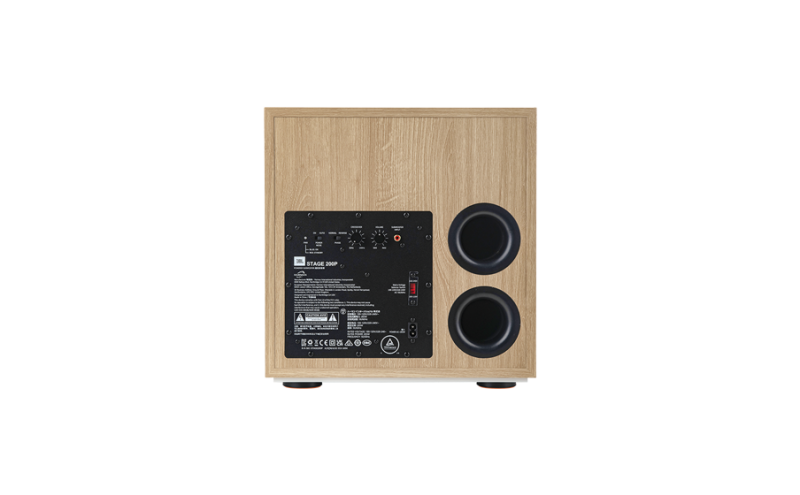

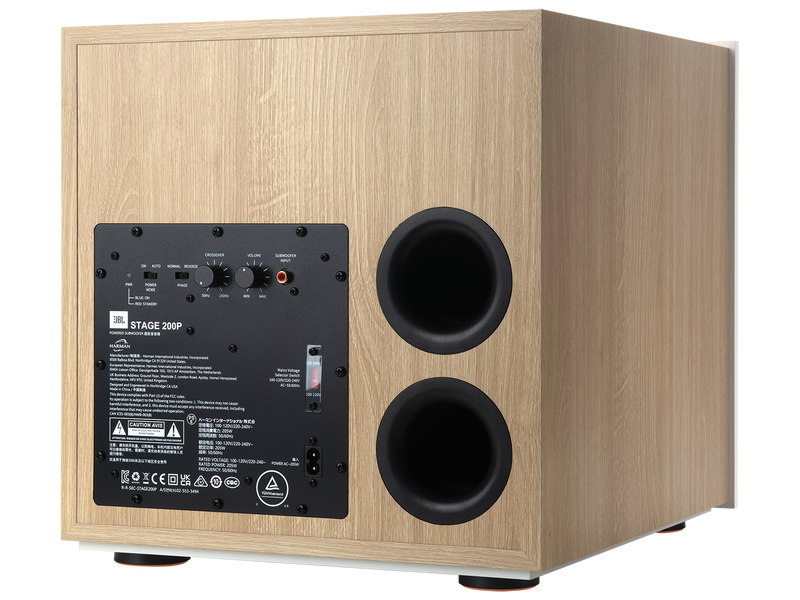

Bass-Reflex Design with Dual Rear-Firing Flared Ports
The Bass-Reflex design of the 200P use dual rear-firing flared ports. This new flared design reduces the velocity of the air when exiting the speaker cabinet, eliminating any chuffing or coloration of output.
Features

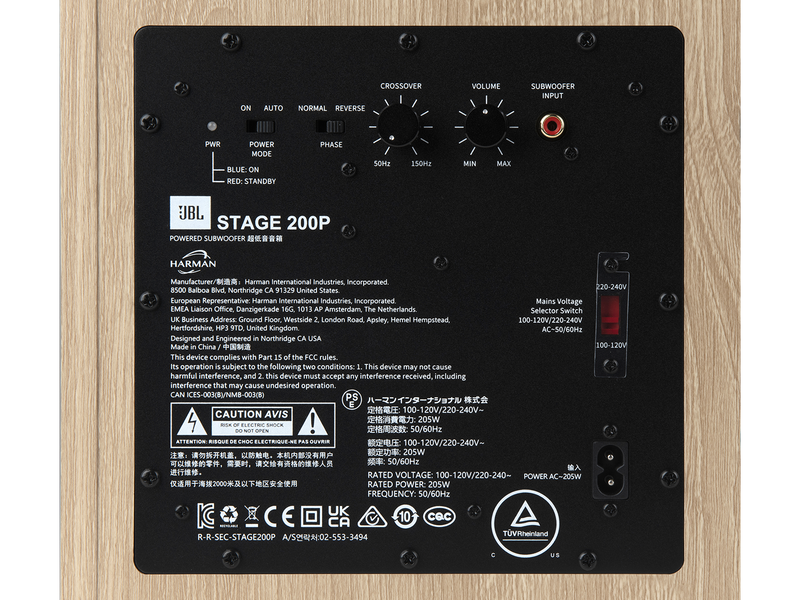

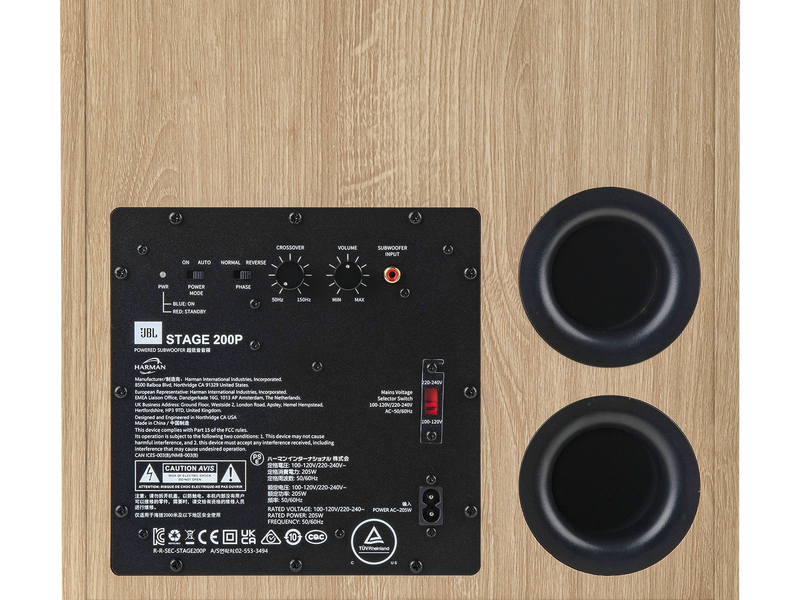

Rear-Mounted Volume, Crossover, Phase, and Power Controls
The rear mounted controls include a variable low-pass 50-150Hz crossover, so it can be dialed in precisely under the main channels and the power can remain on or be set to Auto to save energy.
Line-Level LFE Input
The 200P profiles complete integration with and audio system via Line Level or LFE inputs. The LFE input bypasses the subwoofer's internal low-pass crossover. It is used when you're connecting the subwoofer to the dedicated subwoofer output of a receiver/processor that has its own low-pass crossover network.

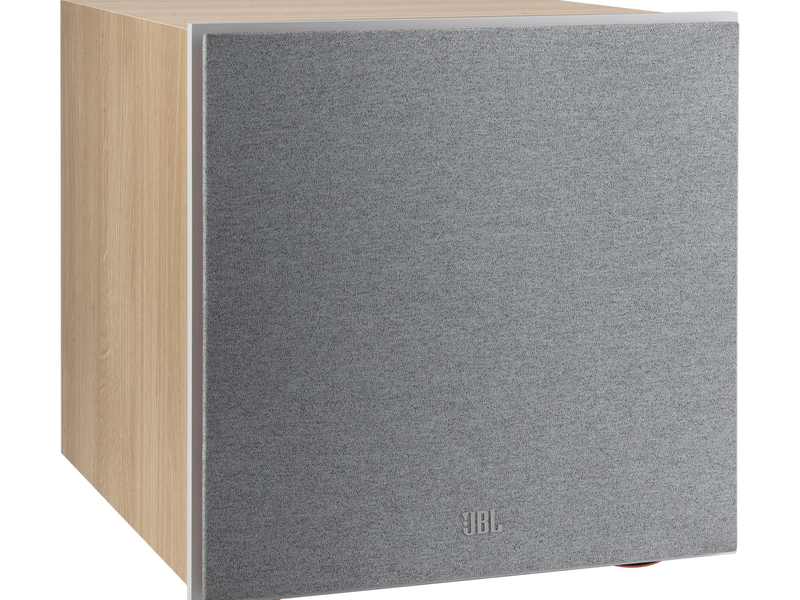

Magnetically Attached Grilles
Stage 2 has premium details throughout the line including magnetically attached grilles, unique trim rings and the floating front baffle design - upscale features not typically found on loudspeakers in this price range.
Adjustable Floor Spikes
The floor spikes on the 200P provide stability when placing your speakers on a thick rug or plush carpeting. The carpet spikes can be manually screwed into each foot on the plinth of the speaker and are easily adjustable from the top.
Description
10-inch (250mm) 300W Powered Subwoofer

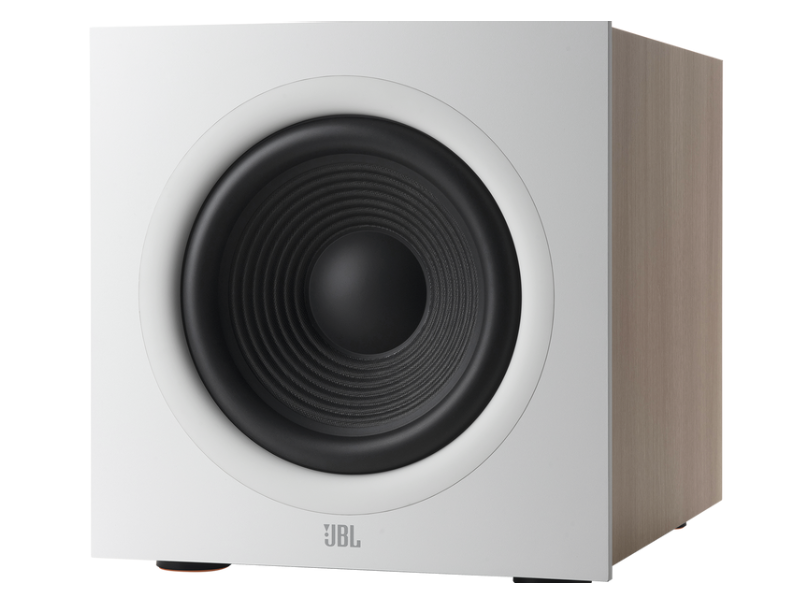

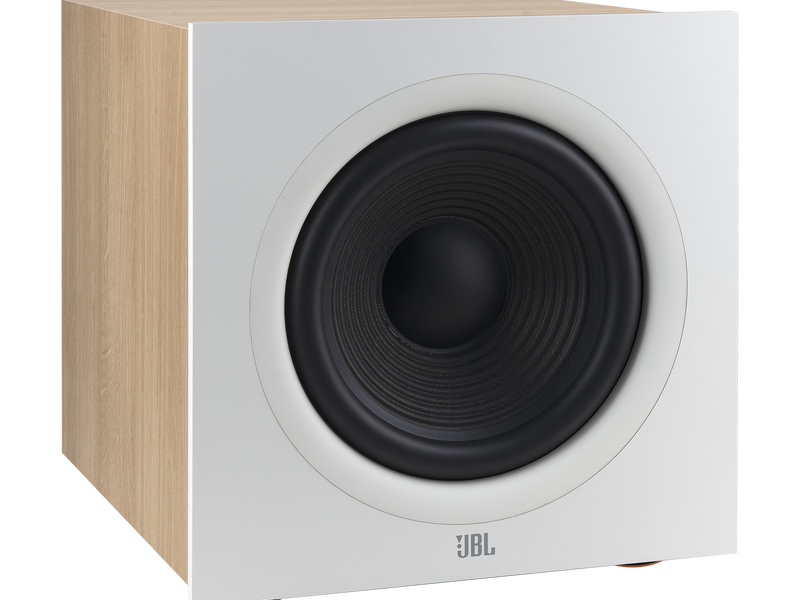

Designed and engineered at our world-famous Acoustic Engineering Center of Excellence in Northridge, California, the Stage 200P is a 300W powered subwoofer perfectly matched with the entire Stage series and deliver the low frequency excitement that customers crave. This subwoofer features a front-firing high excursion 10-inch (250mm) Polycellulose low-frequency woofer with dual rear firing tuned ports that provides deep, powerful, signature JBL bass. A full complement of controls provides for easy system integration.
Specification | |
---|---|
Controls | 35Hz-150Hz |
Type | Powered Subwoofer |
Low Frequency Driver | 10-inch (250mm) Polycellulose Ribbed High Excursion |
Amplifier Power | 150W RMS (300W Dynamic) |
Crossover Frequencies | 50Hz-150Hz (variable) 24dB/octave |
Frequency Response ± 6dB | 28Hz-150Hz |
Controls | Auto Power, Crossover, Level, Phase |
Inputs | One (1) Line-Level LFE Input |
Enclosure Tuning | Bass-Reflex via Dual Rear-Firing Tuned Ports |
Power Requirements | 120V, 60Hz (US) 220-230V, 50/60Hz (EU) |
Power Consumption | <0.5W (standby) / 205W/1.6A (max - 230V) / 205W/3.15A (max - 120V) |
Dimensions | |
Dimensions (HxWxD) | 14.2in x 13.8in x 15.2in (361mm x 350mm x 385mm) |
Product Weight | 31.8lbs. (14.4kg) |
Shipping Weight | 40.3lbs. (18.3kg) |
Shipping Units of Measure | Each |
What's in the box? | |
What's in the box? | 1 x 200P,1 x Power Cord,4 x Floor Spikes,1 x Speaker Grille,1 x Safety Sheet,1 x Quick-Start Guide |
