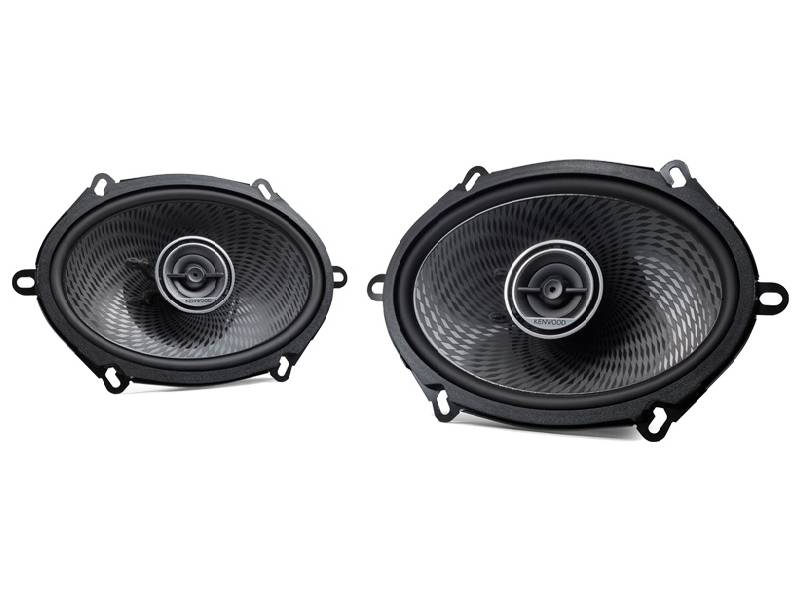

Kenwood 5x7 Inch Oval Custom Fit 2-way Speakers - KFC-C5796PS

Authorized Dealer Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $129.00 CAD

Availability
Call for availability

  • Peak Power 320W
  • Diamond Array Pattern Woofer Cone
  • Acoustic Sound Harmonizer
  • Sound Field Enhancer



Diamond Array Pattern Woofer Cone

This technology enhances sound and reduces distortion.

Sound Field Enhancer

This unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and higher frequencies.

Acoustic Sound Harmonizer

Produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel.

Factory Location Fit

The tweeter height is designed as low as possible, allowing the speakers to easily fit in most factory locations.

1. Black Painted Yoke and Plate
By implementing black paint on these parts, heat is released efficiently inside the magnetic circuit, resulting in temperature reduction of the voice coil and improved durability.

2. New Woofer Damper Shape

Stress leveling points increase durability and provide a smoother sound response.

Electrical
Impedance(Ω)
Peak Input Power(W) 320W
RMS Input Power(W) CTA standards80W
Sensitivity (dB at 1m) CTA standards88dB
Frequency Response(Hz) CTA standards64-24000Hz
Woofer
Diaphragm / Color PP Cone Black
Size 138x195mm 5x7 inch
Surround Rubber
BasketSteel
MagnetFerrite φ75xt10
Dimension
Width (w/o_Gr) 220.7 mm 8-11/16 in.
Height (w/o_Gr) 138 mm 5-7/16 in.
Top Height 8.2 5/16 in.
Cutout Diameter124.5x182.5 mm 4-7/8x7-3/16 in.
Mounting Depth 52 mm 2-1/16 in.
Weight
without Grille (pc.) 631g 1.4 lb
Weight of Woofer Magnet190 g 6.7 oz
Net Weight 1.30 kg 2.8 lb
Accessory
Tapping Screw φ4x30*8pcs
Speaker Cord 0.3m*2pcs
Speed Nut 8pcs
Colllar φ4 8pcs
Dimension
Width (w_Gr) -
Height (w_Gr) -
Weight
with Grille (pc.) -
Tweeter
Diaphragm / Color Balanced Dome Matte Black
Size 30mm 1-3/16 inch
MagnetNeodynium
