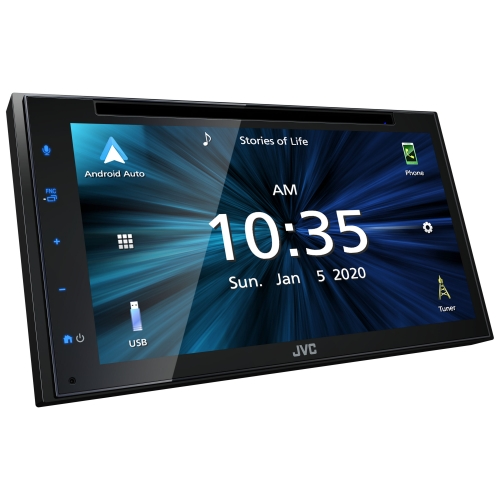

6.8" JVC Multimedia Receiver with Capacitive Touch Monitor - KW-V660BT
Authorized Dealer
Price Match Guarantee
SMARTPHONE INTEGRATION
JVC multimedia receivers interface your smartphone with your car to enrich your driving experience. Enjoy your favorite apps and view content on a big screen, in comfort and safety.

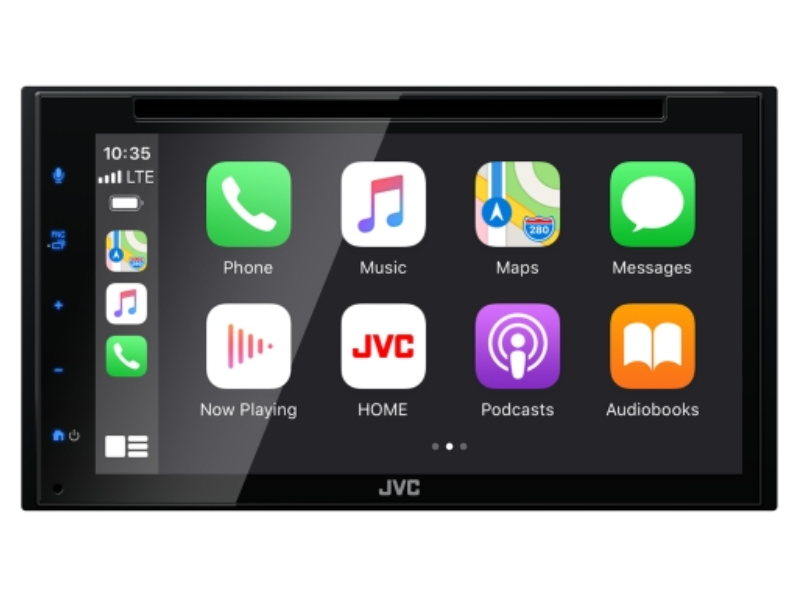

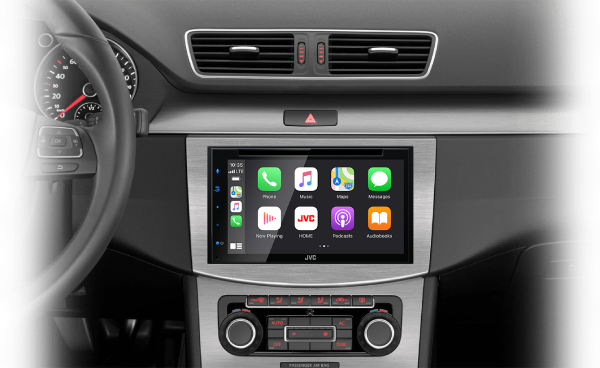

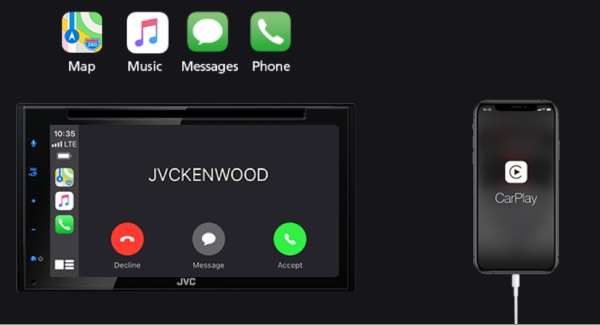

Apple CarPlay™ – Connect via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
With the latest iOS version (iOS 13.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are supported.

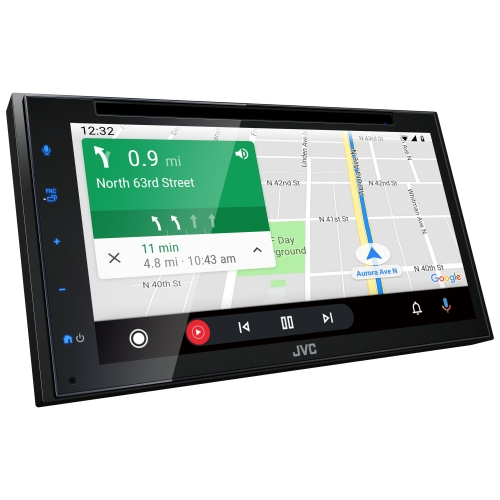

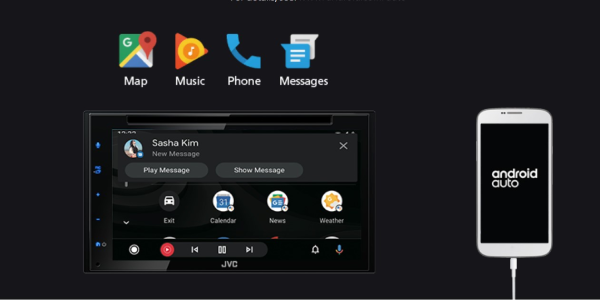

Android Auto™ – Connect via USB
Android Auto was designed with safety in mind. With a simple and intuitive interface and powerful voice actions, it’s designed to minimize distraction so that you can stay focused on the road.

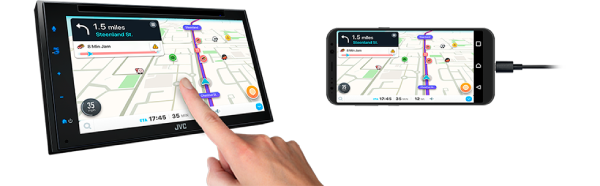

Mirroring for Android Phone – Connect via USB
By installing the “Mirroring OA for JVC” app, your Android phone is seamlessly displayed on the receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.
SOUND OPTIMIZATION

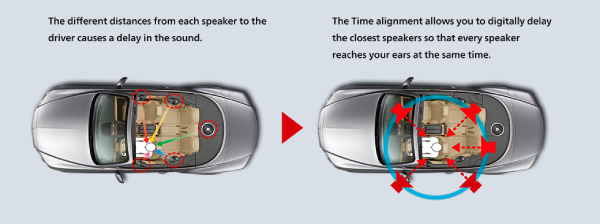

Time Alignment
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

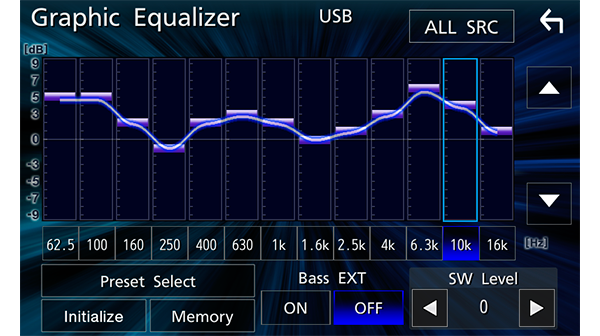

13-Band Equalizer
Use the 13-Band Equalizer to manually adjust the sound to your taste.
Bluetooth® Wireless Technology
Android™ Bluetooth Automatic Pairing
Just connect your Android device via USB and the automatic Bluetooth pairing function will work to complete the pairing. No complicated manual procedure to worry about.
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.
Internet Radio/Digital Radio
Ready for SiriusXM Radio(optional SiriusXM tuner required, sold separately)
Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.
General

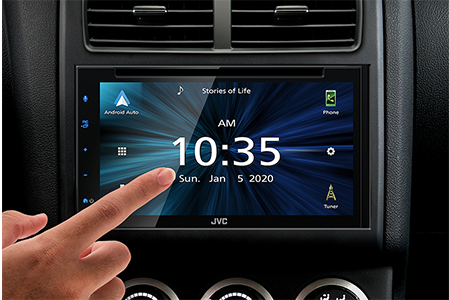

Capacitive Touchscreen
The Capacitive touch screen provides high clarity and uses a superior touch control, requiring lighter contact with greater accuracy.

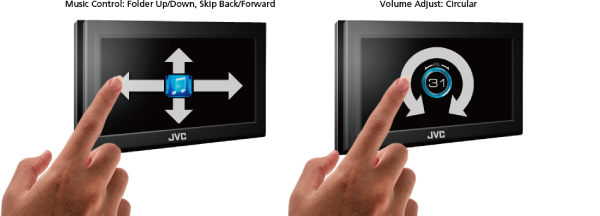

Gesture Touch Control
Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.
Various Formats Compatible
Supports a variety of file formats for audio and video playback.
High Current 1.5A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.

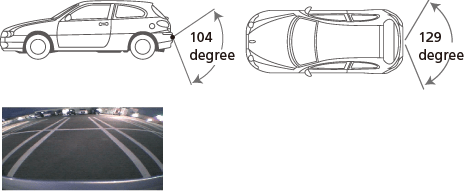

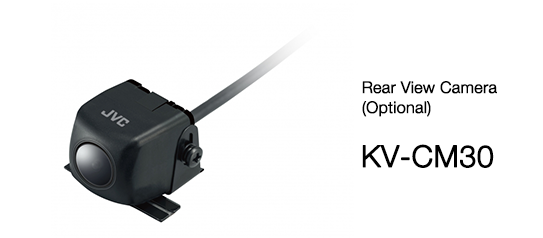

Rear View Camera Ready
The Rear View Camera input allows you to connect an optional rear view camera (sold separately).Rear view cameras allow you to safely back up your vehicle, monitor towing, and more.
Waterproof design 1/4" color CMOS sensor with effective 380,000 pixels Flexible mounting bracket included Camera dimensions (WxHxD): 23.4mm x 23.4mm x 23.9mm Weight: 21g (Camera only)
Steering Wheel Remote Control Ready
Factory steering wheel control functions can be retained with a third-party adapter (sold separately).

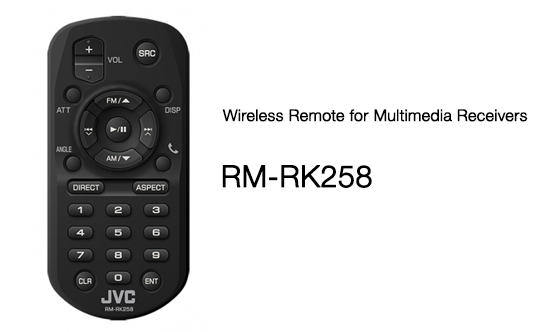

Remote Control (Optional)
Remote control (RM-RK258) is optionally available.

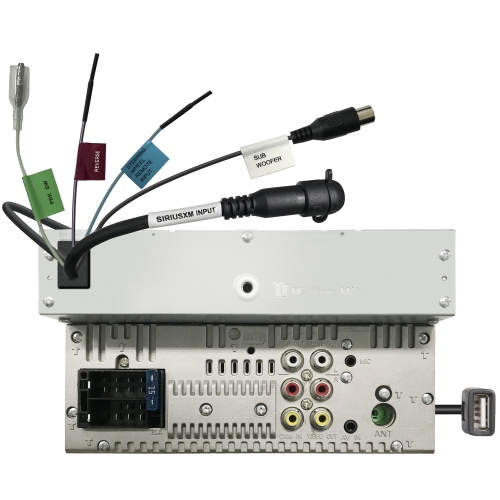

| Inputs and Outputs | |
|---|---|
| Line Output Terminals | 2Preouts (Terminal) + Sub WF (Cable) |
| Rear view camera Input | Yes |
| Video Out | RCA |
| AV Input | mini jack |
| Audio | |
| Time Alignment | Yes |
| High-Pass Filter/Low-Pass Filter | Yes/Yes |
| Bass Boost | Yes |
| Preset EQ | Yes (7Preset + 3user) |
| EQ | Yes (13-Band Graphic EQ) |
| Full Bandwidth Power (Front & Rear) | 22W x 4 (Full Bandwidth Power, at less than 1% THD) |
| Maximum Power Output (Front & Rear) | 50Wx4 |
| Radio Tuner | |
| AM - Frequency Range | 530-1,700kHz |
| FM - Frequency Range | 87.9 - 107.9MHz |
| Auto Memory Entry | Yes |
| Preset Stations | 20(FM:15ch, AM:5ch) |
| Radio Broadcast Data System (RBDS) | Yes |
| SiriusXM Ready | Yes |
| USB | |
| USB Power Supply | Yes (1.5A High Current Charging) |
| Position | Rear |
| USB Port | x 1 (High Speed) |
| iPod/iPhone Control | |
| CarPlay[3] | Yes (via USB) |
| Android Control | |
| Android Music Playback | Yes (via Bluetooth(R)) |
| Mirroring for Android | Yes (via USB) *Need mirroring App |
| Android Auto[2] | Yes (via USB) |
| Bluetooth Control | |
| Phone Book Access Profile (PBAP) | Yes |
| Alphabetical Search for Phone Book | Yes |
| Auto Pairing for iPhone/Android | Yes (Android only) |
| Voice Dialing (voice recognition compatible mobile phone required) | Yes |
| Supported Audio Formats | AAC / SBC |
| Audio Streaming & Control (A2DP, AVRCP) | Yes |
| Hands Free Call | Yes (HFP1.6 Wideband Speech) |
| Built-in Bluetooth[1] | Yes (Wired-Mic included) |
| Media Playback | |
| Video CD Playback | Yes |
| DVD Player | |
| DVD-R/-RW, +R/+RW Compatible | Yes |
| CD Player | |
| CD-R/RW Compatible | Yes |
| Media Playback | |
| AVI/MKV Compatible | CD / DVD / USB |
| MPEG 4 Compatible | CD / DVD / USB |
| MPEG 1/2 Compatible | CD / DVD / USB |
| WMV Compatible | CD / DVD / USB |
| H.264 Compatible | CD / DVD / USB |
| FLAC Compatible with Tag | CD / DVD / USB |
| AAC Compatible with Tag | CD / DVD / USB |
| WAV Compatible with Tag | CD / DVD / USB |
| WMA Compatible with Tag | CD / DVD / USB |
| MP3 Compatible with Tag | CD / DVD / USB |
| MONITOR | |
| Multilingual Display | Yes[4] |
| Dimmer | Yes |
| Key Illumination Color | Blue |
| Customizable GUI | Yes |
| Gesture Touch Control | Yes |
| Touch Panel | Capacitive |
| Screen Size | 6.8"W VGA Screen |
| Inputs and Outputs | |
| Pre-output Level/Impedance | 2.0V / 10k ohms |
| Subwoofer Output with Level/Frequency Control | Yes |
| General | |
| Back Up Memory | Yes |
| Wireless Remote Control | Ready (RM-RK258 required) |
| Steering Remote Control Ready | Yes |
| ISO Connector | Yes |
