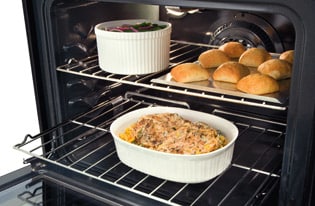

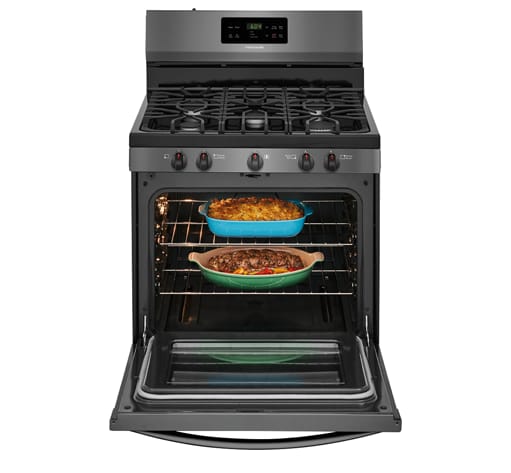

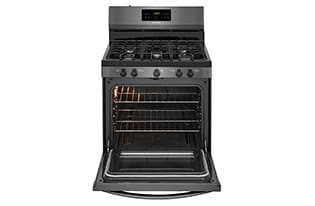

Large Capacity
Our large capacity oven gives you room to cook more dishes at once.

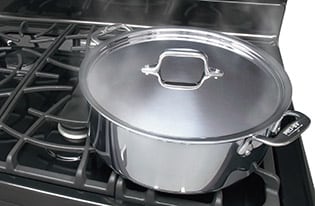

Quick Boil
Get meals on the table faster with our 17,000 BTU burner - water boils faster than the traditional setting.

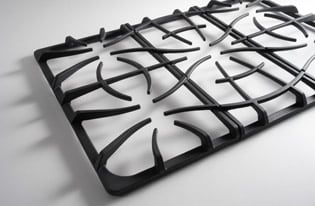

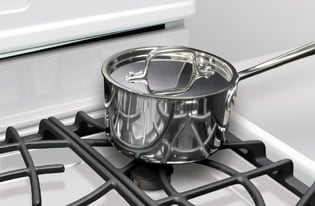

Continuous Corner-to-Corner Grates
Move heavy pots & pans without lifting with continuous corner-to-corner grates.
One-Touch Self Clean
Your oven cleans itself - so you don't have to. Self clean options available in 2, 3 and 4-hour cycles.
Sealed Gas Burners
Enjoy easier cleanup and a burner that stays looking great.

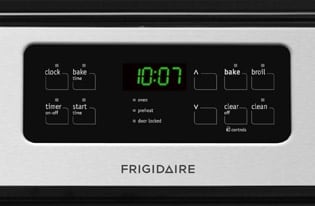

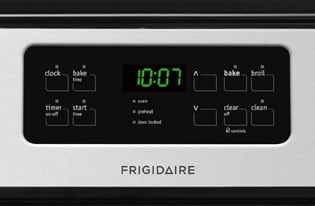

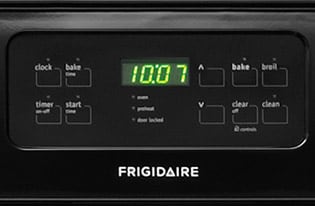

Electronic Kitchen Timer
Times up to 12 hours (control panel colors vary by model)

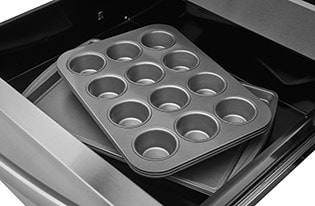

Store-More Storage Drawer
Our convenient drawer gives you extra storage space in your kitchen.
Delay Clean
Set the oven to begin cleaning on your schedule.

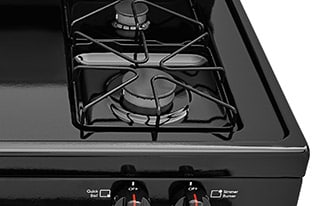

Low Simmer Burner
Perfect for cooking delicate foods and sauces.
Auto Shut-Off
As an extra safety measure, the oven will automatically shut off after 12 hours.

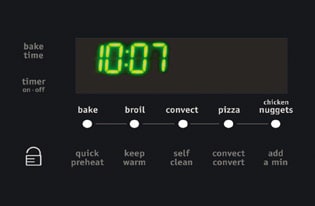

Timed Cook Option
Lets you set the oven to begin cooking at a predetermined time. (Control panel colors vary by model)
DRAWER | |
---|---|
Drawer Type | Storage |
Safety Certifications & Approvals | |
ADA Compliant | No |
CSA Listed | Yes |
ELECTRICAL SPECIFICATIONS | |
Voltage Rating | 120 V |
Minimum Circuit Required | 5 Amps |
Cooking Controls | |
Sabbath Mode | No |
Timed Bake | Yes |
External Control Lock | Yes |
Temperature Display | Yes |
Self Clean | Yes |
Preheat | Yes |
Probe | No |
Oven Light | Yes |
Lockout | Yes |
Cancel | Yes |
Kitchen Timer | Yes |
Bake | Yes |
Broil | Yes |
Dimensions and Volume | |
Width | 29 7/8 |
Height | 47 |
Depth | 25 3/4 |
Depth With Door 90° Open | 46 9/16 |
Oven Interior Height | 18 5/8 |
Oven Interior Width | 24 3/8 |
Capacity | 5 Cu. Ft. |
Oven Interior Depth | 19 1/8 |
OVEN | |
Bake System | Yes |
Bake Element | 18,000 BTU |
Broil System | Yes |
Number of Rack Positions | 6 |
Rack Position Type | Nickel Ladder |
Rack Type 1 Quantity | 2 |
Rack Type 1 | Flat |
Window Type | Extra Large Visual |
Installation | |
Adjustable Leveling Legs | Yes |
Power Supply Connection Location | Bottom Center |

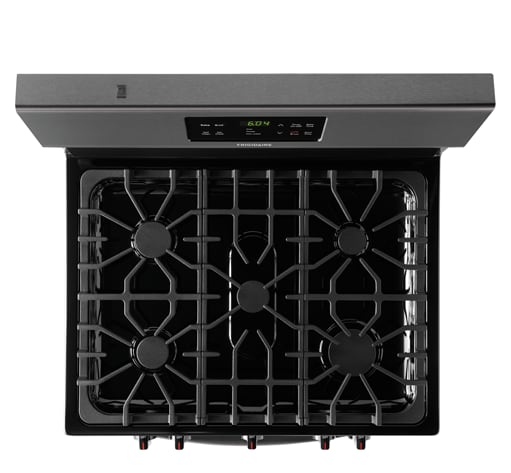

COOKTOP | |
Cooking Surface Type | Gas |
Grate Material | Cast Iron |
Grate Finish | Matte Black |
Grate Quantity | 3 |
Grate Style | Continuous |
Right Front Element Burner | 17,000 BTU |
Right Rear Element Burner | 5,000 BTU |
Left Front Element Burner | 9,500 BTU |
Left Rear Element Burner | 12,000 BTU |
Center Element Burner | 9,500 BTU |
Display | |
Display Type | Membrane |
Exterior | |
Cooktop Finish | Color Coordinated |
Drawer Finish | Black Stainless Steel |
Handle Color | Black Stainless Steel |
Handle Material | Plastic |
Knob Color | Black Stainless Steel |
Knob Material | Plastic |
Manifold Finish | Black Stainless Steel |
General Specifications | |
Product Weight | 180.5 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
