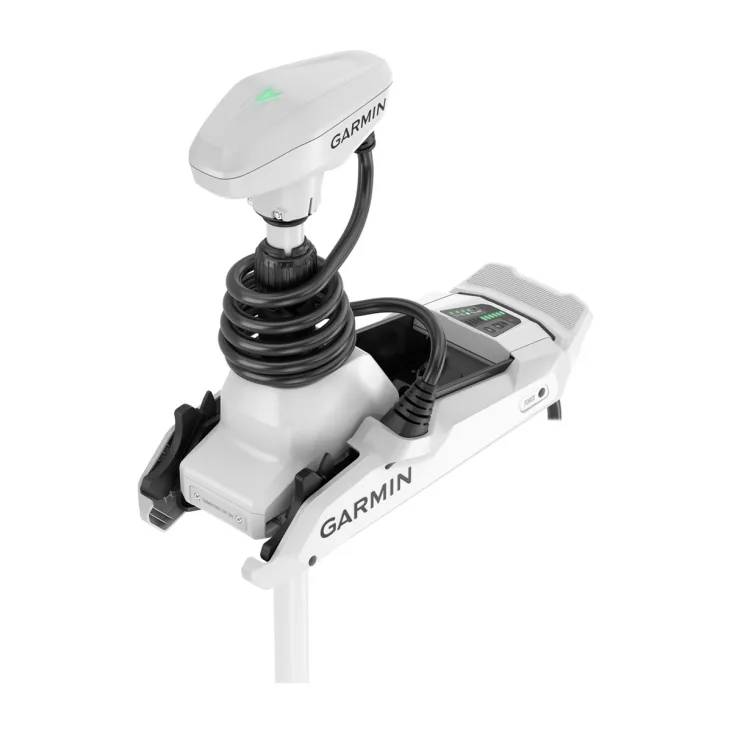

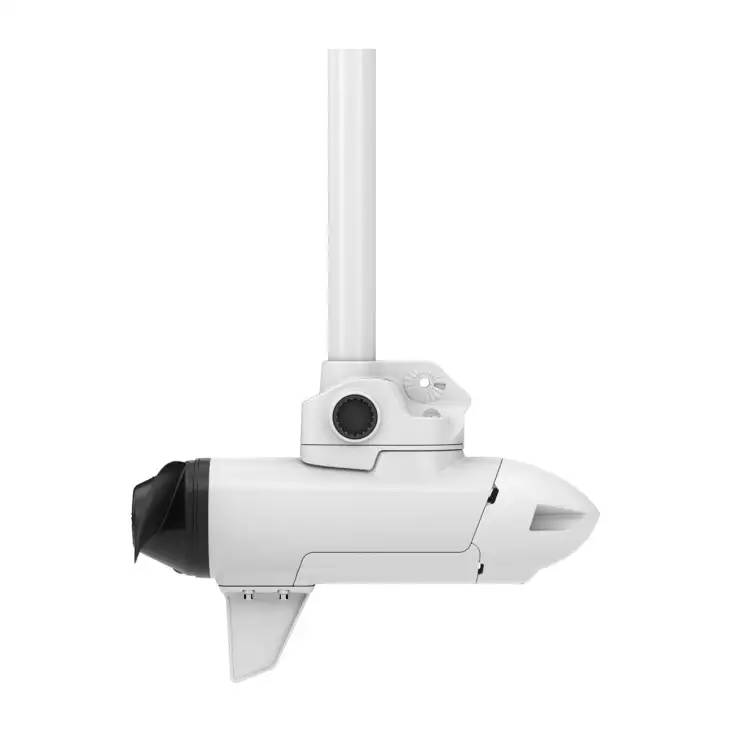

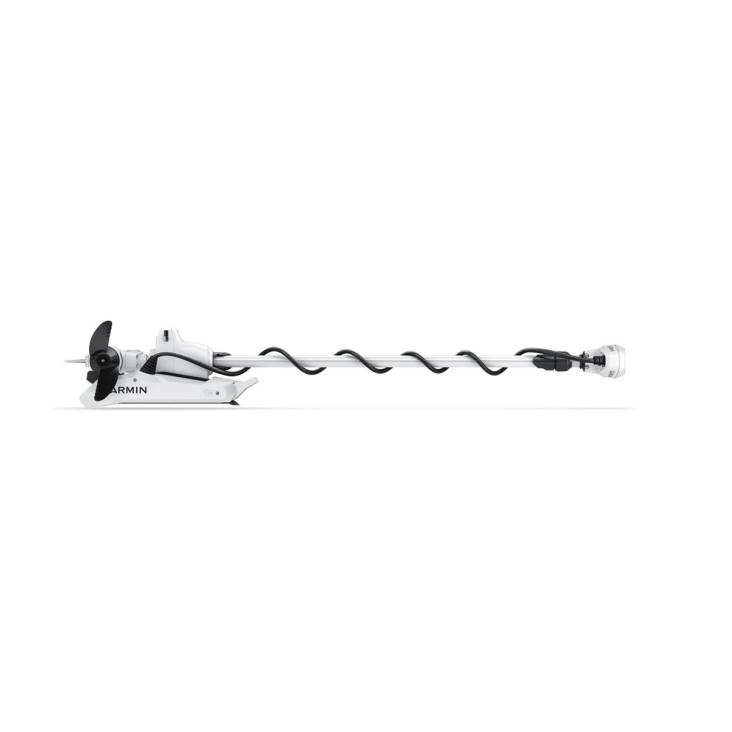

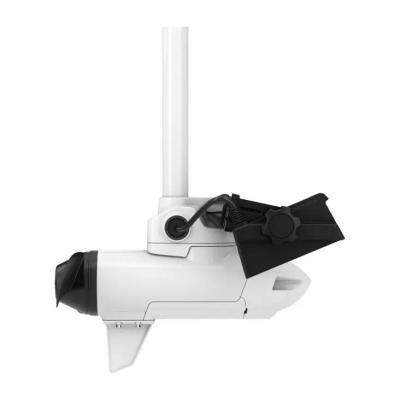

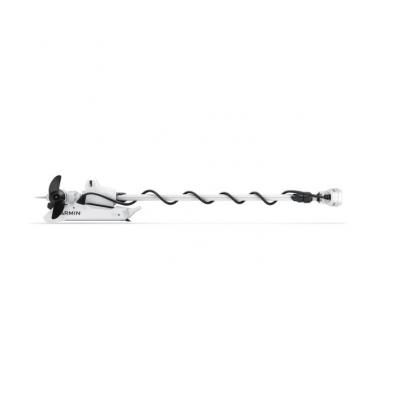

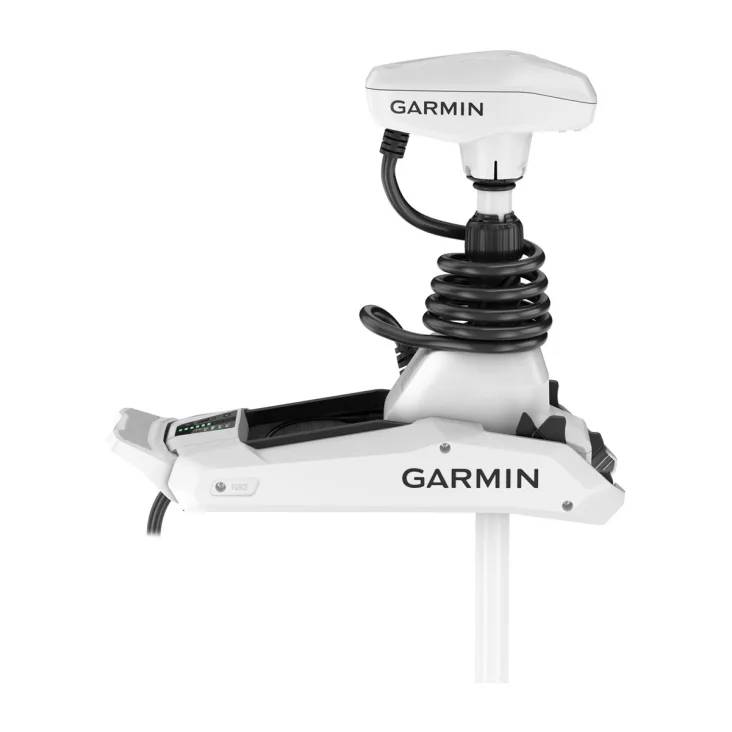

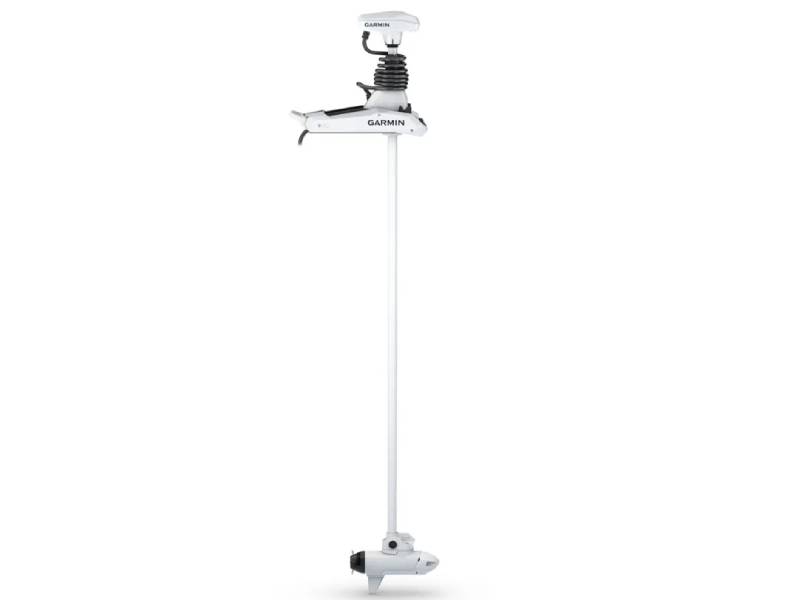

Garmin Force® Kraken Trolling Motor White 90" Trolling Motor - 010-02574-20

Authorized Dealer Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $6,239.99 CAD

Or as low as $693.33/month over 9 months. Apply Now


Availability
Call for availability

Literature

THERE’S A NEW LEGEND TO BEHOLD

The Force Kraken trolling motor is engineered with a longer shaft for boats with high freeboards and a pivot-style mount for easy installation in vessels where bow space is limited.



WHAT YOU'LL LOVE

HIGH POWERED

With 100 lbs of thrust1, Force Kraken is the most powerful trolling motor on the market.

DESIGNED TO ENDURE

The sturdy composite shaft and all components are built to endure harsh marine environments and have advanced corrosion and saltwater protection.

POWER THAT LASTS

Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing — and not running out of battery.



PURPOSE-BUILT DESIGN

This trolling motor is optimized to operate in rough open-water conditions, at either 24 or 36 volts, thanks to the powerful and efficient brushless motor design.

LIVESCOPE™ SONAR CABLE MANAGEMENT

Keep your LiveScope sonar cable protected by running the transducer cable through the trolling motor shaft (accessory purchase required).

PERFECT FOR BAY BOATS AND CENTER CONSOLES

Get easy installation where bow space is limited, thanks to the pivot-style mount. The 48", 63", 75" and 90" shaft lengths accommodate many different boat sizes and deck configurations.



TOTAL CONTROL

STAY PUT

The anchor lock provides our most precise boat positioning technology with multi-band GPS signal reception to help keep the boat in one place.



FLOATING REMOTE

Use the included remote to help you navigate from anywhere in the boat with our simple point -and-go technology.



SMARTWATCH INTEGRATION

Connect your compatible Garmin smartwatch to control steering, anchor lock and more from your wrist.



WIRELESS INTEGRATION

Connect to your compatible chartplotter to create and follow routes for the trolling motor to follow while you fish.



WHISPER QUIET

Don’t spook the fish; the motor is extremely quiet above and below the water.

In the Box
  • Force® Kraken Trolling Motor
  • Remote
  • High efficiency propeller
  • Assembly and mounting hardware
  • Stabilizer (included with 90" only)
  • Documentation
General
Colorwhite
For use infreshwater, brackish water and saltwate
Mount stylepivot-style mount
Max thrust100 lbs per ISO 13342 using high efficiency propeller at 36 V
80 lbs per ISO 13342 using high efficiency propeller at 24 V
Voltage24 V or 36 V
Electric steeringYes
Built-in heading sensorYes
Built-in GPSyes (dual frequency GPS)
Warranty3-year, limited lifetime on shaft
Water ratingIPX7
Mounting locationbow
Wireless remoteyes (included)
Foot pedal compatibleYes
Battery indicatorYes
Variable speed controlyes (20 steps)
Lighted direction indicatorYes
Deck stabilizeryes (90" only)
quatix remote control supportedYes
Sonar Features
LiveScope cable integrationyes (LiveScope transducer and Kraken Mounting Bracket purchases required)
Autopilot Features
Route followingYes
Anchor lockYes
Smart Anchor Lock featuresYes
Anchor lock jogYes
Heading holdYes
Cruise controlYes
Gesture featuresyes (manual+, heading hold+, jog+)
Foot Pedal Features
Dimensions12" L x 9" W x 4 1/2" H
Wireless communicationYes
Power installation12 V/24 V/36 V wired or battery powered (2 AA)
AA battery life1 full season
Water ratingIPX7
Adjustable pedal resistanceYes
Remote Features
Display size1.2" (30.2 mm) diamete
Display resolution240 x 240 pixels
Display typecolor, sunlight-visible, transflective memory-in-pixel (MIP)
Chartplotter user-programmable keysYes
Autopilot feature controlYes
Water ratingIPX7
Battery lifetypical use with backlight at low, 43 weeks
FloatsYes
