Garmin Panoptix PS22-IF Ice Fishing Bundle - 010-02686-30
Authorized Dealer
Price Match Guarantee
| Our Price | $2,899.99 CAD |
Or as low as $322.22/month over 9 months. Apply Now
HOP FASTER BETWEEN HOLES

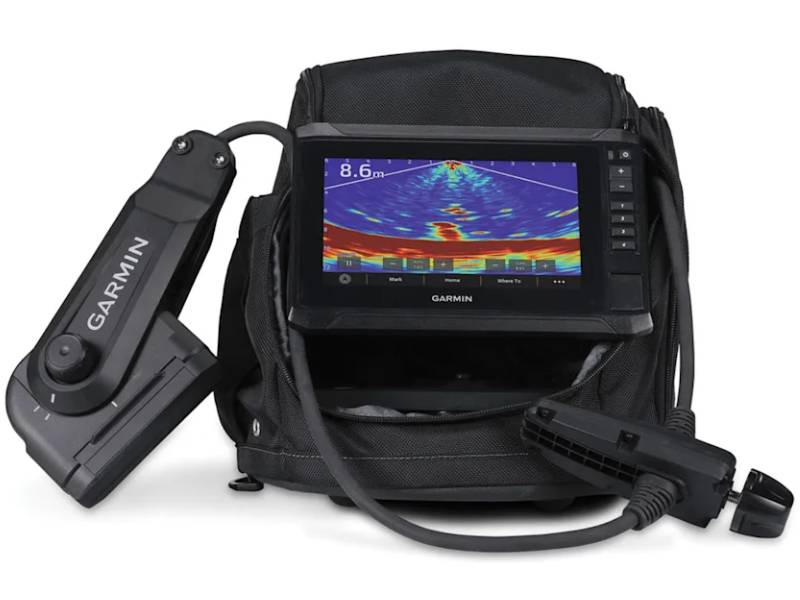

The ultraportable Panoptix PS22-IF ice fishing kit provides two live sonar modes and a pole mount-free design, so you can move faster between holes to find more fish.
WHAT YOU'LL LOVE

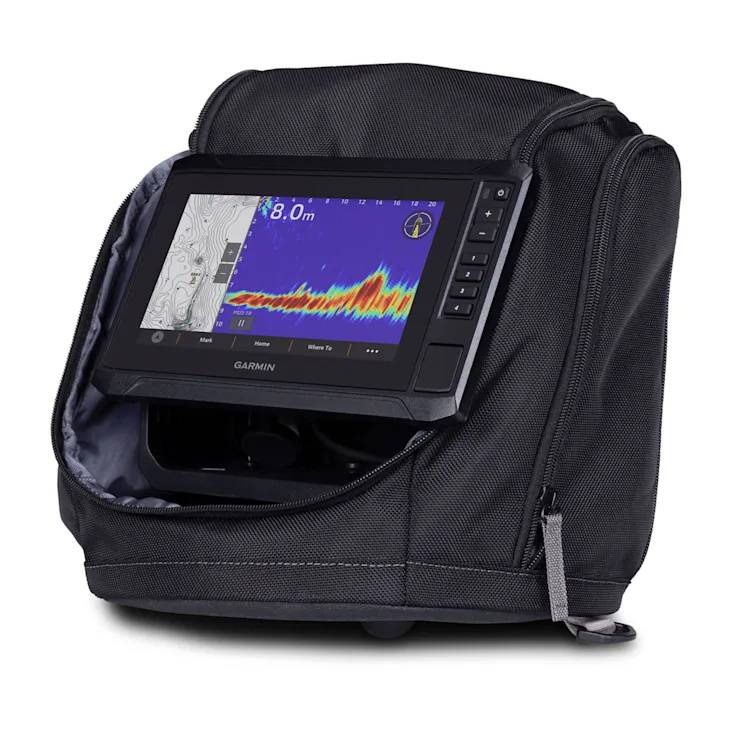

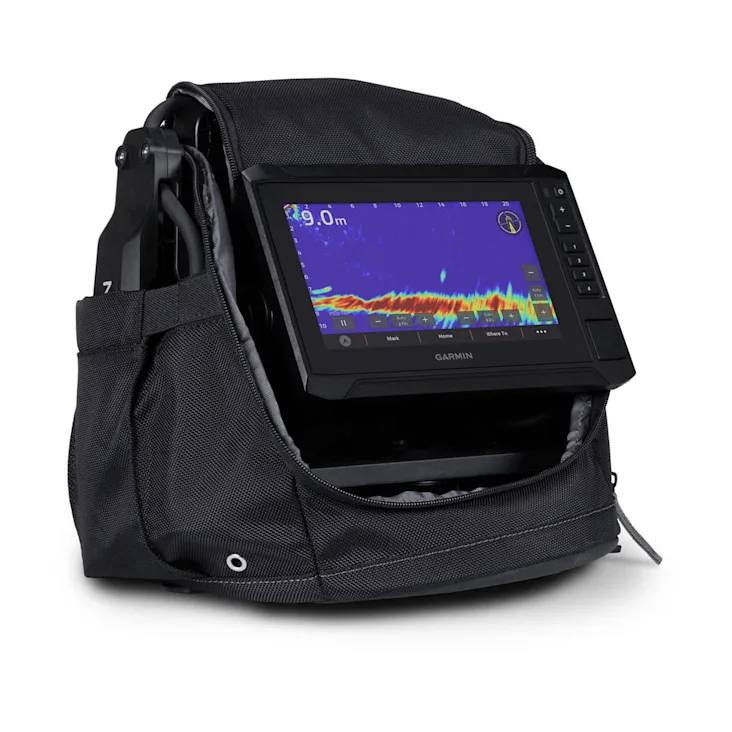

ECHOMAP UHD2 CHARTPLOTTER
The bundle includes a 7” ECHOMAP UHD2 chartplotter with touchscreen, keyed assist and two types of sonar: LiveVü™ Forward and LiveVü™ Down modes.

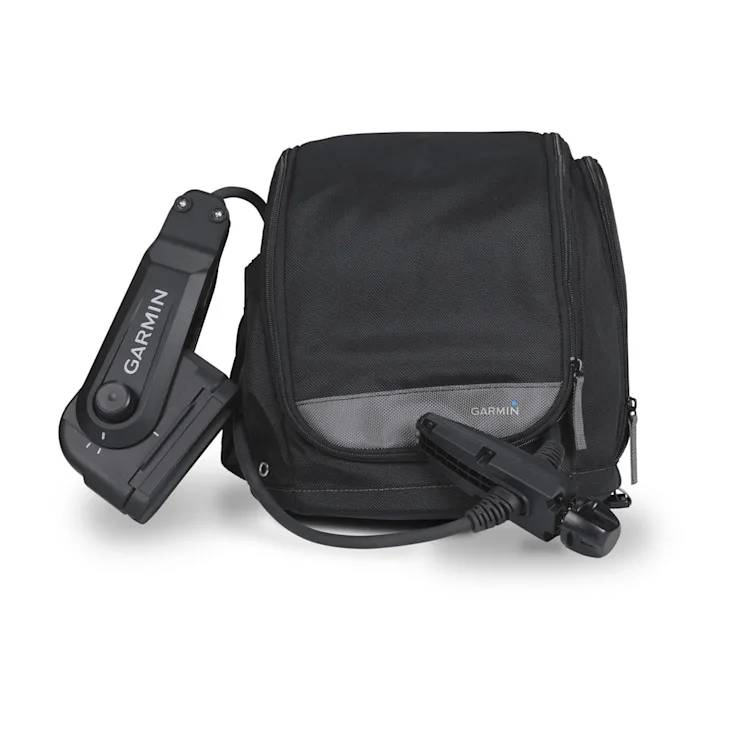

ICE FISHING TRANSDUCER
The Panoptix PS22-IF transducer doesn’t require a pole mount. The bracket design allows for easy Forward and Down mode adjustments, while the rotator controls direction and depth.
GARMIN NAVIONICS+ MAPS
Get exceptional detail on more than 20,000 Canada lakes with an included 1-year subscription to access daily map updates.
CUSTOM COMBOS
Easily create custom pages that combine sonar and mapping on your display.
TRANSDUCER LENS
Easily change between wide and narrow beams to focus on areas of interest with the removable transducer lens.

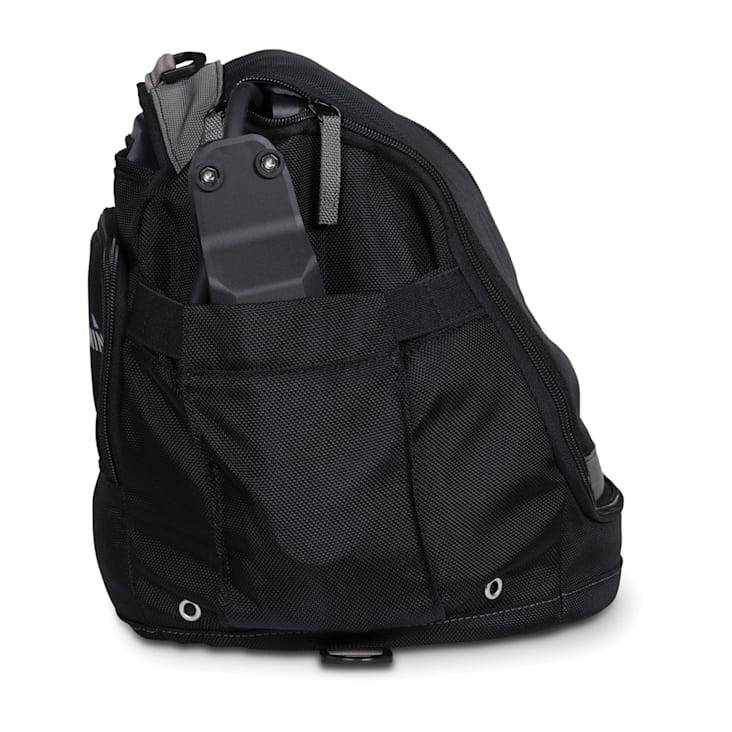

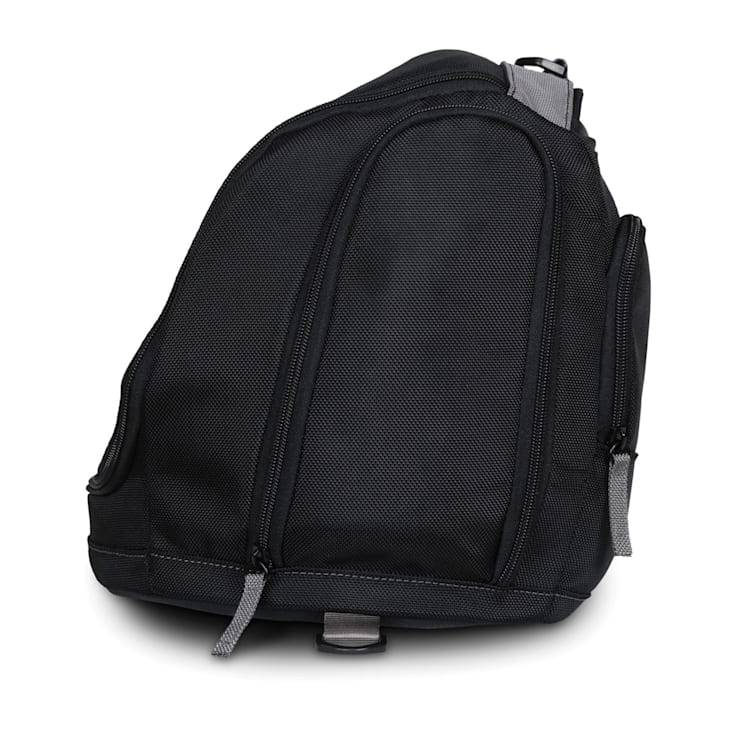

CARRYING CASE
The rugged, glove-friendly carrying case lets you easily transport your entire bundle from hole to hole.
In the Box
- Bundle with No Mapping
- ECHOMAP™ UHD2 72sv
- Panoptix™ PS22-IF transducer
- Transducer rotator
- Transducer bracket
- Removable lens
- Small bag, base and handle
- Power cable
- Foam float
- Hardware
- Documentation
Bundle with Mapping
- ECHOMAP UHD2 73sv or 75sv touchscreen with keyed assist chartplotter (depending on version selected)
- Mapping: Garmin Navionics+ for U.S. inland or Canada inland and coastal (depending on version selected)
- Panoptix PS22-IF transducer
- Transducer rotator
- Transducer bracket
- PS22-IF removable lens
- Rechargeable battery
- Charger
- Small bag, base and handle
- Power cable
- Foam float
- Hardware
- Documentation
| General | |
|---|---|
| Dimension | 10.5" × 9.5" × 10.5" (26.7 × 22.9 × 26.7 cm) |
| Maps & Memory | |
| Tracks | 50 saved tracks |
| Track points | 50,000 |
| Waypoints | 5000 |
| Accepts Data Cards | 1 microSD™ card; 32 GB maximum size |
| General | |
| Input | Touchscreen with Keyed Assist |
| Display Resolution | 800 x 480 pixels |
| Display Size | 6.1" x 3.4", 7.0" (15.5 x 8.7, 17.8 cm) |
| Display Type | WVGA, TN |
| Touchscreen | Yes |
| Water rating | IPX7 |
| Weight | 12.2 lbs (5.5 kg) |
| Maps & Memory | |
| Navigation Routes | 100 |
| Ice Fishing Details | |
| Battery type, size | SLA, 7Ah |
| Bag size | S |
| Included transducer | PS22-IF |
| Transducer holding feature | Pole-free transducer rotation system |
| Sensors | |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| BeiDou | Yes |
| Has built-in receiver | Yes |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | Yes |
| Supports WAAS | Yes |
| Supports multi-band, multi-constellation GPS | Yes |
| Built-in Maps | |
| Built-in Auto Guidance+ | yes (downloadable via ActiveCaptain app) |
| Garmin Navionics+ Inland & Coastal | yes (see Additional) |
| Garmin Navionics+ (Inland) | yes (see Additional) |
| Optional Map Support | |
| Garmin Navionics+™ | Yes |
| Garmin Navionics Vision+™ | Yes |
| TOPO 100K | Yes |
| Standard Mapping | Yes |
| Garmin Quickdraw Contours | Yes |
| Chartplotter Features | |
| ActiveCaptain® compatible | Oui |
| Electrical Features | |
| Power Input | 9 to 18 Vdc |
| Sonar Features | |
| Displays sonar | Yes |
| Power output | 500 W |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVü | built-in 260/455/800/1000/1200 kHz |
| SideVü | built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | Yes |
| LiveScope | Yes |
| CONNECTIONS | |
| NMEA 2000® ports | Yes |
| Garmin Marine Network Ports | 1 |
| 12-pin transducer ports | 1 |
| BLUETOOTH® pairing | Yes |
| ANT+ (Connectivity) | Yes |
| Garmin Wi-Fi network (local connection) | Yes |
| Additional | |
| Additional | Garmin Navionics+ Inland & Coastal: 75sv Canada Garmin Navionics + (Inland): 73sv U.S. Lakes |
