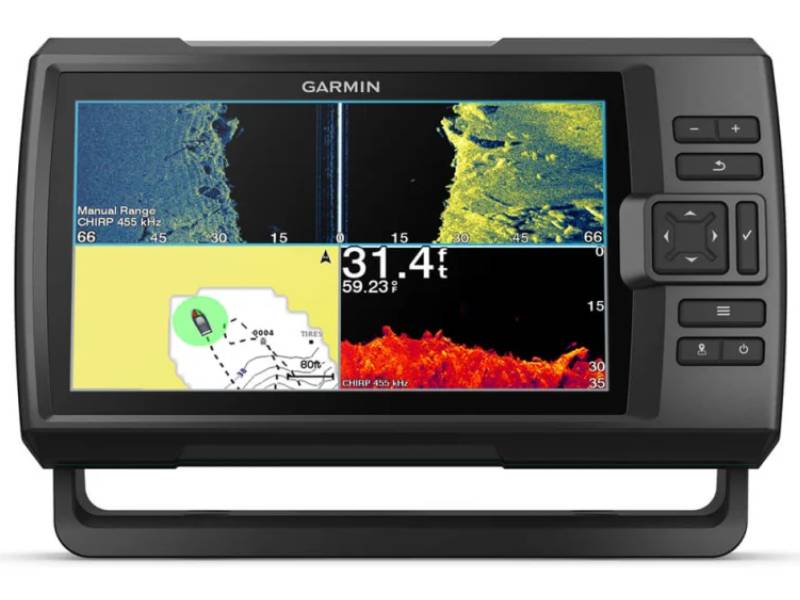

Garmin STRIKER Vivid 9sv With GT52HW-TM Transducer - 010-02554-01
Authorized Dealer
Price Match Guarantee
| Our Price | $899.99 CAD |
Or as low as $150.00/month over 6 months. Apply Now
Garmin STRIKER Vivid 9sv With GT52HW-TM Transducer - 010-02554-01
010-02554-01
THE CHOICE IS YOURS
See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 9sv fishfinder with transducer.
A new way to see what’s under the water.
CLEAR, COLORFUL SONAR
Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 9” fishfinder.
BUILT-IN SONAR

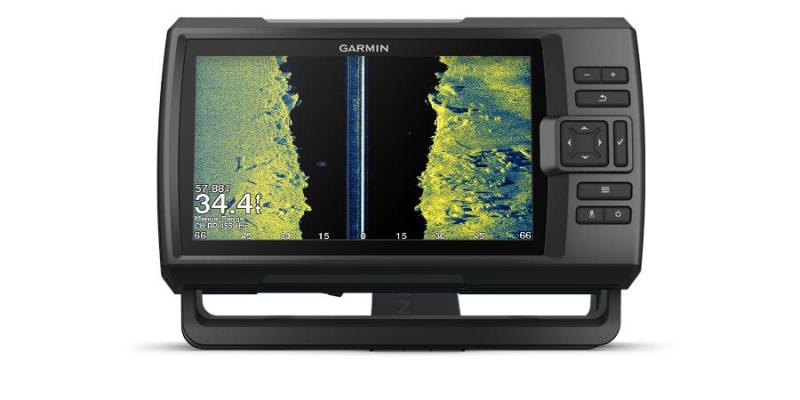

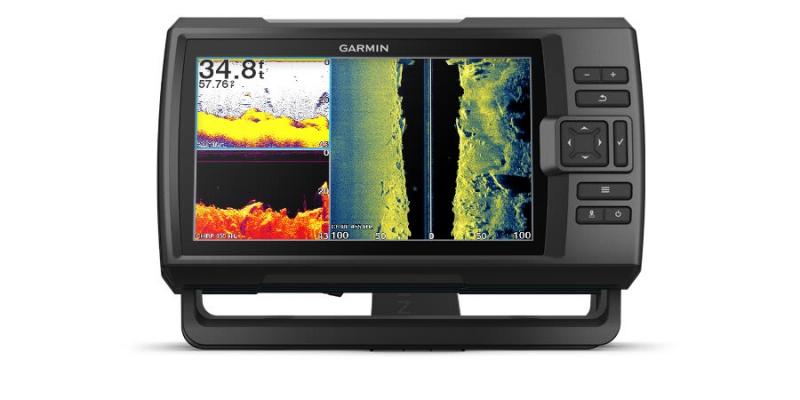

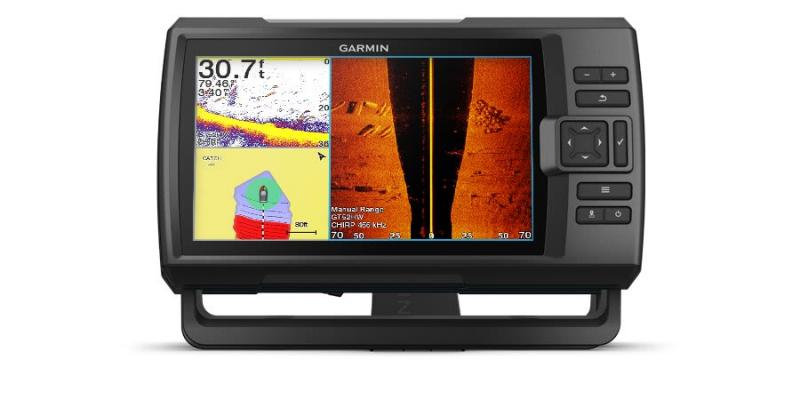

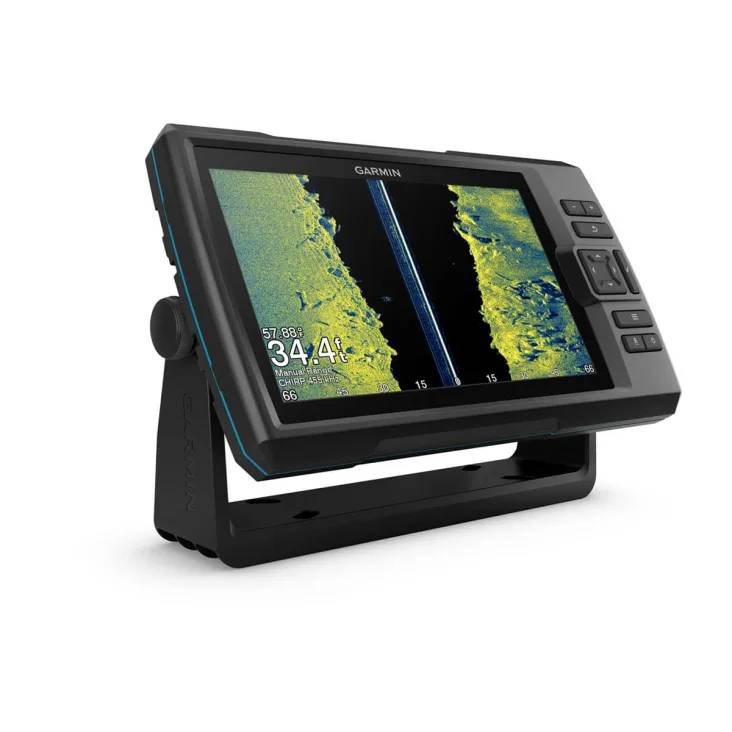

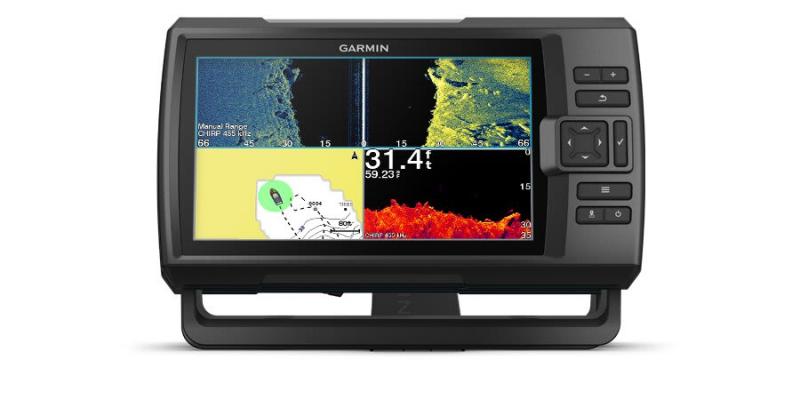

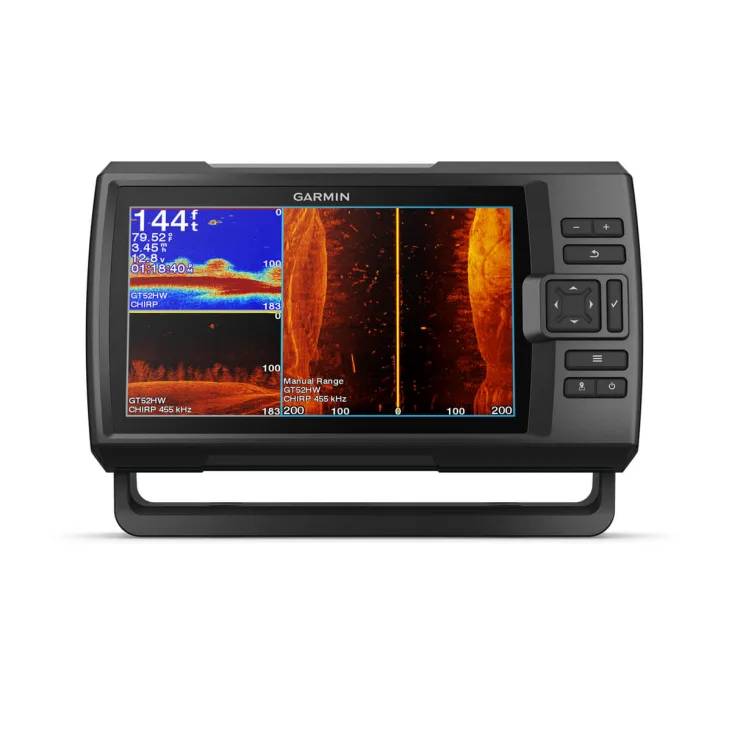

Use the included GT52 transducer to get Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars.
WAYPOINT MARKING
To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.
HIGH-SENSITIVITY GPS

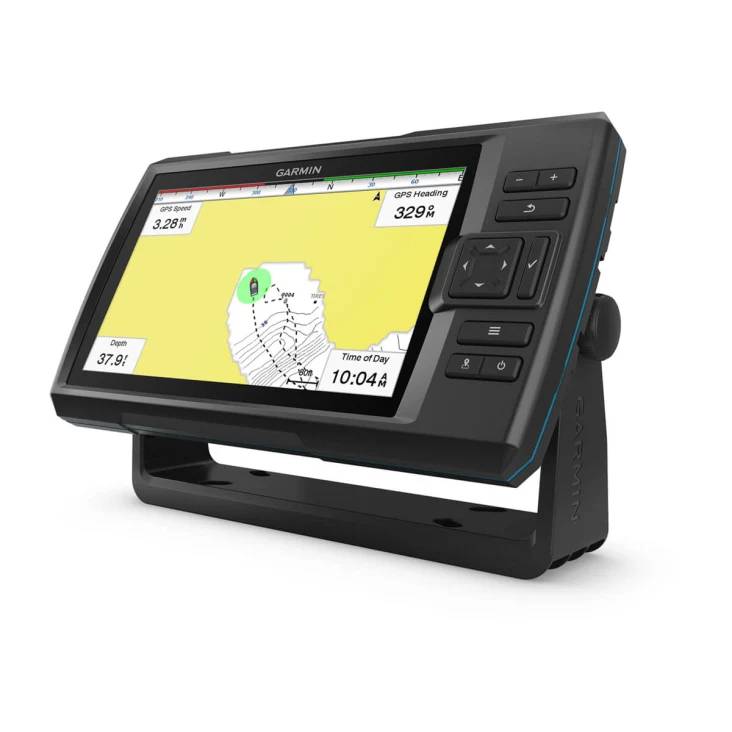

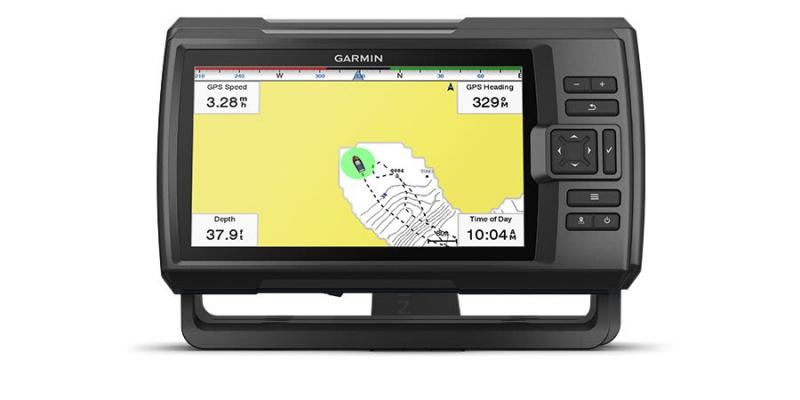

Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.
<
QUICKDRAW CONTOURS
Nobody knows the waters you fish better than you. With the STRIKER Vivid 9sv fishfinder, you can store up to 2 million acres of maps with 1’ contours2.
WI-FI CONNECTIVITY

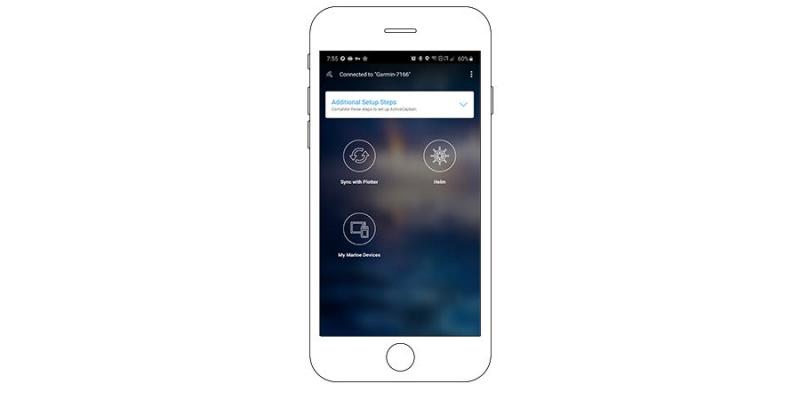

Connect to the ActiveCaptain® app1 to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw™ Community.
INCLUDED HARDWARE

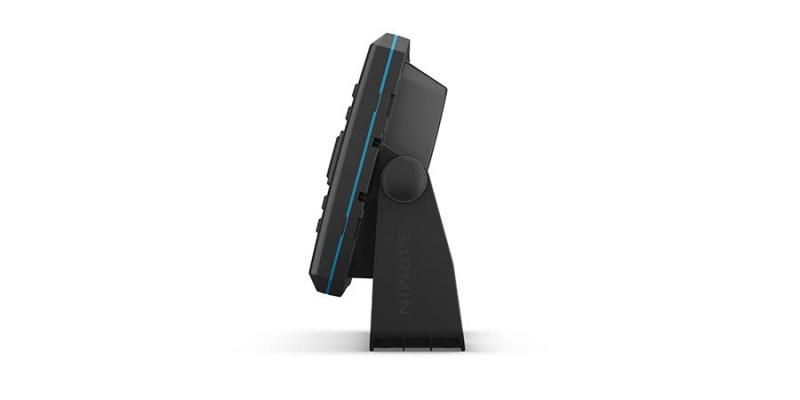

The STRIKER Vivid 9sv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.
- STRIKER Vivid 9sv fishfinder
- GT52HW-TM transducer
- Power/data cable
- 12-pin to dual 4-pin transducer adapter cable
- Tilt mount
- Hardware
- Garmin bumper sticker
- Documentation
| General | |
|---|---|
| Dimension | 11.1” x 6.5” x 2.4” (28.2 x 16.5 x 6.0 cm) |
| Weight | 2.4 lbs (1.1 kg) |
| Water rating | IPX7 |
| Display Type | WVGA colo |
| Display Size | 4.4" x 7.8" (11.2 x 19.8 cm); 9.0" diag (22.8 cm) |
| Display Resolution | 800 x 480 pixels |
| Mounting Options | flush, tilt/swivel |
| Input | Keyed |
| Maps & Memory | |
| Waypoints/favorites/locations | 5000 |
| Track points | 50,000 |
| Tracks | 50 |
| Navigation Routes | 100 |
| Sensors | |
| GPS | Yes |
| Has built-in receiver | Yes |
| Supports WAAS | Yes |
| Optional Map Support | |
| Garmin Quickdraw Contours | Yes |
| Electrical Features | |
| Power Input | 12 to 20 Vdc |
| Typical current draw | 0.75 A |
| Max current draw | 1.5 A |
| Power Consumption | 9.0 |
| Sonar Features | |
| Displays sonar | Yes |
| Traditional sonar (dual frequency/beam) | Built-in |
| ClearVü | Yes |
| SideVü | Yes |
| Frequency | Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü and SideVü 260/455/800 kHz |
| Transmit power | 500 W (RMS) |
| Bottom Lock (shows return from the bottom up) | Yes |
| Water Temperature Log | Yes |
| CONNECTIONS | |
| 4-pin transducer ports | 2 |
| Garmin Wi-Fi network (local connection) | Yes |
| Fishfinder Features | |
| Split-screen zoom | Yes |
| Fish Symbol ID (helps identify fish targets) | Yes |
| Autogain technology (minimizes clutter; maximizes targets) | Yes |
| Adjustable depth line (measures depth of underwater objects) | Yes |
| A-scope (real time display of fish passing through transducer beam) | Yes |
| Water temperature sensor included | Yes |
| Depth range shading | Yes |
