Klipsch 12" Commercial Monitor multi angle KI272BSMAII KI272BII
Authorized Dealer
Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

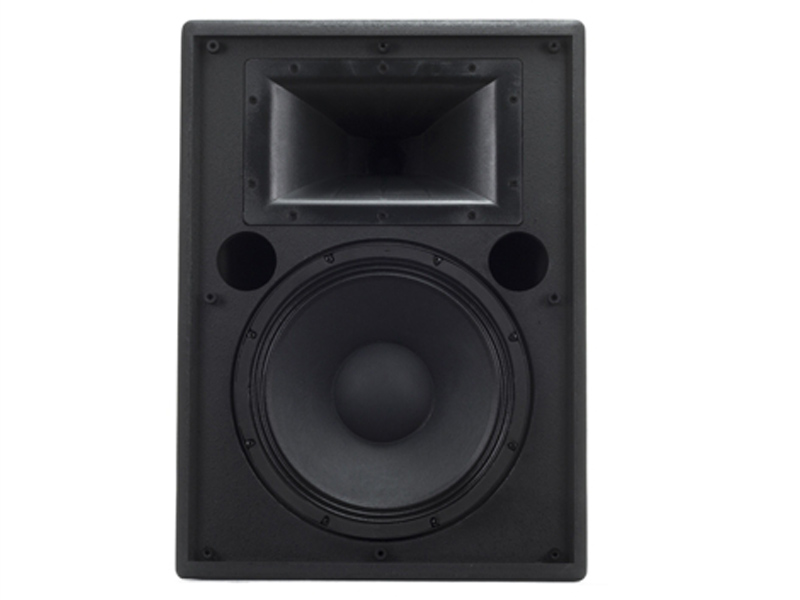

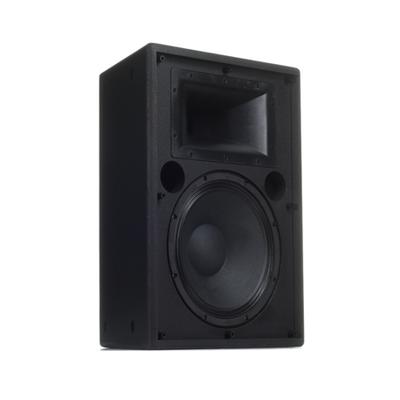

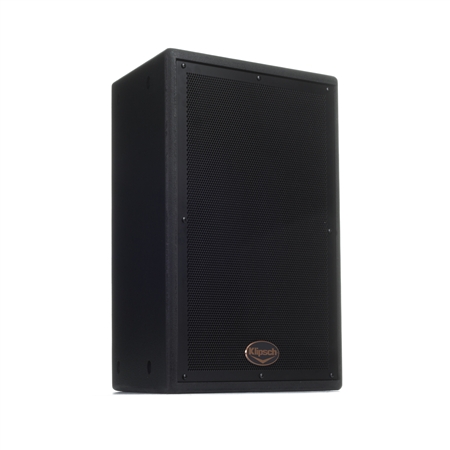

The KI-272-SMA-II two-way, multi-angle loudspeaker is a high power solution for limited space installations, where angled mounting is required. It’s perfect for angled wall, corner, ceiling, oblique angle projection or under-balcony mounting in theaters, clubs, churches and schools.
Able to hang using 12 built-in 3/8” 16-thread fly points, the KI-272-SMA-II provides the performance and reliability for which Klipsch is known.
| Specification | |
|---|---|
| FREQUENCY RESPONSE: | 65Hz-20kHz +/- 3dB -10dB @ 47Hz |
| SENSITIVITY: | 100dB |
| POWER HANDLING: | 300 watts (35V) (1200 watts peak) |
| CALCULATED MAX CONTINUOUS OUTPUT: | 121dB (127dB peak) |
| NOMINAL IMPEDANCE: | 8 ohms, minimum 4 ohms @146Hz |
| COMPONENTS: | One K-281-EP 12" woofer One K-70-G 1.75" titanium compression driver on a K-604 horn |
| CROSSOVER FREQUENCY: | 900Hz |
| ENCLOSURE MATERIAL: | 3/4" 7-ply birch plywood cabinet 1" MDF motorboard |

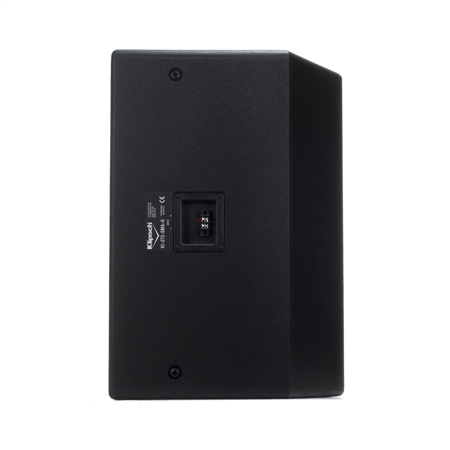

| INPUT CONNECTIONS: | Two point barrier strip |
| COVERAGE: | Horizontal 40° +/-20 3.5kHz-20kHz Vertical 60° +/-20 2kHz-20kHz |
| DIRECTIVITY INDEX (DI): | 12dB+/-4dB 2kHz-20kHz |
| DIRECTIVITY FACTOR (Q): | 16 |
| HEIGHT: | 17" (43.18cm) |
| WIDTH: | 23" (58.42cm) Front |
| DEPTH: | 15.8" (40.13cm) |
| WEIGHT: | 51 lbs. (23.18kg) |
| MOUNTING OPTIONS: | Twelve 3/8"-16 flypoints |
| FINISHES: | Black, White and Raw |
| OVERLOAD PROTECTION: | KLIP Overload Protection Circuit-HF |
