Klipsch 15" Commercial Monitor multi angle hor and vertical KI362BSMAII KI362BII
KI362BII

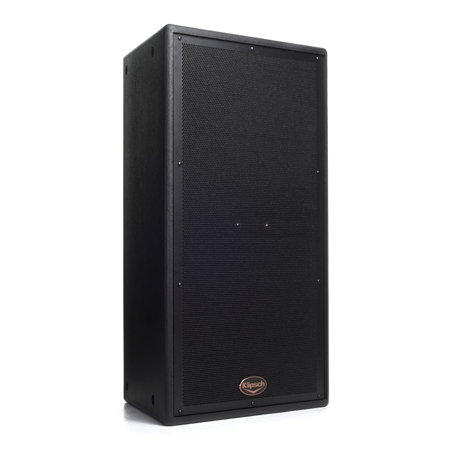

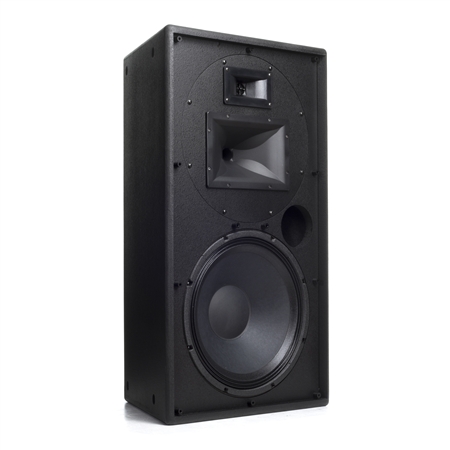

The KI-362-SMA-II three-way trapezoidal array-capable (sixteen built-in 3/8” 16-thread fly points) loudspeaker is a value-engineered compact Tractrix® Horn-loaded system capable of superior performance in both permanent installation and production environments including theaters, auditoriums, music clubs, houses of worship, and A/V production environments.
To permit use at any mounting angle the KI-362-SMA-II’s midrange and high-frequency drivers are adjustable in 45° increments allowing 60° or 90° projection patterns to be chosen independent of the vertical horizontal or lateral orientation of the enclosure.
| Specification | |
|---|---|
| FREQUENCY RESPONSE: | 54Hz-20kHz +/- 3dB -10dB @ 38Hz |
| SENSITIVITY: | 101dB |
| POWER HANDLING: | 400 watts (42V) (1600 watts peak) |
| CALCULATED MAX CONTINUOUS OUTPUT: | 124dB (130dB peak) |
| NOMINAL IMPEDANCE: | 8 ohms, minimum 4.4 oms @106Hz |

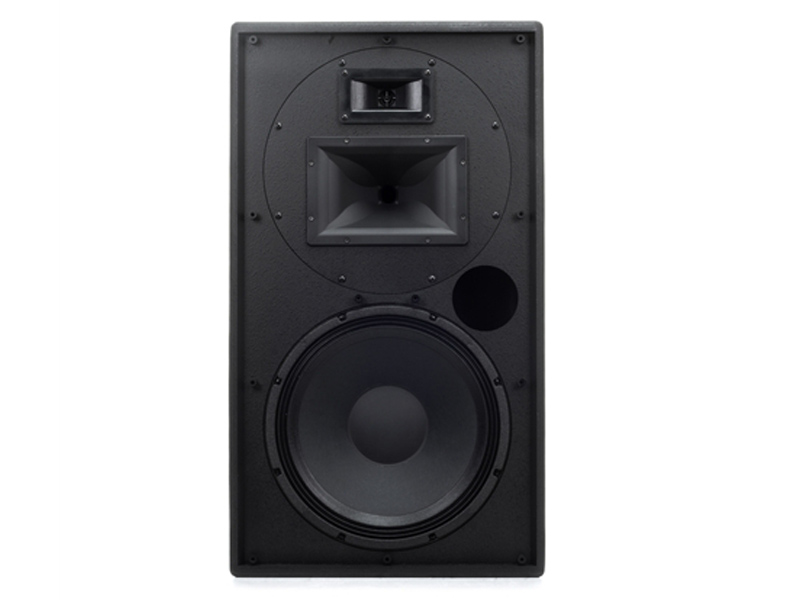

| COMPONENTS: | One K-48-ST 15" woofer One K-53-TI 1.5" titanium compression driver on a K-703M horn One K-100-TI 1" titanium compression driver on a K-79-T horn |
| CROSSOVER FREQUENCY: | 1.26kHz and 6.8kHz |
| ENCLOSURE MATERIAL: | 3/4" 7-ply birch plywood cabinet 1" MDF motorboard |

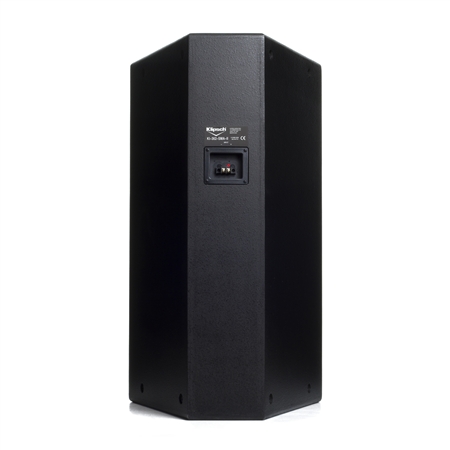

| INPUT CONNECTIONS: | Two point barrier strip |
| COVERAGE: | Horizontal 90° +/-30 400Hz-12kHz Vertical 50° +/-20 3kHz-20kHz |
| DIRECTIVITY INDEX (DI): | 10dB+/-3dB 60Hz-15kHz |
| DIRECTIVITY FACTOR (Q): | 10 |
| HEIGHT: | 34.3" (87.12cm) |
| WIDTH: | 19.8" (50.29cm) Front 6.8” (17.27cm) Rear |
| DEPTH: | 16" (40.64cm) |
| WEIGHT: | 70 lbs. (31.81kg) |
| MOUNTING OPTIONS: | Sixteen 3/8"-16 flypoints |
| FINISHES: | Black, White and Raw |
| OVERLOAD PROTECTION: | KLIP Overload Protection Circuit-HF and MF |
