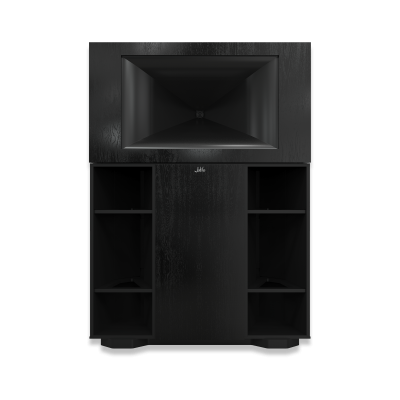

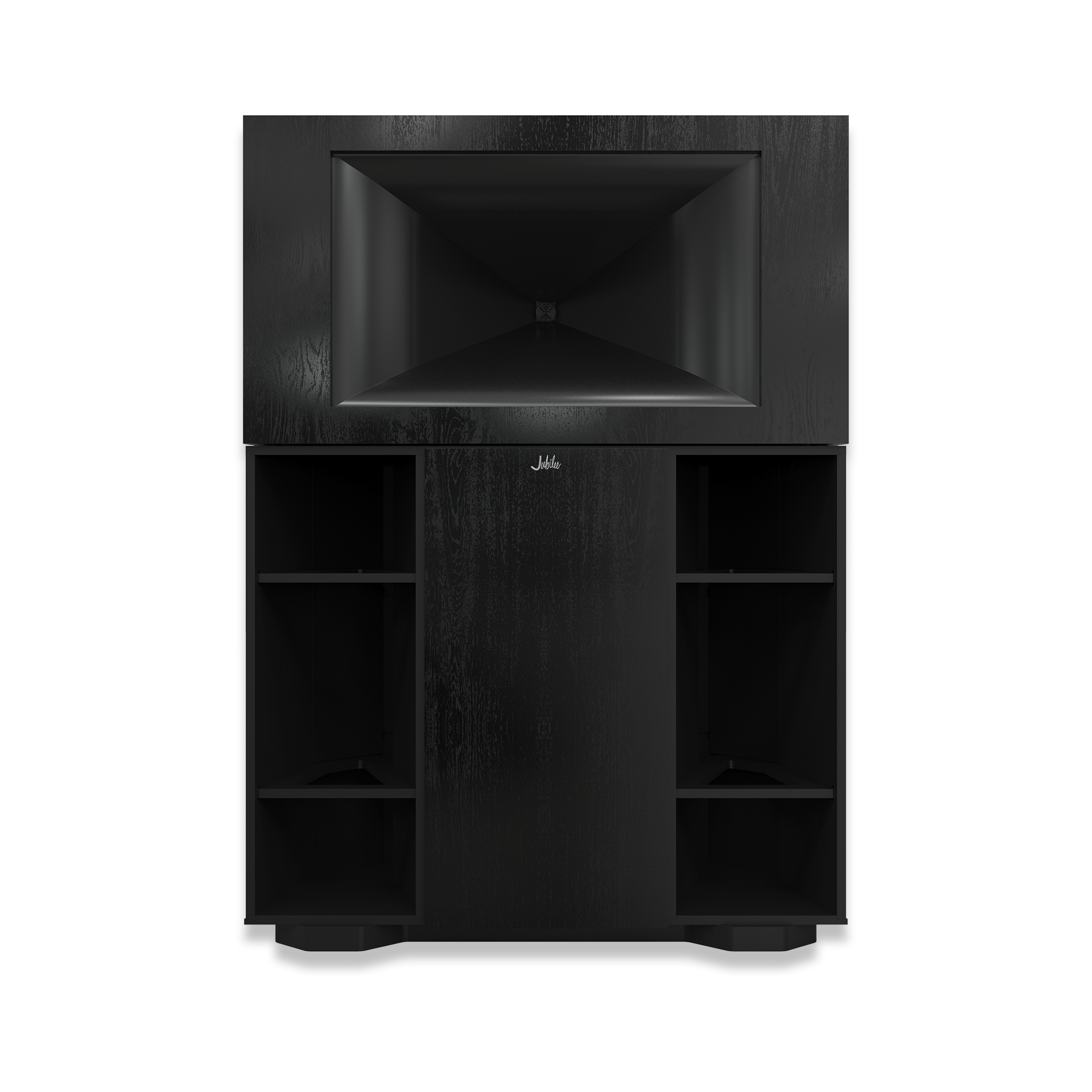

Klipsch Jubilee Floorstanding Speaker in Black Ash - JUBILEESB

Authorized Dealer Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Availability
Call for availability

More options
Literature

FLOORSTANDING SPEAKER



A PAUL W. KLIPSCH DREAM COME TRUE

The Klipsch Jubilee is founder Paul W. Klipsch's (PWK) final project. His dream was to create a loudspeaker to satisfy even the most ardent audiophiles. Originally intended to be the successor to the Klipschorn, PWK soon realized it was much more than that.



FROM DREAMS TO REALITY

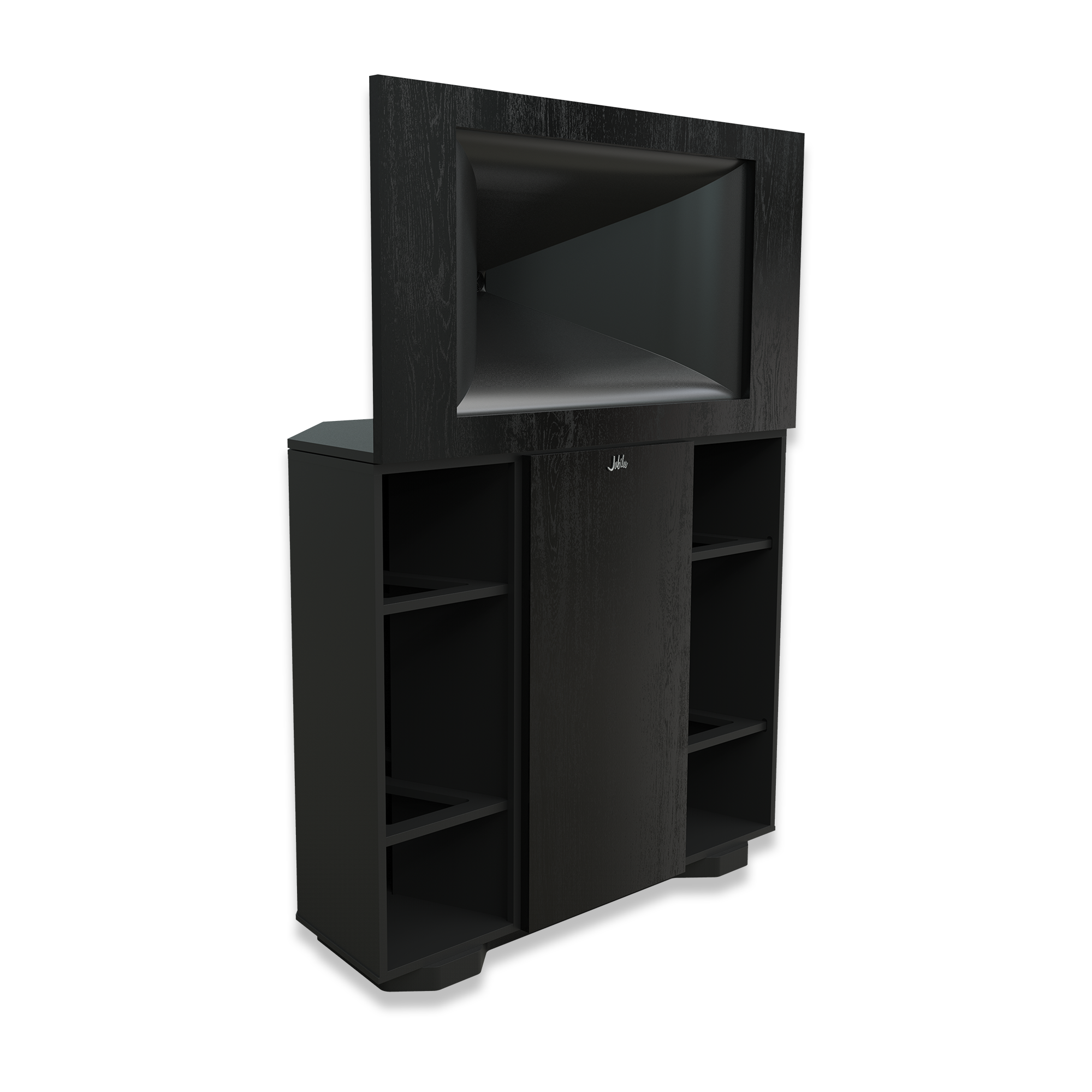

Designed to deliver the ultimate listening experience, the Klipsch Jubilee is a fully horn-loaded two-way loudspeaker incorporating the latest acoustic technology, including a patented horn-loaded vented low frequency enclosure and an all-new horn-loaded compression driver.



CONCERT QUALITY AT HOME

Musically accurate, the Klipsch Jubilee features an optimal active crossover designed for perfect phase coherency. You get smooth, effortless performances as though the musicians are in the room.



FEEL THE MUSIC

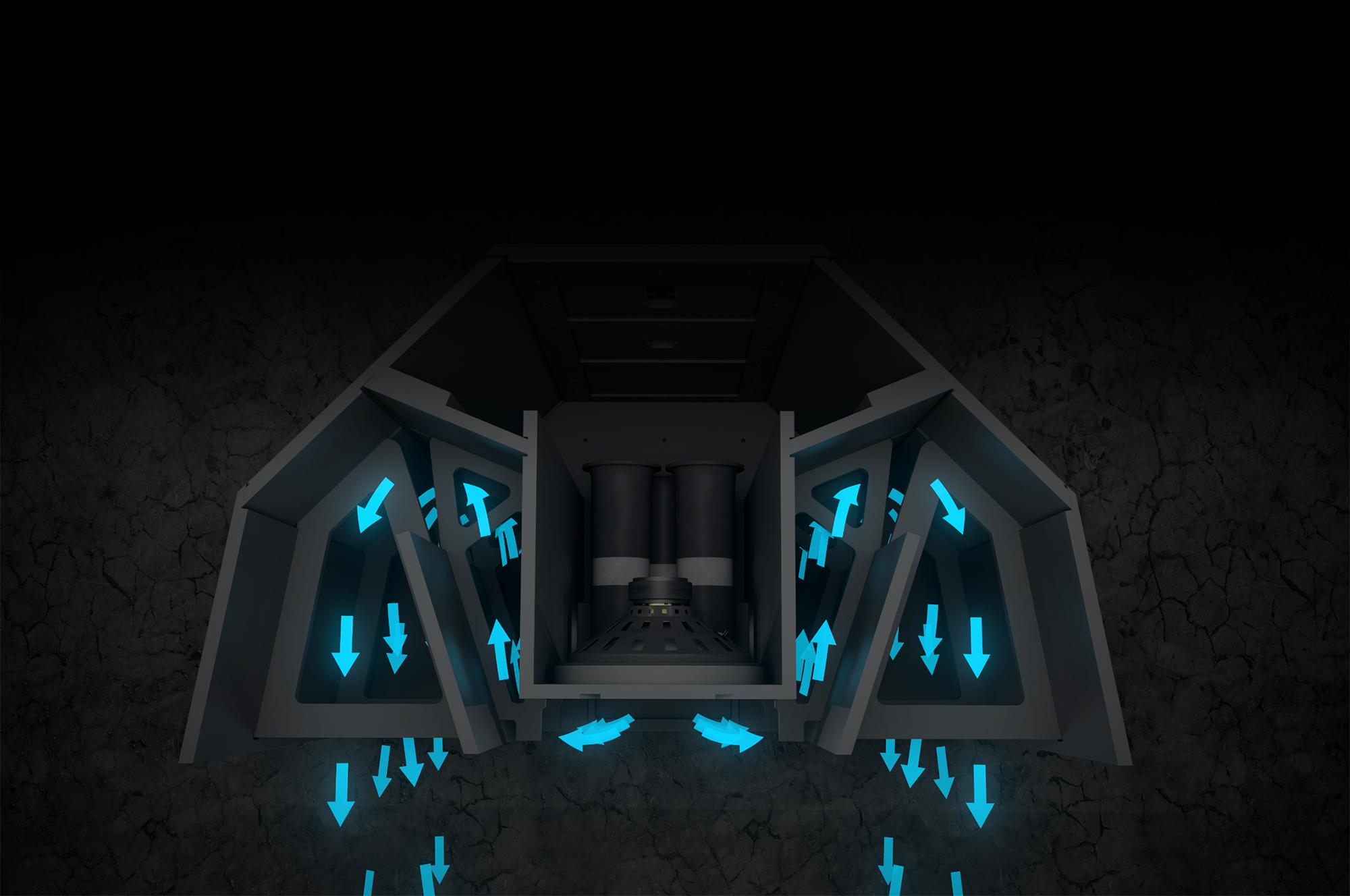

The Klipsch Jubilee's one-dimensional, folded-horn vented system creates an unparalleled listening experience:

  • Maximizes output while minimizing distortion for clean, dynamic bass
  • Leverages efficiencies of both vented and horn loaded systems


EXTERNAL WIDE DISPERSION PHASE PLUG

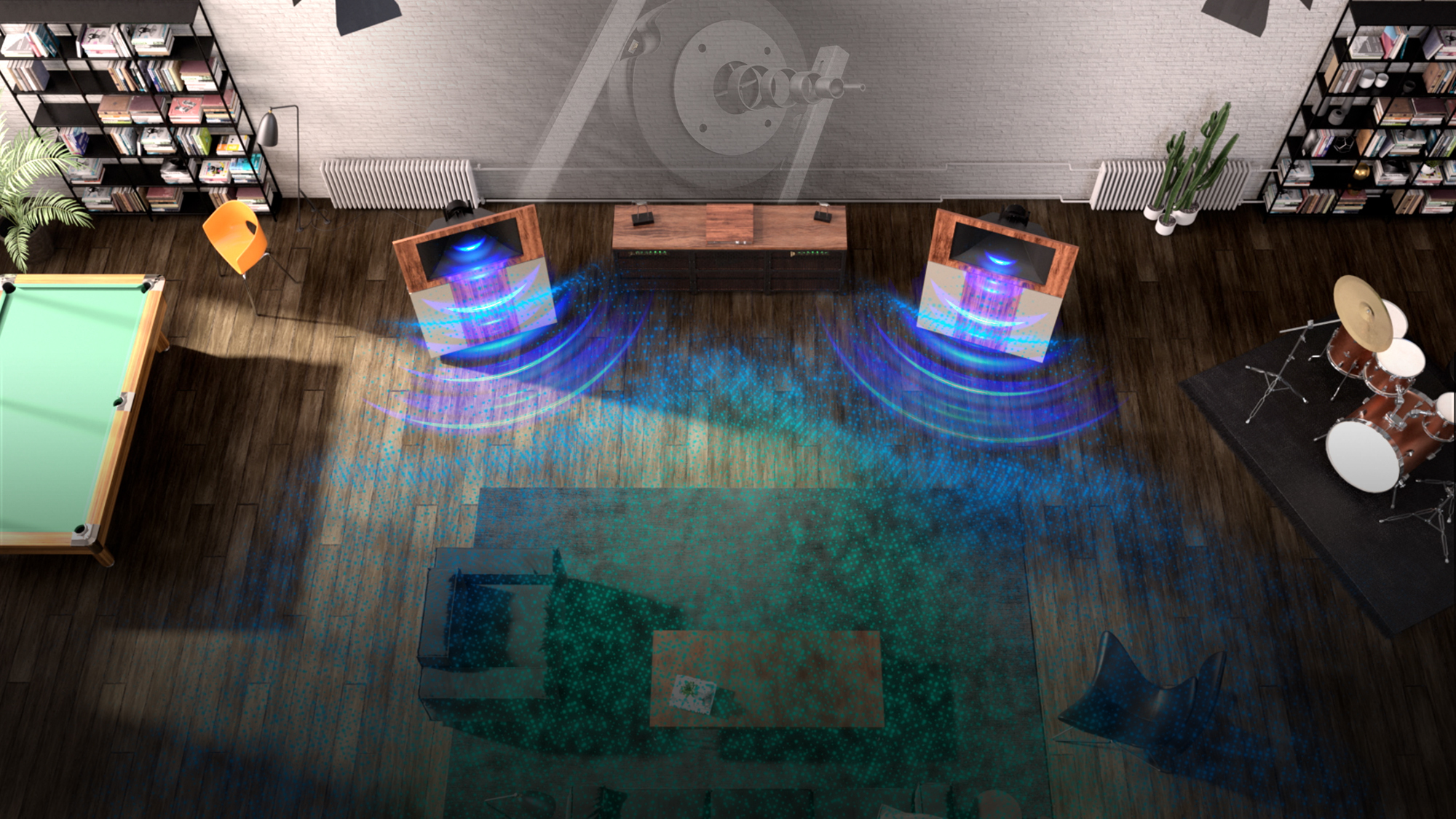

A wider, more even dispersion of high frequencies delivers an improved soundstage and imaging to hit that all-important sweet spot.

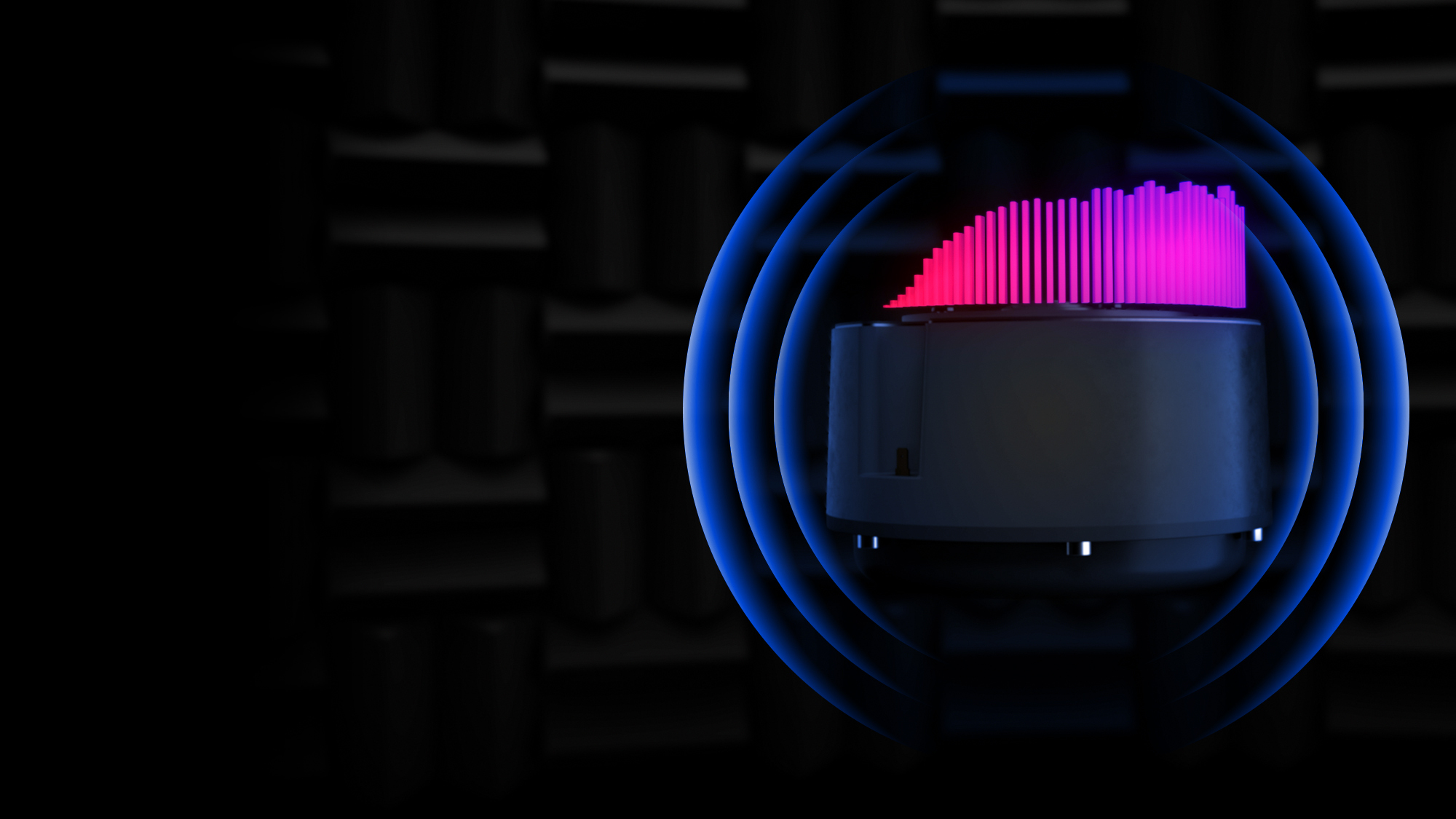

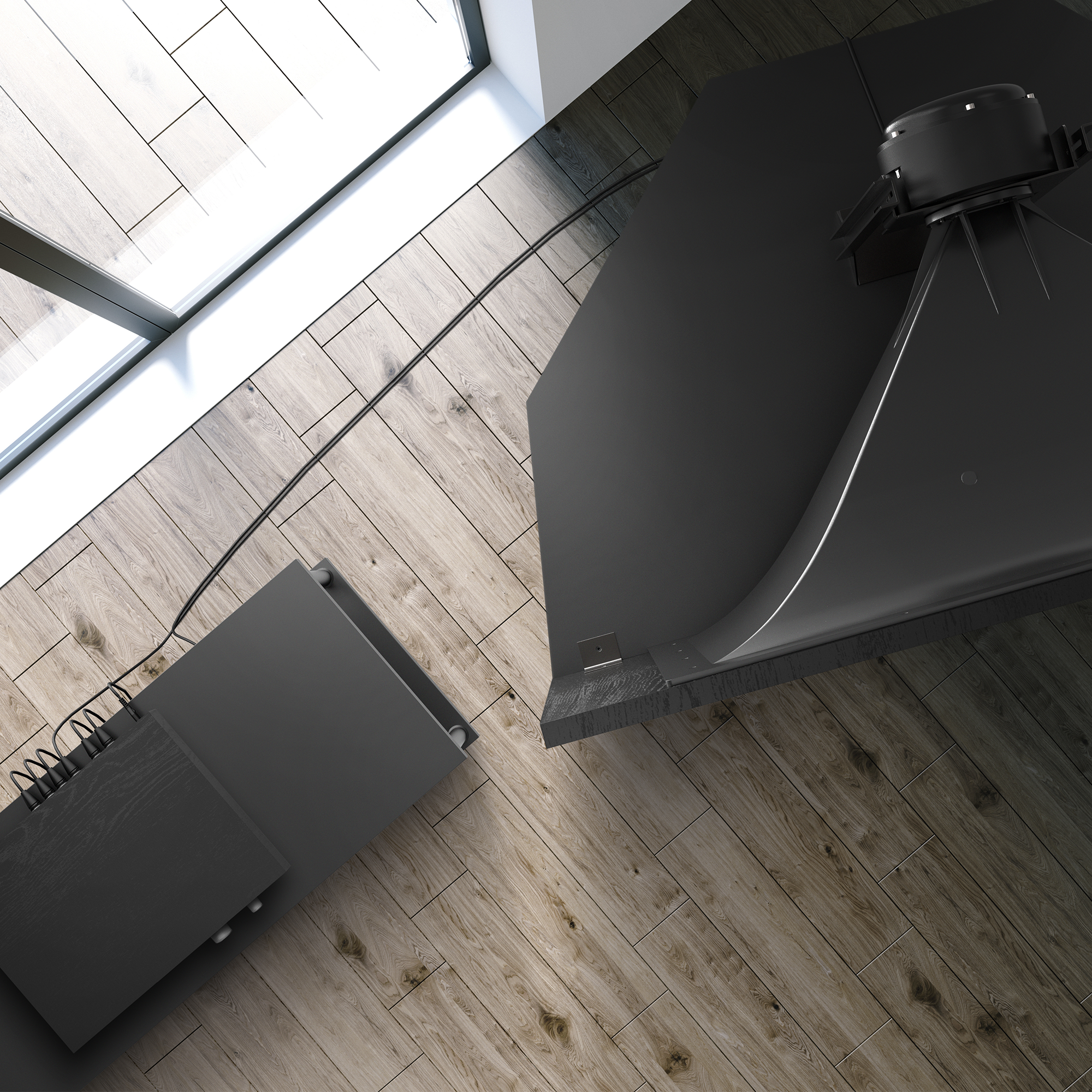

STATE-OF-THE-ART HIGH-FREQUENCY COMPRESSION DRIVER

  • Lowers crossover point below mid-range frequencies for seamless clarity
  • High-efficiency, maximum output, minimal distortion
  • Axiperiodic design ensures extended response and effortless performances

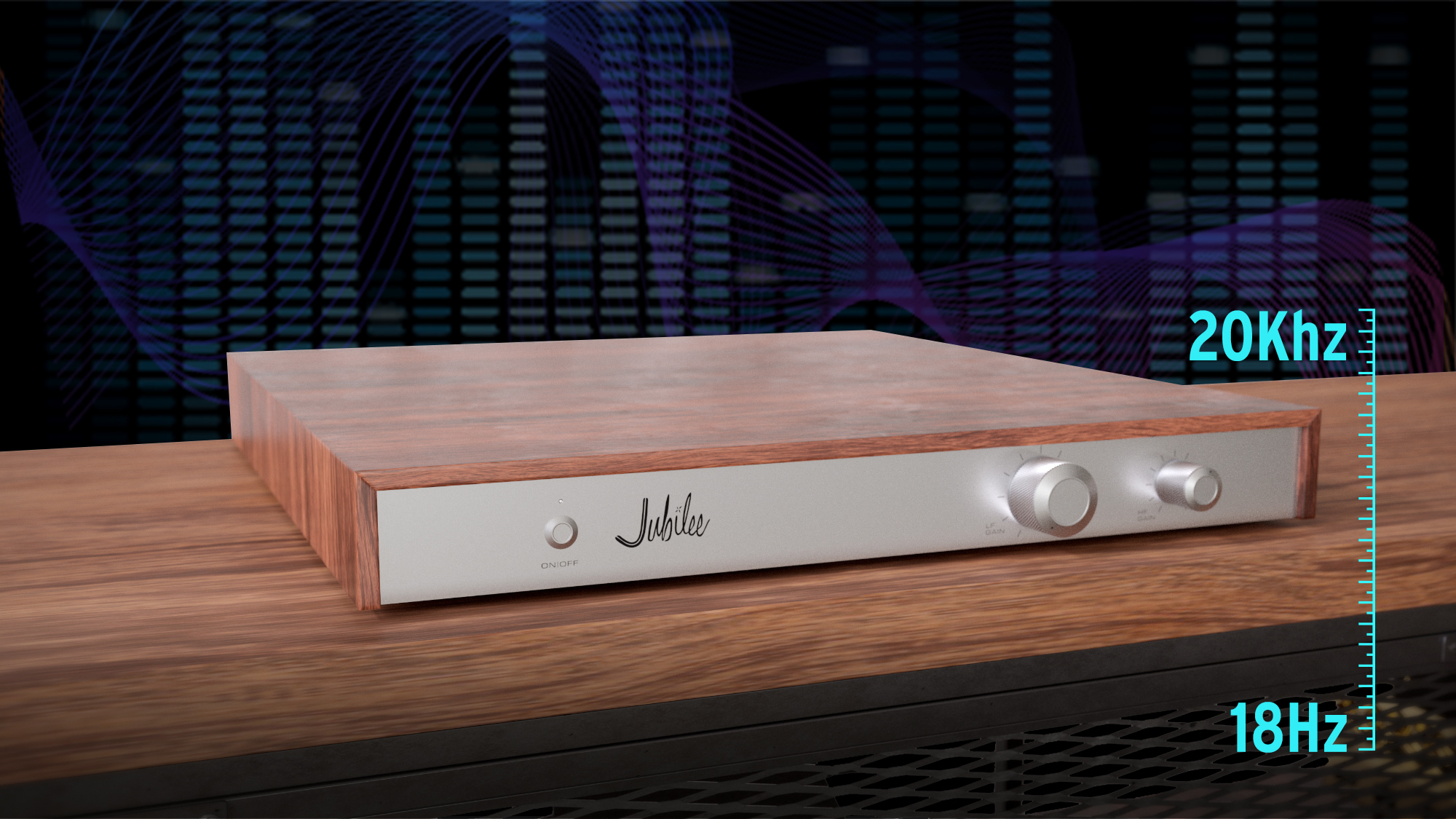

ACTIVE CROSSOVER FOR CLEANER SOUND

The active crossover maximizes output and adjusts the driver's time delay and phase for true-to-life sound.

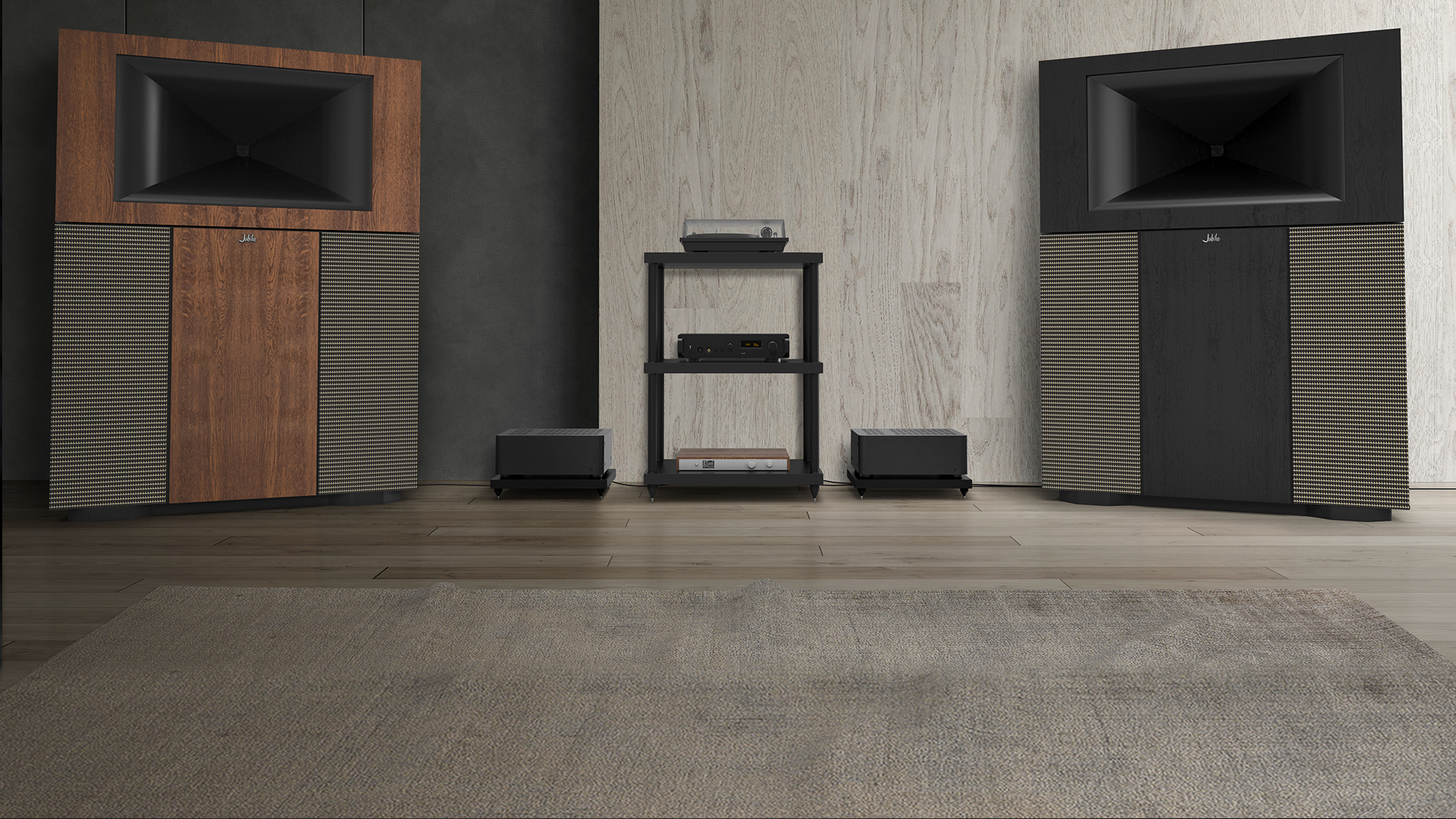

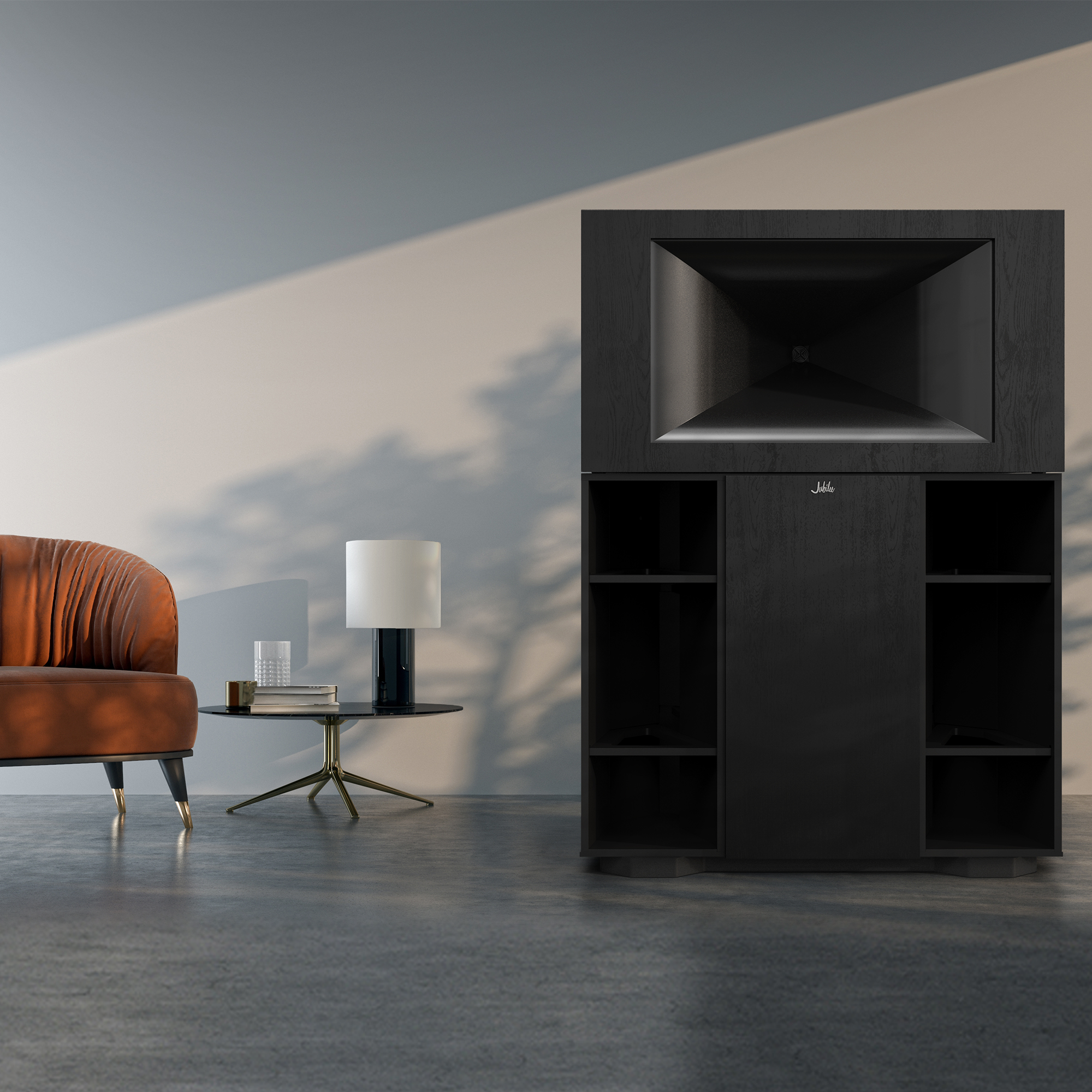

HEIRLOOM-QUALITY, SHOWSTOPPING DESIGN

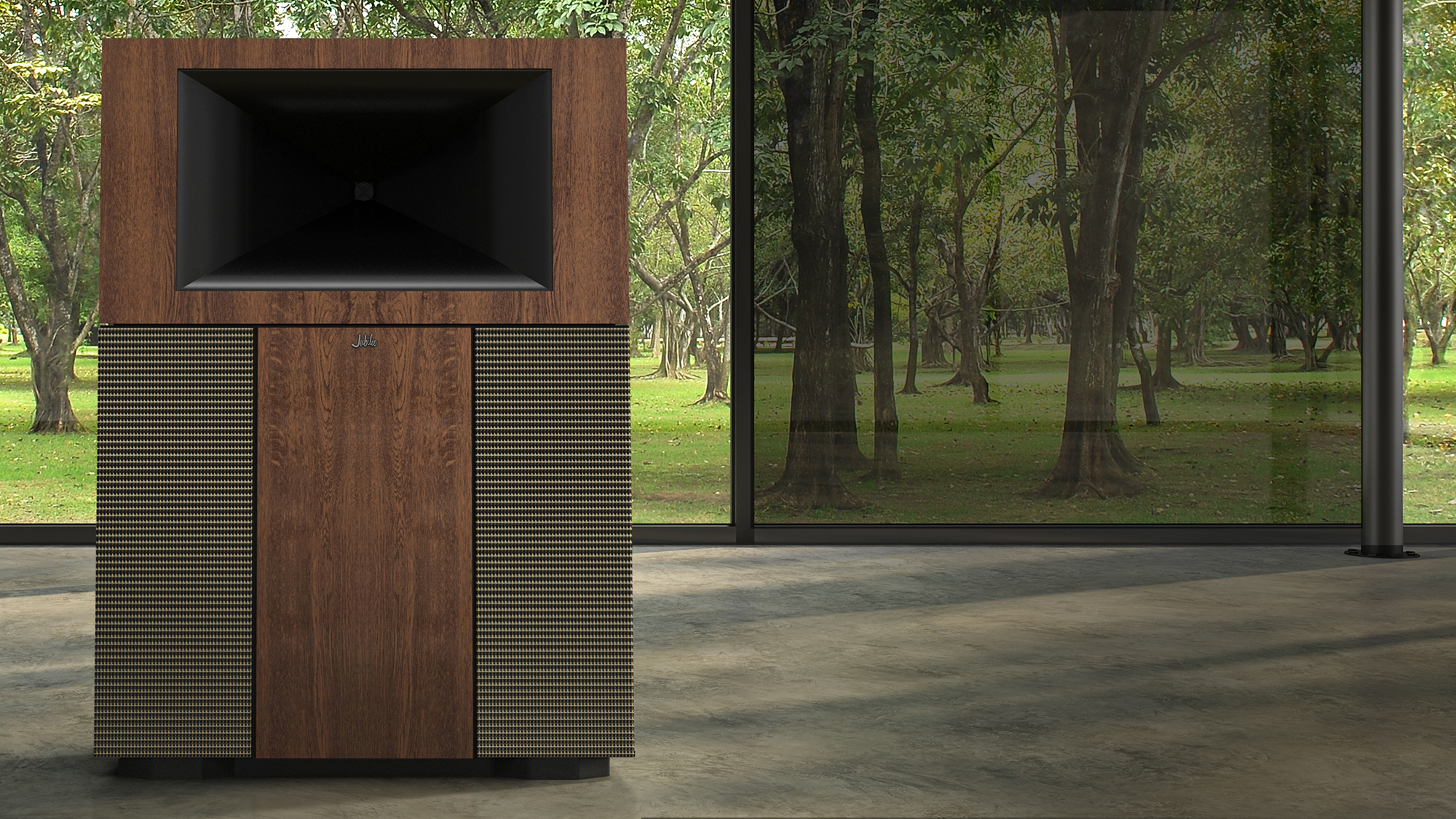

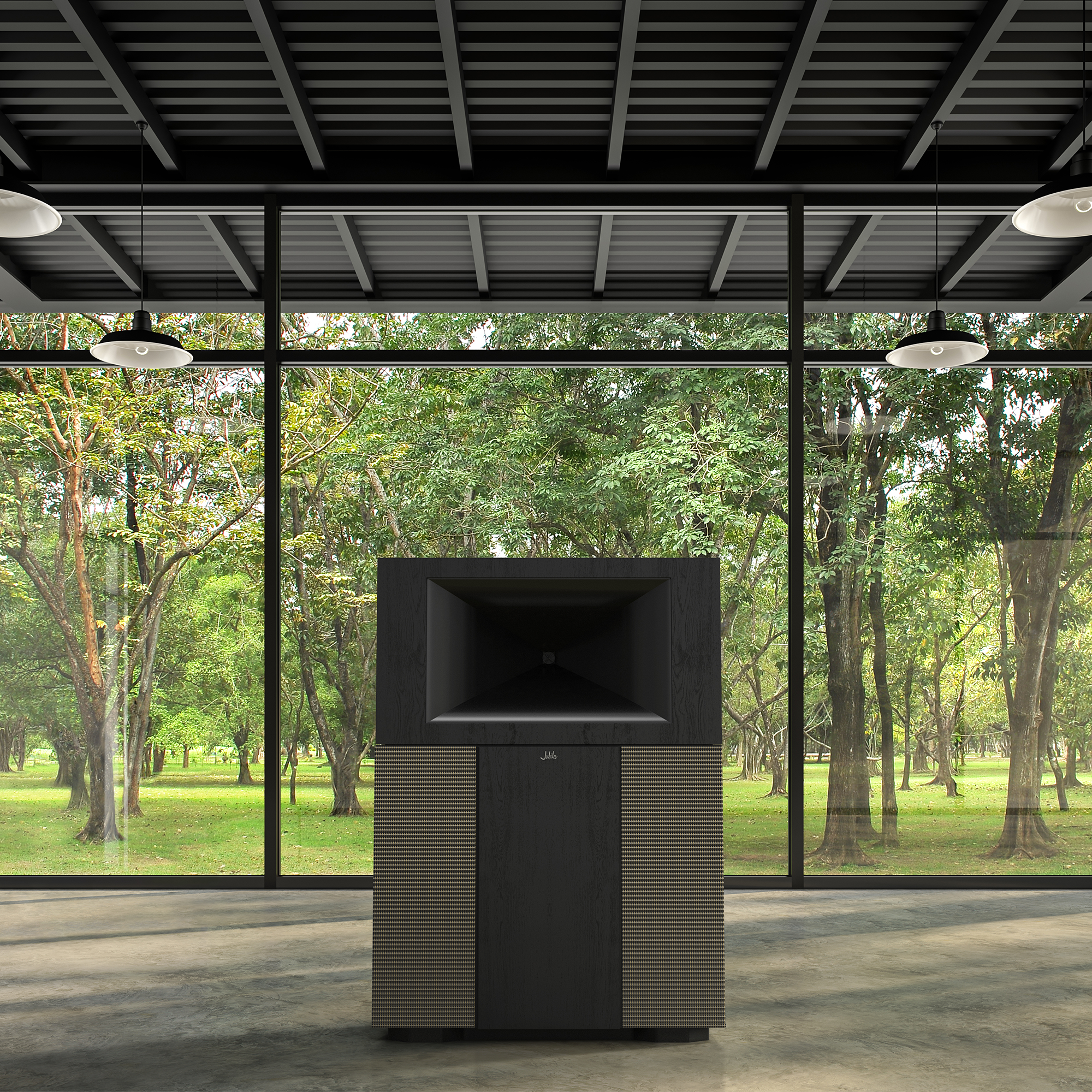

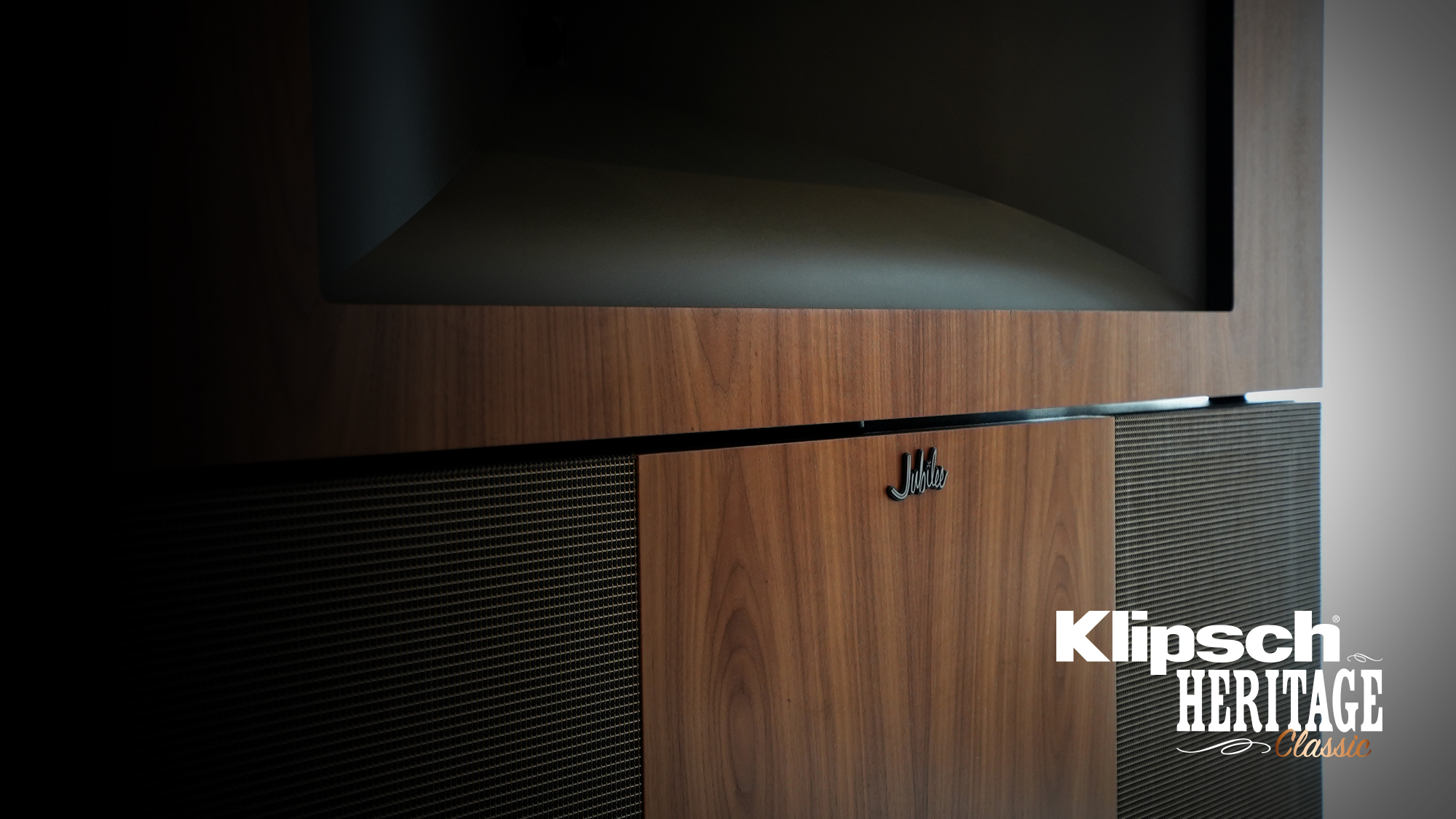

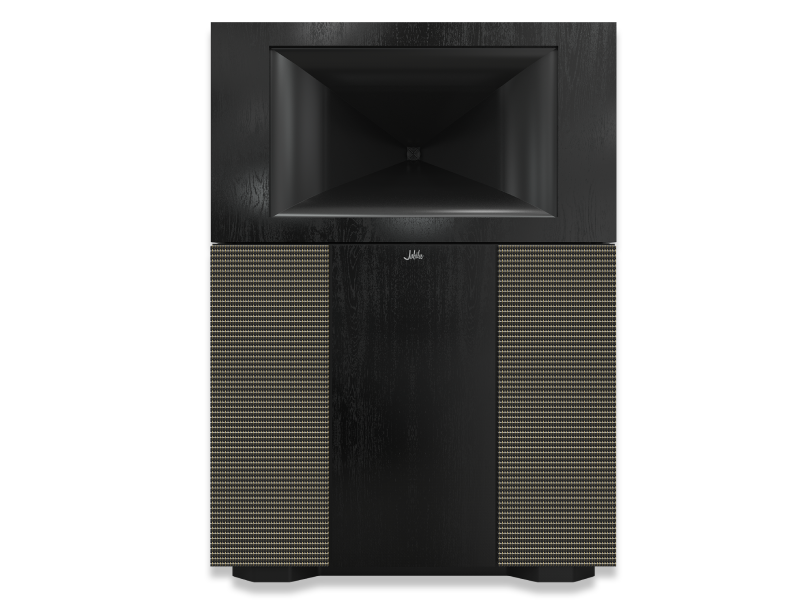

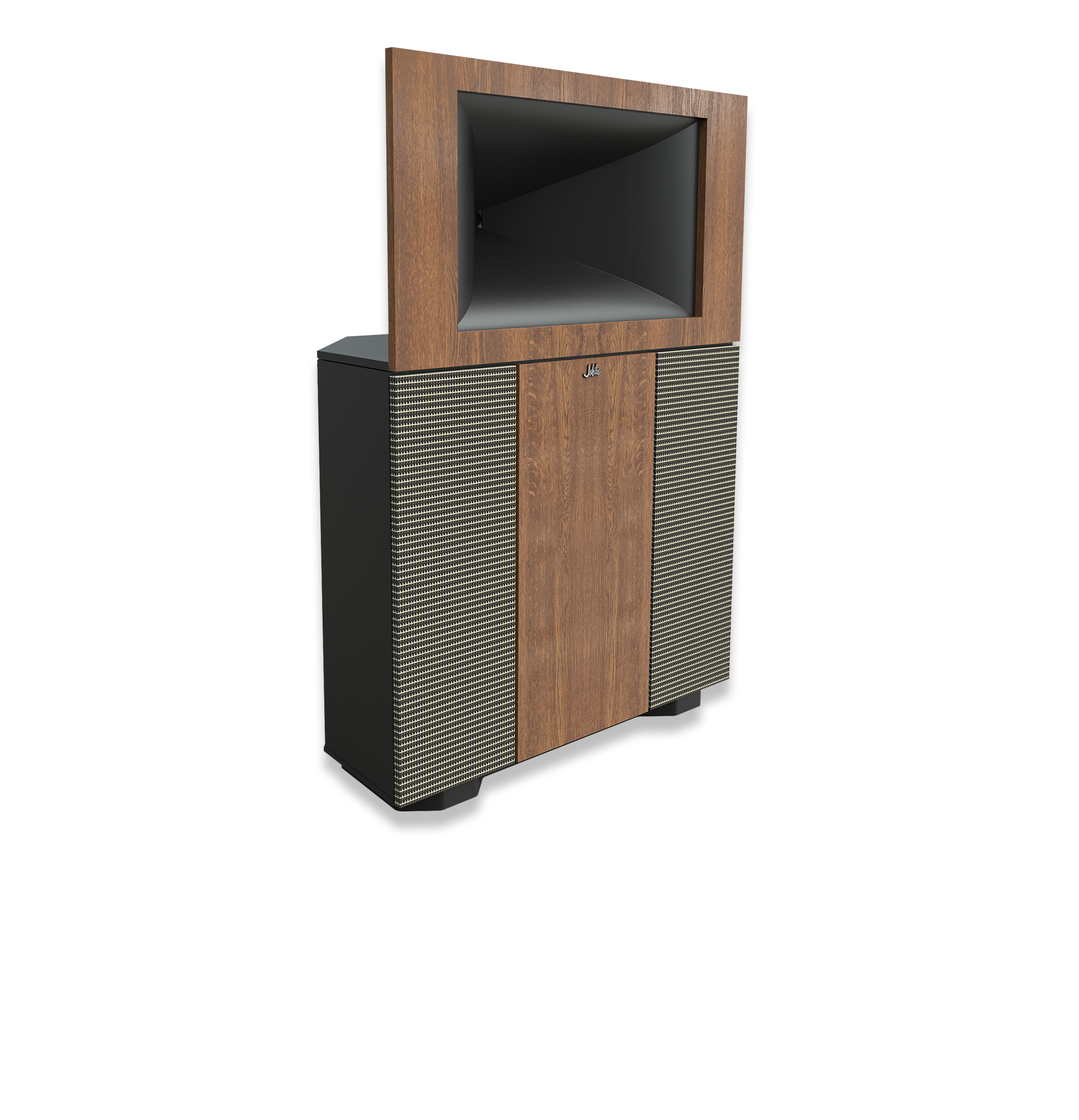

Beautifully crafted, these legendary speakers are available in book-matched real wood veneer in American Walnut or Black Ash.



AMERICAN INGENUITY

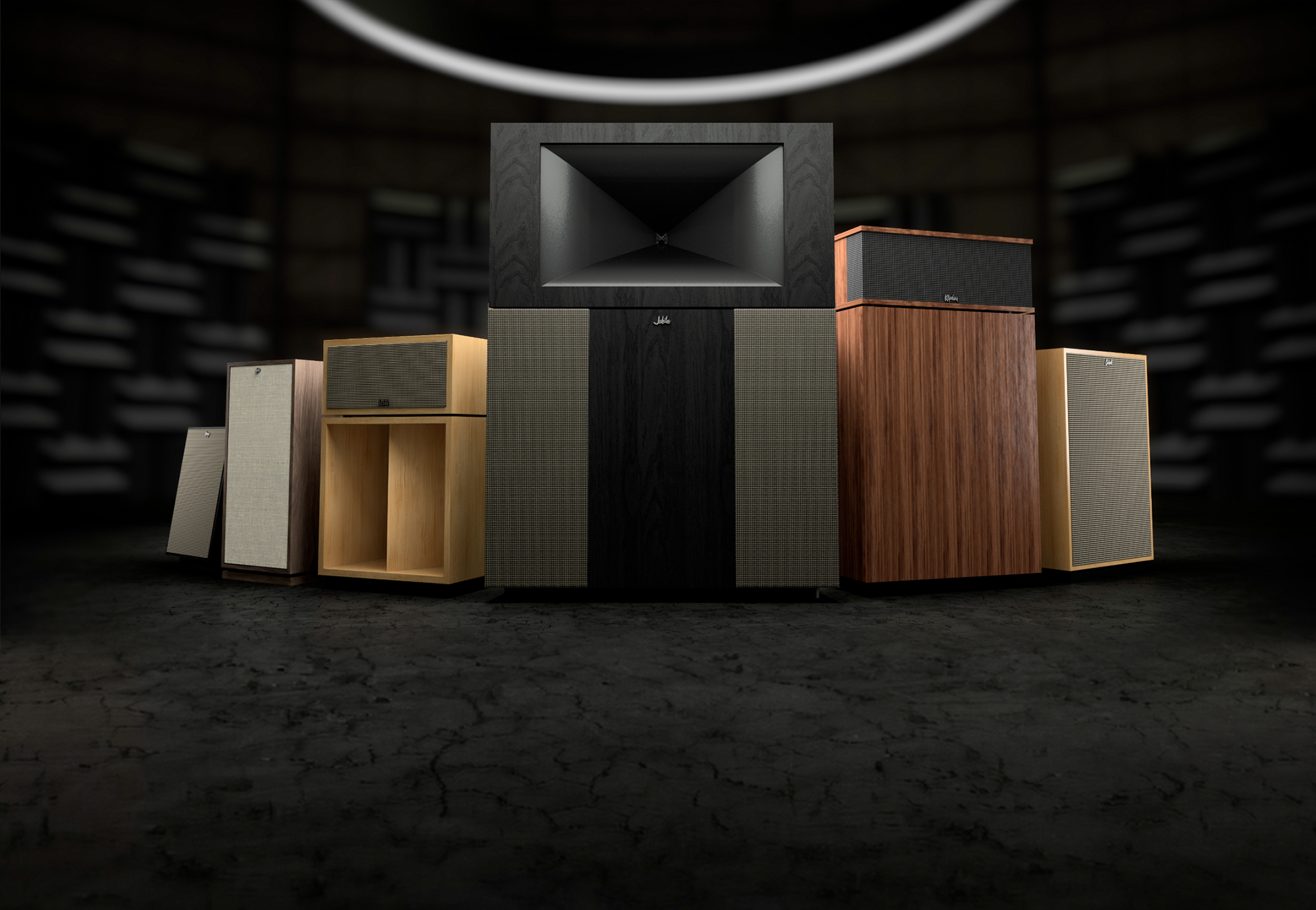

The Klipsch Heritage Series is proudly designed and assembled in Hope, Arkansas, right where Paul W. Klipsch started it all back in 1946. Each speaker is built to order, meaning that every Heritage speaker is uniquely yours. You will want to pass these speakers onto future generations.



A NEW FLAGSHIP

You wanted the best, you got the best. The Klipsch Jubilee is taking its place as the new Heritage series flagship speaker.



Because Klipsch Heritage speakers are built to last, we stand behind a 10 year warranty on all current and future generations of Heritage Classic Speakers.


Specifications
FINISHBlack Ash, American Walnut
GRILLESalt and Pepper Cloth
DEPTH30.25” (76.2 cm)
WEIGHTLF - 330 lbs (149.68 kg), HF - 78 lbs (35.38 kg)
WIDTH50.25” (127 cm)
ENCLOSURE MATERIALMDF
INPUTS5 way binding post
HEIGHT69.5” (175.26 cm)
LOW FREQUENCY DRIVERDual K-283 12” Fiber-Composite, cone woofers
HIGH FREQUENCY DRIVERK-693 7” Titanium Diaphragm, Compression Driver with 5” Voice Coil
CROSSOVER FREQUENCY 340 Hz
NOMINAL IMPEDANCELF - 8 ohms, minimum 3.5 ohms at 160Hz, HF - 16 ohms, miminum 7.6 ohms at 4.3kHz
MAXIMUM SPL125 dB/1m (Using DSP)
POWER HANDLING (CONT/PEAK)LF - 300W / 1200W, HF - 100W / 400W
SENSITIVITYAvg. Sensitivity of HF - 110dB, Avg. Sensitivity of LF - 107dB
FREQUENCY RESPONSE (+1.75 dB/- 3 dB)18Hz – 20kHz
