Rockford Fosgate Punch Series 8 Inch 300-Watt Powered Subwoofer - P300-8P
P300-8P

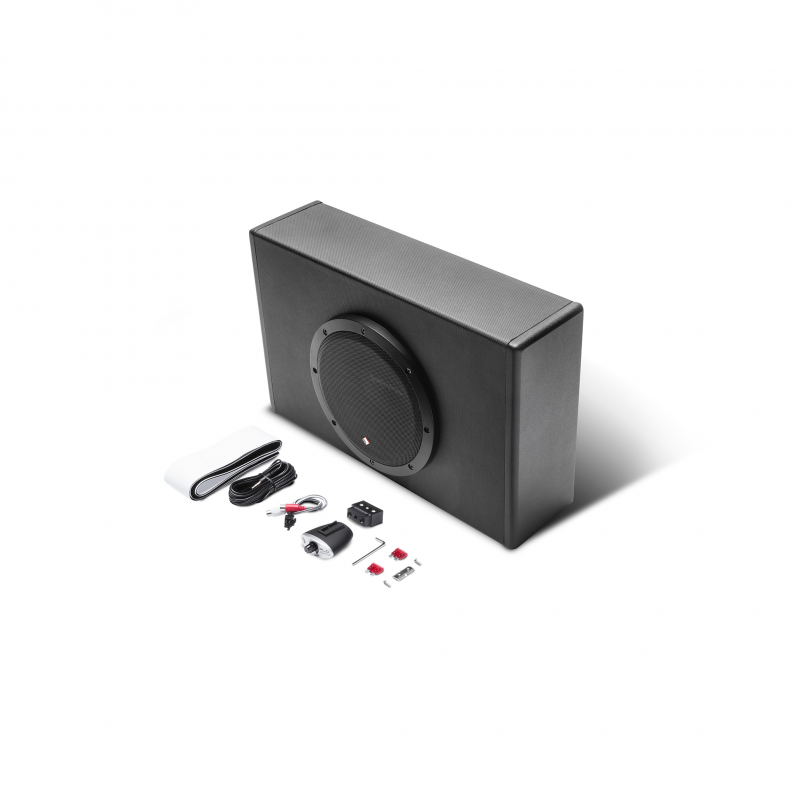

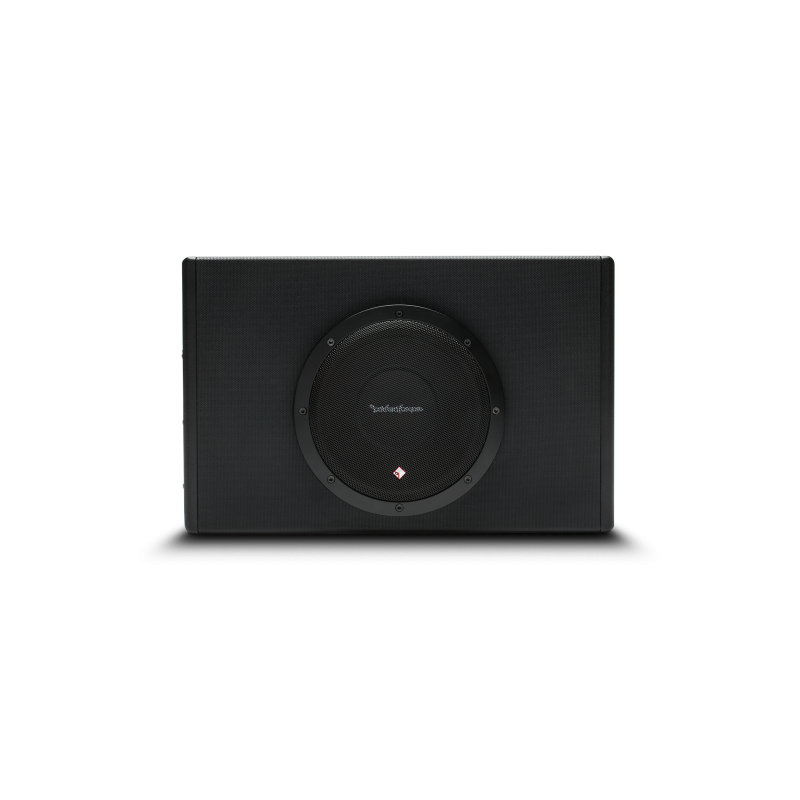

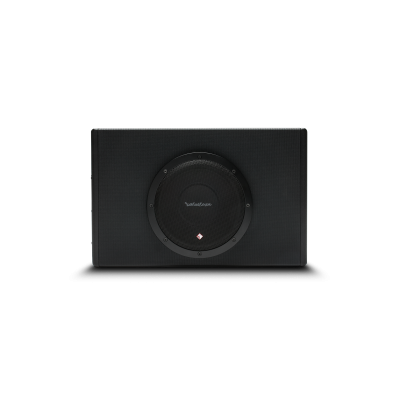

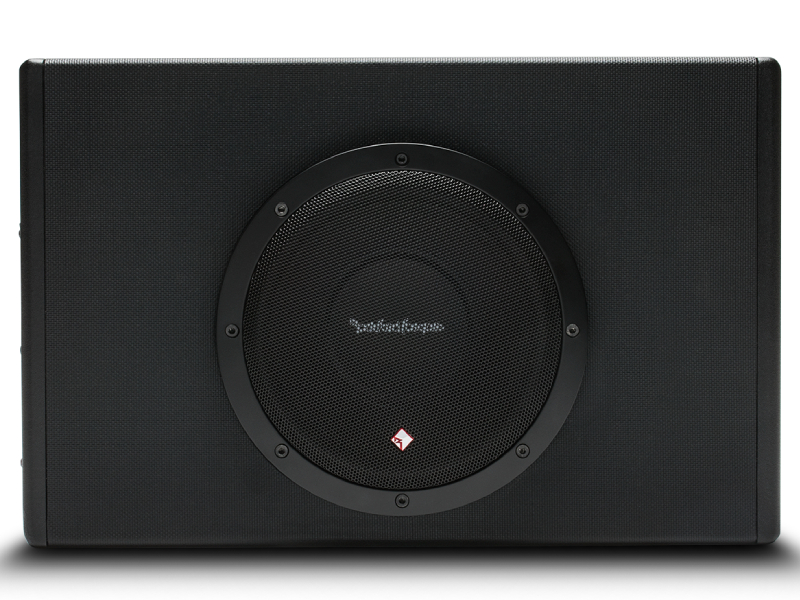

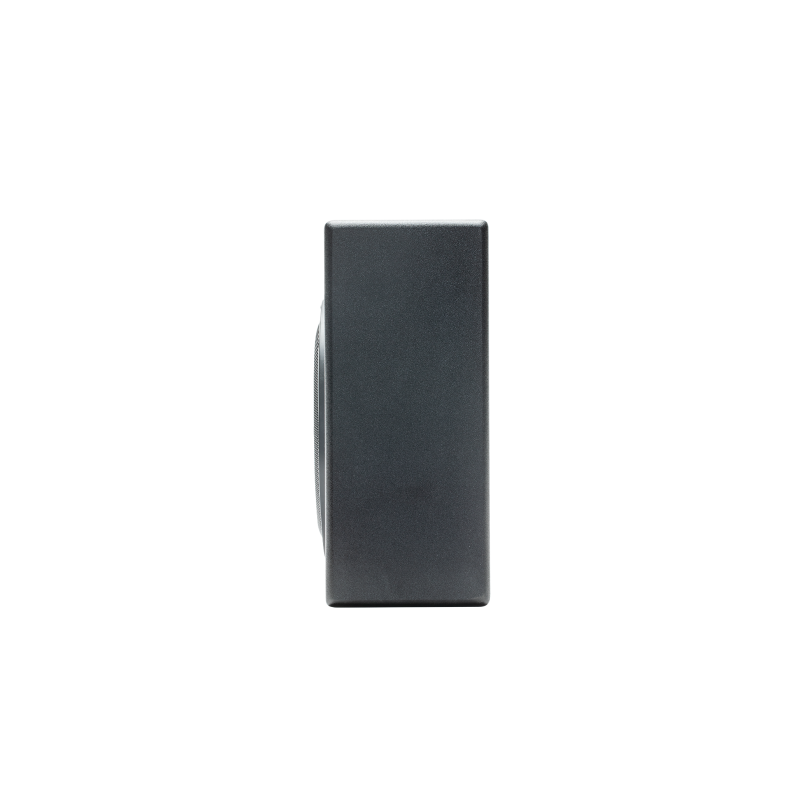

The Punch P300-8P is an "all in one" solution for dropping Bass in any factory or aftermarket system. This model features an 8" high output woofer with a 300-watt internal amplifier in a slim design enclosure that's great for truck and small car applications. The enclosure features quick release input and power connectors for easy removal when extra space is required.
Overview
The Punch 300-8P is a self-contained subwoofer enclosure with built-in amplifier. This "all in one" solution is great for systems that need extra Punch on the low-end of the frequency spectrum. The 8" high output subwoofer is impedance optimized for the built in 300-watt class-D amplifier that features a low-pass crossover, bass EQ and phase switch. The enclosure can be connected via speaker level inputs for connection to factory systems, or traditional line level inputs for aftermarket systems. It also features an intelligent auto turn-on/off circuit that eliminates the need for a separate turn-on wire. The enclosure itself is precision designed and constructed using MDF (Medium Density Fiberboard) for the best acoustical properties and covered with heat activated vinyl finish to resist marks.
- High-Efficiency, Low Current Amplifier Design
- Optimized 8" Low Impedance Woofer
- 300 Watt Class-D Amplifier with Optimized "Closed Loop" Design
- Adjustable 12db/Octave low pass crossover
- On Board Phase Switch
- Intelligent auto turn on/off function

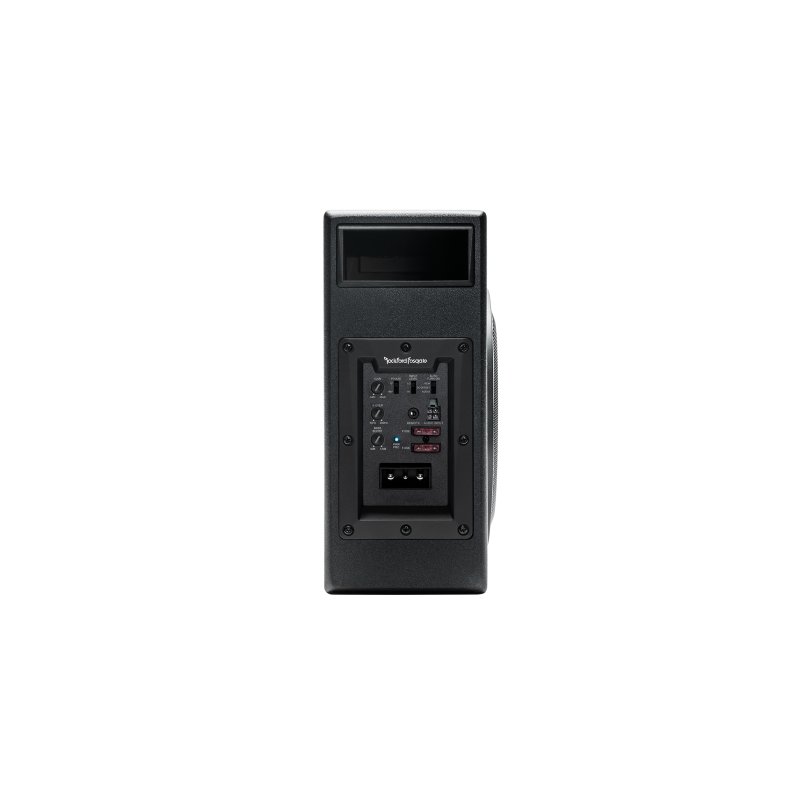

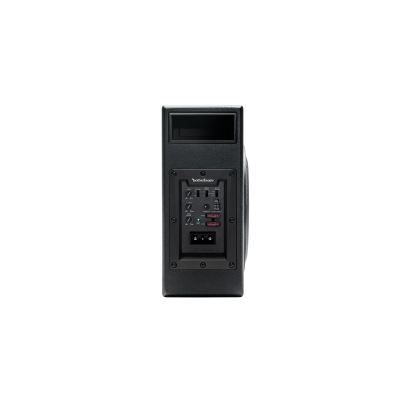

- Robust Power/Ground connections
- Quick Input Connections for Easy Removal
- On Board Adjustable Bass EQ
- Remote bass level control included
- Separate low level and speaker level inputs
- Precision Constructed MDF Enclosure with Heat Activated Vinyl Finish
- Thermal and over/under voltage protection

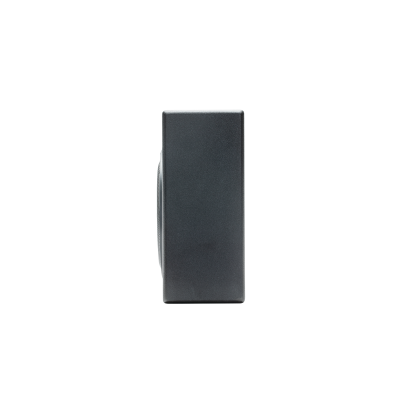

- Slim Design For Truck Applications
- 1 Year Warranty
Technologies
CEA-2006 Compliant
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards.
CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
| Specifications | |
|---|---|
| Frequency Response | 30 Hz to 200 Hz |
| Woofer Quantity | 1 |
| Woofer Size | 8" |
| Woofer Series | Proprietary |
| Nominal Impedance | — |
| Power Handling (Watts RMS) | 300 Watts RMS |
| Enclosure Type | Vented |
| Enclosure Material | 5/8" MDF (Medium Density Fiberboard |
| Speaker Connector | — |
| Integrated Amplifier | 300 Watts RMS |
| Crossover Controls | Variable 50 Hz to 200 Hz 12dB/Octave Butterworth |
| Tone Controls | Bass Boost 0 dB to +12 dB; |
| Phase Control | 0° to 180° |
| Remote Control | Punch Level Control (Included) Replacement Part: 1510-57864-01 |
| Auto Turn-On Selector | Remote Trigger DC Offset Sense Audio Sense |
| Input Switch | High-Level (Speaker Line) Low-Level (RCA) |
| Signal Input | Low/High-Level: 1 RCA Pair (L/R Summed) Replacement Part: 1560-57865-01 |
| Input Sensitivity | Low-Level: 150 mV to 6 V High-Level: 300 mV to 12 V |
| Input Impedance | 20k Ohms |
| Power Input Connector | Quick Disconnect Replacement Part: 1040-57860-01 |
| Power Wire Gauge | B+/GND: 8 AWG REM: 18 AWG |
| Circuit Topology Class | Class-D |
| Heatsink Type | Extruded Aluminum |
| Cooling | Convection |
| Visual Indicators | Power/Protect LED |
| Fuses | 20 Amp (2 x 10 Amp ATO Fuse) |
| Dimensions Box H x W x D Wedge H x W x D1 x D2 | 11.4" x 17.6" x 5.6" 289 mm x 448 mm 141 mm |
| Shipping Weight | 19 lbs. (8.6 kg) |
