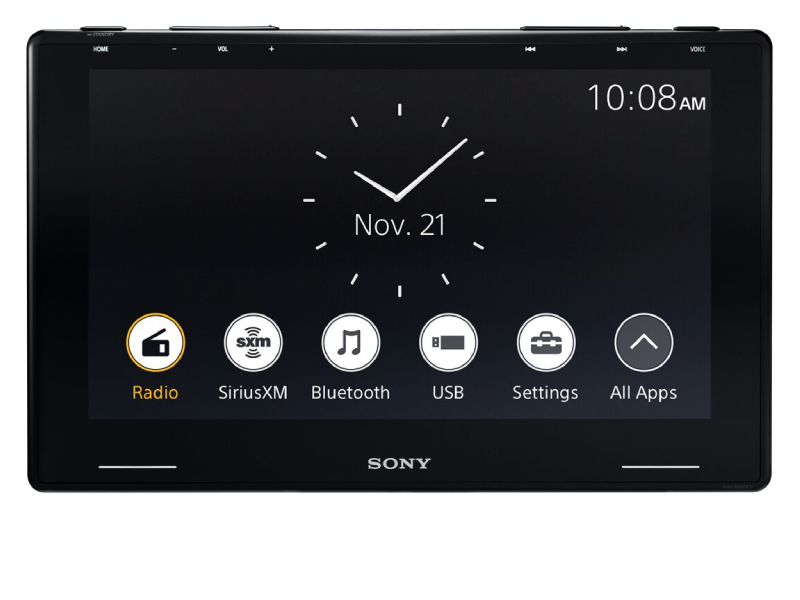

Sony 10.1 Inch Mobile ES High-Resolution Digital Media Receiver - XAV9500ES

Authorized Dealer Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Price$1,899.99
Savings$400.00
Our Price $1,499.99 CAD

Or as low as $166.67/month over 9 months. Apply Now


Availability
Call for availability

Literature

Everything in view

Now updated with a 10.1‑in high-definition LCD panel and optically gapless design, it boasts best-in-class picture quality while assuring safer and easier operation than ever.

Gapless Anti-glare Capacitive Touchscreen

Unlike a conventional display, the LCD is bonded directly to the protective glass touch layer with a transparent adhesive. The result is an extremely precise touch experience along with enhanced contrast and visual performance.

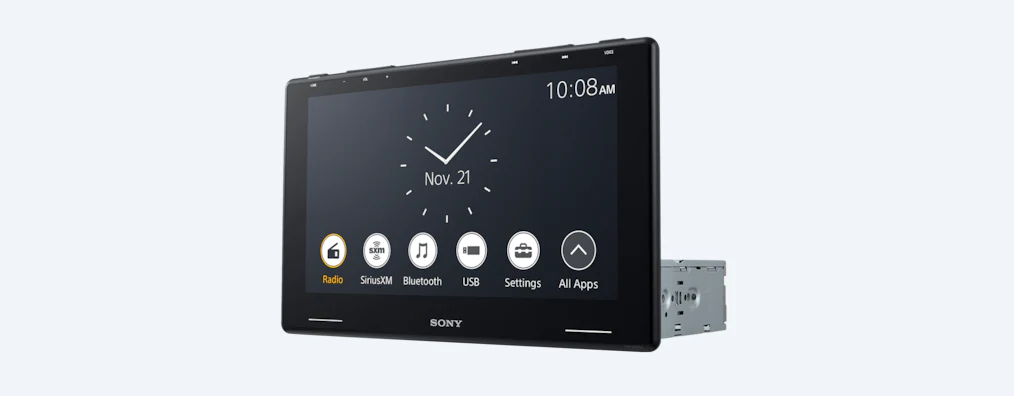

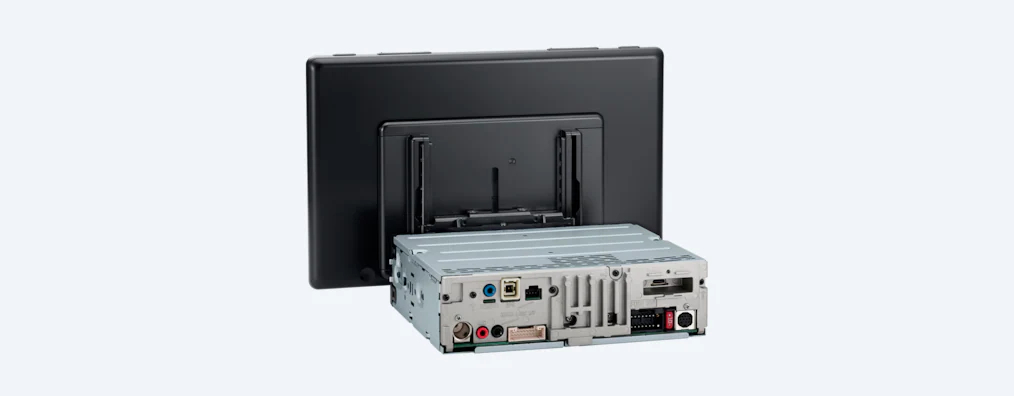

Easy mounting and adjustment

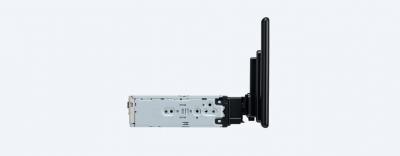

The sturdy and adjustable mount is designed for single-DIN installation to suit a wide variety of vehicles. The four-way adjustment makes it easy to position the oversized display in your perfect spot.

The Way Artists Truly Intended

Enjoy the subtle nuances of studio-quality sound with High-Resolution Audio. Passion for music unites every component from signal to speaker, so it feels like the artist is performing right in front of you.

Choices for optimum performance

Carefully selected components ensures superb sound quality. The dedicated choke coil features powerful bass while filtering unwanted frequencies, for controlled and dynamic audio reproduction. Audiophile-grade capacitors deliver effortless power for clearness and tight bass, while multi-layer polymer capacitors help ensure low overall harmonic distortion and natural sound character.

Engineered for ultimate listening pleasure—ESS digital-to-analogue converter

Experience the same calibre of sound usually reserved for high-end home audio products, thanks to the ESS DAC chip—a premium converter that provides optimum quality, from all your digital music files. With high-performance 32-bit processing and eliminated timing jitter, this D/A converter delivers an unprecedented dynamic range and low harmonic distortion.

Anti-resonance dual-layer chassis

The dual-layer design of the chassis separates analogue and digital circuitry, preventing electro-magnetic interference for uncompromised sound quality.

Android Auto™

Use commands to dictate messages, take phone calls or get help from Google Maps. You can even control music playback just by talking. Wireless connection available depending on your smartphone and country or region.

Sound Customization

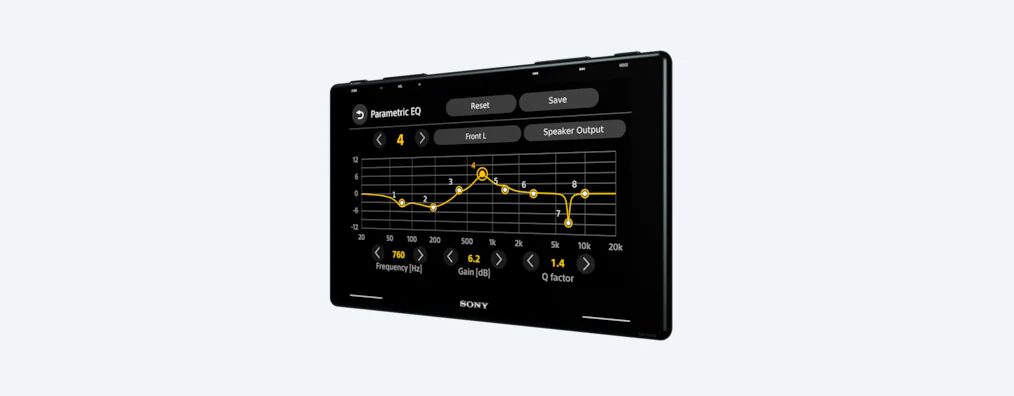

The high-grade 192‑kHz / 24‑bit DSP offers pristine sound processing and time alignment—down to a remarkable 1 cm for each of the 6 addressable channels (4 speakers + 2 subwoofers via pre-out). A 14-band EQ lets you adjust the overall sound to your music or taste, and each of the 6 channels features independent 8-band parametric EQ to get optimum performance across different speaker configurations. Together with the 3-zone crossover, you can dial in the perfect match of front, rear and subwoofers.

Full smartphone connectivity without the wires

Thanks to built-in Wi-Fi and the supplied GPS antenna, you can leave your smartphone in your pocket and still access full device integration. Access navigation, communication and entertainment, all via voice control without any cable clutter.

Apple CarPlay

Easily access the iPhone features you know and love, just by talking to Siri. Music, maps, phone calls and messages are all under your control. Wireless connection available depending on your country or region.

High-Resolution wireless LDAC audio

Enjoy the convenience of Bluetooth wireless audio and exceptional sound quality thanks to LDAC. Connect compatible devices to stream audio at 96 kHz / 24-bit sampling with bitrates up to 3x higher (990 kbps) than conventional Bluetooth.

HD Graphical User Interface

The 1280 x 720 HD touchscreen offers an enhanced user interface for safety and ease of use. It features a high-contrast “Mobile ES” colour scheme, as well as customizable wallpaper to suit your vehicle and style.

Specifications
What's In The BoxWarranty Card, External Microphone, Power Supply Leads, Connection Cables (Audio/Camera), USB Extension Cable (Type-C), GPS Antenna
Size & Weight
Dimensions (W x H x D)271 x 171 x 247 mm
Weight2.8 kg
General Features
Output Power55 W x4
Pre Out5 V 3 Pre (Front LR / Rear LR / Sub LR)
Rear View Camera inRear/Input 1/Input 2
USBYes (Type-C x 1, REAR)
Firmware upgradabilityYes
Time AlignmentYes
Equalizer14-band Equalizer and 8-band Parametric Equalizer
Album artwork IndicationYes
Tuner Features
PresetFM18/AM12
Auto MemoryBTM
RDS / EONYes (RBDS)
Bluetooth Profile
HFP 1.5Yes (1.7.1)
A2DPYes (1.3.1)
AVRCPYes (1.6.1)
PBAPYes (1.1)
Bluetooth Features
Speed DialYes (6 memories)
Recent Calls (# of)Yes
Last Dialed CallYes (select from the dialed call history)
Phonebook Access via PBAPYes
Alphabetical Phonebook SortingYes
Ring Volume Level ControlYes
Call Volume Level ControlYes
External MicrophoneSupplied
Phone Battery Level ReminderYes
Signal Strength IndicationYes
Bluetooth Audio Features
Audio Codec (Bluetooth Audio)SBC/AAC/LDAC
Pause (Bluetooth Audio)Yes
CUE / REVYes
TRACK +/-Yes
Group (Folder) +/-Yes
Audio Level AdjustmentYes (–6 dB to +6 dB)
Repeat Control (Audio Device side)Yes
Shuffle Control (Audio Device side)Yes
Meta Data IndicationYes
Panel Design
Key IlluminationYes on Front Panel (White)
Panel DetachabilityYes (For installation only)
Monitor(AVC)
LCD TypeTFT Active Matrix
Screen Aspect16 : 9
Screen Diagonal (inch / mm)10.1 inch / 257 mm
Screen Size (W x H mm)223.7 x 125.8 (mm)
Resolution (DOT)1280 x 720
DimmerAuto/Manual select
Contrast Ratio1000
Brightness425 cd/m2
Display Panel
KEY ILLUMINATIONOn Front Panel (White)
Dimmer AdjustYes
User Interface
Touch PanelYes/Capacitive
Parking ControlYes
Parking Line AdjustYes
Rear View Camera-In Marker SettingYes
USB Mass Storage Device Control Feature
USB Device Control (Repeat)TRACK/FOLDER/DRIVE
USB Device Control (Shuffle)OFF/FOLDER/DEVICE
USB Device Control (Pause)Yes
USB Device Control (Resume Play)Yes
USB Device Control (Audio Codec)MP3/WMA/WAV/AAC/FLAC/ALAC/DSF/DSDIFF
USB device control (audio playable file extension).mp3/.wma/.wav/.m4a/.mp4/.flac/.m4a/.mp4/.dsf/.dff
