Sony 6.95 Inch Digital Media Receiver With Weblink Cast - XAVAX5600

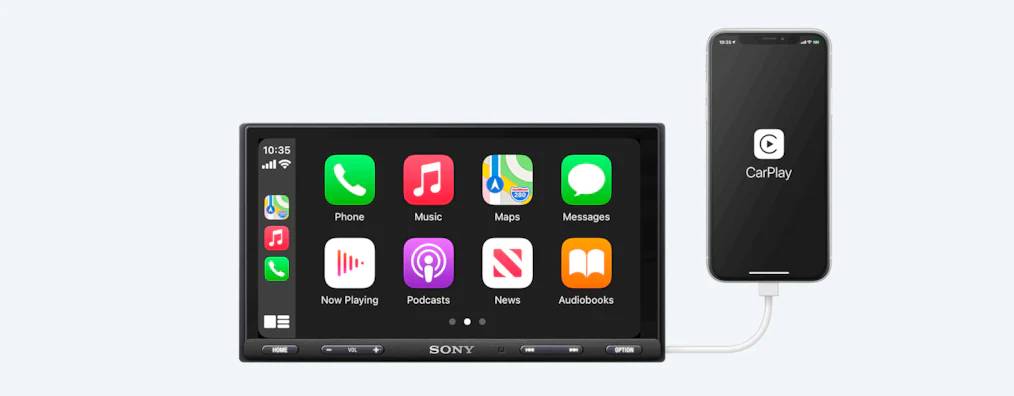

Siri with Apple CarPlay
Easily access the iPhone features you know and love, just by talking to Siri. Music, maps, phone calls and messages are all under your control.
Voice Control with Android™ Auto
Use voice commands to dictate messages, take phone calls or get help from Google Maps. You can even control music playback, just by talking.
WebLink™ Cast compatible
WebLink™ is a lightweight app delivery platform designed especially for in-vehicle use. Using the Android or iOS device connection, it is now possible to mirror your smartphone screen right on the car audio display—for reliable, responsive infotainment anytime on the road.

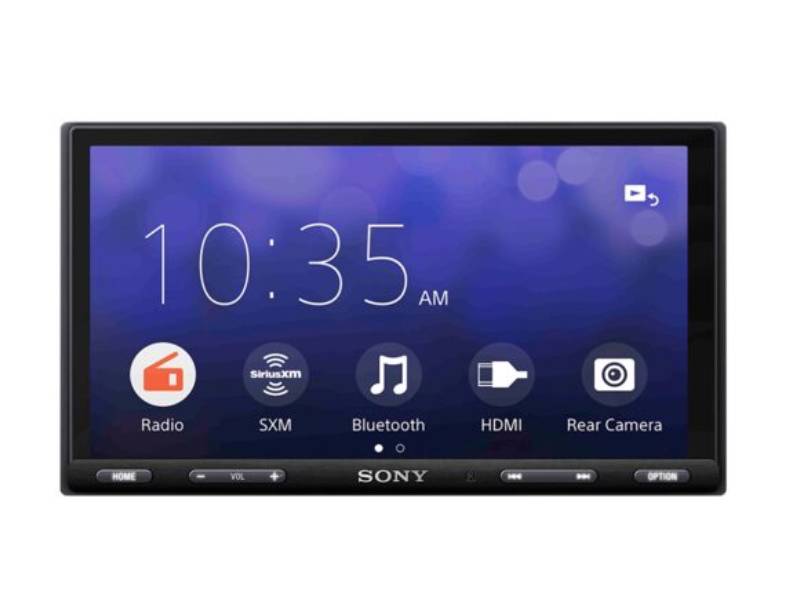

See and control everything on a flush 6.95-in (diag.) touchscreen
Bring up maps, sort through playlists, and make phone calls—all with just a quick tap on the touch controls. The ultra-slim 6.95-in (diag.) (17.6-cm) display uses a bezel-less panel, for a smooth fit on the dashboard that blends seamlessly with your car interior.

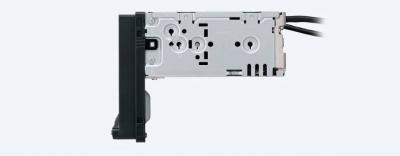

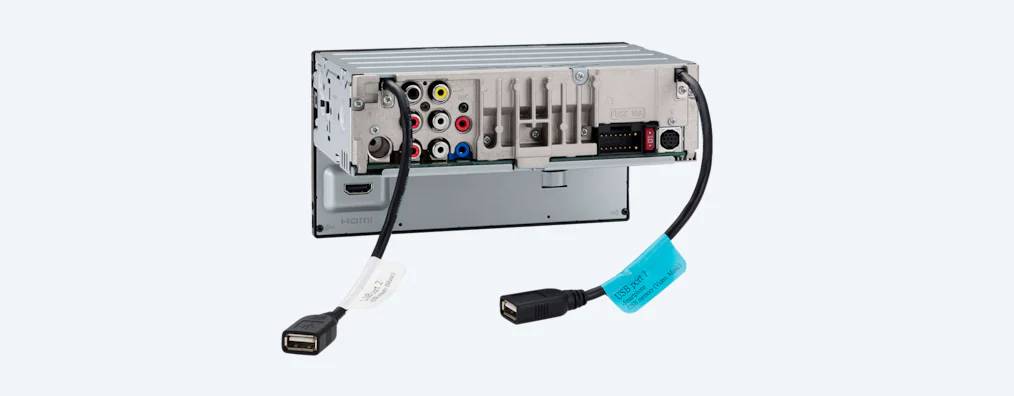

Easy installation with a compact rear chassis
Despite its double-DIN display, the rear chassis is far smaller than conventional double-DIN units. This makes for much easier installation and leaves plenty of room for cabling and other accessories in the space behind the display.

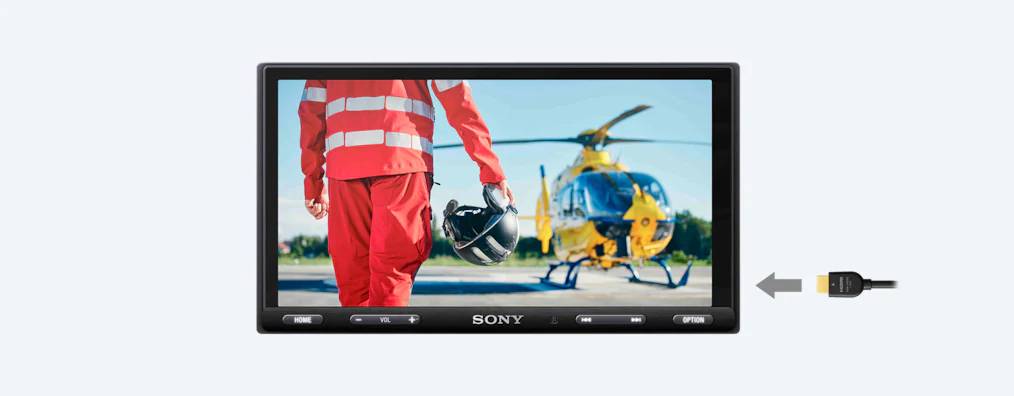

Dual USB ports and HDMI connectivity
Dual USB to connect smartphone and storage device simultaneously, while HDMI connectivity allows an external audio and visual source device.
3 x 5-V pre-outs
The three 5-volt pre-outs ensure a strong signal for external power amps, delivering clear sound and minimal signal interference.
Rear camera ready for easy reversing
If you’ve got a rear camera installed, you can use it to help you park. Whenever you tap the rear camera icon or put your vehicle in reverse, the video feed instantly comes up on screen. Customizable guidelines help you to back in smoothly and safely.
Bluetooth® wireless technology
Make hands-free calls and stream wireless audio from your smartphone with Bluetooth®.

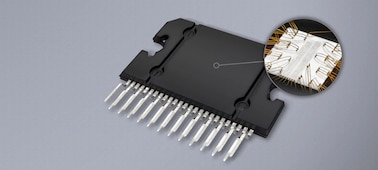

4 x 55 W amplification for clear, powerful sound
The Dynamic Reality Amp 2 gives you 4 x 55 W of power, so you can play music as loudly or softly as you like. The amp has 47% less internal resistance than conventional units, for increased output and clear, natural sound at any volume.

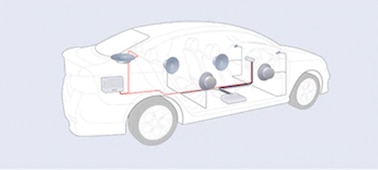

Dynamic Stage Organizer creates virtual speakers on your dashboard
Sound waves are directional, especially in the higher frequencies—so if your speakers are positioned low in your doors, high frequency sounds are often lost, reducing clarity and instrument separation. Dynamic Stage Organizer uses digital signal processing to lift the sound, improving stereo positioning so music sounds like it’s coming from right in front of you.
FLAC-compatible
FLAC compatibility lets you play lossless audio files, so you can enjoy every detail of the music.
Sirius XM® Radio ready
Connect your Sirius XM® Radio satellite tuner (not supplied) to enjoy commercial-free music, sports, news and entertainment.
Size & Weight | |
---|---|
Dimensions (W x H x D) | 178 x 100 x 139 mm |
Weight | 1.0 kg |
General Features | |
Output Power | 55 W x4 |
Pre Out | 3 Pre (Front/Rear/Sub x 1) |
Rear View Camera in | Yes |
USB | Yes (Rear x2) |
Firmware upgradability | Yes |
DSO (Dynamic Stage Organizer) | Yes |
Equalizer | 10-band Graphic Equalizer |
EXTRA BASS | Yes (Off/1/2) |
Connectivity | |
Bluetooth | Yes |
Tuner Features | |
Preset | FM18 / AM12 |
Auto Memory | BTM |
RDS / EON | Yes (RBDS) |
Bluetooth Profile | |
HFP 1.5 | Yes (1.6) |
A2DP | Yes (1.3) |
AVRCP | Yes (1.3) |
PBAP | Yes (1.1) |
Bluetooth Features | |
Speed Dial | Yes (6 memories) |
Recent Calls (# of) | Yes |
Last Dialed Call | Yes (select from the dialled call history) |
Phonebook Access via PBAP | Yes |
Alphabetical Phonebook Sorting | Yes |
Ring Volume Level Control | Yes |
Call Volume Level Control | Yes |
External Microphone | Supplied |
Phone Battery Level Reminder | Yes |
Signal Strength Indication | Yes |
Bluetooth Audio Features | |
Audio Codec (Bluetooth Audio) | SBC / AAC |
Pause (Bluetooth Audio) | Yes |
CUE / REV | Yes |
TRACK +/- | Yes |
Group (Folder) +/- | Yes |
Audio Level Adjustment | Yes (-6 dB to +6 dB) |
Repeat Control (Audio Device side) | Yes |
Shuffle Control (Audio Device side) | Yes |
Meta Data Indication | Yes |
Panel Design | |
Panel Surface Finish Color | Black |
Key Illumination | Yes (White) |
Monitor(AVC) | |
LCD Type | TFT Active Matrix |
Screen Aspect | 17: 9 |
Screen Diagonal (inch / mm) | 6.95 inch |
Screen Size (W x H mm) | 156.6 x 81.6 (mm) |
Resolution (DOT) | 800 x 480 |
Dimmer | Yes |
Contrast Ratio | 400 |
Brightness | 500 cd/m2 |
Display Panel | |
KEY ILLUMINATION | Yes (White) |
Dimmer Adjust | Yes |
User Interface | |
Touch Panel | Yes/Capacitive |
Gesture Command | Yes |
Remote Commander | RM-X170 |
Parking Control | Yes |
Parking Line Adjust | Yes |
Aspect Ratio Select | Yes |
Rear View Camera-In Marker Setting | Yes |
USB Mass Storage Device Control Feature | |
USB Device Control (Repeat) | TRACK/FOLDER/DRIVE |
USB Device Control (Shuffle) | OFF/FOLDER/DEVICE |
USB Device Control (Pause) | Yes |
USB Device Control (Resume Play) | Yes |
USB Device Control (Audio Codec) | USB1: PCM / MP3 / WMA / AAC / FLAC, USB2: MP3 / WMA / FLAC |
USB device control (audio playable file extension) | USB1: .wav / .mp3 / .wma / .m4a / .flac, USB2: .mp3 / .wma / .flac |
USB Device Control (Video Codec) | Only USB1: MPEG4-SP / AVC (H.264 Baseline) / WMV / MKV / XviD |
USB device control (video playable file extension) | Only USB1: .mp4/.wmv/.mkv |
Multi-Language | |
Menu | English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian |
Caution | English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian |
ID3 Tag | English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian |
