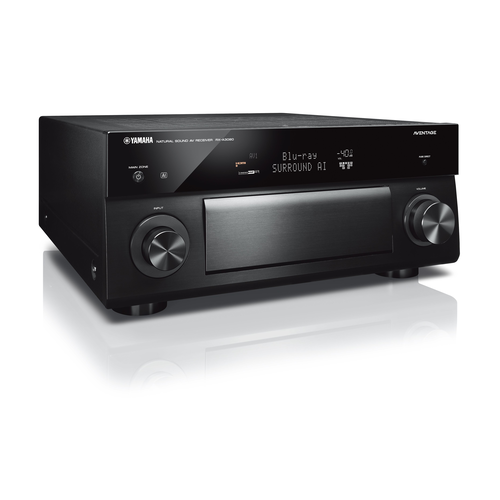

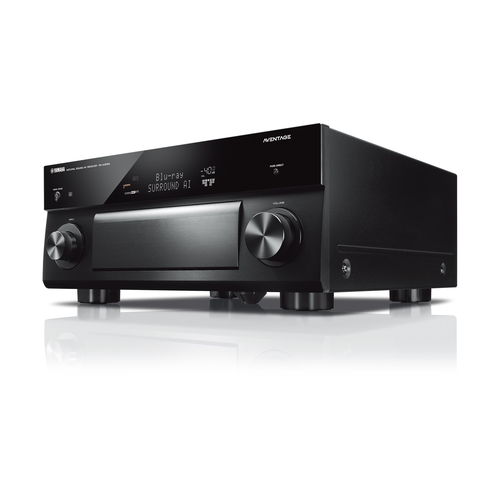

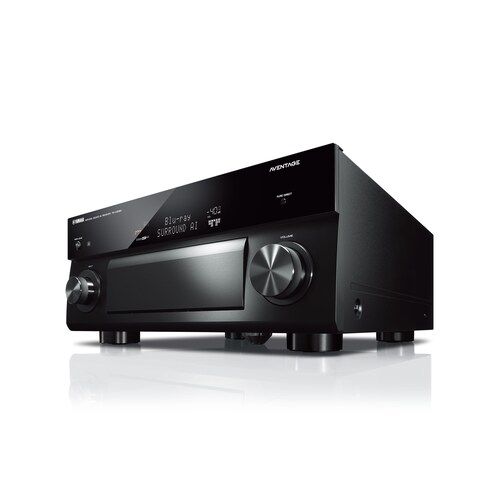

Yamaha 9.2 Channel AV Receiver With MusicCast - RXA3080B

Authorized Dealer Price Match Guarantee

Price Match Guarantee

The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Our Price

$2,699.95 CAD

Or as low as $299.99/month over 9 months. Apply Now

Yamaha 9.2 Channel AV Receiver With MusicCast - RXA3080B

RXA3080B

^$2,699.95

Quote Request

Description
Features

Quote Request

Availability
Call for availability

RXA3080B
Best Deal Promise

Literature

Description
Features

Overview

9.2-channel AVENTAGE model featuring the latest, most advanced Surround:AI, highest quality DACs, and ultimate quality XLR terminals.

9-channel powerful surround sound
--- 150 W per channel (8 ohms, 20 Hz-20 kHz, 0.06% THD, 2-ch driven)
--- 165 W per channel (8 ohms, 1 kHz, 0.9% THD, 2-ch driven)
--- 230 W per channel (8 ohms, 1 kHz, 10% THD, 1-ch driven)
Surround:AI automatically optimises the surround effect in real time
Dolby Atmos® and DTS:X™ with CINEMA DSP HD3
ESS SABRE PRO ES9026PRO Ultra DAC and SABRE ES9007S DAC
Ability to add wireless surround speaker/s* (*MusicCast 20 or MusicCast 50)
Amazon Alexa and Google Assistant voice control compatibility* (*Availability varies by region)
Highly rigid construction including Anti Resonance Technology (A.R.T.) Wedge　
High quality parts for optimum performance
YPAO™-R.S.C. (with 3D, multi-point measurement and 64-bit high precision EQ)
XLR input terminal
MusicCast multi-room technology
Music streaming services built-in
HDMI® (7 in / 3 out) with Dolby Vision™ and Hybrid Log-Gamma
Phono input for vinyl playback

A New Frontier in Sound.

Discover the thrill of the most advanced cinematic surround sound in the home. Breakthrough Surround:AI technology analyzes the scene of the entertainment content and optimizes the surround effect in real time while you watch.

The Heart of the Smart Home.

State-of-the-art configuration options and unparalleled versatility satisfy the most demanding whole-of-home applications.

State-of-the-art configuration options and unparalleled versatility satisfy the most demanding whole-of-home applications.

Intuitively Simple to Use.

Simple and straightforward operation, whether using specially designed compatible apps, or an intuitive on-board menu.

Simple and straightforward operation, whether using specially designed compatible apps, or an intuitive on-board menu.

Surround Sound Processing
SILENT CINEMA / Virtual CINEMA DSP	Yes (Virtual CINEMA FRONT)
Dialogue Lift	Yes (no presence speakers required)
Virtual Surround Back Speaker	Yes
Virtual Presence Speaker	Yes
Dialog Level Adjustment	Yes
DSP Programs	24
CINEMA DSP	Yes (HD3)
Surround:AI	Yes
Amplifier Section
Dynamic Power per Channel (8/6/4/2 ohms)	175 / 220 / 295 / 410 W
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA)	230 W (8 ohms, 10% THD)
Channel	9.2
Rated Output Power (1kHz, 2ch driven)	165 W (8 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven)	150 W (8 ohms, 0.06% THD)
Audio Features
YPAO multi-point measurement	Yes with R.S.C. (Reflected Sound Control) , 3D, 64-bit High Precision EQ Calculation and Angle Measurement
High-resolution Music Enhancer	Yes
Compressed Music Enhancer	Yes
Pure Direct	Yes (with video on mode)
File Format	MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz
Surround Sound Processing
DTS-HD Master Audio	Yes
DTS:X	Yes
Dolby Surround	Yes
Dolby Digital Plus	Yes
Dolby Atmos	Yes
Dolby TrueHD	Yes
VIDEO FEATURES
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync	Yes
Video adjustment	Yes
HDMI Up-scaling	Yes (Analog to HDMI® / HDMI to HDMI)
HDMI Audio Return Channel	Yes
HDMI eARC	Yes (via firmware update)
HDMI 3D passthrough	Yes
4K Ultra HD Pass-through and upscaling	Yes (4K / 60p, 4:4:4)
Audio Features
DA Converter	ESS 384 kHz / 32-bit SABRE PRO Premier DAC™ ES9026PRO (for main 7 channels)
Audio Delay	Yes (0-500 ms)
A.R.T. Wedge	Yes
Initial Volume & Maximum Volume Setting	Yes
Adaptive DRC (Dynamic Range Control)	Yes
YPAO Volume	Yes

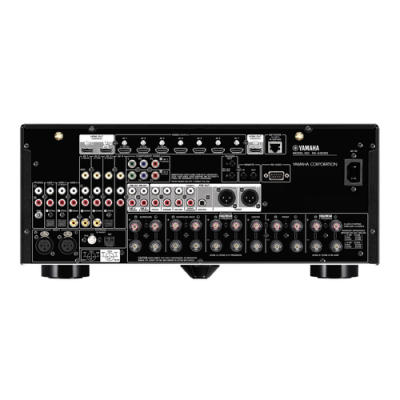

Extensive Connection
Phono Input	Yes
Component Video Input/Output	2 / 0
Analog Audio Input/Output	10 (front 1) / 0
Digital Audio Input/Output: Coaxial	3 / 0
Digital Audio Input/Output: Optical	3 / 0

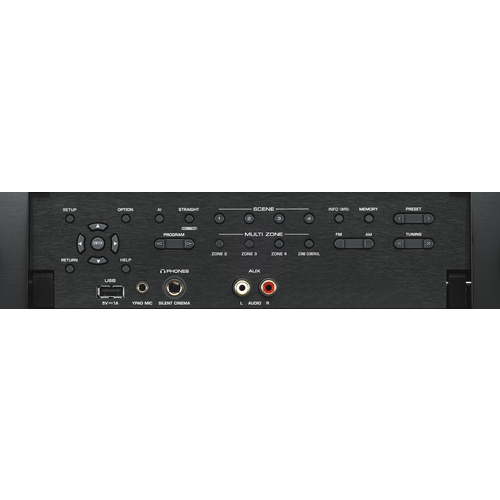

Front AV Input	USB / Analog Audio
Bluetooth	Yes (SBC / AAC)
AirPlay	Yes (AirPlay 2 via firmware update)
Wi-Fi	Yes (2.4 / 5 GHz)
Network Port	Yes
USB Input	USB Memory, Portable Audio Player
HDMI CEC	Yes (SCENE, Device Control)
HDMI Input/Output	7 / 3 (HDCP2.3, HDR10 / Dolby Vision / HLG and BT.2020 compatible)
Connectivity
MusicCast Surround	Yes
XLR Terminal	Yes
Zone Control
Zone HDMI	Yes (Advanced HDMI Zone Switching)
Zone B Output	HDMI
Zone Video Output	HDMI / Component / Composite
Powered Zone	Zone 2 / 3
Zone 4 Audio Output	HDMI
Zone 3 Audio Output	Preout
Zone 2 Audio Output	Preout / HDMI
User Interface

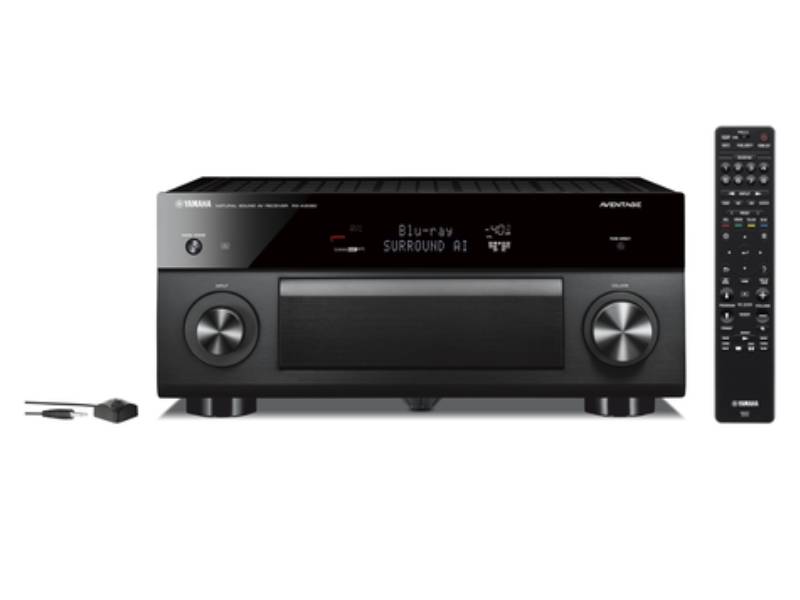

Remote Control Unit	Yes (Full LED Backlight)
Web Browser Control	Yes
App Control	Yes (iPhone / iPad / Android phone / tablet)
SCENE	SCENE PLUS (8 sets)
On-screen display	Graphical User Interface
Tuner Section
FM/AM Tuner	Yes
Extensive Connection
Headphone Output	1
Composite Video Input/Output	4 / 0
Preout	11.2-ch
General
Weight	39.9 lbs.; 18.1 kg
Zone Control
Zone GUI	Yes
RS-232C Interface	Yes
+12V Trigger Output	2
Remote (IR) Input/Output	1 / 1
Party Mode	Yes
General
Standby Power Consumption (IR only)	≤0.1W
Auto Power Standby	Yes
ECO mode	Yes
Dimensions (W x H x D)	17-1/8” x 7-1/2” x 18-5/8” (with antenna up: 17-1/8” x 10-5/8” x 18-5/8”); 435 x 192 x 474 mm (with antenna up: 435 x 269 x 474 mm)
