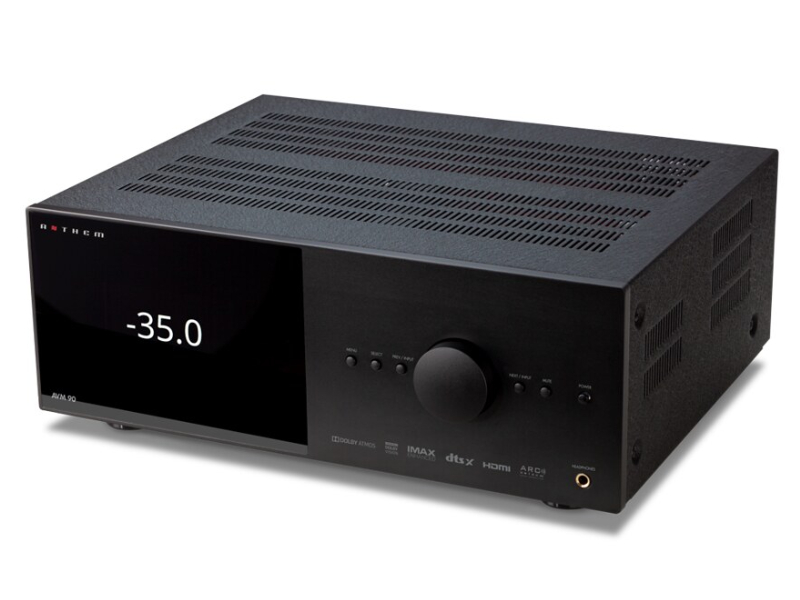

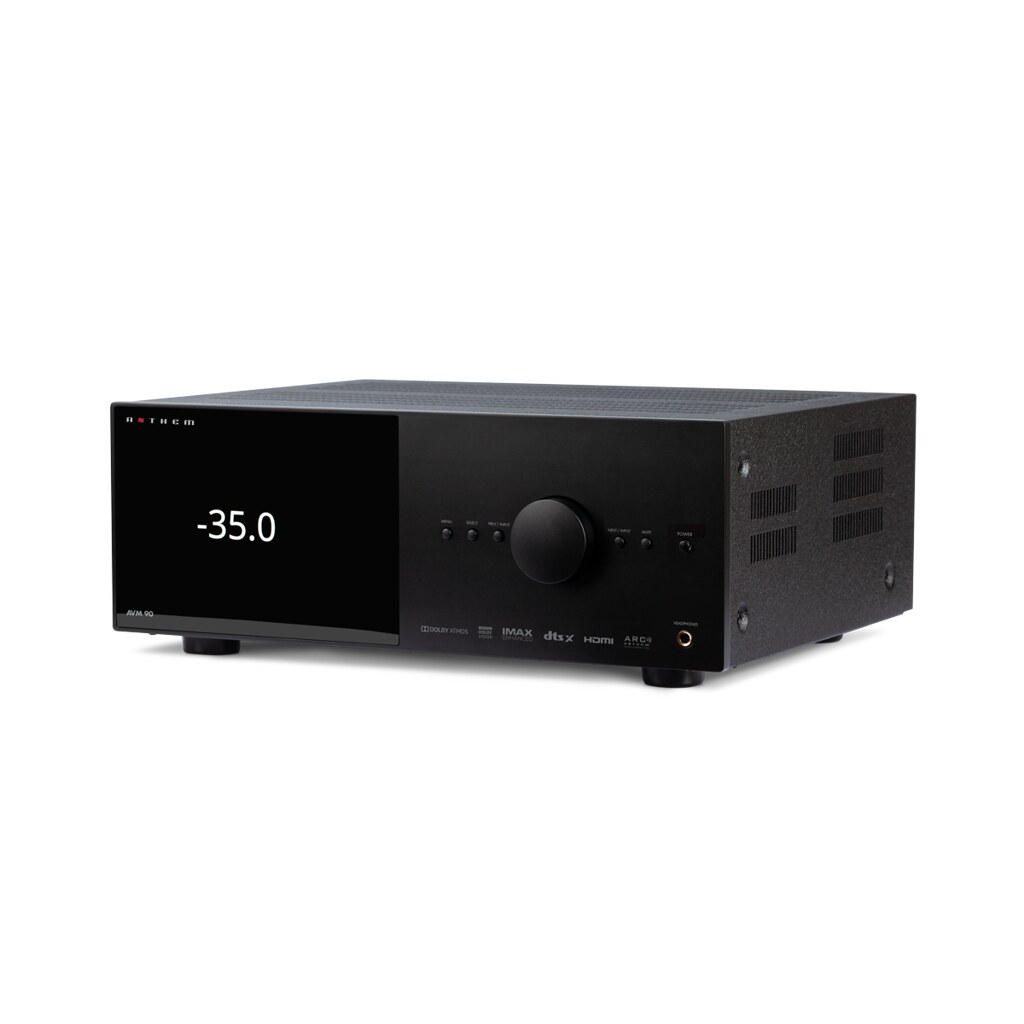

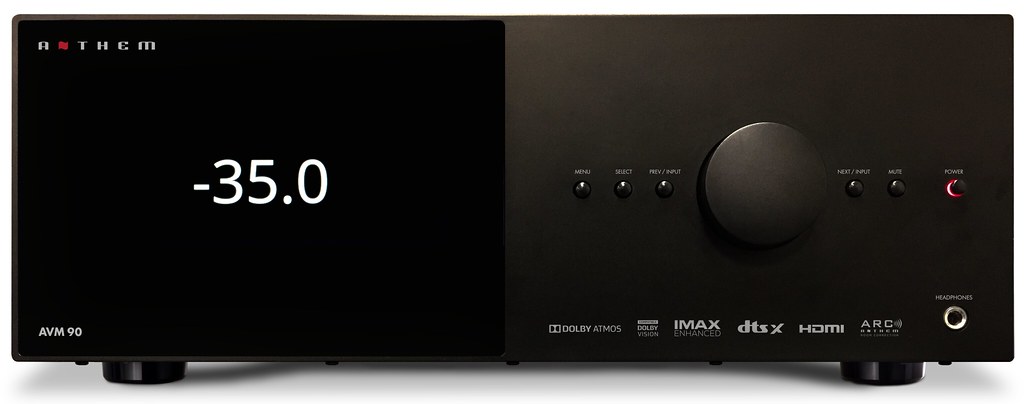

Anthem AVM Series AV Preamplifier Or Processor - AVM 90
![](/description_images/files/AVM70_d1.jpg)
ANTHEM – PURE PERFORMANCE, PURE VALUE
Since the AVM 50 and Statement D2 A/V Processors, music lovers and home theater enthusiasts have coveted Anthem’s premium surround separates. Featuring industry-leading room correction, expert management of the latest audio formats and robust integration; Anthem is the ultimate nerve center of any premium home theater or media room.
The AVM 90 is our new flagship A/V Processor with upgraded audio circuitry, 4 independent subwoofer outputs and a 32-bit AKM AK4499EQ DAC with 768kHz sampling capability. It represents Anthem’s ultimate expression of audio performance.
Object-oriented audio codecs have been updated with support for up to 15.4 channels; as well as built-in streaming support for Apple AirPlay2(coming soon), Google Chromecast, Bluetooth, Spotify Connect (coming soon) and Roon (coming soon).
Video support includes 7 HDMI 2.0 inputs with 2 outputs, plus eARC for seamless integration with smart TVs. Perfect passthrough of Ultra HD signals at up to 18.2 Gbps with Dolby Vision, HDR or Hybrid Log Gamma ensures optimal presentation of your visual media.
![](/description_images/files/AVM70_d2.jpg)
AVM 90 Features & Functions
Anthem’s new AVM 90 A/V Processor brings all of today’s technologies into a single component.
Features include
- New Electronics platform, up to 15.4 channels, HDMI 2.0b HDCP 2.2, hardware upgradeable to HDMI 2.1 (8K)
- All object-oriented audio codecs have been updated to the latest version of DTS:X and Dolby Atmos.
- On select models (MRX 1140, AVM 90 and AVM 70), object-oriented audio codecs have been updated to the latest version of DTS:X Pro.
- IMAX Enhanced
- Four Independent sub outputs on AVM 90, allow ARC Genesis to correct multiple subs individually for frequency response and phase alignment.
- Independent HDMI Zone 2 output.
- ARC Genesis now features a more precise microphone, ensuring better results in any listening environment.
- Platform Agnostic Streaming with AirPlay2(coming soon), Google Chromecast (Audio), Bluetooth v4.2, and Spotify Connect (coming soon!) and Roon (coming soon!)
- Reliable Networking Platform with web-based setup and over-the-air updates
- Next-Generation DSP Platform
- Modernized Design with high resolution front panel display
- MM Phono Stage
Audio Features:
- 15.4 pre-amplifier channels
- Four independent subwoofer outputs
- Auto Subwoofer Phase Adjustments (ARC Genesis)
- Auto Subwoofer Polarity Adjustments (ARC Genesis)
- Latest Implementation of ARC Genesis
- Four Speaker Profile Memories
- 2” / 5 cm Speaker Distance Increments
- 0.5dB Level Increments
- MM Phono Stage
- Super Sub Front Setting
HDMI & Video:
- Dolby Vision
- IMAX Enhanced
- HDMI 2.0b & HDCP 2.2 (hardware upgradeable to HDMI 2.1 8K)
- HDMI eARC
- 4:4:4 Subsampling @4K60 (18.2 Gbps)
- High Dynamic Range (HDR)
- Hybrid Log Gamma (HLG)
- BT.2020 Color Gamut
- 4K 50/60 Switching
- Zone 2 HDMI Output
- Dual HDMI Outputs
- Standby Pass-Through
Decoding:
- Dolby Atmos
- Dolby HD
- DTS:X Pro
- DTS:X
- DTS-HD Master Audio
Custom Installation:
- IP Control
- RS-232 Control
- IR Input
- Three 12V Trigger Outputs
- Pre-made Control Drivers
- Save and Load Settings
- Import and Export Settings
- Rackmount kit (sold separately)
Streaming:
- Apple Airplay(coming soon)
- Apple Airplay 2(coming soon)
- Google Chromecast Audio
- Bluetooth
- Spotify Connect (coming soon)
- Roon (coming soon)
Listening Modes:
- Anthem Logic
- Dolby Surround
- DTS Neural:X
- DTS Virtual:X
- Stereo
- All Channel Stereo
- Mono
- All Channel Mono
Additional Features:
- Anthem Web User Interface
- Toroidal Transformer
- 30 Input Configurations
- Input trim adjustments
- Power-on Input Assignment
- Auto Power Off
- Eco Mode (standby)
- Over-the-air Network updates
- USB updates
- Beta updates (over-the-air)
- Backlit Remote Control
![](/description_images/files/AVM70_d3.jpg)
Dolby Vision
Feel the story’s full emotional impact, bringing your entertainment to life with an ultravivid picture, brighter highlights, and darker shadows.
![](/description_images/files/AVM70_d4.jpg)
Dolby ATMOS
Sound has never sounded this good. Feel a deeper connection to the stories and music you love with sound that moves all around you with breathtaking realism.
![](/description_images/files/AVM70_d5.jpg)
DTS:X
DTS:X is the next generation audio codec from DTS that leverages object-based audio to enable new audio experiences in immersion and interactivity.
![](/description_images/files/AVM70_d6.jpg)
DTS:X PRO
Greater spatial resolution and realism in premium home cinema technology is now possible with DTS:X® Pro technology, which supports up to 32 connected speakers, even from overhead. Experience how truly immersive audio transforms your favorite movies, music and games.
![](/description_images/files/AVM70_d7.jpg)
IMAX
IMAX ENHANCED is the only way to experience IMAX’s signature picture, sound and scale in the home, IMAX Enhanced combines digitally remastered 4K HDR content and DTS audio technologies with best-in-class consumer electronics products and streaming platforms.
![](/description_images/files/AVM70_d8.jpg)
Airplay coming soon
All AVM/MRX components support Apple AirPlay and AirPlay 2 which let the user stream content, plus songs stored on local networks, to any AirPlay-enabled device. AirPlay 2 adds support for multidevice play so you can hear your music throughout the home.
![](/description_images/files/AVM70_d9.jpg)
Google Chromecast, lets the user stream content from any Android device like a phone, tablet, or laptop to any AVM/MRX components. If you can listen to it on your phone, it can be Cast to your Anthem receiver or processor
![](/description_images/files/AVM70_d10.jpg)
Spotify coming soon
All AVM/MRX components support Spotify Connect allowing you to turn your smartphone into a remote and allows you to play, pause, and stream content from Spotify.
![](/description_images/files/AVM70_d11.jpg)
Bluetooth
All AVM/MRX components support Bluetooth to stream songs stored on devices like phones, tablets, and laptops.
![](/description_images/files/AVM70_d12.jpg)
Roon coming soon
All AVM/MRX components support Roon allowing you to connect, stream and manage your music collection. Roon tells your music what to do and where to do it.
![](/description_images/files/AVM70_d13.jpg)

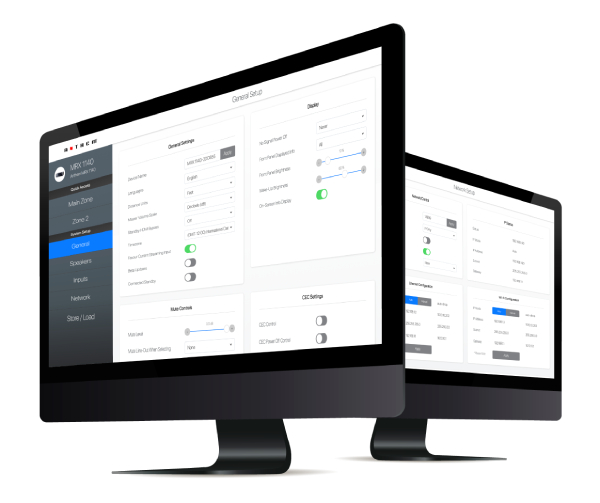

INTRODUCING ANTHEM WEB USER INTERFACE
Anthem Web User Interface is now built in to all MRX Receivers and AVM Processors. Using a phone, tablet or laptop, owners can easily access any function or setting and make changes on the fly. Power the main or second zone on and off, adjust volume, change audio modes or tweak channel trims for a perfect surround sound experience. Web UI can also be used to calibrate speaker delays and levels and configure network settings/control options. Source devices can be renamed, simplifying set up by enabling the elimination of unused inputs. Installers can import and export files to make remote management simple and convenient.
The On-Screen User-Interface Re-Invented
The Anthem Web User Interface was specially designed for easy setup. Nothing could be more simple than on-site configuration and calibration using our intuitive web based controls. The specially designed, adaptive user interface works on any device. Custom Configure everything the new AVM/MRX series has to offer.
![](/description_images/files/AVM70_d14.jpg)

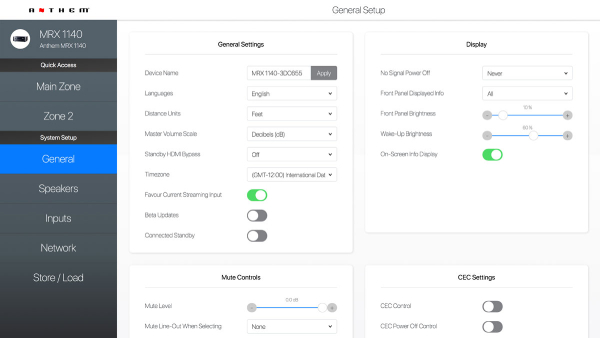

General Setup
- Custom Name Your Device
- Configure User Preferences
- Adjust Display Settings
- Adjust CEC Settings
- Plus More
![](/description_images/files/AVM70_d15.jpg)
Main Zone
- Toggle Power
- Adjust Volume
- Select Current Audio Mode
- On-The-Fly Level Adjustments
- Plus More
![](/description_images/files/AVM70_d16.jpg)

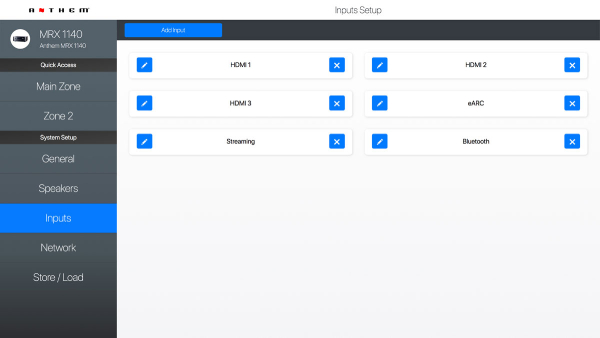

Input Setup
- Add/Delete Inputs
- Customize Input Names
- Configure Input Settings
- Toggle ARC On/Off
- Plus More
![](/description_images/files/AVM70_d18.jpg)
Network Setup
- Configure Network Settings
- Configure Trigger Settings
- Configure IR Settings
- Adjust Tx Status
- Plus More
![](/description_images/files/AVM70_d18.jpg)

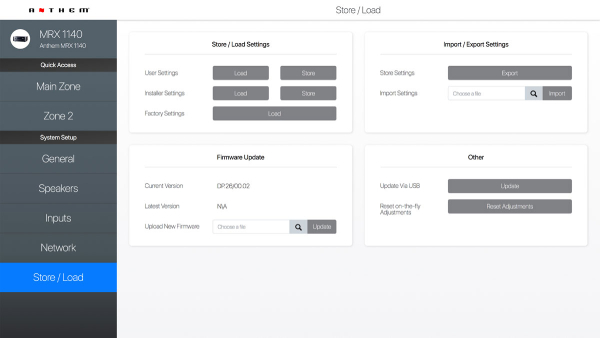

Store Load
- Store/Load Settings
- Import/Export Settings
- Reset On-The-Fly Adjustments
- Update Firmware
![](/description_images/files/AVM70_d19.jpg)

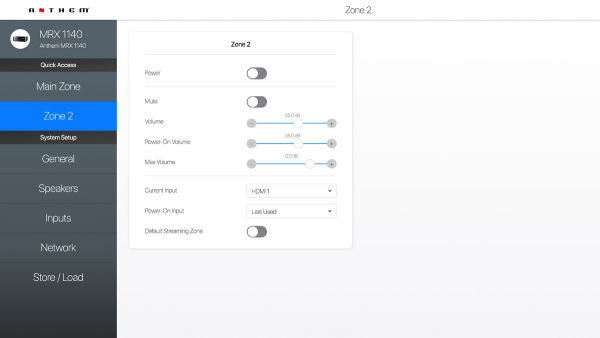

Zone 2
- Zone 2 Volume
- Zone 2 Max Volume
- Power-On Volume
- Zone 2 Input
- Zone 2 Power-On Input
- Default Streaming Zone
![](/description_images/files/AVM70_d20.jpg)
Robust Integration
The Anthem AVM 90 features external control and IP control capabilities for easy customization and compatibility with third-party integration solutions. It offers IP control capability for major third-party control devices including:
![](/description_images/files/AVM70_d20_1.jpg)
![](/description_images/files/AVM70_d21.jpg)

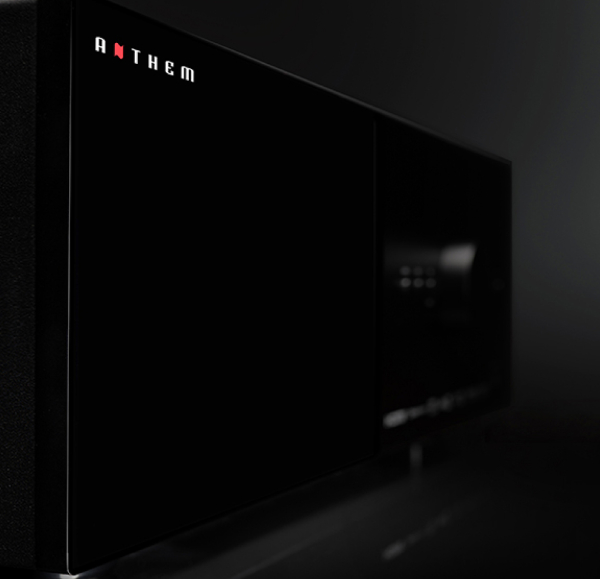

Design
At Anthem, we have one simple goal – to design, engineer and manufacture audio/video products that deliver premium performance and convenience at a reasonable price. We do this by spending thousands of hours selecting and testing components, carefully designing our own circuit topologies, and backing them with robust power supplies that ensure maximum long-term quality and reliability. We achieve this with our team at the Paradigm/Anthem Research Center and their decades of combined experience.
![](/description_images/files/AVM70_d22.jpg)

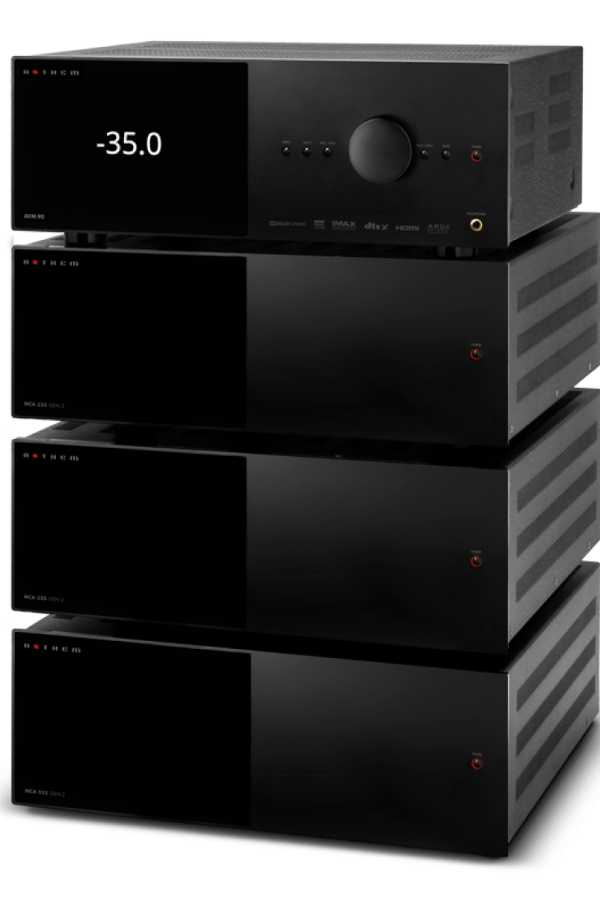

Limitless Possibilities
Today’s premium home theaters need support for as many as 15 speakers and 4 subwoofers to handle the latest Dolby Atmos and DTS:X object-oriented audio codecs. Pair an AVM 70 or AVM 90 A/V Processor with a stack of MCA amplifiers and you’ll hear sound that rivals the best commercial cinemas.
MCA’s scalability means you can purchase only the channels you need to power your vision of home entertainment. AVM Processors can now manage configurations up to 15.4 channels (up from 11.2) with ARC Genesis Room Correction ensuring the best possible sound at every seat. And you won’t need to hide your gear from view.
Anthem’s modernized design extends to every component in the MCA and AVM lines.
![](/description_images/files/AVM70_d23_1.jpg)
![](/description_images/files/AVM70_d23.jpg)

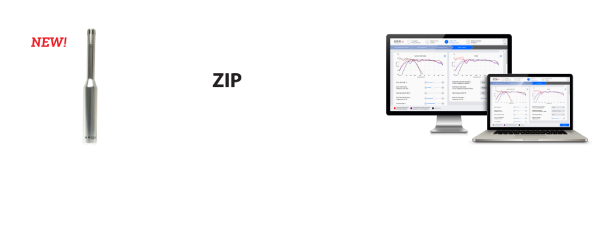

NEW! ARC Genesis Software
ARC Genesis is the newest software that works with many ARC enabled Anthem or Paradigm product. New features include support for both Mac and Windows; new target curve adjustment options including deep bass and high frequencies; improved algorithms and much more.
ARC Genesis is backwards compatible with many Anthem and Paradigm products that are ARC or PBK enabled. For a complete list, please visit AnthemARC.com. This third generation of Anthem Room Correction software represents a significant leap forward in room correction with the most comprehensive set of features yet. ARC Genesis transforms the audio performance of compatible speakers or electronics while retaining the unique character of any room. Proprietary Digital Signal Processing (DSP) software works in tandem with a calibrated microphone (provided with many ARC and PBK enabled products) to provide astonishing improvements to the sound you hear.
![](/description_images/files/AVM70_d24.jpg)
ARC Genesis works with Mac or PC and is the most comprehensive method of transforming the sound in your room. Includes many new features. Download the FREE software at AnthemARC.com.
![](/description_images/files/AVM70_d25.jpg)

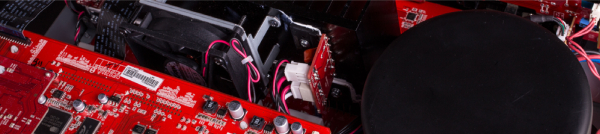

THE ANTHEM ADVANTAGE
Backed by over 35 years of home-grown,hands-on design, and innovative audio engineering experience, Anthem products provide an unprecedented level of reliability and functionality; delivering one of the industry’s highest performance/price ratios. This is just one reason why Anthem electronics are the choice of knowledgeable audiophiles, professional musicians and engineers the world over.
