Audio Technica Direct-Drive Professional DJ Turntable in Black - AT-LP140XP-BK
Audio Technica Direct-Drive Professional DJ Turntable in Black - AT-LP140XP-BK
The AT-LP140XP fully manual professional DJ turntable features a high-torque direct-drive motor and anti-resonant, mass-damped, die-cast aluminum platter to ensure stable, on-axis rotation at 33-1/3, 45, and 78 RPM. It is equipped with an S-shaped tonearm with height adjustment, adjustable tracking force (counterweight) and adjustable dynamic anti-skate control.
Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the durable, high-output AT-XP3 DJ cartridge with 0.6 mil conical bonded stylus included with the turntable. It comes pre-mounted to an AT-HS6 universal ½"-mount headshell.
Designed to connect to components with a dedicated phono input, the turntable comes with a detachable dual RCA output cable and supplies a strong 5.5 mV output.
Additional professional features include a start/stop button; forward and reverse play; selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with +/-8%, +/-16%, and +/-24% adjustment ranges; a stroboscopic platter with speed indicator; a popup stylus target light; and a removable hinged dust cover.
Available in black (AT-LP140XP-BK) and silver (AT-LP140XP-SV).
Direct-Drive with High-Torque Motor
Designed for DJs
This high-torque direct-drive deck comes with a high-output AT-XP3 DJ cartridge and is loaded with professional features.
Plays 33-1/3 RPM, 45 RPM and 78 RPM Records
Direct-Drive with High-Torque Motor
S-Shaped Tonearm
AT-XP3 Dual Magnet™ Phono Cartridge
Fully Manual Operation
Take Control
Whether used for DJ gigs or playing records at home, the AT-LP140XP gives you exquisite control over your vinyl listening experience.
Features
- Experience high-fidelity audio and professional DJ performance
- Direct-drive, high-torque servo motor with speed stabilization
- Fully manual operation
- Adjustable dynamic anti-skate control
- Selectable 33/45/78 RPM speeds
- Professional anti-resonance, mass-damped, die-cast aluminum platter with felt mat
- AT-HS6 universal ½"-mount headshell and AT-XP3 DJ cartridge with 0.6 mil conical bonded stylus

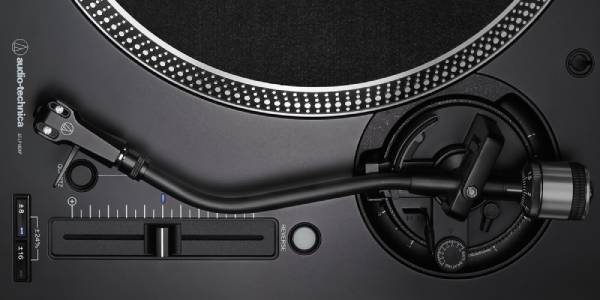

- Balanced S-shaped tonearm with hydraulically damped lift control, height adjustment, and lockable rest
- Dedicated phono-level output (5.5 mV)
- Stroboscopic platter with speed indicator

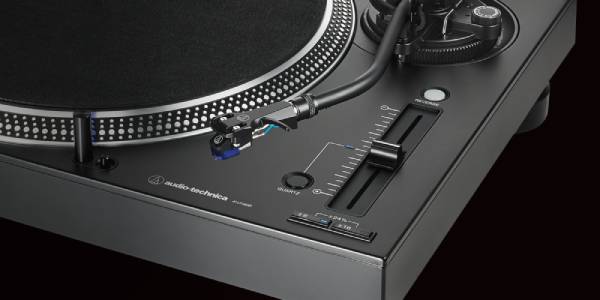

- Forward/reverse operation and variable pitch control with quartz speed lock
- Popup stylus target light for easier cueing in low light
- Damped base construction for reduced low-frequency feedback coloration
- Includes: detachable RCA output cable (dual RCA male to dual RCA male), power cable, 45 RPM adapter, counterweight, felt mat, and removable hinged dust cover
- Available in black (AT-LP140XP-BK) and silver (AT-LP140XP-SV)
Specifications | |
---|---|
Pitch Variation | +/-8% or +/-16% or +/-24% |
Accessories Included | AT-XP3 phono cartridge; AT-HS6 headshell; dual RCA (male) to dual RCA (male) cable with ground wire; counterweight; felt mat; dust cover; 45 RPM adapter |
Weight | 10.0 kg (22 lbs.), without dust cover |
Dimensions | 452.0 mm (17.80") W x 352.0 mm (13.86") D x 158.6 mm (6.24") H |
Power Supply Requirements | 115/230V AC, 60/50 Hz |
Output Level | 5.5 mV nominal at 1 kHz, 5 cm/sec |
Starting Torque | >2.2 kgf.cm |
Wow and Flutter | <0.2% (WTD) @ 3 kHz (JIS) |
Signal-to-Noise Ratio | >50 dB |
Turntable Platter | Die-cast aluminum |
Type | 3-speed, fully manual operation |
Motor | High-torque DC motor |
Drive Method | Direct drive |
Speeds | 33-1/3 RPM, 45 RPM, 78 RPM |
Notes | Tonearm type: Balanced S-shaped tonearm with detachable headshell , Effective arm length: 230.5 mm , Overhang: 16 mm , Tracking error angle: Less than 3 degrees , Applicable cartridge weight: 3.5-8.5 g , Anti-skating range: 0-4 g , Replacement Stylus: ATN-XP3 |
