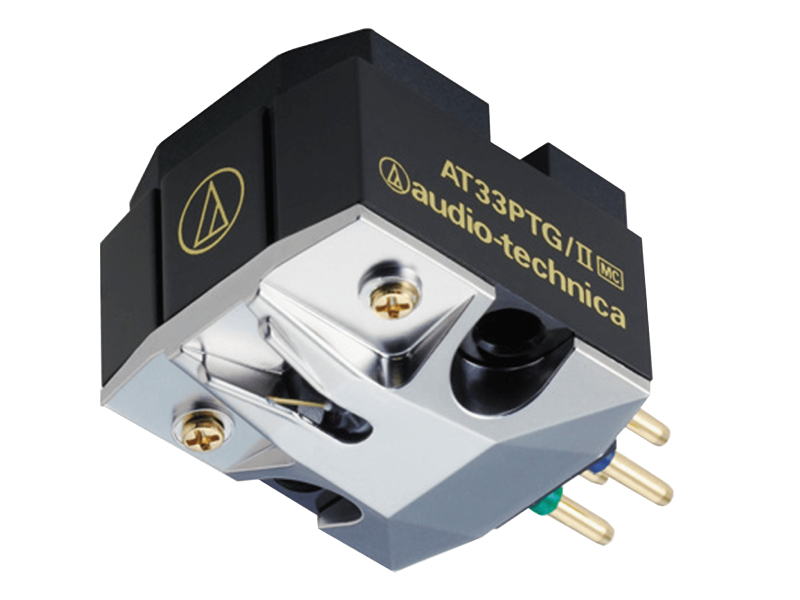

Audio Technica Dual Moving Coil Cartridge With Microlinear Stylus - AT33PTG/2
| Our Price |
$899.00 CAD |
Or as low as $149.83/month over 6 months. Apply Now
Audio Technica Dual Moving Coil Cartridge With Microlinear Stylus - AT33PTG/2
AT33PTG/2

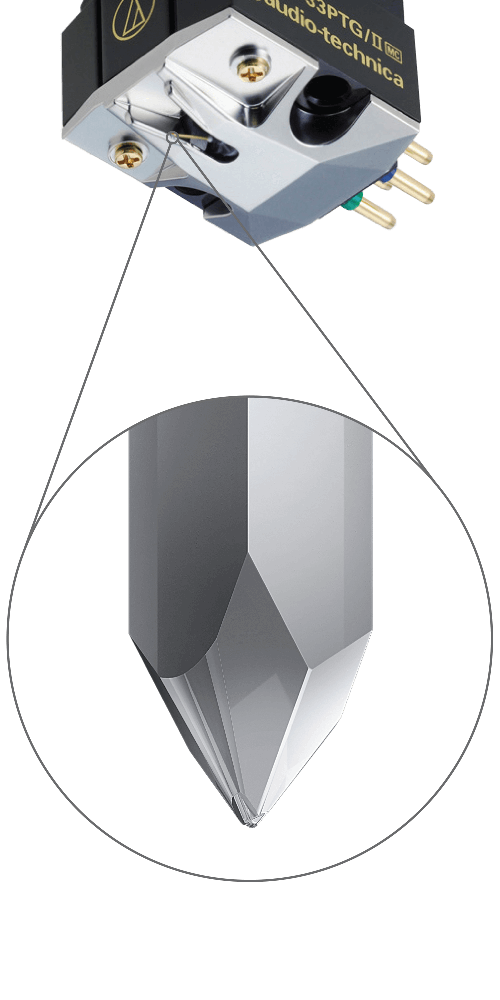

The AT33PTG/II dual moving coil cartridge features a Microlinear stylus that, with its small curvature radius, delivers low-distortion, high-range performance, even when playing the inner circumference of a record. The Microlinear stylus, which has an average life span of around 1,000 hours, is mounted on a nude tapered boron cantilever with a double damper for reduced weight and better audio quality.
The cartridge’s two coils provide excellent channel separation and are affixed within a strong, lightweight mold made of hard resin to greatly reduce unwanted vibration. The cartridge uses a neodymium magnet and a permendur yoke for dramatically enhanced magnetic energy. The PCOCC (Pure Copper by Ohno Continuous Casting) coils ensure pure audio transmission.
Features
- Moving coil cartridge with Microlinear stylus delivers exquisite, full-range audio reproduction
- Advanced tapered boron cantilever and reduced coil weight improve the audio quality, particularly in the higher frequencies
- Neodymium magnet and permendur yoke dramatically enhance the magnetic energy
- PCOCC (Pure Copper by Ohno Continuous Casting) coil enables pure signal transfer
- High-separation, wide-response dual moving coil
- Strong, rigid housing limits unnecessary vibration
- Precision-cast hard aluminum alloy body enhances rigidity and the signal-to-noise ratio
| Specifications | |
|---|---|
| Frequency Response | 15-50,000 Hz |
| Channel Separation | 30 dB (1 kHz) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 1.8-2.2 g (2.0 g standard) |
| Recommended Load Impedance | More than 100 ohms (when head amplifier is connected) |
| Coil Impedance | 10 ohms (1 kHz) |
| DC Resistance | 10 ohms |
| Coil Inductance | 22 µH (1 kHz) |
| Output Voltage | 0.3 mV (at 1 kHz, 5 cm/sec) |
| Output Channel Balance | 0.5 dB (1 kHz) |
| Stylus Shape | Microlinear |
| Cantilever | Gold-plated nude tapered boron |
| Static Compliance | 40 x 10-6 cm/dyne |
| Dynamic Compliance | 10 x 10-6 cm/dyne (100 Hz) |
| Mounting | Half-inch |
| Dimensions | 16.0 mm (0.63") H × 16.6 mm (0.65") W × 26.5 mm (1.04") D |
| Accessories Included | Non-magnetic screwdriver; 2 washers; 2 nuts; cartridge installation screws (13 mm × 2, 19 mm × 2); plastic protector; brush; PCOCC lead wire set |
| Mounting Feature | Half-inch mount |
| Stylus Curvature Radius | 2.2 x 0.12 mil |
| Stylus Size | Nude square shank |
| Weight | 6.9 g (0.24 oz) |
