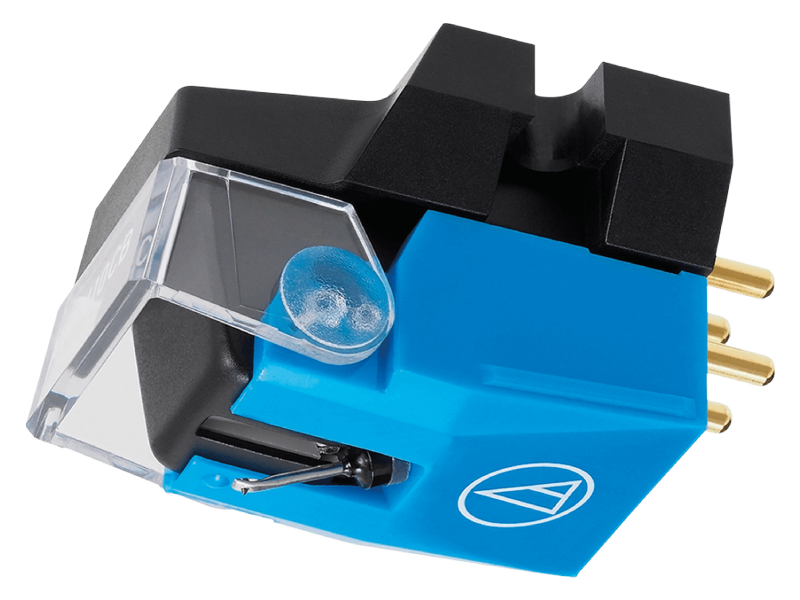

Audio Technica Dual Moving Magnet Cartridge - VM610MONO
| Our Price |
$194.00 CAD |
With a specialized body and internal wiring dedicated to monaural sound reproduction, the VM610MONO conical stylus cartridge is designed for playing mono records. Part of the 600 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges – the VM610MONO is equipped with dual magnets that are internally connected to reduce record noise and obtain a highly focused “center” sound image that stereo cartridges can’t provide. Includes mounting hardware.
Features

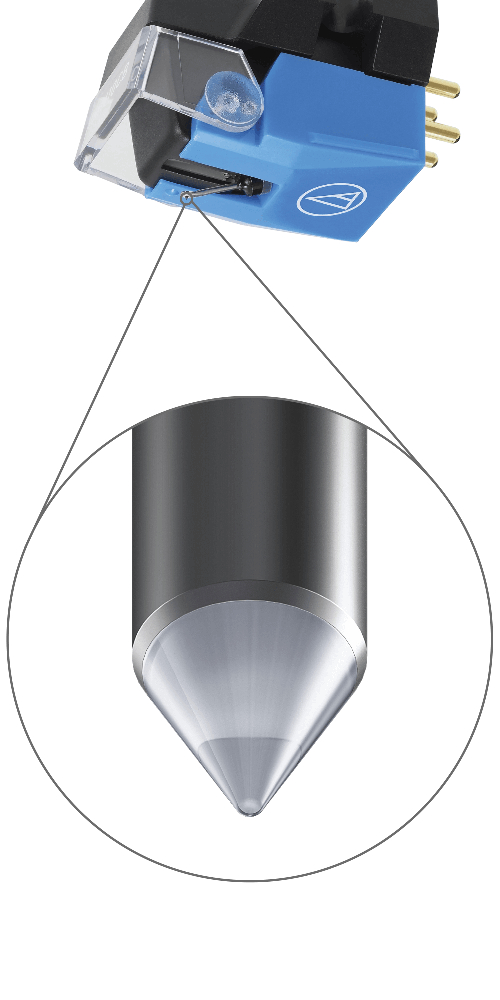

- VM dual magnet cartridge with 0.6 mil conical stylus
- Aluminum cantilever

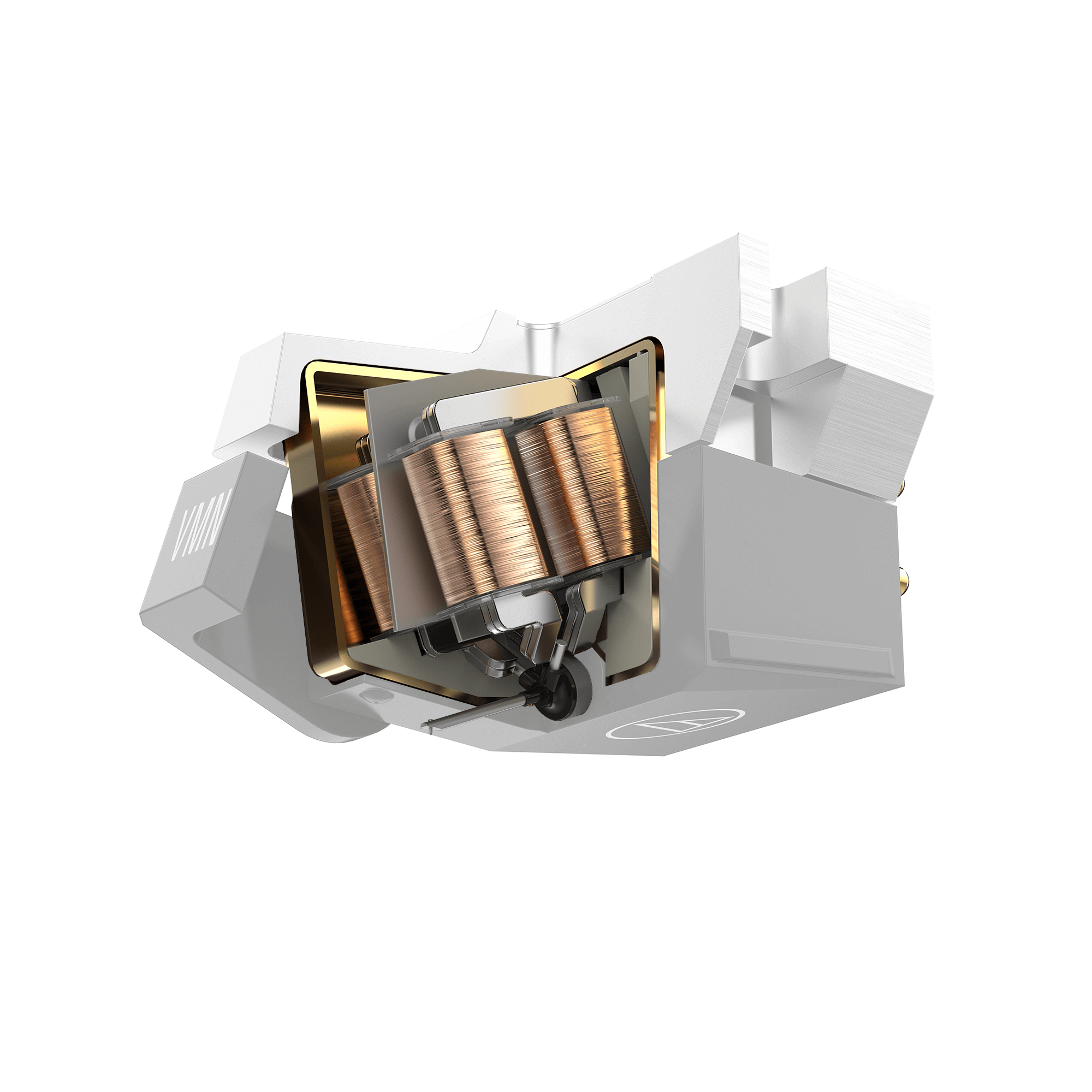

- Paratoroidal coils improve generating efficiency
- Mono body terminating left and right channels reduces surface noise
- Durable low-resonance polymer housing
| Specifications | |
|---|---|
| Frequency Response | 20-20,000 Hz |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 1.8-2.2 g (2.0 g standard) |
| Stylus Construction | Bonded round shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Impedance | 1,400 ohms (1 kHz) |
| DC Resistance | 400 ohms |
| Coil Inductance | 230 mH (1 kHz) |
| Output Voltage | 3.0 mV (at 1 kHz, 5 cm/sec) |
| Stylus Shape | 0.6 mil conical |
| Cantilever | Aluminum pipe |
| Static Compliance | 35 x 10-6 cm/dyne |
| Dynamic Compliance | 8 x 10-6 cm/dyne (100 Hz) |
| Mounting | Half-inch |
| Dimensions | 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D |
| Accessories Included | Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts |
| Mounting Feature | Half-inch mount |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | VMN10CB |
| Stylus Size | 0.6 mil |
| Type | VM Type |
| Weight | 6.4 g (0.2 oz) |
