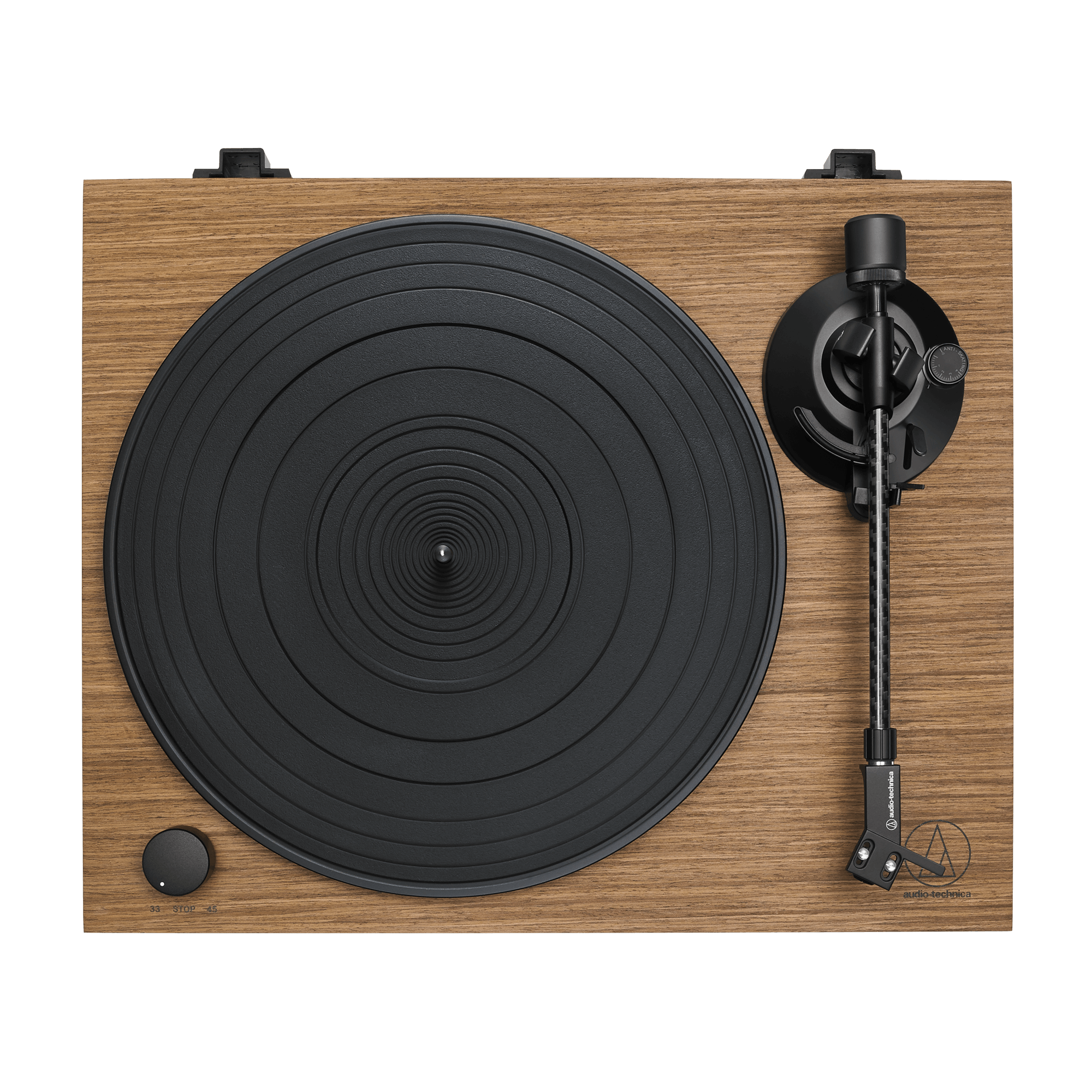

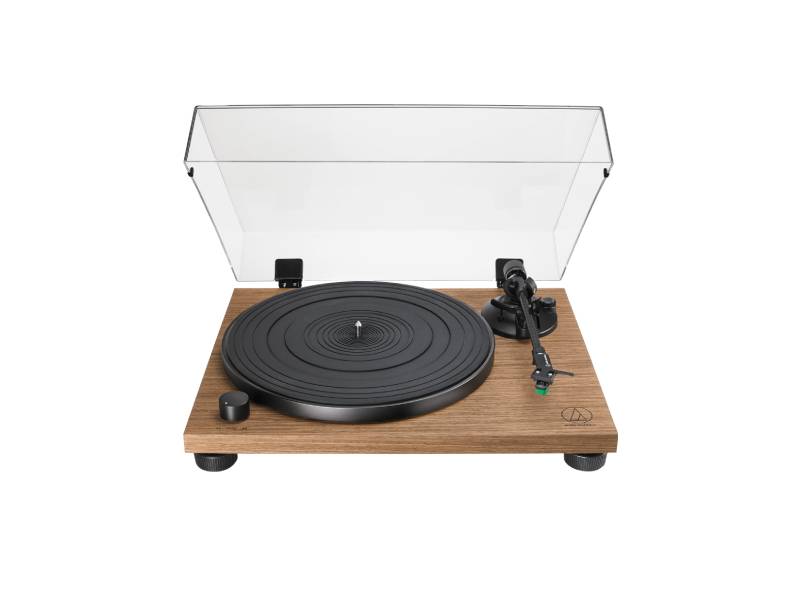

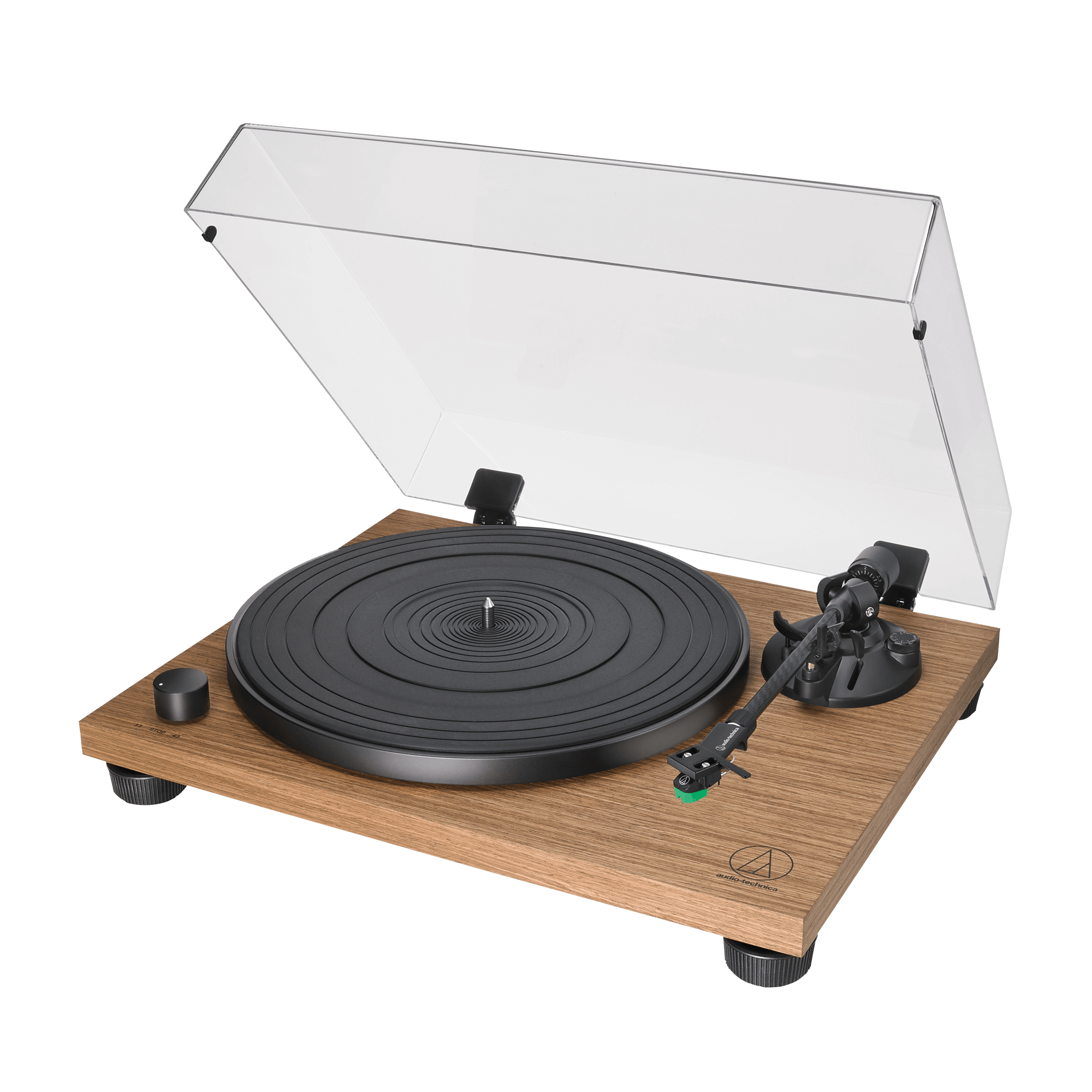

Audio Technica Fully Manual Belt-Drive Turntable - AT-LPW40WN
Or as low as $176.33/month over 3 months.
The AT-LPW40WN is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. It features an aesthetically pleasing anti-resonance MDF (medium density fiberboard) plinth with simulated walnut wood veneer to limit low-frequency acoustical feedback and a sensor-monitored motor to ensure accurate platter rotation speeds at 33-1/3 and 45 RPM.
The turntable includes a straight carbon-fiber tonearm with adjustable tracking force and an AT-HS4 universal ½"-mount headshell with an AT-VM95E Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.
The AT-LPW40WN is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input.

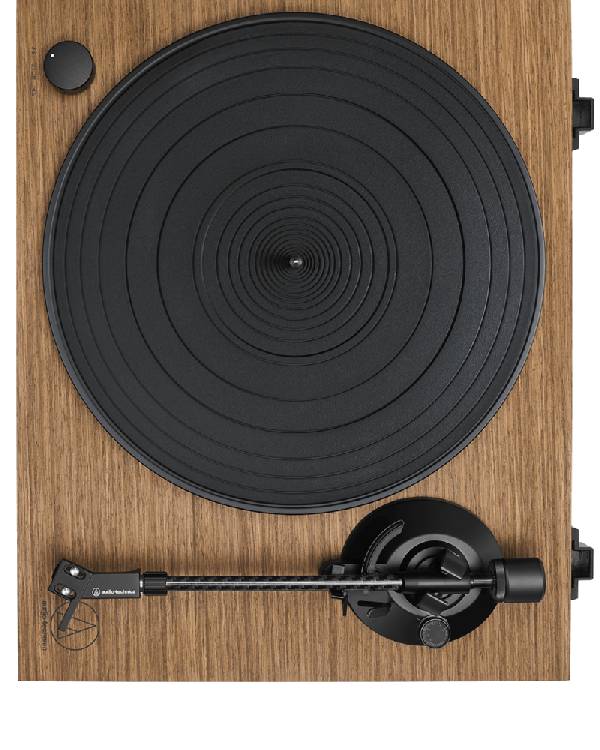

Smart Styling
Audio Aesthetics
The LPW40WN was designed to give you optimal high-fidelity audio reproduction with smart styling.
Plays 33-1/3 and 45 RPM Records with Speed Control
Built-in Switchable Phono Pre-amplifier

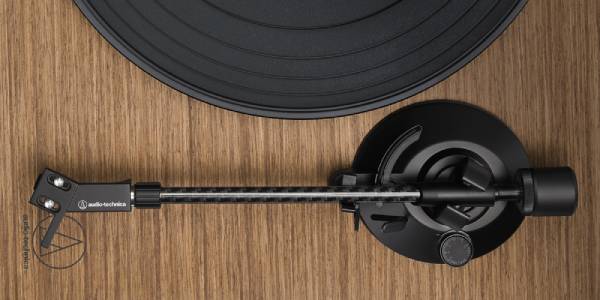

Straight Carbon-fiber Tonearm

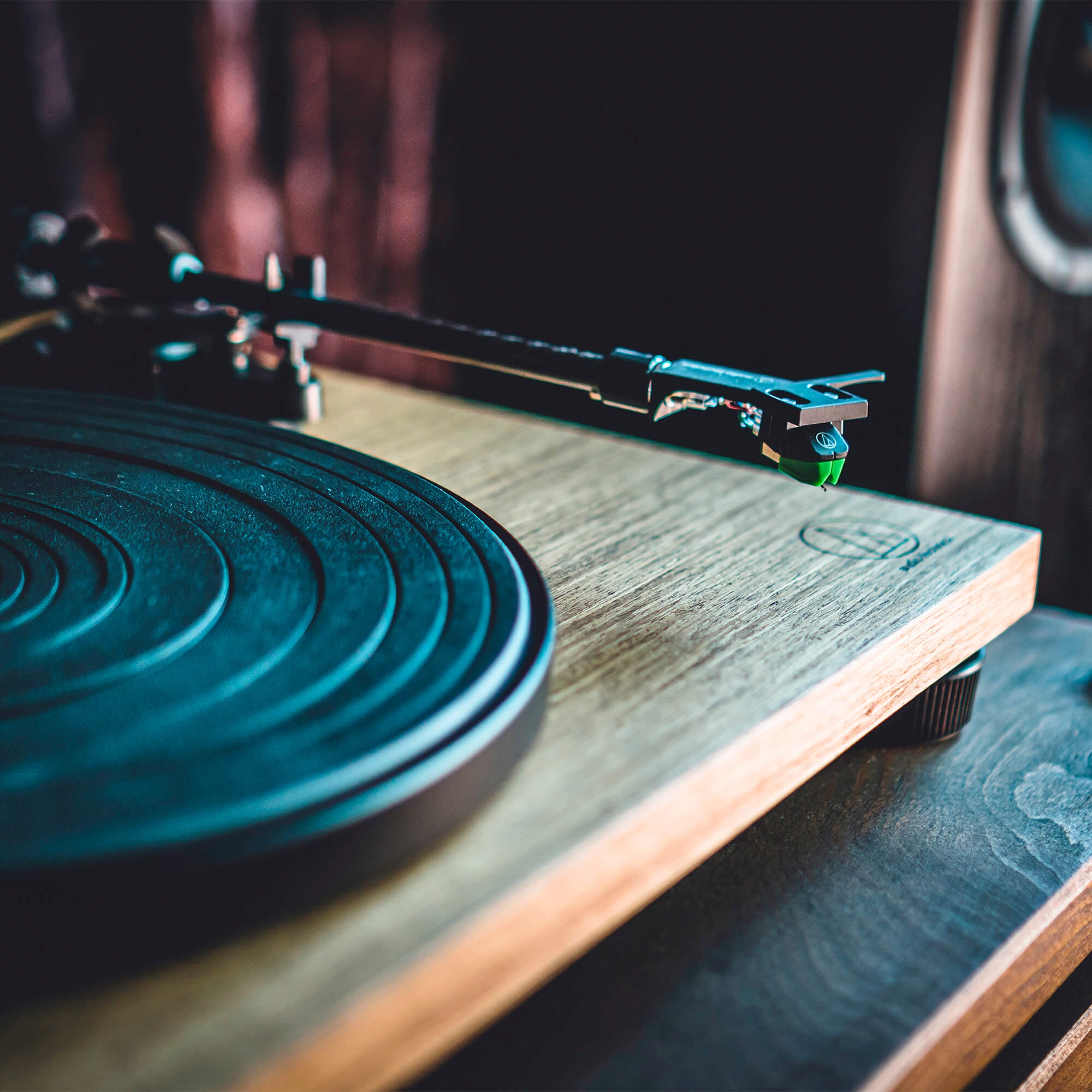

AT-VM95E Dual Magnet™ Phono Cartridge
Optimal High-fidelity Audio Reproduction
Stylish Wood Turntable

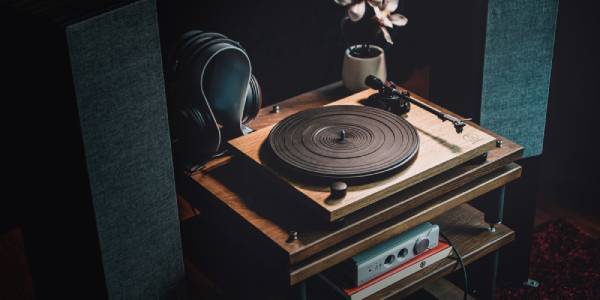

A stunning addition to any system, the AT-LPW40WN features an anti-resonance plinth with simulated walnut wood veneer to limit low-frequency acoustic feedback.
Features
- Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
- Motor features a speed-sensor system to maintain accurate platter rotation speed
- Fully manual operation
- Adjustable dynamic anti-skate control
- Professional anti-resonance, die-cast aluminum platter with rubber mat
- AT-HS4 universal ½"-mount headshell and AT-VM95E Dual Moving Magnet phono cartridge with 0.3 x 0.7 mil elliptical stylus
- AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
- Straight carbon-fiber tonearm with hydraulically damped lift control and lockable rest
- Anti-resonance MDF (medium density fiberboard) plinth with walnut simulated wood veneer
- Built-in switchable phono pre-amplifier for phono or line-level output
- AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
- Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber mat, and removable hinged dust cover
| Specifications | |
|---|---|
| Notes | Tonearm type: Static balanced straight carbon tonearm , Effective arm length: 223.6 mm , Overhang: 18.6 mm , Tracking error angle: <2 degrees , Applicable cartridge weight: 12-17 g , Stylus pressure adjustment range: 0-3 g , AC Adapter: 12 V, 0.5 A , Replacement Stylus: AT-VMN95E |

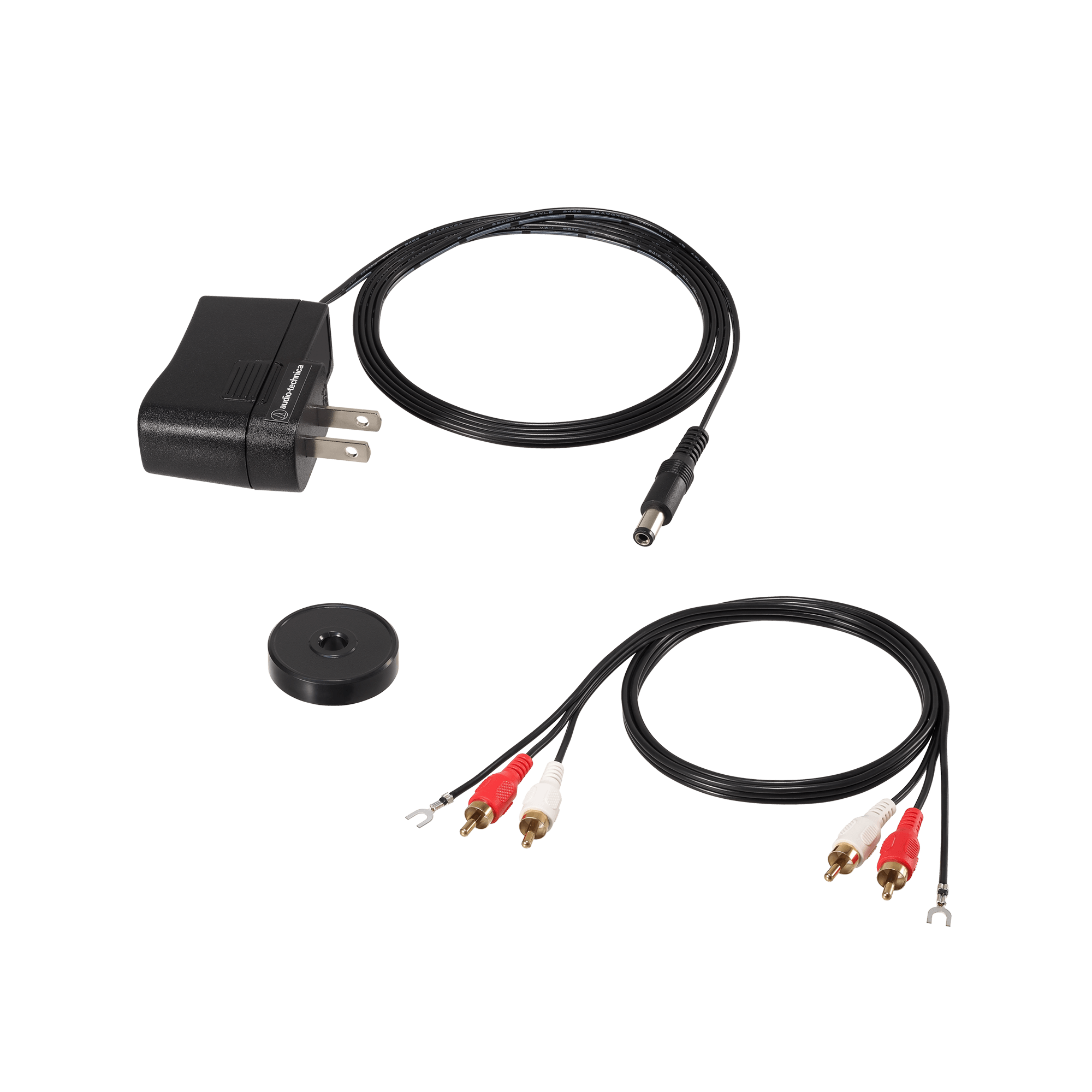

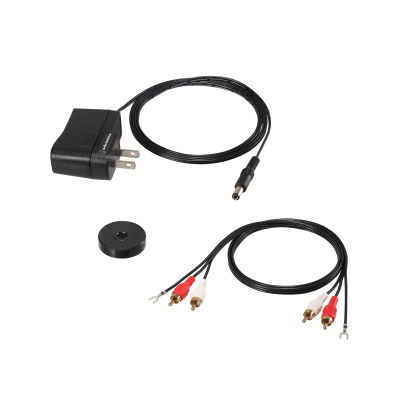

| Accessories Included | Dust cover, Platter, Turntable mat, Drive belt, Counterweight, AT-HS4 headshell, AT-VM95E stereo cartridge, 45-RPM adapter, RCA audio cable (approx. 1.0 m (3.3')), AC adapter (approx. 1.5 m (4.9')) (AD-SA1205WE), Dust cover hinges |
| Weight | 4.72 kg (10.40 lbs.) without dust cover |
| Phono Pre-Amp Gain | 35 dB nominal, RIAA equalized |
| Power Supply Requirements | 100-240 V, 50/60 Hz, 0.5 A Max. |
| Dimensions | 420.0 mm (16.53") W x 340.0 mm (13.38") D x 116.9 mm (4.6") H |
| Output Level | Pre-amp “PHONO”: 4.0 mV nominal at 1 kHz, 5 cm/sec , Pre-amp “LINE”: 200 mV nominal at 1 kHz, 5 cm/sec |
| Signal-to-Noise Ratio | >60dB |
| Wow and Flutter | < 0.15% WRMS (33 RPM) at 3 kHz |
| Turntable Platter | Die-cast aluminum |
| Type | Belt-drive manual turntable |
| Motor | DC servo with Active Speed Stabilization |
| Drive Method | Belt drive |
| Speeds | 33-1/3 RPM, 45 RPM |
