Audio Technica Headshell/Cartridge Combo Kit - AT-XP3/H
| Our Price |
$119.00 CAD |

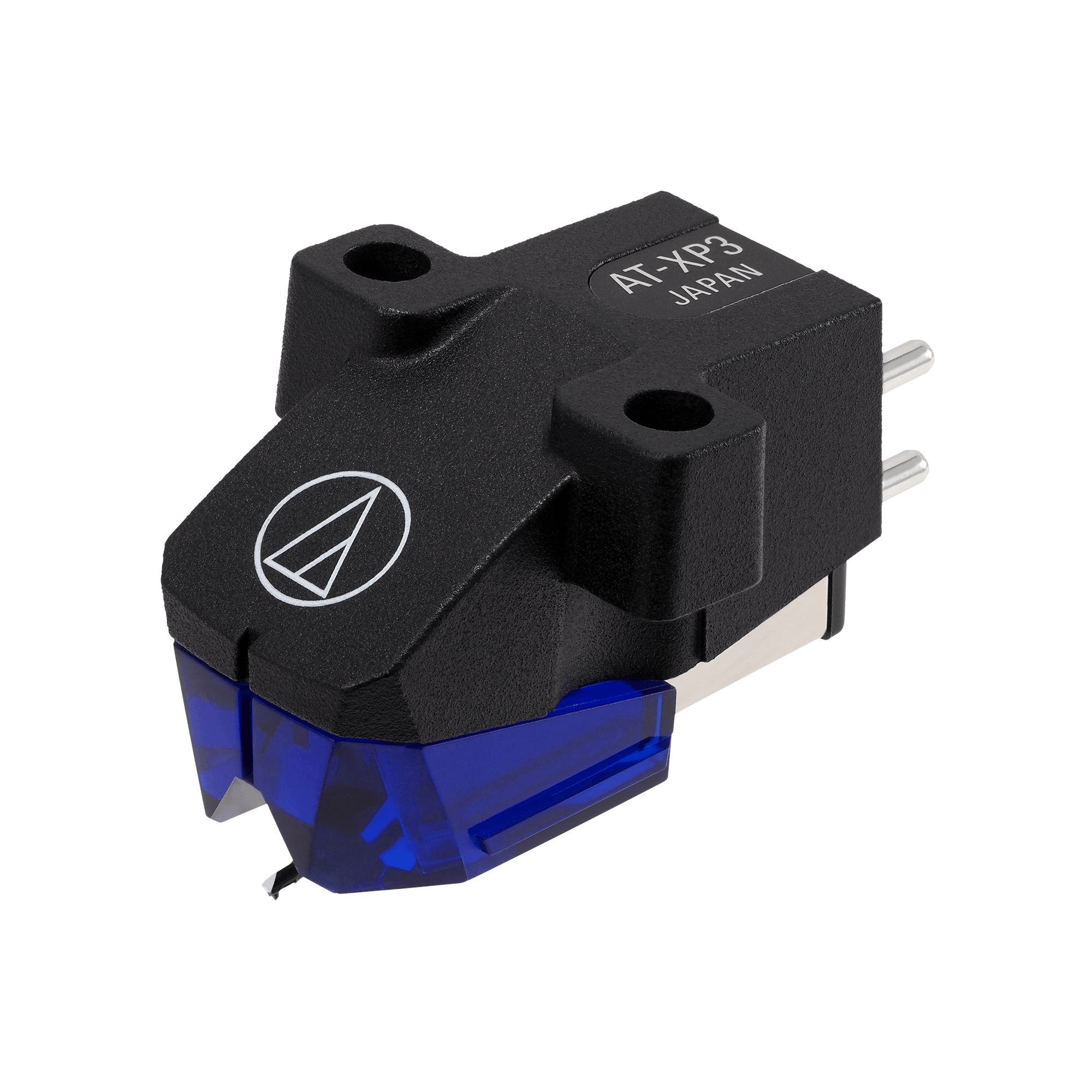

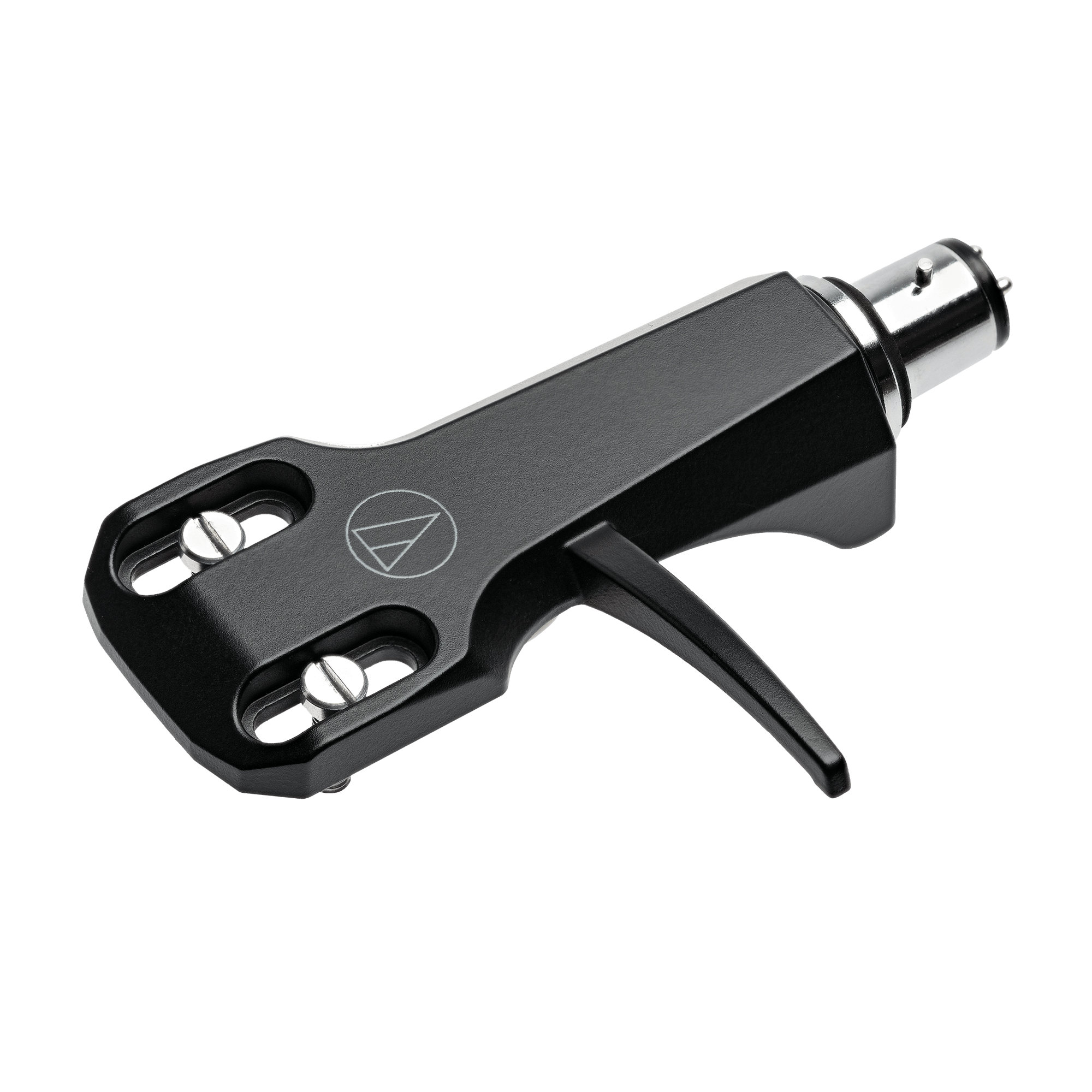

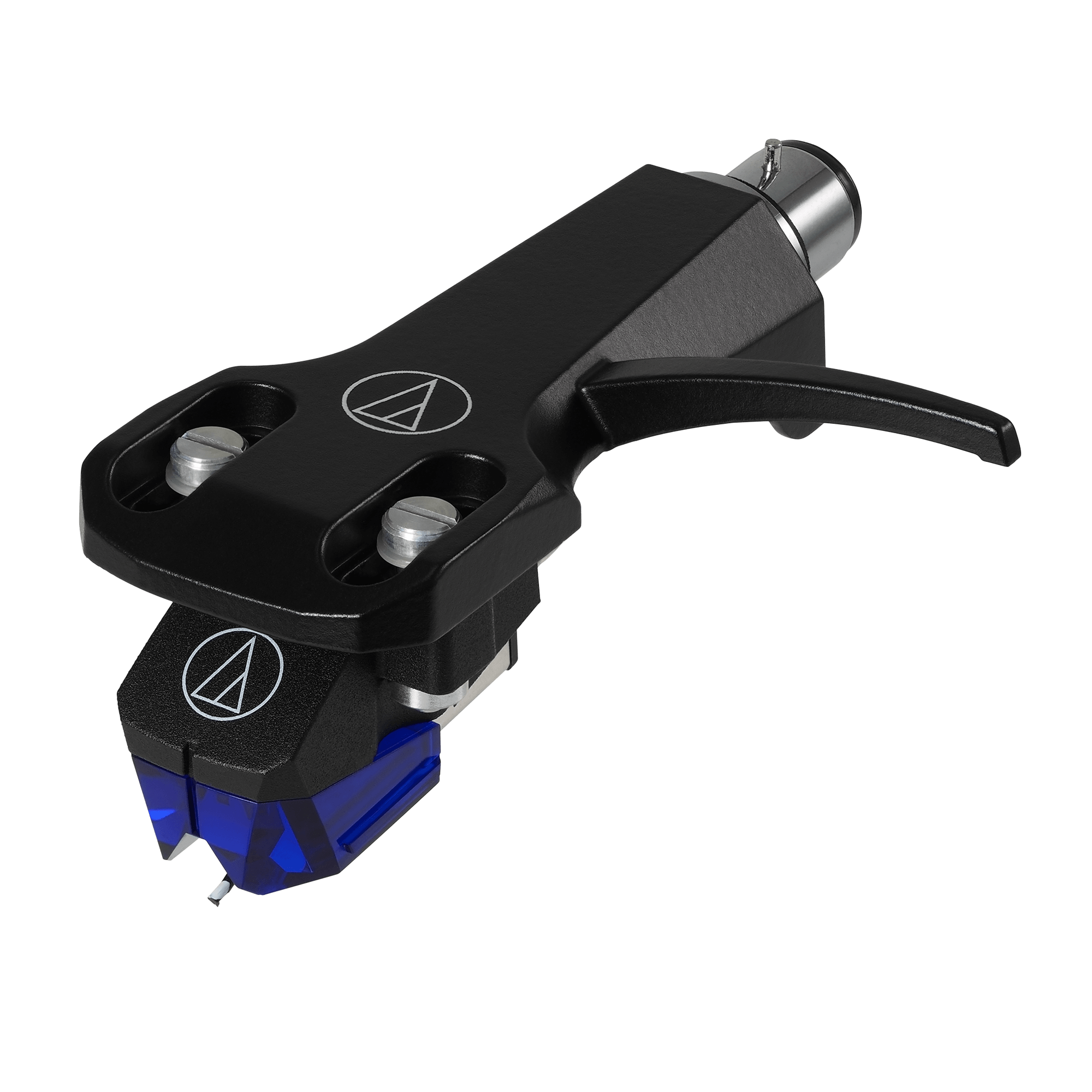

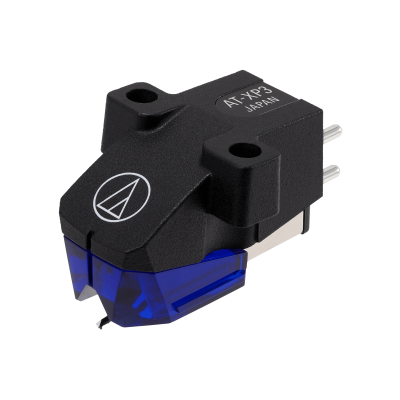

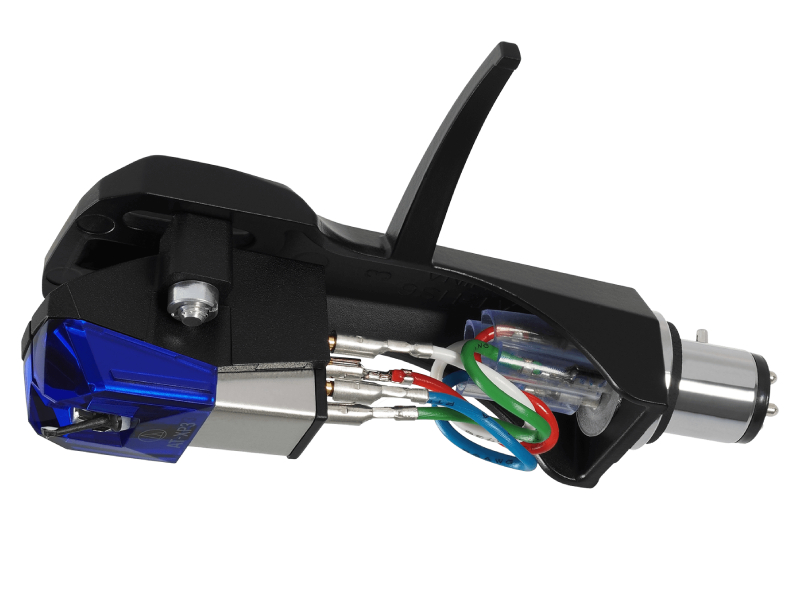

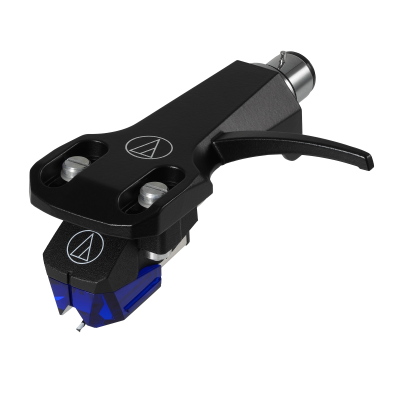

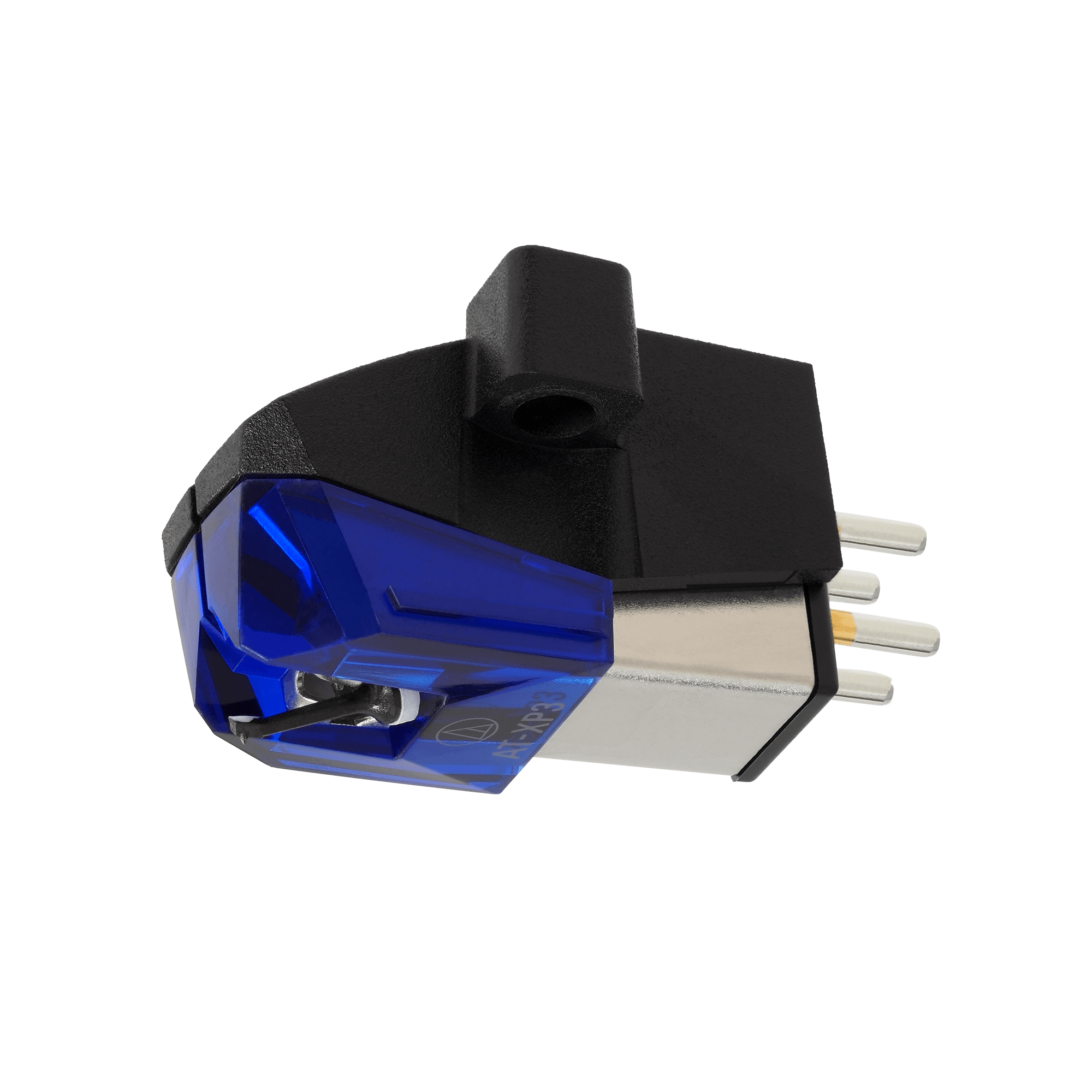

The AT-XP3/H combo kit includes the AT-XP3 DJ cartridge premounted on the AT-HS6BK headshell.
Features
- 0.6 mil conical bonded stylus tip
- Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
- 5.5 mV high-level output
- Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
- Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
- Design offers maximum visibility of the stylus tip
- Great tracking and channel separation for high-fidelity sound
- AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application
- Universal ½"-mount headshell for 4-pin turntable cartridges
| Specifications | |
|---|---|
| Frequency Response | 20-18,000 Hz |
| Channel Separation | 20 (dB at 1 kHz) |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force | 2.0-4.0 g (3.0 g standard) |
| Stylus Construction | Bonded round shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Impedance | 6.7 k ohms (1 kHz) |
| Coil Inductance | 550 mH (1 kHz) |
| Output Voltage | 5.5 mV (1 kHz, 5 cm/sec.) |
| Output Channel Balance | 2.0 dB (1 kHz) |
| Stylus Shape | 0.6 mil conical |
| Cantilever | Carbon fiber-reinforced ABS |
| Static Compliance | 20 x 10 – 6 cm / dyne |
| Dynamic Compliance | 6.0 x 10 – 6 cm / dyne (100 Hz) |
| Mounting | Half-inch |
| Cartridge Weight | 15.6g |
| Dimensions | cartridge 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D; cartridge and headshell 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D |
| Accessories Included | Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver |
| Model | AT-XP3/H |
| Mounting Feature | Half-inch mount |
| Recommended Load Capacitance | 100 to 200 pF |
| Replacement Stylus | ATN-XP3 |
| Stylus Size | 0.6 mil |
| Weight | cartridge 6.2 g (0.22 oz); cartridge and headshell 15.6 g (0.55 oz) |
