Denon Integrated Network Amplifier - PMA1700NE
Denon Integrated Network Amplifier - PMA1700NE
Authorized Dealer
Price Match Guarantee
| Our Price |
$2,749.00 CAD |
Or as low as $305.44/month over 9 months. Apply Now
| Our Price |
$2,749.00 CAD
|
Or as low as $305.44/month over 9 months. Apply Now

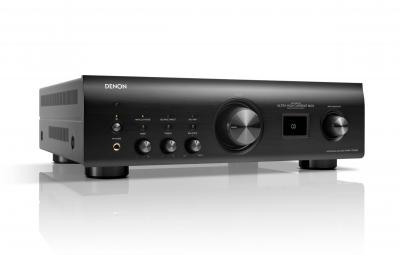

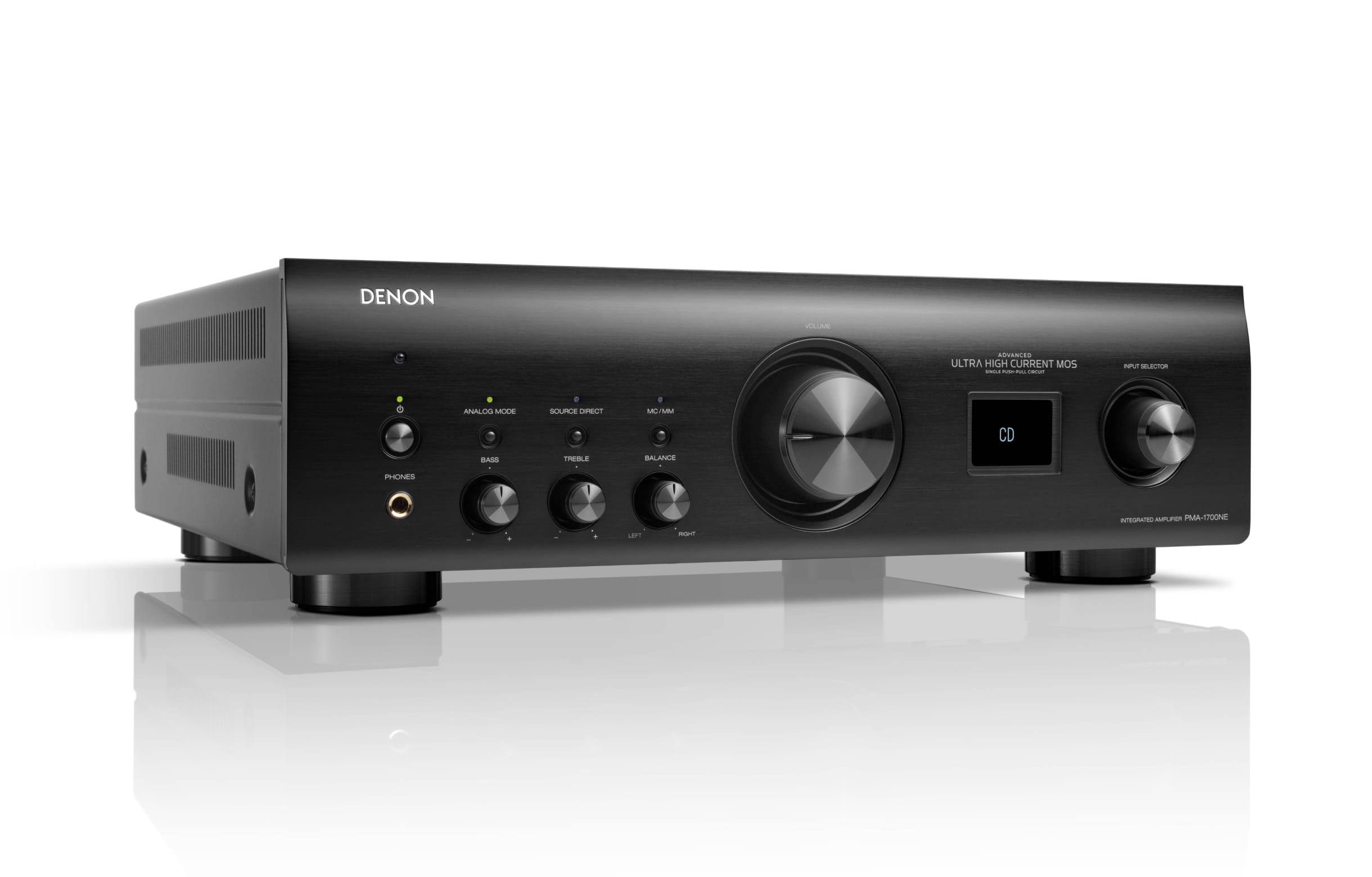

Featuring advanced ultra-high current single push-pull circuit power, Advanced AL32 Processing, and MM/MC phono equalizer, the Denon PMA-1700NE integrated amplifier delivers extraordinary sound quality with precise detail.
Powerful sound from an integrated amplifier
Engineered with premium Denon technologies, this amplifier drives two channels at 140W.
Faithful audio reproduction
Advanced AL32 Processing Plus delivers the richly detailed sound the artist intended.
Build integrity with selected components
With more than 110 years of audio excellence, Denon products are built to last.
High-power 140W integrated amplifier
Drive your loudspeakers with 140 Watts of power- per-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of 6 speaker types and impedances for operational stability.
Advanced AL32 Processing Plus
Advanced AL32 Processing Plus supports high-resolution 384 kHz/32-bit audio sources. The algorithms restore information that was lost during the digital recording to ensure detailed playback.
USB-DAC
To accurately synchronize digital circuits, the PMA- 1700NE provides USB-DAC functions that support high resolution up to 11.2-MHz DSD and 384- kHz/32-bit PCM input signals. Crafted with exceptional quality, the DAC suppresses jitter and ensures optimal precision in D/A conversion.
High-precision electrical controls
The PMA-1700NE embraces electrical volume, balance, and tone controls while preserving the analog feeling of operation. The unique mechanism offers smooth, linear control.
| Control | |
|---|---|
| Power Cord | Yes |
| Battery | Yes (AAA x2) |
| Remote Controller | Yes |
| Quick Start Guide | Paper E2: (English, German, French, Italian, Dutch, Spanish, Swedish, Polish, Russian) E3: (English, French, Spanish) E1C: (Simplified Chinese) JP: (Japanese) |
| Owner's Manual | Web Manual E2: (English, German, French, Italian, Dutch, Spanish, Swedish, Polish, Russian) E3: (English, French, Spanish) E1C: (Simplified Chinese) JP: (Japanese) Paper JP: (Japanese) |
| Auto Standby Mode | Yes |
| Last Function Memory | Yes |
| TV Auto-play (Opt/Coax digital-in detecter) | Yes |
| Control with App via Network Player (Use Remote Control Bus) | Yes |
| Display Language | Alphabetical |
| Dimmer for Front Display | Bright / Dim / Dark / Off |
| Front Panel Display | Yes (OLED 128 x 100 dot) MXS4036-A |
| LED | POWER: 1 Red / Green ANALOG MODE: 1 Green SOURCE DIRECT: 1 Green MM / MC :1 Green |
| Unit control (Knob) | 5 VOLUME, INPUT SELECTOR, BASS, TREBLE, BALANCE |
| Unit control (Button) | Push Switch: 1 POWER Tact Switch : 3 ANALOG MODE, SOURCE DIRECT, MM / MC |
| Remote Controller | Yes |
| Connectivity | |
| Roon Certificaton | Yes(Roon Tested) TBD |
| DSD Audio Streaming (DoP) | ~11.2MHz |
| PCM Sample Rate | ~384kHz/32bit |
| Module or Main Device | New XMOS (XU210-256-TQ128 ) |
| USB B (USB DAC) | 1 (Rear) |
| HEOS | No |
| AC Inlet | Yes |
| Wi-Fi | No |
| Headphone Output | 1 (Turn off the speaker when inserting headphone) |
| Remote Control Bus Terminal | Yes (mini) |
| Speaker Terminal | Gold Plated |
| 2 sets of Speaker Output | Yes (Bi-wiring) |
| Ext. Pre Input (Power Amp Direct) | Yes(Ext.Pre) |
| Optical input / output (Maximum Support) | 2 / 0 (192kHz/24bit) |
| Coaxial input / output (Maximum Support) | 1 / 0 (192kHz/24bit) |
| Analog Input (include Phono) / REC Out (RCA) | 4/1 (PHONO / CD / NETWORK ,AUX/ RECORDER) |
| Phono Input | Yes (MM / MC) *default=MM |
| Audio Feature | |
| Isolator (for USB-B input) | Yes Full Isolation |
| Asyncronous mode (for USB-B input) | yes |
| DAC Master Clock Design (Not Support Network Playback) | Yes |
| Digital Filter | Fixed |
| Digital Processing | Advanced AL32 Processing Plus |
| DAC Circuit | PCM1795 |
| Other | 70 |
| Analog Amp Mode | Yes (button on front panel) |
| Type of Tone Control | Electric Controlled by Potentiometer |
| Headphone Circuit | Use Poweramplifier |
| Source Direct | Yes |
| Pre Amplifier Circuit | Variable Gain Preamplifier (OP AMP) |
| Volume | Electric (MUSES 72323) |
| Bass / Treble / Mid / Balance Control | Yes / Yes / No / Yes |
| Power Trans | Dual El Core |
| Power Amplifier Circuit | New UHC-MOS Single Push Pull (7) |
| Specifications | |
| at Standby | 0.2W TV autoplay off 0.4W TV autoplay on |
| Power Consumption | 295W |
| Tone Control | BASS : 100Hz ±8dB TREBLE : 10kHz ±8dB |
| Signal to Noise Ratio | PHONO (MM): (89dB) PHONO (MC): (74dB) CD: (107dB) |
| Input Sensitivity: Power Amp input | 0.85V / 47kohm (EXT. PRE) |
| Phono Maximum Input | MM : 130mV / 1kHz MC : 10mV / 1kHz |
| Input Sensitivity: CD/LINE/RECORDER | 125 mV / 19 kohm |
| Input Sensitivity: Phono input | MM: 2.5 mV / 47 kohm MC: 200 |
| RIAA Deviation | 20 Hz - 20 kHz ଐ.5 dB (MM/MC) |
| Dumping Factor | 100 and over |
| Total Harmonic Distortion | 0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz |
| Frequency Response | 5Hz - 100kHz (0~ -3dB) |
| Speaker Impedance | A or B : 4 ~ 16ohm A + B : 8 ~ 16ohm |
| Rated Output Power | 70W + 70W (8ohm,20Hz-20kHz,THD0.07%) 140W + 140W (4ohm, 1kHz, THD0.7%) |
| General | |
| Foot | ABS resin with rigid rib w/Hot stamp (H : 20mm) |
| Heatsink for Power Amplifier | Extruded Aluminum |
| Power button | Aluminum |
| Other knob/button (LOUDNESS, SOURCE DIRECT etc) | Mold (Source Direct,Analog Mode,MM/MC) |
| Bass/Treble/Balance/ Phono Sel knobs | Aluminum |
| Volume Knob | Aluminum |
| Input Selector | Aluminum |
| Bottom Layer | Single |
| Chassis Material | SECC t1.2mm |
| Rear Panel | SECC t1.0mm |
| Side screw | SP: Nickel / BK: Black |
| Side cover | SECC with 4 straight emboss |
| Front (Center) Panel | Aluminum |
| Panel Color | SP / BK |
| Cushion / Packing | 4 Separate / Sheet |
| Carton Color | 2 Color |
| Packaging gross weight | 20.4kg, 45lb |
| Packaging Dimensions (W x D x H) | 548 x 520 x 249mm, 21.6 x 20.5 x 9.8in |
| Net weight | 17.6kg, 38.8lb |
| Cabinet Size (W x D x H) | 434 x 374 x 135mm, 17.1 x 14.7 x 5.3in |
| Unit (W x D x H) | 434 x 410 x 135mm, 17.1 x 16.1 x 5.3in |
