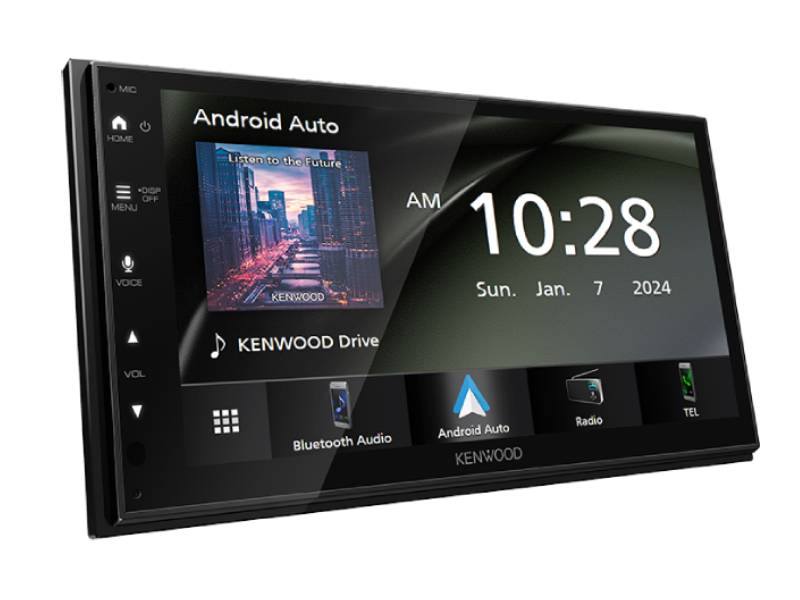

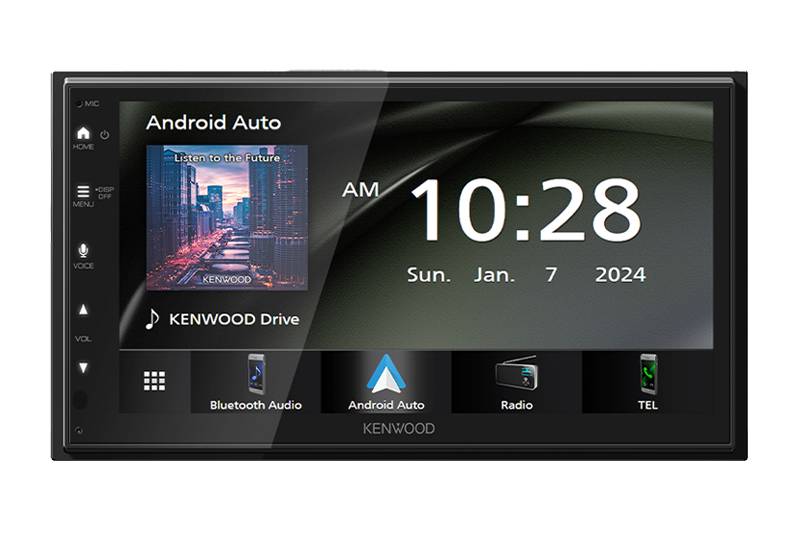

Kenwood 6.8 Inch Digital Multimedia Receiver - DMX4710S
Price | $449.00 |
Savings | $51.00 |
Our Price |
$398.00 CAD |
USB Mirroring
Solution for seamlessly displaying and controlling your smartphone apps on a screen via a USB connection on select Smartphone.
Capacitive Touch Panel
Clear glass display with swipe functionality that provides superior picture and touch panel control.
WSVGA (1024x600)
The WSVGA display reproduces approximately 1.6 times higher resolution than the conventional WVGA display.
Parking Guidelines
Parking guidelines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
13 Band Graphic EQ
You can adjust the level of each frequency band and create an original equalizer curve to match the in-car environment or your specific preference.
Digital Time Alignment
Virtually adjusts your listening position to the centre of the car.
Short Chassis
The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.
2.1A Rapid Charge
Rapidly charge your compatible smartphone with the USB port, up to a maximum of 2.1A.
Smartphone Connectivity
![](/description_images/files/DMX4710S_desc1.jpg)
Apple CarPlay® – Connect via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
*Some features, applications, and services are not available in all areas.
![](/description_images/files/DMX4710S_desc2.jpg)
Android Auto ™ – Connect via USB
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.
*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.
![](/description_images/files/DMX4710S_desc3.jpg)
USB Mirroring for Smartphone
By installing the "MirrorAPP+", your mobile phone is seamlessly displayed on the receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.
*Selected smartphones only
![](/description_images/files/DMX4710S_desc4.jpg)
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.
The Best Audio Experience
![](/description_images/files/DMX4710S_desc5.jpg)
Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
![](/description_images/files/DMX4710S_desc6.jpg)
Playable Video & Audio Files
You can play back from USB devices audio and video files compressed in various formats.
Safe Driving
![](/description_images/files/DMX4710S_desc7.jpg)
ENHANCED VEHICLE INTEGRATION
Enhance your vehicle integration with the iDatalink Maestro RR/RR2 (sold separately). This system allows you to retain your factory steering wheel audio controls, factory amplifier, and secondary displays. Additionally, it can display crucial vehicle information, such as performance data, climate controls, and battery voltage, when connected to compatible vehicles. For added convenience, radar detector information can be shown on the screen when paired with a compatible K40 radar detector system (sold separately). With the iDatalink Maestro RR2, you can also integrate an Escort radar detector system (sold separately) for a seamless driving experience.
![](/description_images/files/DMX4710S_desc8.jpg)
Rear View Camera Input with Parking Guidelines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
Additional Features
![](/description_images/files/DMX4710S_desc9.jpg)
WSVGA LCD Display
The WSVGA display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.
![](/description_images/files/DMX4710S_desc10.jpg)
Convenient and Easy-to-Use Capacitive Touch Panel
Provides a high contrast ratio, crystal clear display and vivid text. Easy to use widgets provide access to information screens with a swipe.
![](/description_images/files/DMX4710S_desc11.jpg)
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio.(Optional SiriusXM tuner required, sold separately)
![](/description_images/files/DMX4710S_desc12.jpg)
Short Chassis Design
The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.
High Current 2.1A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 2.1A.
*Compatibility depends on the smartphone.
![](/description_images/files/DMX4710S_desc13.jpg)
Remote Control (Optional)
This receiver unit can be operated using the optional remote control KCA-RCDV340.
Main Unit | |
---|---|
Picture size | 6.8 inches (diagonal) wide |
Display system | TN LCD panel |
Drive system | TFT active matrix system |
Number of pixels | 1,843,200 |
Number of pixels | 1024H x 600V x RGB |
Effective pixels | 99.99% |
Pixel arrangement | RGB striped arrangement |
Back lighting | LED |
USB Standard | USB2.0 High Speed |
Connector | Type-A |
File System | FAT16, 32/ exFAT/ NTFS |
Maximum Power Supply Current | DC5V(DC logo) 2.1A |
D/A Converter | 24 Bit |
Audio Decoder | MP3/ WMA/ WAV/ AAC/ FLAC |
Video Decoder | MPEG1/ MPEG2/ MPEG4/ H.264/ MKV/ WMV |
192k Sampling | 20 - 20,000 Hz |
96k Sampling | 20 - 20,000 Hz |
48k Sampling | 20 - 20,000 Hz |
44.1k Sampling | 20 - 20,000 Hz |
Total harmonic distortion 1kHz | 0.2% |
Signal to Noise ratio | 75dB |
Dynamic range | 75dB |
Bluetooth Specification Version | Bluetooth V5.0 |
Frequency | 2.402 - 2.480 GHz |
RF Output Power (E.I.R.P.) | 1.6 dBm (AVE), Power class 2 |
Maximum Communication range | Line of sight approx.10m(32.8ft) |
Audio Codec | SBC / AAC |
Multi Profile Support | Multi Profile |
Profile | HFP(Hands Free Profile) 1.8 |
Profile | SPP(Serial Port Profile) 1.2 |
Profile | A2DP(Advanced Audio Distribution Profile) 1.3 |
Profile | AVRCP(Audio/Video Remote Control Profile) 1.6 |
Profile | PBAP(Phonebook Access Profile) 1.2 |
Frequency range (Frequency step) | 87.9 - 107.9 MHz (200kHz) |
Usable sensitivity | 16.2dBf |
S/N:30dB | 1.8V/75 |
Frequency response(3.0dB) | 30Hz - 14kHz |
S/N Ratio(dB) | 50dB (MONO) |
Stereo separation | 35 dB (1 kHz) |
Frequency range (Frequency step) | 530 - 1700 kHz (10kHz) |
Usable sensitivity | 99V (40 dB) |
Color system of external video input | NTSC/ PAL |
External video input level (RCA) | 1 Vp-p / 75 |
External video input level (RCA, AV-In) | - |
External audio max input level (RCA) | - |
External audio max input level (RCA, AV-In) | - |
Video Output level (RCA) | 1 Vp-p / 75 |
Audio Output level (mini jacks) | - |
Analog RGB input | - |
Maximum Power (Front&Rear) | 50Wx4 |
Full Bandwidth Power (Front&Rear)(at less than 1%THD) | 22Wx4 |
Output frequency band | 20 - 20,000 Hz |
Preout level (V) | 2.5 V / 10 k |
Preout impedance () | 1.4 k |
Speaker Impedance () | 4 - 8 |
Equalizer | 13 Band |
Frequency | 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k/ 10k/ 16k Hz |
Level | -09 - 09 (-9dB - 9dB) |
Q | - |
Frequency | Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz |
Slope | -6/ -12/ -18/ -24 dB/Oct. |
Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB |
Frequency | 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz/ Through |
Slope | -6/ -12/ -18/ -24 dB/Oct. |
Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB |
Phase | Normal/ Reverse |
Specification | |
Operating voltage | 12V DC car battery |
Installation Dimensions W x H x D | 182 x 112 x 86 mm |
Installation Dimensions W x H x D | 7-3/16 x 4-7/16 x 3-3/8 inch |
Main Unit Installation size W x H x D(w/o sleeve) | 178 x 100 x 86 mm |
Main Unit Installation size W x H x D(w/o sleeve) | 7-1/16 x 3-15/16 x 3-3/8 inch |
Weight | |
Main unit | 1.07 kg |
Main unit | 2.41 lbs. |
Main unit | (Including Trim plate) |
