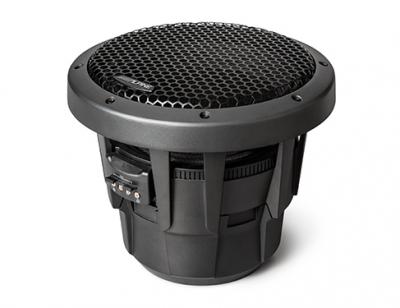

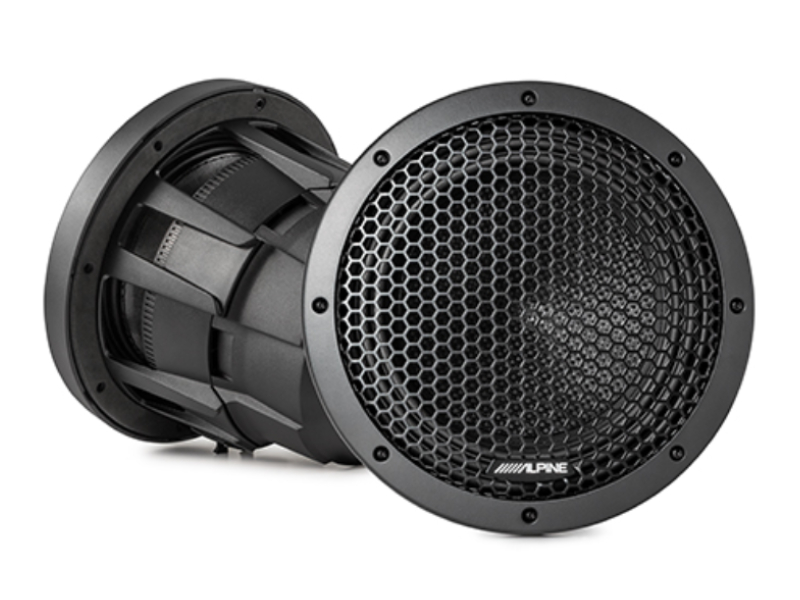

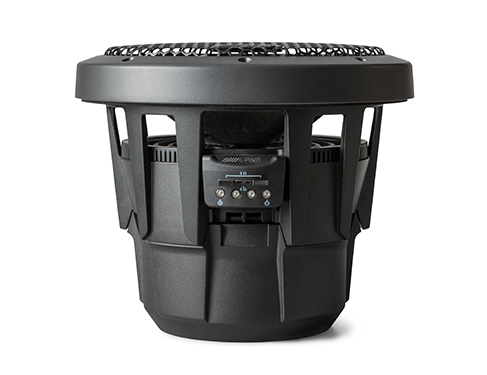

Alpine Status Hi-Res 10" Component Subwoofer - HDZ-W10

Overview

Experience superior bass with the Alpine Status 10" Subwoofer. Expertly engineered for unparalleled sound quality that transforms every drive into a live concert performance.

Features

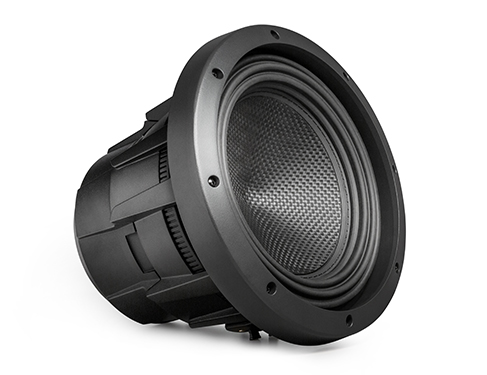

• Carbon Fiber Dust Cap w/Pulp-Mica Cone Body
• Triple-Stacked High Power Strontium Ferrite Magnets
• High Amplitude Multi-Roll (HAMR) Surround
• Dual Progressive Spiders w/Integrated Tinsel Leads
• Cast Aluminum Frame w/Premium Aluminum Trim Ring
• Compound Radius Curve Extended Pole Geometry
• 20mm of Linear Excursion

Tech Specs

• Dimensions: 10-7/8" x 10-7/8" x 9-1/4"
• Mounting Depth: 7-7/16"
• Frequency Response: 24Hz-200Hz
• Power Range: 400W-800W RMS
• Power Handling: 800W RMS / 2400W Peak
• Magnet Weight: 174oz (x3)
• Voice Coil: 65.5mm (2.6")
• Linear Excursion: 20mm

Superior Bass Performance

Featuring the revolutionary Alpine HAMR (High Amplitude Multi-Roll) Surround technology, this subwoofer ensures maximum excursion (20mm Linear Excursion) and performance without compromising on sound quality. The carbon fiber dust cap and pulp-mica cone body are meticulously crafted to deliver durability and crystal-clear bass, even at high volumes.

Power & Precision

Power through your tracks with the robust 800W RMS (2400W peak) power handling. Coupled with triple-stacked high power strontium ferrite magnets, this subwoofer ensures impeccable control and responsiveness, delivering deep, resonating bass for a truly immersive listening experience.

Sleek Design, Lasting Durability

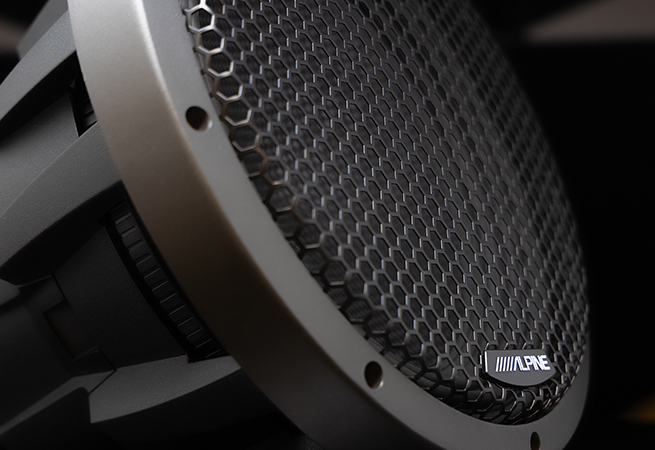

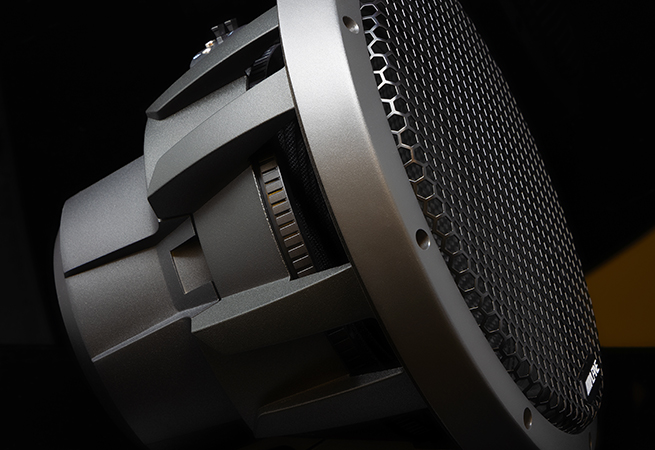

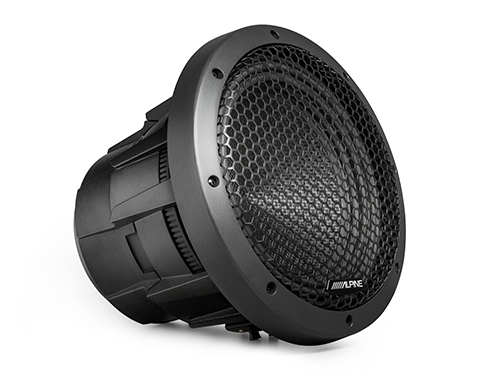

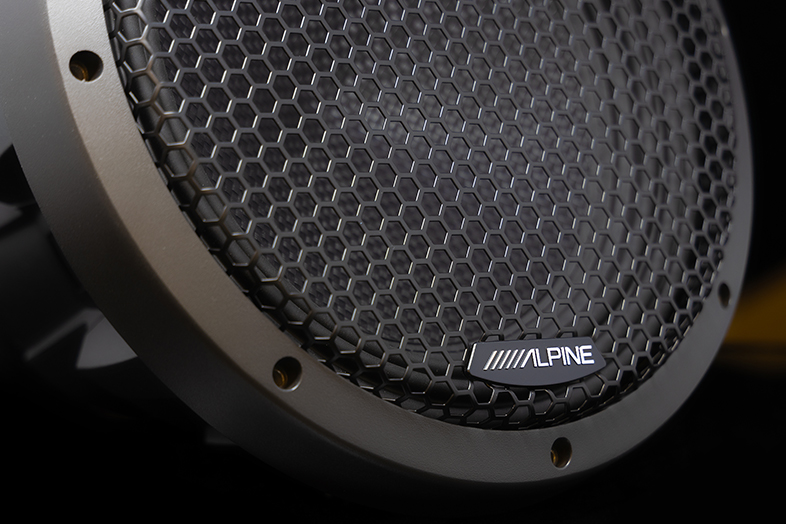

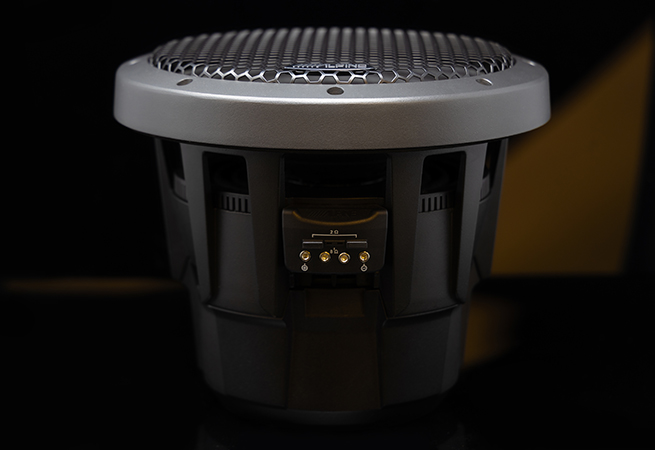

Engineered with a cast aluminum frame and premium aluminum trim ring, every detail is crafted to merge style with endurance. The addition of an open mesh style protective grille not only enhances its durability but also ensures your subwoofer remains safeguarded without compromising appearance.

The Alpine Status Difference

Join the elite group of audio enthusiasts who settle for nothing but the best. Whether it's the advanced engineering ensuring consistent, reliable performance, or the sleek design that enhances your car's interior, the Alpine Status subwoofer allows your passion for pure sound to be fulfilled.
