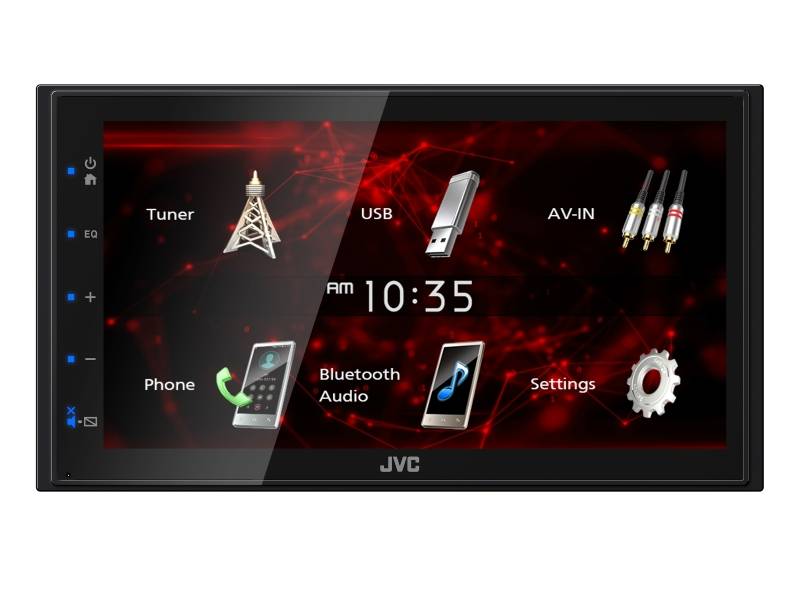

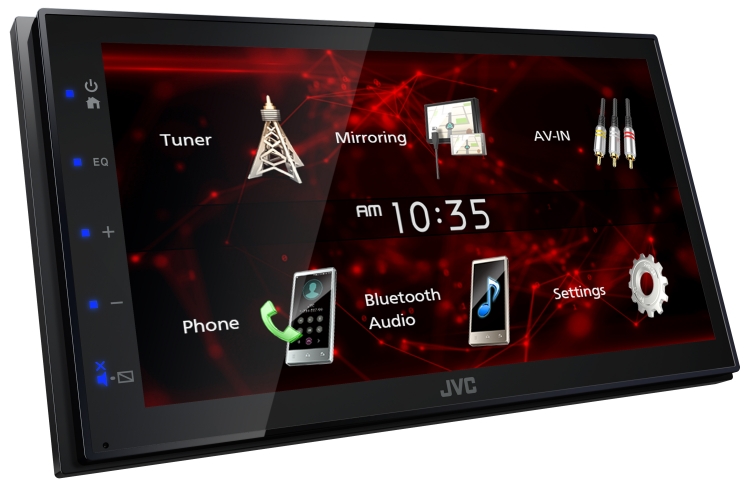

JVC 6.8 Inch Double-DIN Touchscreen Digital Multimedia Receiver - KW-M180BT

Authorized Dealer Price Match Guarantee

Price Match Guarantee

The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Our Price

$299.00 CAD

Quote Request

Availability
Call for availability

KW-M180BT
Best Deal Promise

Literature

Description
Features

Smartphone Integration

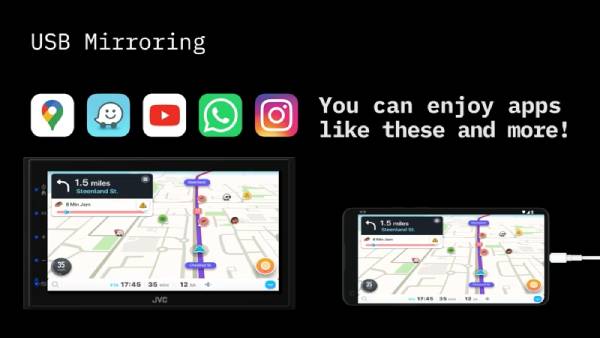

USB Mirroring for Android™

Seamlessly display your Android phone on the JVC screen via USB. Touch control is supported from both screen and smartphone.

Bluetooth® Wireless Technology

Bluetooth Voice Recognition

Improved Sound Quality with HFP 1.6 Wideband Speech

Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.

Bluetooth AVRCP1.5 for Versatile Song Selection

In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.

Sound Optimization

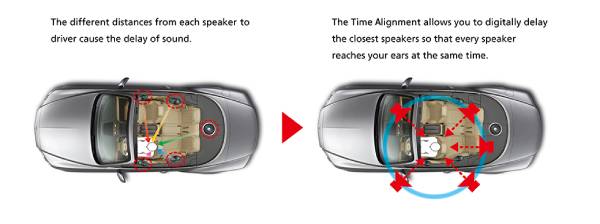

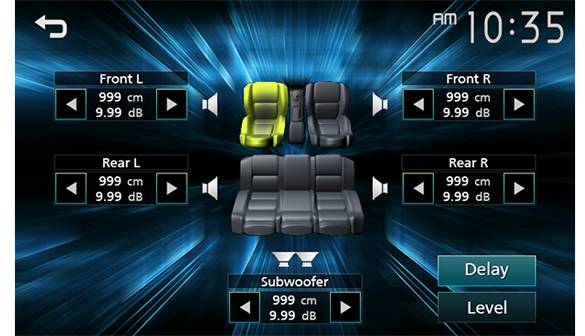

Time Alignment

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

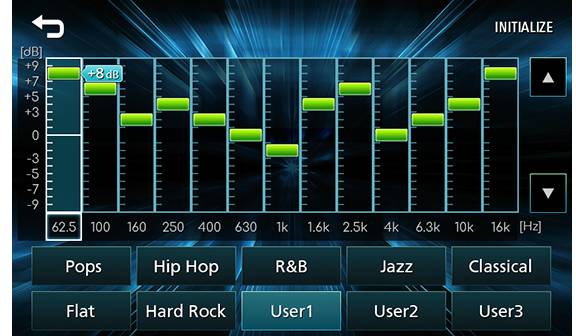

13-Band Equalizer

Use the 13-Band Equalizer to manually adjust the sound to your taste.

General

Fast Bootup

Thanks to the new fast bootup feature, the Receiver is ready to use shortly after powering on.

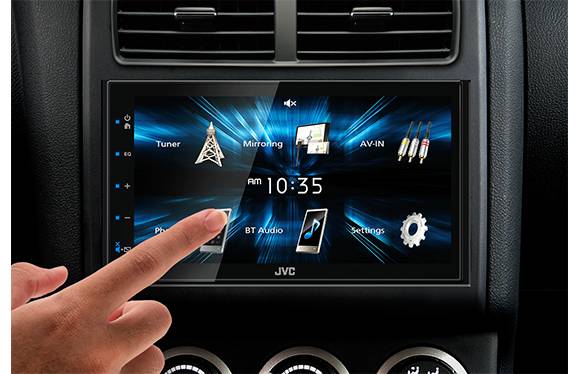

Capacitive Touchscreen

Capacitive touch screen has high clarity and allows for easier functioning with lighter contact and greater accuracy.

Various Formats Compatible

Supports a variety of file formats for audio and video playback.

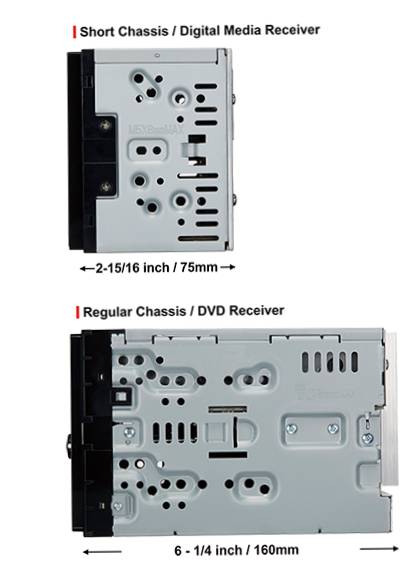

Short Chassis

The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation

Rear View Camera Ready

The Rear View Camera input allows you to connect an optional rear view camera (sold separately).

Rear view cameras allow you to safely back up your vehicle, monitor towing, and more.

Steering Wheel Remote Control Ready

Factory steering wheel control functions can be retained with a third-party adapter (sold separately).

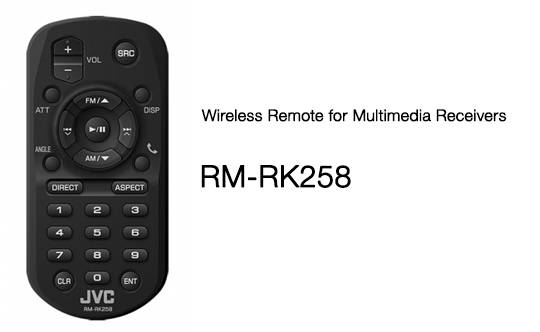

Remote Control (Optional)

Remote control (RM-RK258) is optionally available.

Android Control
Android Music Playback	Yes (via Bluetooth(R))
Mirroring for Android	Yes (via USB)
Bluetooth Control
Phone Book Access Profile (PBAP)	Yes
Voice Dialing (voice recognition compatible mobile phone required)	Yes
Supported Audio Formats	AAC / SBC
Audio Streaming & Control (A2DP, AVRCP)	Yes
Hands Free Call	Yes (HFP1.6 Wideband Speech)
Built-in Bluetooth[1]	Yes (Wired-Mic included)
Media Playback
MKV Compatible	USB
MPEG 4 Compatible	USB
MPEG 1/2 Compatible	USB
H.264 Compatible	USB
FLAC Compatible with Tag	USB
AAC Compatible with Tag	USB
WAV Compatible with Tag	USB
WMA Compatible with Tag	USB
MP3 Compatible with Tag	USB
MONITOR
Multilingual Display	Yes[2]
Dimmer	Yes
Key Illumination Color	Blue
Touch Panel	Capacitive
Screen Size	6.8"Wide VGA
USB
Position	Rear
USB Port	x 1 (High speed)
iPod/iPhone Control
iPhone Music Playback	Yes (via USB or Bluetooth(R))
Radio Tuner
FM - Frequency Range	87.9-107.9MHz
Auto Memory Entry	Yes
Preset Stations	30 (6ch x 5band)
Radio Broadcast Data System (RBDS)	Yes
USB
USB Power Supply	Yes (1.5A)

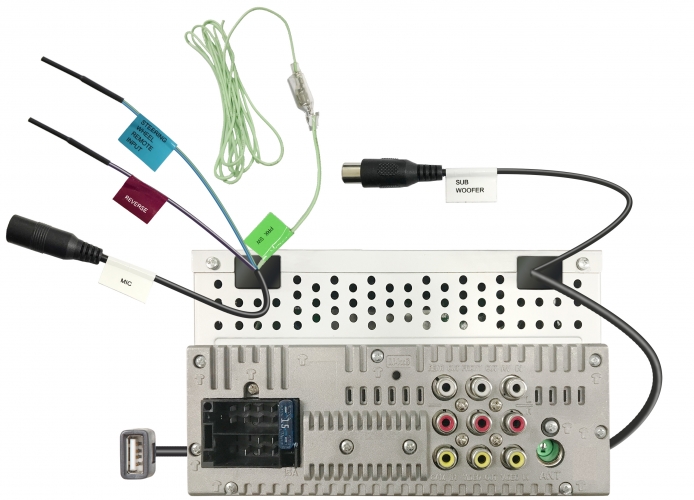

Inputs and Outputs
Line Output Terminals	3 Pairs (Front (L/ R), Rear (L/ R), Sub.W (Mono) x1)
Rear view camera Input	Yes
Video Out	RCA x 1
AV Input	RCA x 1
Audio
Time Alignment	Yes
High-Pass Filter/Low-Pass Filter	Yes/Yes
Radio Tuner
AM- Frequency Range	530-1,700kHz
Audio
Maximum Power Output (Front & Rear)	45W x 4
EQ	Yes (13-Band Graphic EQ)
Preset EQ	Yes (7Preset + 3user)
Bass Boost	Yes
General
ISO Connector	Yes
Steering Remote Control Ready	Yes
Wireless Remote Control	Ready (RM-RK258 required)
Short Chassis	Yes (75mm)
Face Type	Fixed
Inputs and Outputs
Subwoofer Output with Level/Frequency Control	Yes
Pre-output Level/Impedance	2V / 10k ohms
