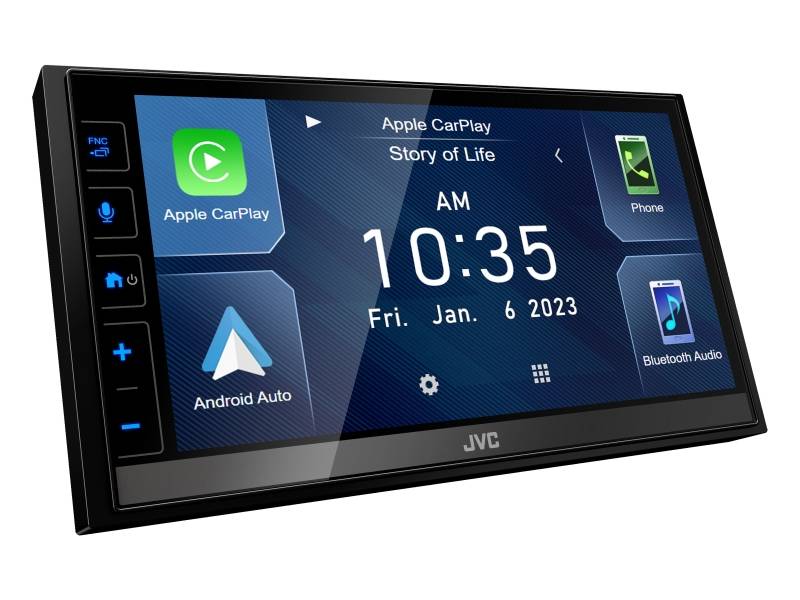

JVC 6.8" Short Chassis Multimedia Bluetooth Receiver KW-M785BW
Authorized Dealer
Price Match Guarantee
| Price | $749.00 |
| Savings | $101.00 |
| Our Price |
$648.00 CAD |
Or as low as $216.00/month over 3 months. Apply Now
JVC 6.8" Short Chassis Multimedia Bluetooth Receiver KW-M785BW
KW-M785BW

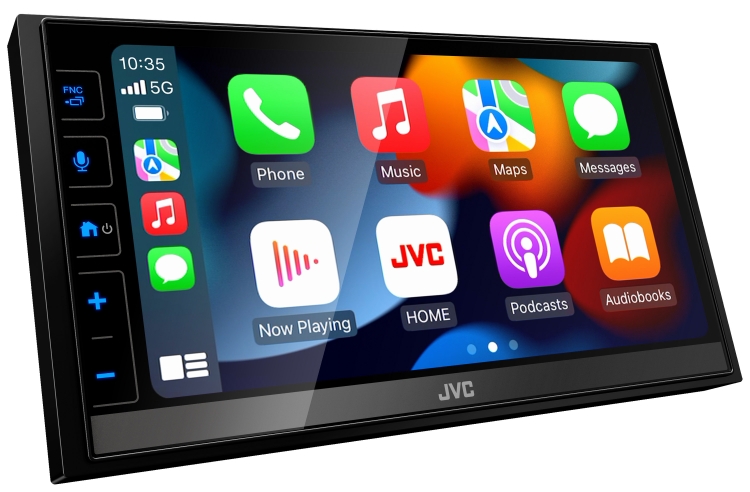

Digital Media Receiver featuring 6.8-inch Capacitive Touch Control Monitor (6.8" WVGA) / Wireless Apple CarPlay / Wireless Android Auto / USB Mirroring for Android Phones / iDatalink Maestro Ready / HDMI Input / Bluetooth® / 13-Band EQ / Short Chassis
SMARTPHONE INTEGRATION
JVC multimedia receivers interface your smartphone with your car to enrich your driving experience. Enjoy your favorite apps and view content on a big screen, in comfort and safety.

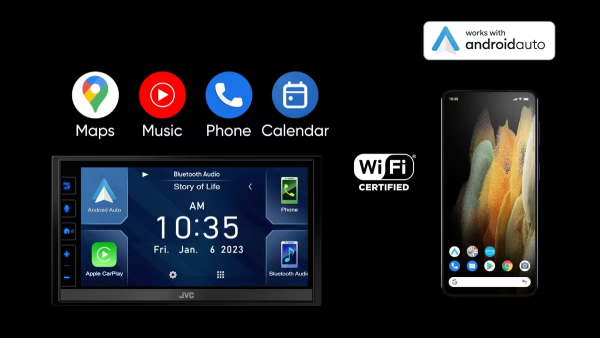

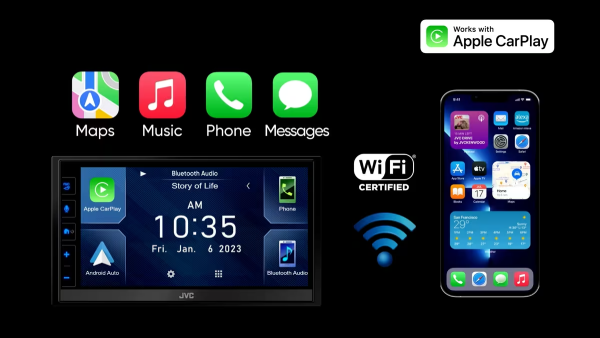

Apple CarPlay® – Connect Wirelessly or via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch. Some features, applications, and services are not available in all areas.
Android Auto™ – Connect Wirelessly or via USB
Android Auto is a simpler, safer way to use your phone in the car. Just plug in your phone – or in select models, connect wirelessly – and youʼll access your favorite music, media, and messaging apps in the car.
*To use Android Auto on your car display, youʼll need an Android phone running Android 6 or higher, an active data plan, and the Android Auto app. *To wirelessly use Android Auto on your car display, you need a compatible Android smartphone with an active data plan. You can check which smartphones are compatible at g.co/androidauto/requirements. *Some Features, applications, and services are not available in all areas.

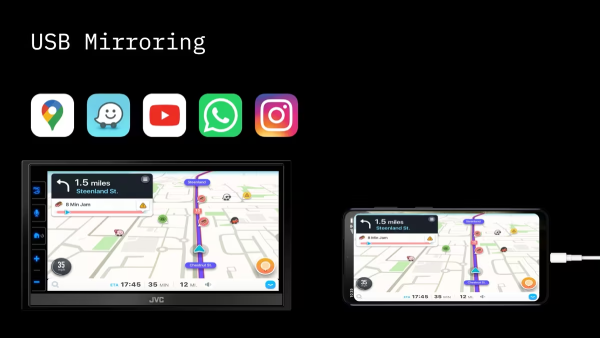

Mirroring for Android Phone – Connect via USB
By installing the “Mirroring OA for JVC” app, your Android phone is seamlessly displayed on the receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.
Mirroring for Android Phone – Connect via USB
By installing the “Mirroring OA for JVC” app, your Android phone is seamlessly displayed on the receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.

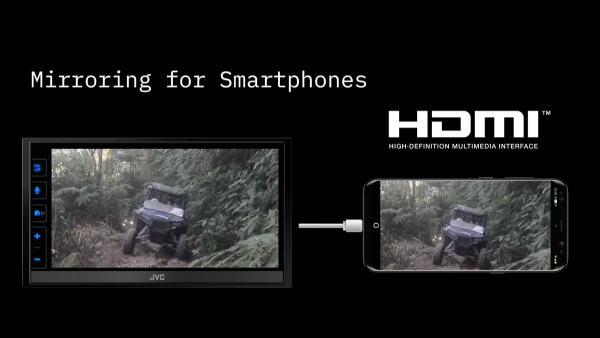

HDMI™ Mirroring for Smartphones
Display your smartphone screen on the receiverʼs display via an HDMI cable and third party adapter. *Optional HDMI cable and smartphone specific third party adapter are required (sold separately).
Highlights

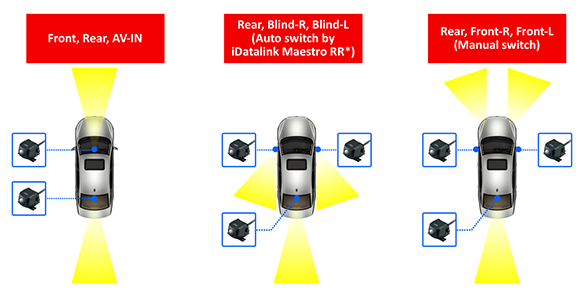

3-Camera Input
Enable users to add a reverse (rear facing) camera and an additional 2 front or blind-spot cameras, further enhancing driver safety and convenience.
Gesture Touch Control
Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.
SOUND OPTIMIZATION
From advanced technologies that enable playback of premium High-Resolution Audio sources, to the vast array of sound adjustment functions to fine-tune and customize the acoustics exactly the way you want — count on JVC to deliver the music to your ears.

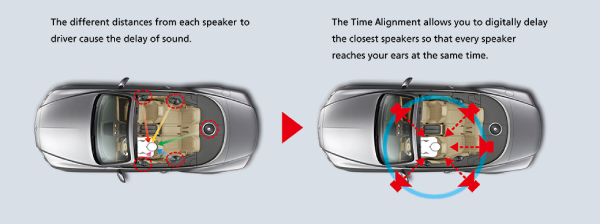

Time Alignment
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
Sound Response
Cancels time distortion to create clearer sound during the playback of compressed audio files.
Space Enhancement
Space Enhancement is a virtual surround technology using 2 speakers. Just select the vehicle size, and the receiver automatically adjusts the sound effectively.

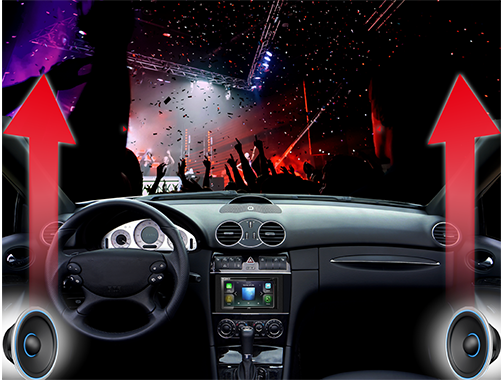

Sound Lift
Virtually manipulate the height of the speakers by adjusting the sound frequencies.
Volume Link EQ
Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.
13-Band Equalizer
Use the 13-Band Equalizer to manually adjust the sound to your taste.

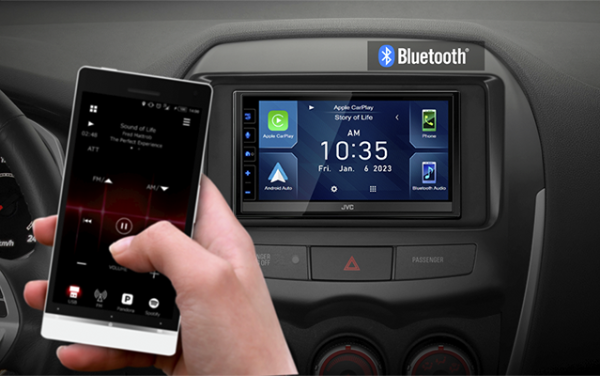

Bluetooth® Wireless Technology
2 Phones Full-Time Connection
You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the receiver.
iPhone®/Android™ Bluetooth Automatic Pairing
Just connect your iPhone or Android device via USB and the automatic Bluetooth pairing function will work to complete the pairing. No complicated manual procedure to worry about.
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.
Bluetooth Voice Recognition
Improved Sound Quality with HFP 1.8 Wideband Speech
Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.
Bluetooth AVRCP1.6 for Versatile Song Selection
In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.
JVC Streaming DJ
Connect up to 5 Bluetooth devices simultaneously, so you and your friends can take turns streaming music like a DJ. Move to the groove and get the party pumping to the max.
Internet Radio/Digital Radio
SiriusXM Ready (optional SiriusXM tuner required, sold separately)
Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.
General

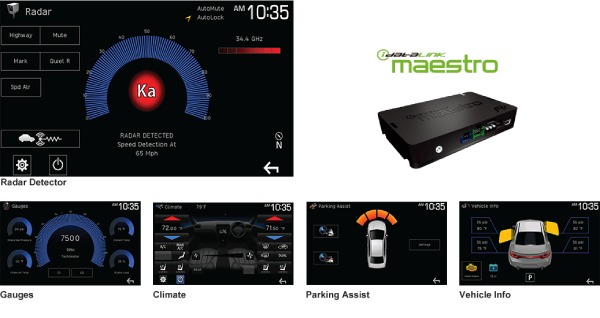

iDatalink Maestro – Advanced Vehicle Integration
iDatalink Maestro RR/RR2 (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays, and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles. Radar detector information can also be displayed on the screen when used with a compatible K40 radar detector system (sold separately).
*Available features may vary depending on the vehicle. The iDatalink Maestro RR/RR2 is sold separately by Automotive Data Solutions.
High Current 1.5A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A. *Compatibility depends on the smartphone.
4.0V High-Voltage 3 Pre-Outs
Equipped with three RCA terminals for pre-outs with 4.0V high voltage. Increasing the output voltage from the pre-outs helps reduce transmission noise and distortion when connected with an external amplifier.

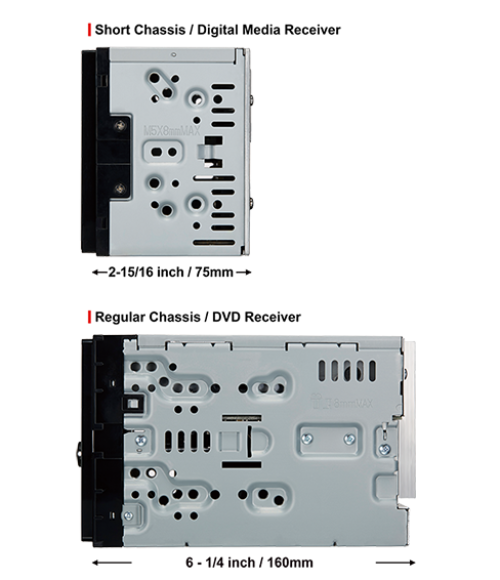

Short Chassis
The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.
Steering Wheel Remote Control Ready
Factory steering wheel control functions can be retained with a third-party adapter (sold separately).

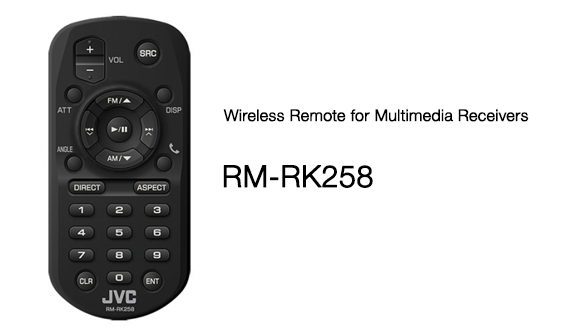

Remote Control (Optional)
Remote control (RM-RK258) is optionally available.
| MONITOR | |
|---|---|
| Touch Panel | Capacitive |
| Screen Size | 6.8"W VGA Screen |
| Bluetooth Control | |
| Voice Dialing (voice recognition compatible mobile phone required) | Yes |
| 5 BT-Audio Connection | Yes |
| Supported Audio Formats | AAC / SBC |
| Audio Streaming & Control (A2DP, AVRCP) | Yes |
| 2 Phones Full-Time Connection | Yes |
| Hands Free Call | Yes (HFP1.8 Wideband Speech) |
| Built-in Bluetooth[1] | Yes (Wired-Mic included) |
| Media Playback | |
| MKV Compatible | USB |
| MPEG 4 Compatible | USB |
| MONITOR | |
| Gesture Touch Control | Yes |
| Customizable GUI | Yes |
| Key Illumination Color | Variable |
| Dimmer | Yes |
| Multilingual Display | Yes[4] |
| Wallpaper Capture | Yes |
| Media Playback | |
| MP3 Compatible with Tag | USB |
| WMA Compatible with Tag | USB |
| WAV Compatible with Tag | USB |
| AAC Compatible with Tag | USB |
| FLAC Compatible with Tag | USB |
| H.264 Compatible | USB |
| WMV Compatible | USB |
| MPEG 1/2 Compatible | USB |
| Bluetooth Control | |
| Phone Book Access Profile (PBAP) | Yes |
| USB | |
| Position | Rear |
| USB Port | x 1 (High speed) |
| iPod/iPhone Control | |
| iPhone Music Playback | Yes (via USB(CarPlay) or Bluetooth(AVRCP)) |
| CarPlay[3] | Yes (via Wi-Fi or USB) |
| Android Control | |
| Android Music Playback | Yes (via Bluetooth(R)) |
| Mirroring for Android | Yes (via USB) *Need mirroring App |
| Android Auto[2] | Yes (via Wi-Fi or USB) |
| Wi-Fi Control | |
| Built-in Wi-Fi | Yes |
| Bluetooth Control | |
| Auto Pairing for iPhone/Android | Yes |
| Alphabetical Search for Phone Book | Yes |
| Audio | |
| Preset EQ | Yes (8Preset + 4user) |
| EQ | Yes (13-Band Graphic EQ) |
| Full Bandwidth Power (Front & Rear) | 22W x 4 (Full Bandwidth Power, at less than 1% THD) |
| Maximum Power Output (Front & Rear) | 50Wx4 |
| Radio Tuner | |
| AM - Frequency Range | 530-1,700kHz |
| FM - Frequency Range | 87.9 - 107.9MHz |
| Preset Stations | 20(FM:15ch, AM:5ch) |
| Radio Broadcast Data System (RBDS) | Yes |
| SiriusXM Ready | Yes |
| USB | |
| Drive Change Mode for Mass Storage Class (selectable from internal/external memory) | Yes |
| USB Power Supply | Yes (1.5A High Current Charging) |
| General | |
| Weight | 2.7 lbs. (1.2kg) Including Sleeve and Trim plate |
| Dimensions (W x H x D) - Installation Size | 7-1/16" x 3-15/16" x 2-15/16" (180 x 100 x 75 mm) |
| Steering Remote Control Ready | Yes |
| Wireless Remote Control | Ready (RM-RK258 required) |
| Short Chassis | Yes (2-15/16inch, 75mm) |
| Viewing Angle Adjustment | Yes (0 - 20 degree, default : 0 degree) |
| Face Type | |
| Back Up Memory | Yes |
| iDatalink Maestro Ready | Yes |
| Audio | |
| Bass Boost | Yes |
| High-Pass Filter/Low-Pass Filter | Yes/Yes |
| 3-Way X'over | Yes |
| Digital Track Expander | Yes |
| Space Enhancement | Yes |
| Sound Response | Yes |
| Sound Lift | Yes |
| Volume Link EQ | Yes |
| Time Alignment | Yes |

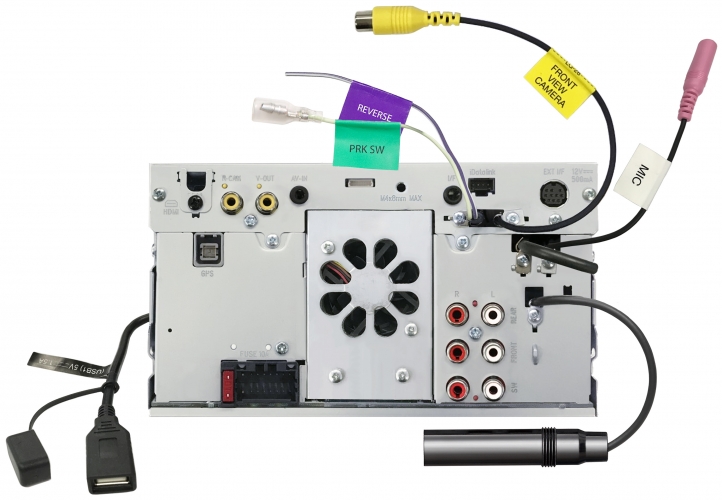

| Inputs and Outputs | |
| AV Input | mini jack (AV-IN or Camera-IN switchable) x 1 |
| Video Out | RCA x 1 |
| HDMI Terminal | Yes |
| Rear view camera Input | Yes |
| Front view camera Input | Yes |
| Line Output Terminals | 3 Pairs (Front + Rear + Subwoofer) |
| Pre-output Level/Impedance | 4.0V / 10k ohms |
| General | |
| Unit weight in individual package | 4.2 lbs. (1.9kg) |
