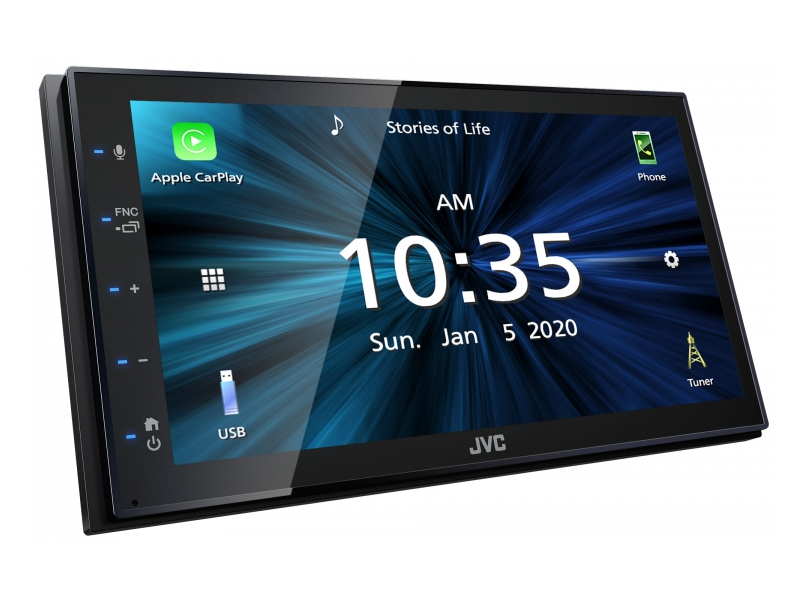

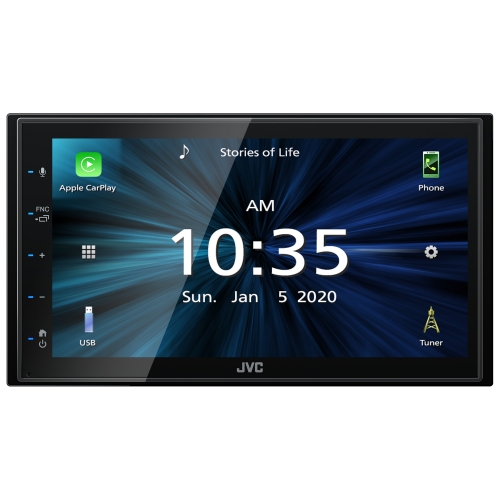

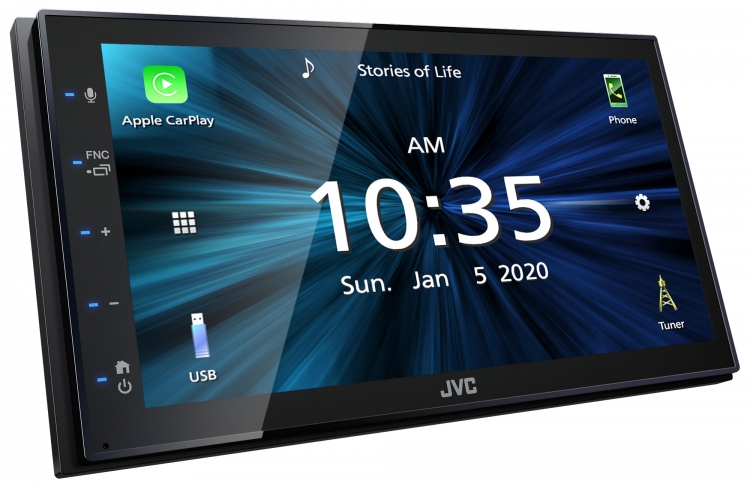

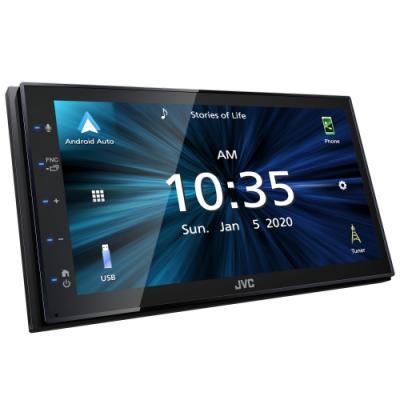

JVC Digital Media Receiver With 6.8 Inch Capacitive Touch Monitor - KW-M560BT

Authorized Dealer Price Match Guarantee

Price Match Guarantee

The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Our Price

$499.00 CAD

Or as low as $166.33/month over 3 months. Apply Now

JVC Digital Media Receiver With 6.8 Inch Capacitive Touch Monitor - KW-M560BT

KW-M560BT

^$499.00

Quote Request

Description
Features

Quote Request

Availability
Call for availability

KW-M560BT
Best Deal Promise

Literature

Description
Features

Digital Media Receiver featuring 6.8" Capacitive Touch Monitor / Apple CarPlay / Android Auto / USB Mirroring for Android Phones / Bluetooth® / 13-Band EQ / Shallow Chassis

SMARTPHONE INTEGRATION

JVC multimedia receivers interface your smartphone with your car to enrich your driving experience. Enjoy your favorite apps and view content on a big screen, in comfort and safety.

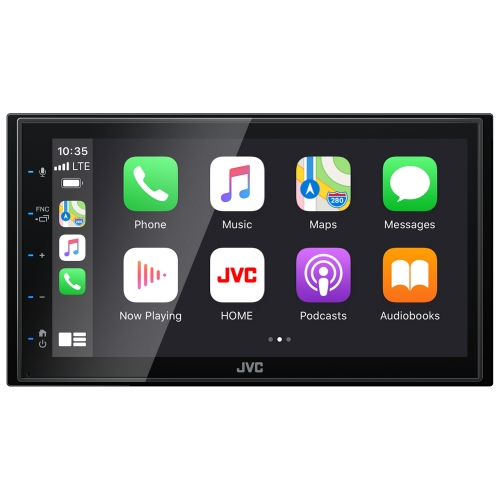

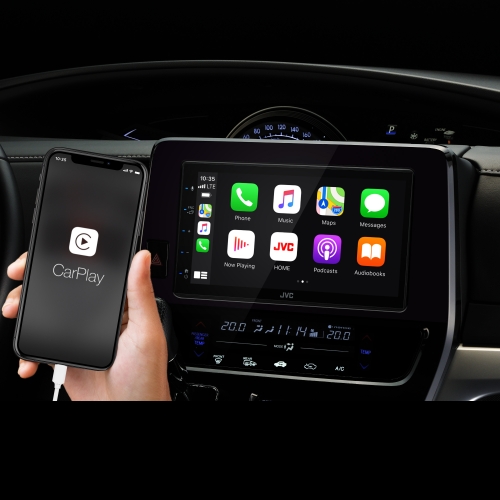

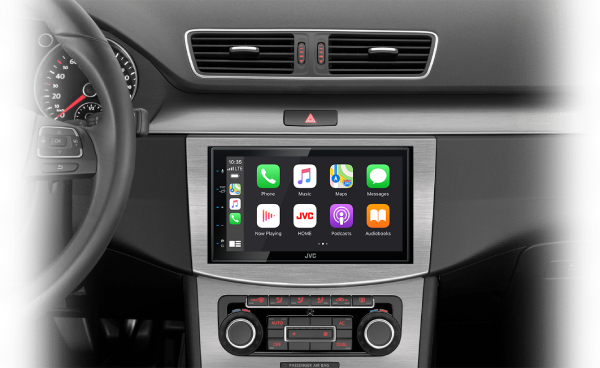

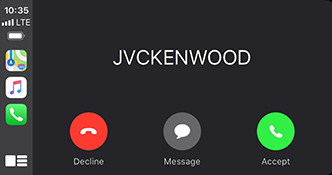

Apple CarPlay™ – Connect via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
With the latest iOS version (iOS 13.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are supported.

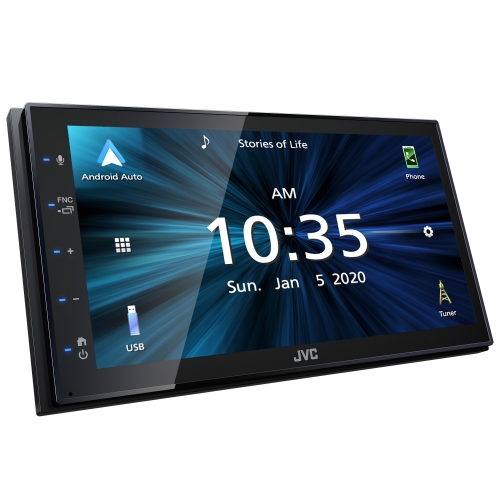

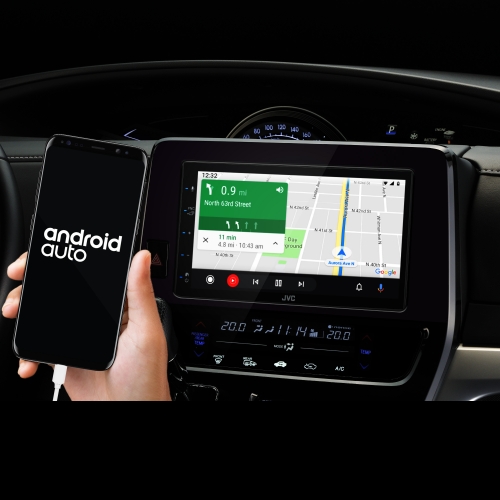

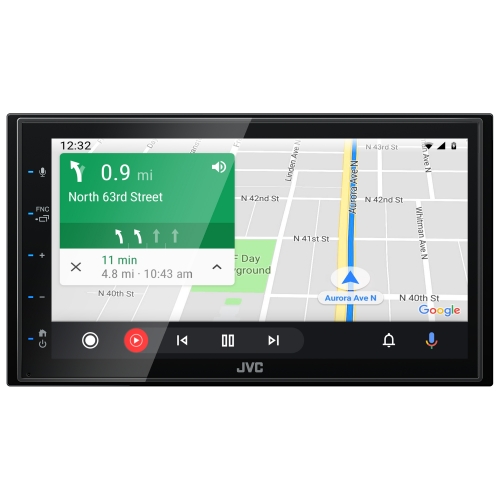

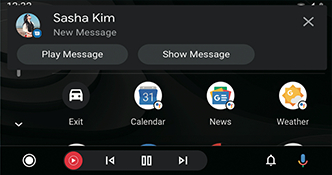

Android Auto™ – Connect via USB

Android Auto was designed with safety in mind. With a simple and intuitive interface and powerful voice actions, it’s designed to minimize distraction so that you can stay focused on the road.

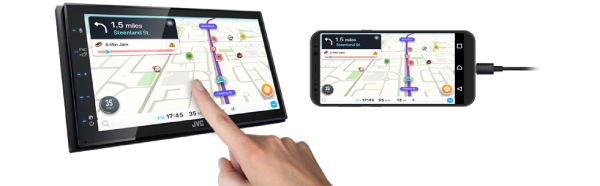

Mirroring for Android Phone –Connect via USB

By installing the “Mirroring OA for JVC” app, your Android phone is seamlessly displayed on the receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.

SOUND OPTIMIZATION

Time Alignment

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

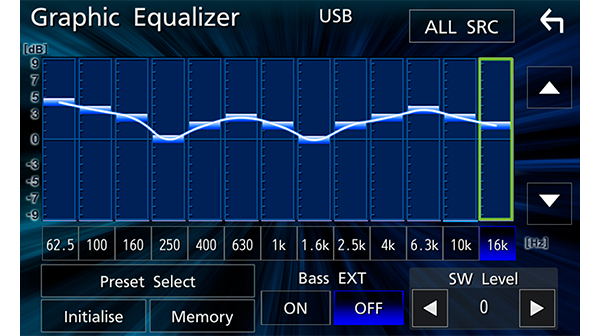

13-Band Equalizer

Use the 13-Band Equalizer to manually adjust the sound to your taste.

Bluetooth® Wireless Technology

Android™ Bluetooth Automatic Pairing

Just connect your Android device via USB and the automatic Bluetooth pairing function will work to complete the pairing. No complicated manual procedure to worry about.

Internet Radio/Digital Radio

SiriusXM Ready

Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.

General

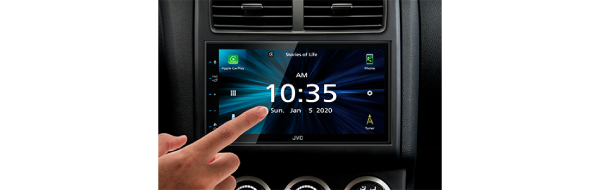

Capacitive Touchscreen

The Capacitive touch screen provides high clarity and uses a superior touch control, requiring lighter contact with greater accuracy.

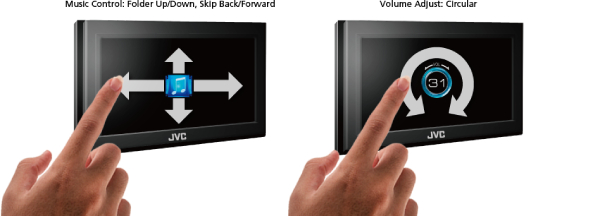

Gesture Touch Control

Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.

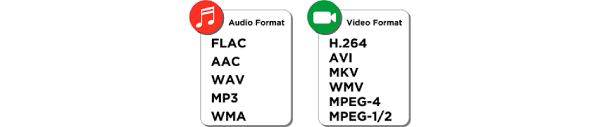

Various Formats Compatible

Supports a variety of file formats for audio and video playback.

High Current 1.5A Charging

Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.

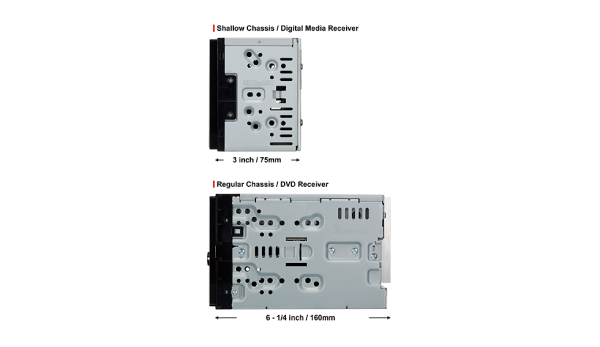

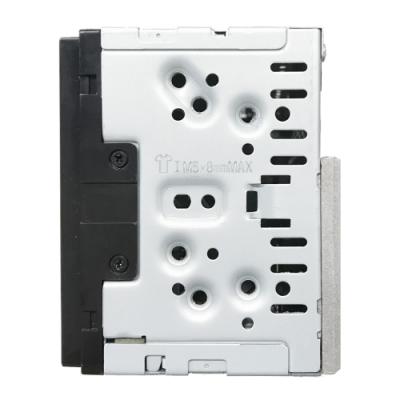

Shallow Chassis

The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

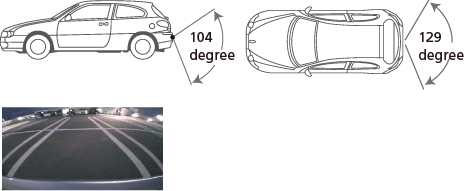

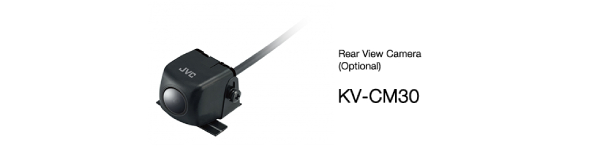

Rear View Camera Ready

The Rear View Camera input allows you to connect an optional rear view camera (sold separately).

Rear view cameras allow you to safely back up your vehicle, monitor towing, and more.

Waterproof design

1/4" color CMOS sensor with effective 380,000 pixels
Flexible mounting bracket included
Camera dimensions (WxHxD): 23.4mm x 23.4mm x 23.9mm
Weight: 21g (Camera only)

Steering Wheel Remote Control Ready

Factory steering wheel control functions can be retained with a third-party adapter (sold separately).

Audio
Preset EQ	Yes (7Preset + 3user)
EQ	Yes (13-Band Graphic EQ)
Full Bandwidth Power (Front & Rear)	22W x 4 (Full Bandwidth Power, at less than 1% THD)
Maximum Power Output (Front & Rear)	50Wx4
Radio Tuner
AM - Frequency Range	530-1,700kHz
FM - Frequency Range	87.9 - 107.9MHz
Automatic Presetting (Strong Station Sequential Memory)	Yes
Preset Stations	20(FM:15ch, AM:5ch)
Radio Broadcast Data System (RBDS)	Yes
SiriusXM Ready	Yes
USB
USB Power Supply	Yes (1.5A High Current Charging)
USB Port	x 1 (High Speed)
Position	Rear
iPod/iPhone Control
CarPlay[3]	Yes (via USB)
Android Control
Android Music Playback	Yes (via Bluetooth(R))
Mirroring for Android	Yes (via USB)
Android Auto[2]	Yes (via USB)
Bluetooth Control
Auto Pairing for iPhone/Android	Yes (Android only)
Alphabetical Search for Phone Book	Yes
Phone Book Access Profile (PBAP)	Yes
Voice Dialing (voice recognition compatible mobile phone required)	Yes
Supported Audio Formats	AAC / SBC
Audio Streaming & Control (A2DP, AVRCP)	Yes
Hands Free Call	Yes (HFP1.6 Wideband Speech)
Built-in Bluetooth[1]	Yes (Wired-Mic included)
Media Playback
MPEG 4 Compatible	USB
AVI/MKV Compatible	USB
MPEG 1/2 Compatible	USB
WMV Compatible	USB
H.264 Compatible	USB
FLAC Compatible with Tag	USB
AAC Compatible with Tag	USB
WAV Compatible with Tag	USB
WMA Compatible with Tag	USB
MP3 Compatible with Tag	USB
MONITOR
Multilingual Display	Yes[4]
Dimmer	Yes
Key Illumination Color	Blue
Monitor Touch Control	Yes
Customizable GUI	Yes
Touch Panel	Capacitive
Screen Size	6.8"W VGA Screen
Audio
Bass Boost	Yes
High-Pass Filter/Low-Pass Filter	Yes/Yes
Time Alignment	Yes

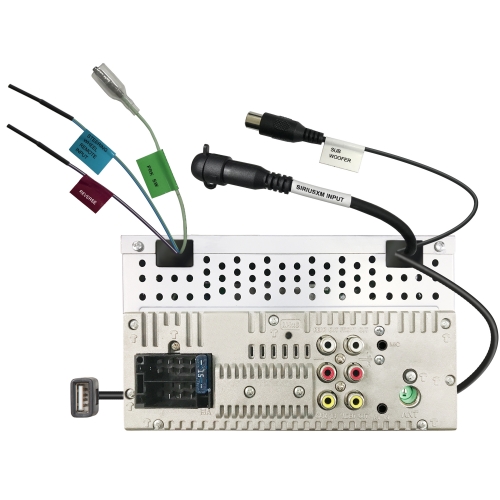

Inputs and Outputs
AV Input	mini jack (AV-IN or Camera switchable)
Video Out	RCA
Rear view camera Input	Yes
Line Output Terminals	2Preouts (Terminal) + Sub WF (Cable)
Pre-output Level/Impedance	2.0V / 10k ohms
Subwoofer Output with Level/Frequency Control	Yes
General
Back Up Memory	Yes
Wireless Remote Control	Ready (RM-RK258 required)
Steering Remote Control Ready	Yes
ISO Connector	Yes
Dimensions (W x H x D) - Installation Size	7" x 3-15/16" x 2-15/16" (178 x 100 x 75 mm)
Weight	2.8 lbs. (1.3kg) Including Sleeve and Trim plate
Unit weight in individual package	1.8kg
