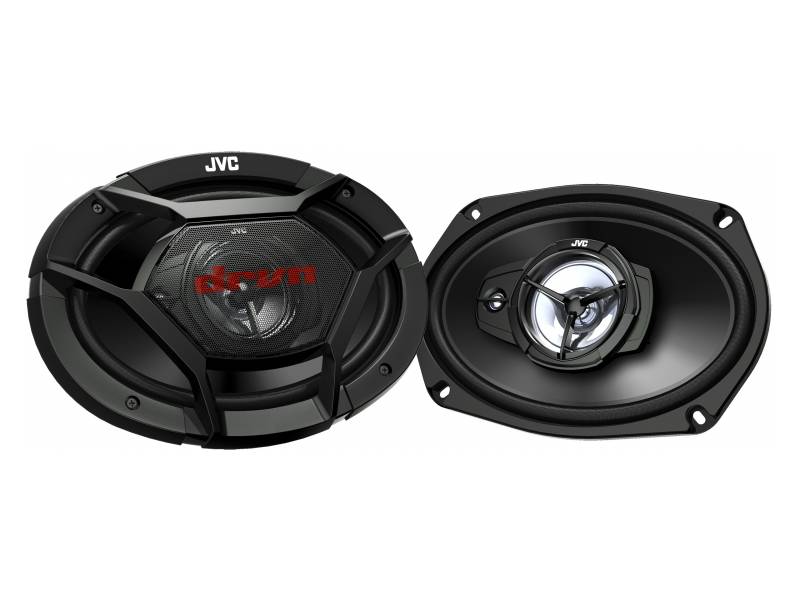

6 x 9" JVC DR series 3-Way Coaxial Speakers - CS-DR6931
Our Price | $119.00 CAD |

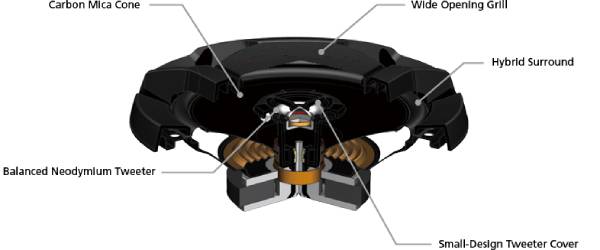

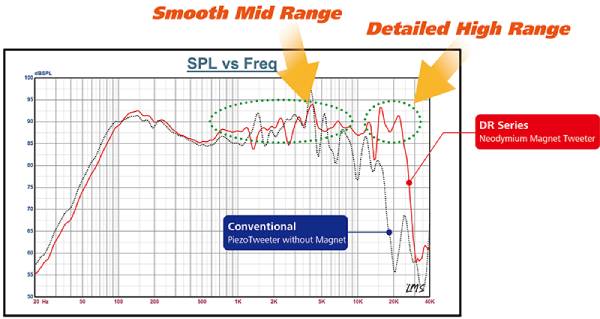

Balanced Neodymim Tweeter
It provides detailed high range and smooth mid range.

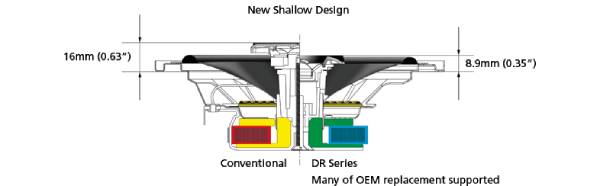

Great Factory Replacement
Installable vehicle types are greatly increased thanks to its shorter height.

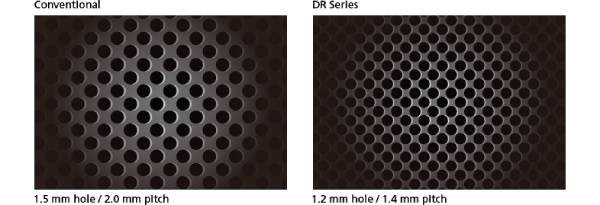

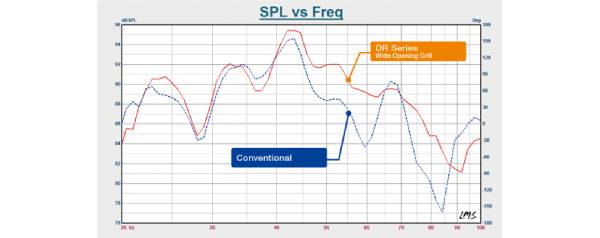

Wide Opening Grill
Grill’s opening ratio is 30% wider than the conventional model, enabling increased durability and clear sound.
Carbon Mica Cone
Robust and lightweight carbon mica material provides highly responsive, clear and undistorted reproduction.
Hybrid Surround
Rubber Coated Cloth with increased mobility enables high efficiency and improved follow-up to audio signals.
Small Design Tweeter Cover
Newly developed small cover significantly reduces areas that interfere with the woofer cone. High-quality sound is assured.

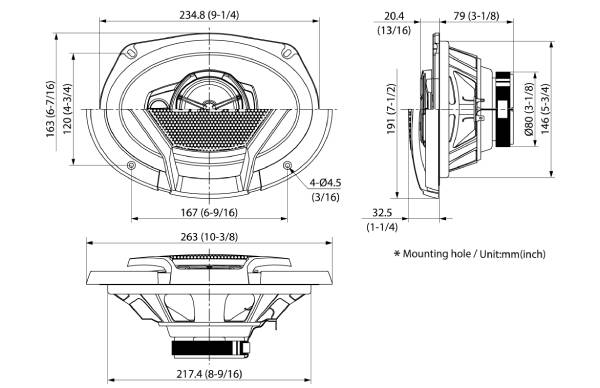

Dimensions
Woofer | |
---|---|
Size | 15 x 23 cm (6'' x 9'') |
Diaphragm | Carbon Mica Cone |
Surround | Hybrid Surround (Rubber & Cloth) |
Magnet | Ferrite |
Midrange | |
Size | 6.6 cm (2-5/8'') |
Type | Cone |
Diaphragm | Poly-Ether Imide |
Magnet | Ferrite |
Tweeter | |
Size | 1.5 cm (19/32'') |
Type | Dome |
Diaphragm | Poly-Ether Imide |
General | |
Frequency Response | 58 - 21,000Hz |
Power Handling Capacity (RMS) | 70W |
Power Handling Capacity (Peak Power) | 500W |
Impedance | 4 ohms |
Sound Pressure Level | 88dB |
Weight (w.Grille) | 1.07kg (2.4lbs) |
Weight (w/o Grille) | 0.99kg (2.2lbs) |
Magnet Mass | 285g (10oz) |
Mounting Depth | 79 mm (3-1/8") |
