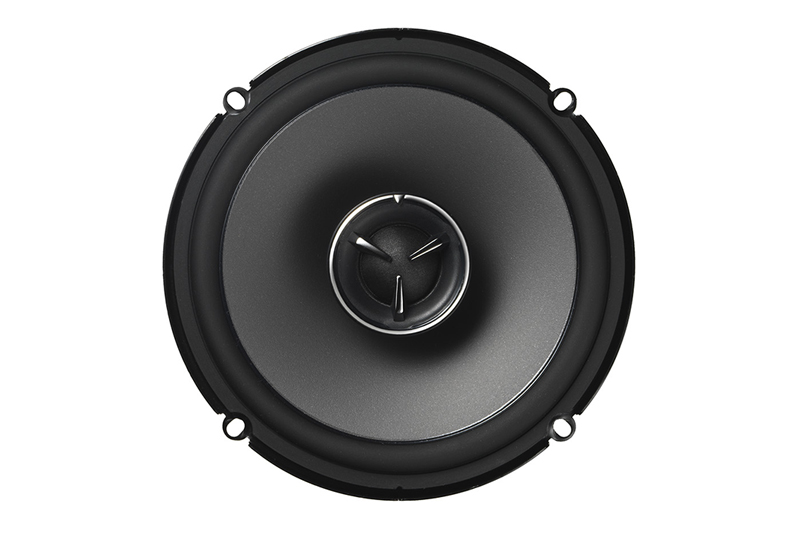

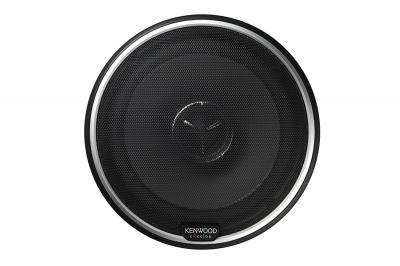

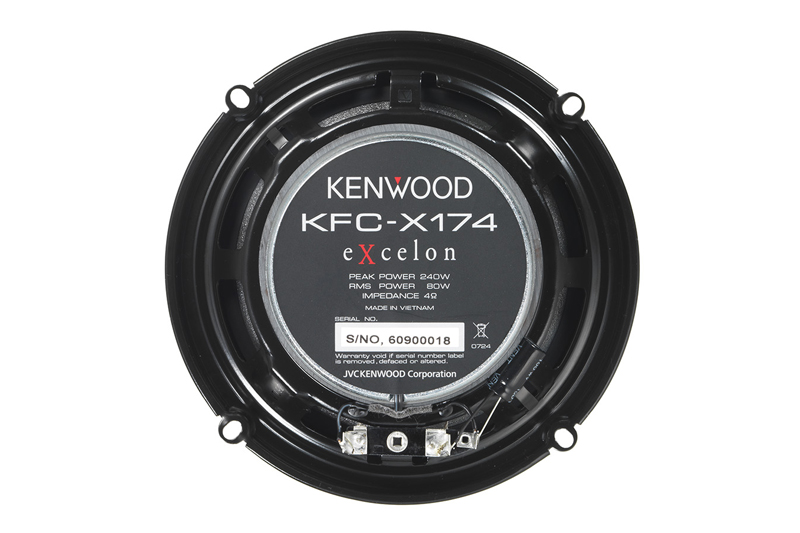

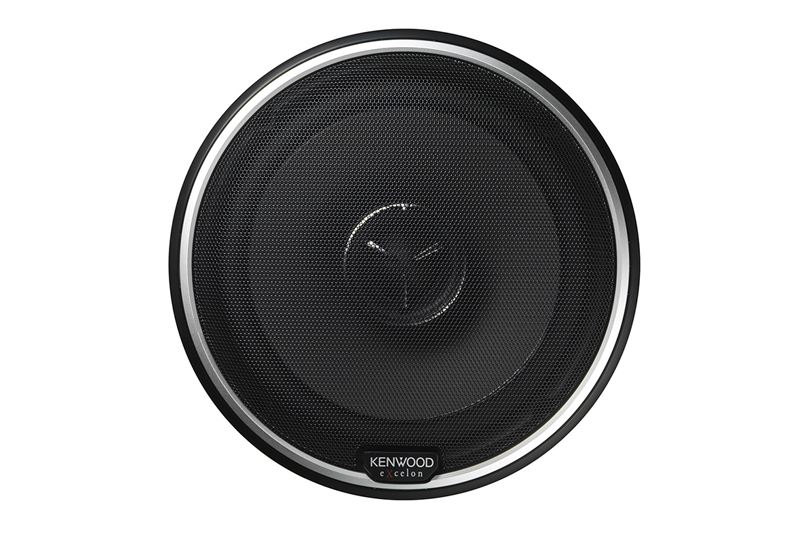

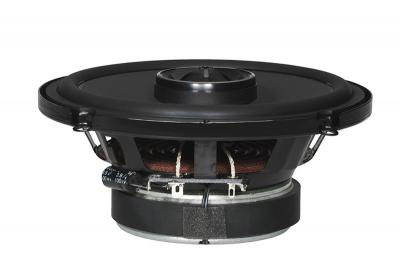

Kenwood 6.5 Inch 2-way 2 Speaker - KFC-X174
Authorized Dealer
Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
| Price | $219.00 |
| Savings | $121.00 |
| Our Price |
$98.00 CAD |
General Features
- Peak Power : 240W
- RMS Power : 80W
- Sensitivity : 88dB/ W at 1 m
- Frequency Response : 69Hz 21,000Hz
Woofer
- Woofer Size: 6-1/2 in (165mm)
- Woofer Diaphragm: Injection PP cone
Tweeter
- Tweeter Size: 1 in (25mm)
- Tweeter Diaphragm: Soft Dome
Dimensions (without grill)
- Width: 6-1/14 in (158mm)
- Height: 6-1/4 in (158mm)
- Depth: 2-15/16 in (75mm)
- Mounting Depth: 2-3/16 in (56mm)
| Dimension | |
|---|---|
| Tweeter Height | 19 mm , 3/4 inch |
| Specification | |
| Model Name | KFC-X174 |
| System | 2way-2speaker |
| Power Handling | |
| Peak Input Power | 240W |
| Maximum Input Power | 100W |
| Rated Power | 50W |
| RMS Power | 80Watts RMS |
| Impedance | 4Ω |
| Sensitivity | 88dB/ W at 1 m |
| Frequency Response | 69 Hz~21,000 Hz |
| Woofer | |
| Diaphragm | P.P. Cone , Gray |
| Size | Oversized 165 mm , 6-1/2 inch |
| Surround | Rubber |
| Basket | Steel |
| Magnet | Ferrite , φ90 x t15 |
| Size | |
| Size | 25 mm , 1 inch |
| Magnet | |
| Magnet | Nd , Up to Engineer |
| Dimension | |
| Width | 180.0 mm , 7-1/16 inch |
| Height | 180.0 mm , 7-1/16 inch |
| Depth | 84.2 mm , 3-5/16 inch |
| Width | 158.0 mm , 6-1/4 inch |
| Height | 158.0 mm , 6-1/4 inch |
| Depth | 75 mm , 2-15/16 inch |
| Cut-out Diameter | 127.5 mm , 5 inch |
| Mounting Depth | 56.0 mm , 2-3/16 inch |
| Accessory | |
| Grille Holder | ○ |
| Punching Net | ○ |
| Tweeter | with Woofer Frame , -6dB/oct |
| Binding Head Tapping Screw | φ4 x 25 mm , 8 pcs |
| Binding Head Tapping Screw | φ4 x 8 mm（TP Head) , 8 pcs |
| Speed Nut | φ4 , 8 pcs |
