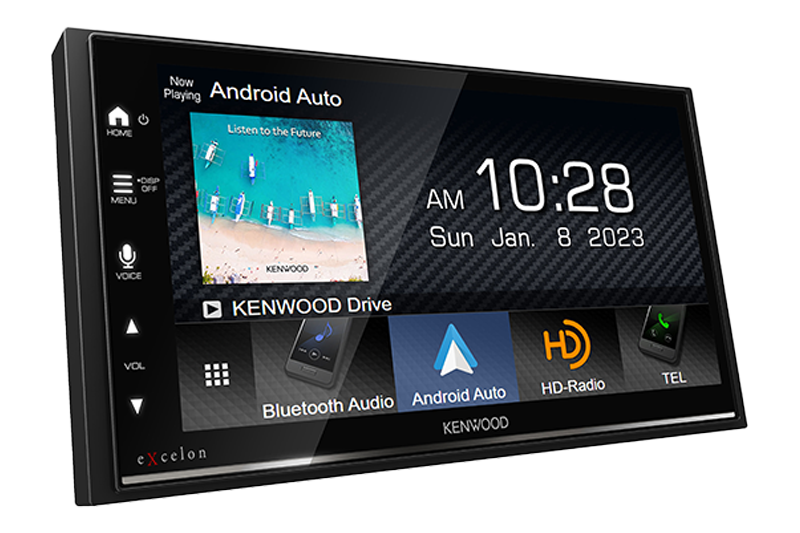

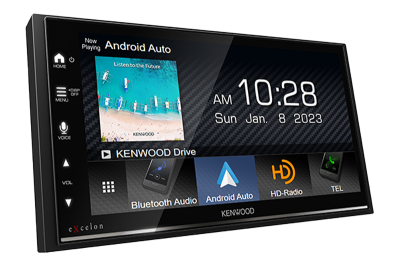

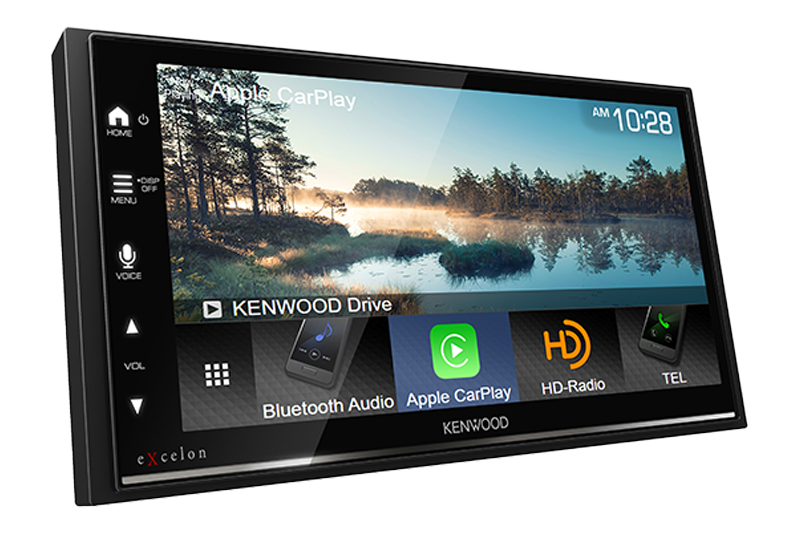

Kenwood 6.8 Inch Digital Multimedia Receiver - DMX809S
Authorized Dealer
Price Match Guarantee
| Price | $899.00 |
| Savings | $101.00 |
| Our Price |
$798.00 CAD |
Or as low as $133.00/month over 6 months. Apply Now
Capacitive Touch Panel
Clear glass display with swipe functionality that provides superior picture and touch panel control.
Android USB Mirroring
Solution for seamlessly displaying and controlling your smartphone apps on a screen via a USB connection on select Android devices.
3 Camera Inputs
Optional camera connection method for up to 3 cameras in various configurations.
Parking Guidelines
Parking guidelines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
Music Mix
Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Graphic EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
Drive EQ
Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.
Variable Color Illumination
Bright variable color LEDs can be adjusted to match any color dash lighting.
Short Chassis
With receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.
Smartphone Connectivity

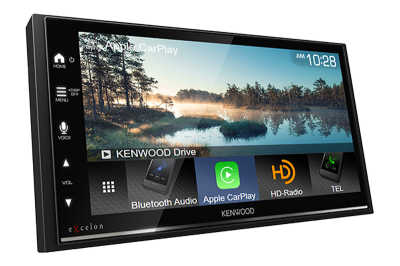

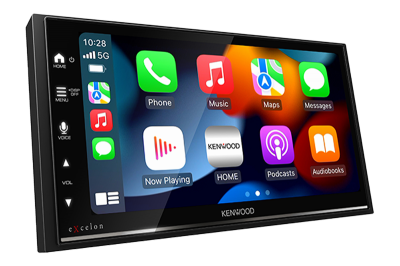

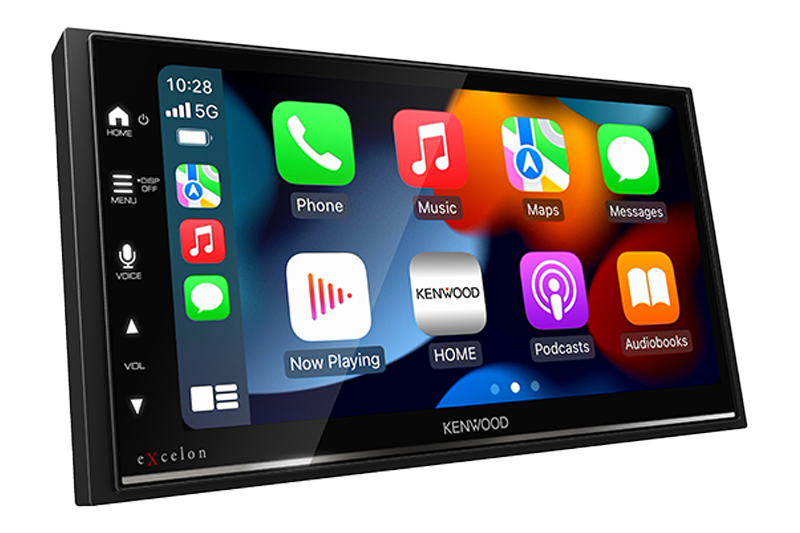

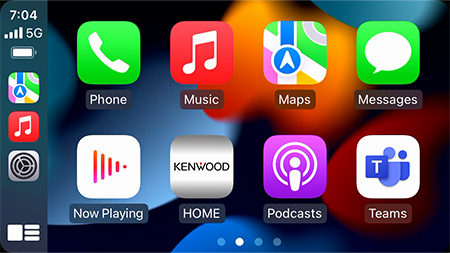

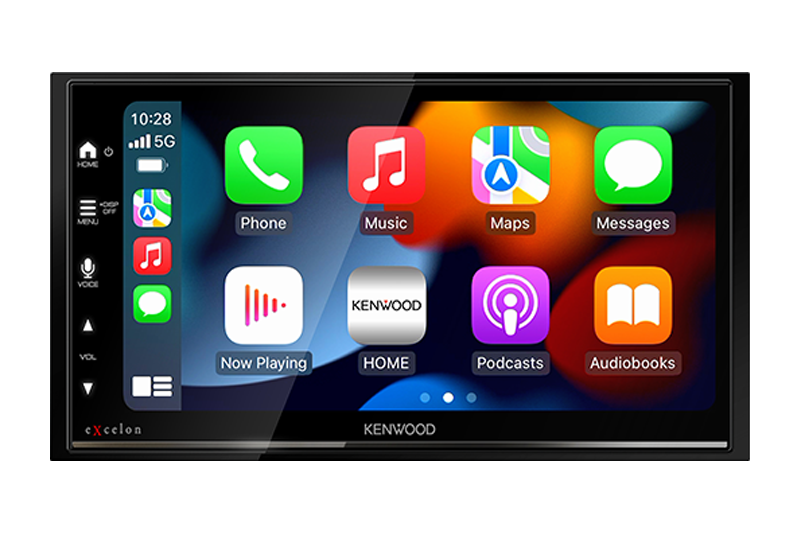

Safe, Smart and Comprehensive Control with Apple CarPlay
Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Pandora and Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported.
KENWOOD Wi-Fi receivers now support Apple CarPlay wirelessly (compatible phone required).

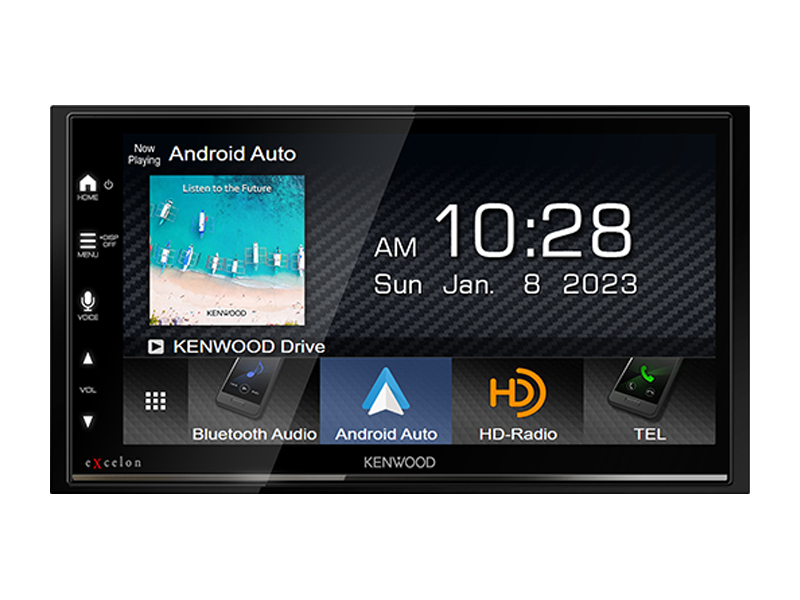

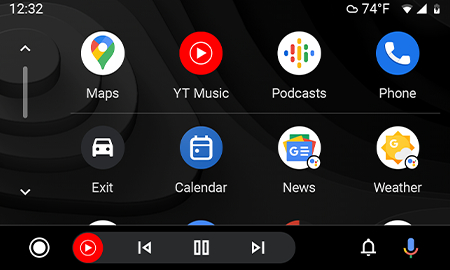

Android Auto for Easy Connectivity
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze. KENWOOD Wi-Fi receivers also support Android Auto wirelessly (compatible phone required).
- To use Android Auto on your car display, you’ll need an Android Auto compatible vehicle or aftermarket stereo, an Android phone running Android 6.0 or higher, and the Android Auto app.

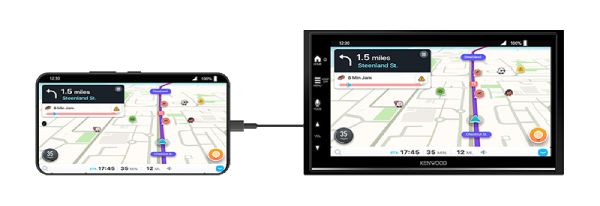

True Mirroring via USB,2-Way Touch Control for Android
Allows you to display and control your Android smartphone on the screen of the receiver.
You can enjoy your favorite apps on a large display and with impressive sound quality. Before starting, just install the free app “Mirroring OA for KENWOOD” on your smartphone and connect it to KENWOOD receiver via a USB cable and Bluetooth.

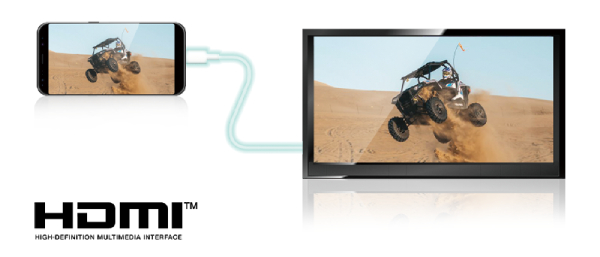

HDMI Input
Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the monitor. KCA-HD200 optional HDMI cable sold separately.
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.
Equipped with the Intuitive KENWOOD Music Mix
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
The Best Audio Experience

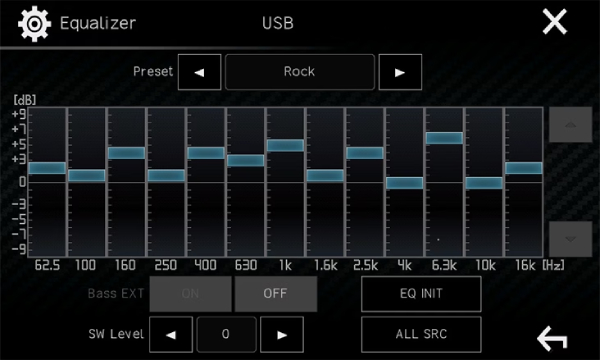

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

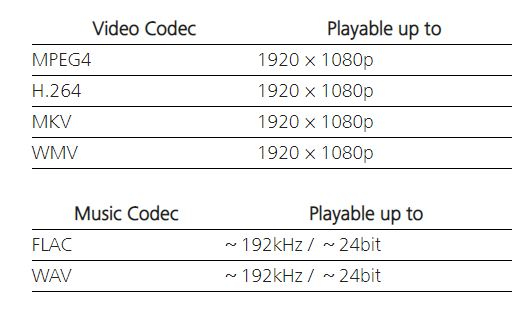

Playable Video & Audio Files
You can play back from USB devices audio and video files compressed in various formats.
Safe Driving
ENHANCED VEHICLE INTEGRATION
Compatible with both the Automotive Data Solutions iDatalink Maestro RR and RR2 (sold separately)* for enhanced system vehicle integration. In addition to providing the seamless factory integration experience you have become accustomed to with the RR, these models feature expanded support when connected to the RR2, including an Advanced Driver Assistance Systems (ADAS) Widget, Customizable Accessory Controls, and compatibility with specific ESCORT radar detector systems (sold separately).

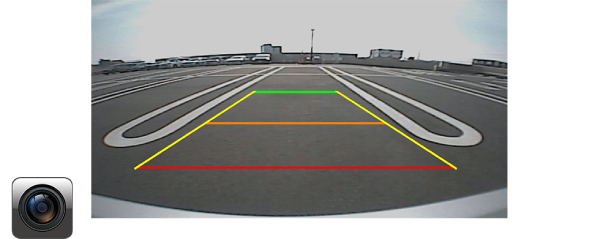

Rear View Camera Input with Parking Guidelines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

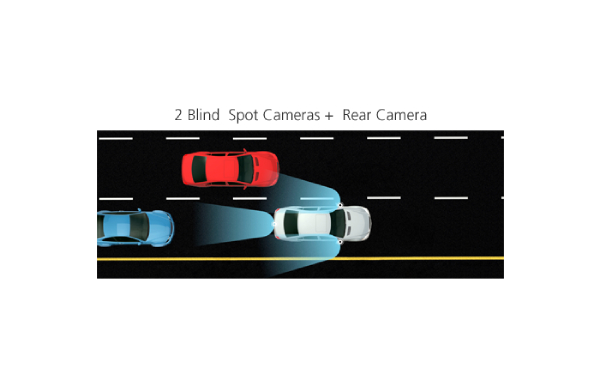

3 Camera Inputs
To enable a smarter driving experience, receivers featuring 3 camera inputs allow for the utmost in convenience, flexibility, and safety. With 3 camera inputs, you can connect a front camera, a rear camera and a third camera which can be used for trailers or caravans. Alternatively, 3 camera inputs support several other configurations, including the connection of 2 blind spot cameras and a reverse camera. Camera switching is available using on screen controls and manual switchers.
Additional Features
Convenient and Easy-to-Use Capacitive Touch Panel
Provides a high contrast ratio, crystal clear display and vivid text. Easy to use widgets provide access to information screens with a swipe.
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio.
(Optional SiriusXM tuner required, sold separately)
Built-in HD Radio Tuner
HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.
Short Chassis Design
Only 2-15/16" (75mm) of depth for more flexible installation.

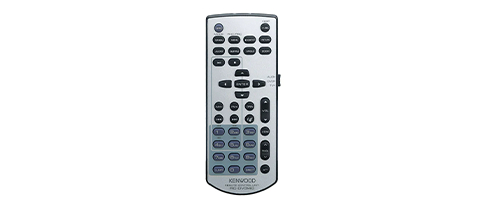

Remote Control (Optional)
This receiver unit can be operated using the optional remote control KCA-RCDV340.
| MonitorSection | |
|---|---|
| Picture size | 6.75 inches(diagonal) wide |
| W x H | 151.8 mm x 79.7 mm, 6 x 3-1/7 inch |
| Display system | TN LCD panel |
| Drive system | TFT active matrix system |
| Number of pixels | 1,152,000 |
| Number of pixels | 800H x 480V x RGB |
| Effective pixels | 99.99% |
| Pixel arrangement | RGB striped arrangement |
| Back lighting | LED |
| USB I/FSection | |
| Connector Type | Type-A |
| USB Standard | USB2.0 Full Speed / High Speed |
| File System | FAT 16/32, exFAT |
| Maximum Power Supply Current | DC5V=1.5A |
| D/A Converter | 24Bit |
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC |
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV |
| Frequency response192k Sampling | 20 to 20,000 Hz |
| 96k Sampling | 20 to 20,000 Hz |
| 48k Sampling | 20 to 20,000 Hz |
| 44.1k Sampling | 20 to 20,000 Hz |
| Total harmonic distortion 1kHz | 0.010% |
| Signal to Noise ratio | 98.5dB |
| Dynamic range | 89dB |
| Wi-Fi | |
| IEEE Standard | 802.11 a/b/g/n/ac |
| Frequency Range | Dual Band ( 2.4GHz / 5GHz ) |
| Channels | Auto(1-11ch) |
| Channels | Auto(149,153,155,157,161ch) |
| Transfer rates (MAX) | 11a:54 Mbps / 11b: 11 Mbps |
| Transfer rates (MAX) | 11g: 54 Mbps / 11n:150 Mbps / 11ac:433 Mbps |
| BluetoothSection | |
| Technology | Bluetooth Ver5.0 |
| Frequency | 2.402 to 2.480 GHz |
| Maximum Communication range | Line of sight approx.10m(32.8ft) |
| Audio Codec | SBC / AAC |
| Multi Profile Support | Multi Profile |
| Profile | HFP (V1.8) (Hands Free Profile) |
| Profile | SPP (Serial Port Profile) |
| Profile | A2DP (V1.3.2) (Advanced Audio Distribution Profile) |
| Profile | AVRCP (V1.6.2) (Audio/Video Remote Control Profile) |
| Profile | PBAP (Phonebook Access Profile) |
| HDMI I/FSection | |
| Connector Type | Type-D |
| Input Resolution | VGA (640x480p 59.94Hz/60Hz) |
| Input Resolution | 480p (720x480p 59.94Hz/60Hz) |
| Input Audio Type | 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM |
| DSPSection | |
| Equalizer | 13Band |
| Band Frequency | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k[Hz] |
| Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/ 0/ 1/ 2/ 3/ 4/ 5/ 6/ 7/ 8/ 9 [dB] |
| Tweeter Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 [dB] |
| HPF Frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] |
| Slope | -6/-12/-18/-24[dB/Oct.] |
| Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB |
| LPF Frequency | 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz/ Through |
| Slope | -6/ -12/ -18/ -24 dB/Oct. |
| Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB |
| Phase | Normal/ Reverse |
| Tweeter HPF Frequency | 1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k [Hz] |
| Slope | -6/ -12 [dB/Oct.] |
| Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 [dB] |
| Phase | Normal/ Reverse |
| Mid Range HPF Frequency | Through/30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250[Hz] |
| Slope | -6/ -12 [dB/Oct.] |
| Mid Range LPF Frequency | 1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k/Through [Hz] |
| Slope | -6/ -12 [dB/Oct.] |
| Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 [dB] |
| Phase | Normal/ Reverse |
| Subwoofer LPF Frequency | 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250/ Through [Hz] |
| Slope | -6/ -12 [dB/Oct.] |
| Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 [dB] |
| Phase | Normal/ Reverse |
| DigitalFM | |
| Frequency Range | 87.9MHz to 107.9MHz |
| (Frequency step) | (200kHz) |
| Frequency Response | 20 Hz to 20 kHz |
| S/N | 75 dB(STEREO) |
| Frequency Range | 530kHz to 1700kHz |
| (Frequency step) | |
| (Frequency step) | (10kHz) |
| Frequency Response | |
| Frequency Response | 40Hz to 15kHz |
| S/N | |
| S/N | 70 dB(STEREO) |
| FM | |
| Frequency range (Frequency step) | 87.9MHz to 107.9MHz |
| Frequency range (Frequency step) | (200kHz) |
| Usable sensitivity | 7.2 dBf |
| S/N:30dB | 0.63 V / 75 Ohms |
| Quieting sensitivity | 15.2 dBf |
| DIN S/N:46dB | 1.58 V / 75 Ohms |
| Frequency response | 30Hz to 15kHz |
| S/N(dB) | 68 dB(MONO) |
| Selectivity | Over 80dB ( |
| Stereo separation | 40 dB(1 kHz) |
| Frequency range (Frequency step) | 530kHz to 1700kHz |
| Frequency range (Frequency step) | (10kHz) |
| Usable sensitivity | |
| Usable sensitivity | 29 dB (28.2V) |
| Video | |
| Color system of external video input | NTSC/PAL |
| External video input level (RCA jacks) | 1 Vp-p / 75 Ohms |
| External video input level (Mini jacks) | 1 Vp-p / 75 Ohms |
| External audio max input level (RCA jacks) | - |
| External audio max input level (Mini jacks) | 2 V / 25 kOhms |
| Video Input level (RCA jacks) | 1 Vp-p / 75 Ohms |
| Video Output level (RCA jacks) | 1 Vp-p / 75 Ohms |
| Audio | |
| Maximum Power Output (Front&Rear) | 50Wx4 |
| Typical Power Output (Front&Rear) | Full Bandwidth Power |
| Typical Power Output (Front&Rear) | (at less than 1%THD) |
| Typical Power Output (Front&Rear) | 22Wx4 |
| Output frequency band | 20 to 88,000Hz |
| Preout level (V) | 5V / 10kOhms |
| Preout impedance () | =< 600 Ohms |
| Speaker Impedance () | 4 to 8 Ohms |
| General | |
| Operating voltage | 12V DC Car Battery |
| (Main Unit Installation size) | 180mm x 100mm x 75mm |
| (Main Unit Installation size) | 7-1/16. x 3-15/16 x 2-15/16 inch |
| (with Sleeve) | 182mm x 111mm x 74mm |
| (with Sleeve) | 7-3/16 x 4-3/8 x 2-15/16 inch |
| Weight Main unit | 1.2 kg |
| Weight Main unit | 2.7 lb |
| Weight Main unit | (Trim plate and Mounting sleeve: Included) |
