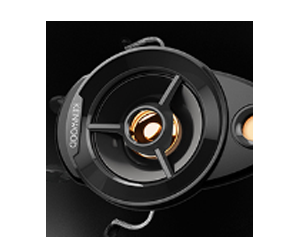

Kenwood 6 x 9" Coaxial Speaker - KFC-6966S
Authorized Dealer
Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
| Our Price | $99.00 CAD |
Frequency Response 30Hz - 22kHz
Mounting Depth 3”
Sound Field Enhancer
To improve sound quality
Enlarged magnet circuit
To realize clear sound
Only 7/16"of mounting height
To fit for wider car selection
Peak Input Power
400W
Rated Input Power
45W Impedance 4 ohms
Woofer Features
6 x 9inch PP Cone
Tweeter Features
2inch PEI Balanced Dome Tweeter
Super Tweeter Features
1/2inch Ceramic Tweeter
Specifications
Sensitivity: 92 dB / W / m
Frequency Response: 30 Hz - 22k Hz
Cutout Diameter: 6-1/16 , 8-3/4inch
Mounting Depth: 3inch
Gross Weight: 5.1lbs
Weight of Magnet (Woofer): 0.4lbs
| Screw sets | |
|---|---|
| Screw sets | Tapping Screw , φ4x25*8pcs |
| Grille Assy | |
| Grille Assy | 2pcs |
| Gross Weight | |
| Gross Weight | 1870 g , 4.1 lbs. |
| Weight of Woofer Magnet | |
| Weight of Woofer Magnet | 220 g , 7.8 oz. |
| without Grille (pc.) | |
| without Grille (pc.) | 796 g , 1.8 lbs. |
| witho Grille (pc.) | |
| witho Grille (pc.) | 908 g , 2.0 lbs. |
| Mounting Depth | |
| Mounting Depth | 76.8 mm , 3 in. |
| Tweeter Height | |
| Tweeter Height | 11.5 mm , 7/16 in. |
| Cutout Diameter | |
| Cutout Diameter | 154ｘ222 mm , 6-1/16ｘ8-3/4 in. |
| Height (w/o_Gr) | |
| Height (w/o_Gr) | 164 mm , 6-7/16 in. |
| Height (w_Gr) | |
| Height (w_Gr) | 193 mm , 7-5/8 in. |
| Width (w/o_Gr) | |
| Width (w/o_Gr) | 235 mm , 9-1/4 in. |
| Width (w_Gr) | |
| Width (w_Gr) | 268 mm , 10-9/16 in. |
| Size | |
| Size | 12mm , 1/2 inch |
| Diaphragm | |
| Diaphragm | Cermic , Silver |
| Specification | |
| Diaphragm | Cermic , Silver |
| Magnet Material | |
| Magnet Material | Ferrite |
| Super Tweeter | Ferrite , Cermic |
| Size | |
| Size | 50mm , 2 in. |
| Diaphragm | |
| Diaphragm | Cone , Silver |
| Magnet | |
| Magnet | Ferrite , φ80xt10 |
| Surround | |
| Surround | Cloth |
| Size | |
| Size | 153x299mm , 6x9in |
| Diaphragm | |
| Diaphragm | PP , Silver |
| Frequency Response (Hz) | |
| Frequency Response (Hz) | 35-20000Hz |
| Sensitivity (dB at 1m) | |
| Sensitivity (dB at 1m) | 91dB |
| RMS Input Power (W) | |
| RMS Input Power (W) | 45W |
| Peak Input Power (W) | |
| Peak Input Power (W) | 400W |
| Impedance (Ω) | |
| Impedance (Ω) | 4Ω |
