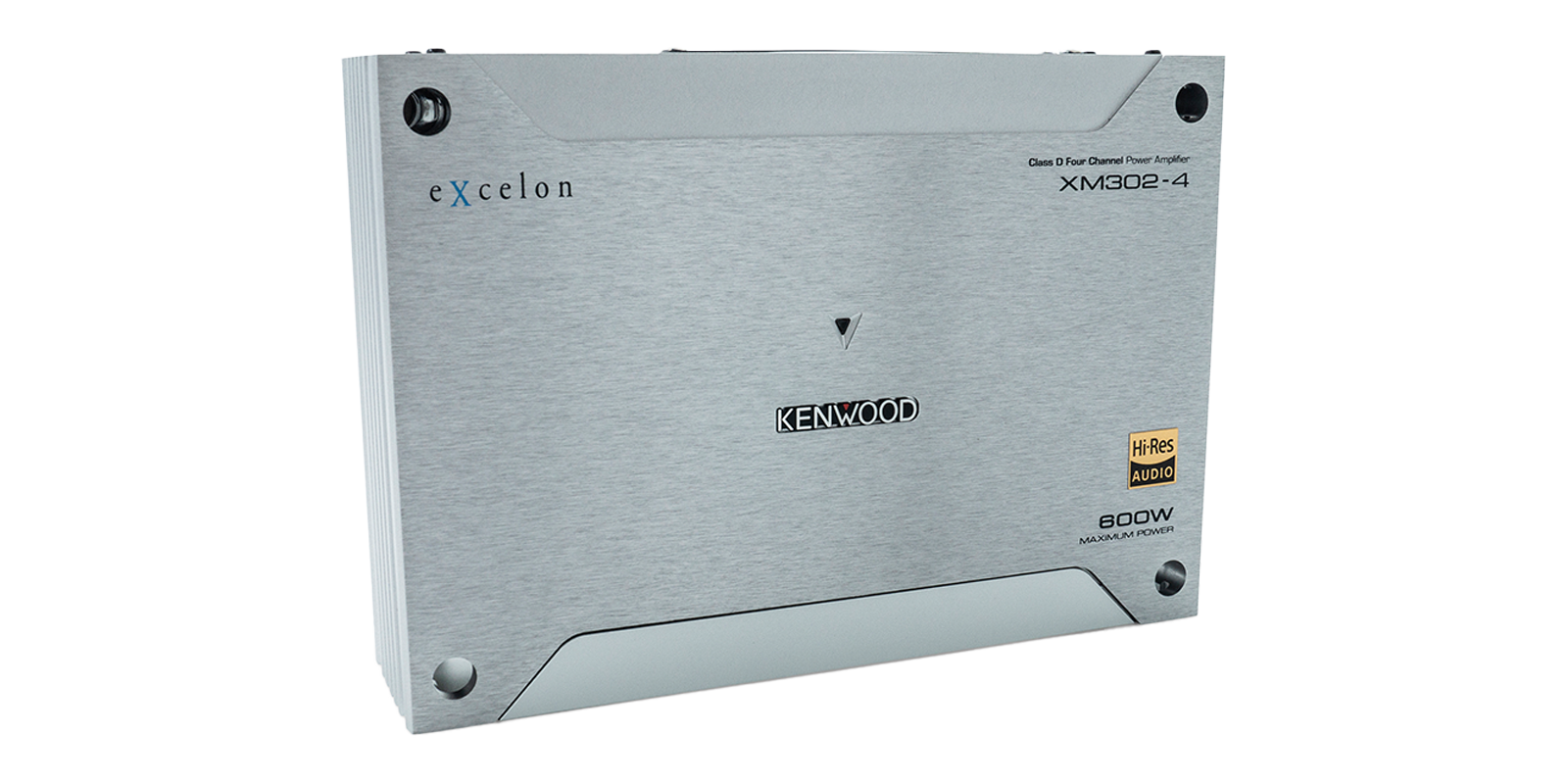

Kenwood Class D 4-Channel Power Amplifier - XM302-4

Authorized Dealer Price Match Guarantee

Price Match Guarantee

The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Price	$449.00
Savings	$51.00
Our Price	$398.00 CAD

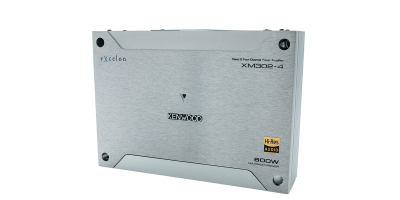

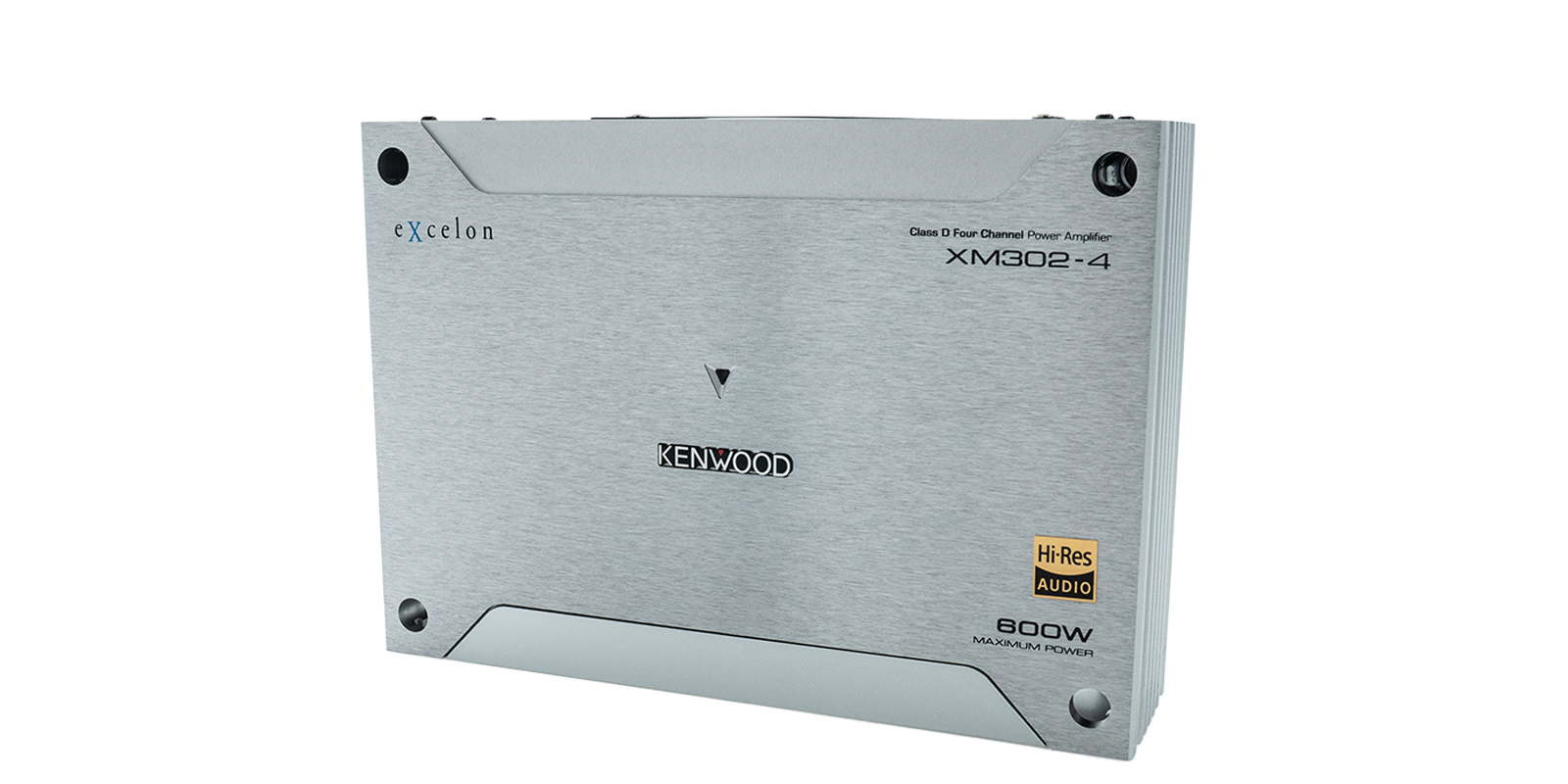

Kenwood Class D 4-Channel Power Amplifier - XM302-4

XM302-4

^$398.00$449.00

Quote Request

Description
Features

Quote Request

Availability
Call for availability

XM302-4
Best Deal Promise

Literature

Description
Features

RMS 50W x4 (4Ω)
RMS 75W x4 (2Ω)
Variable High & Low Pass Filter
Bass Boost
Conformal Coating
Protective Terminal Cover
Size (inch) (W) 8-3/8" x (H) 2-1/16" x (D) 5-7/8"

Product Overview

Smooth waveforms

Loss of smoothness

Fine waveforms

Rich and Immersive High-Resolution Audio

High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.

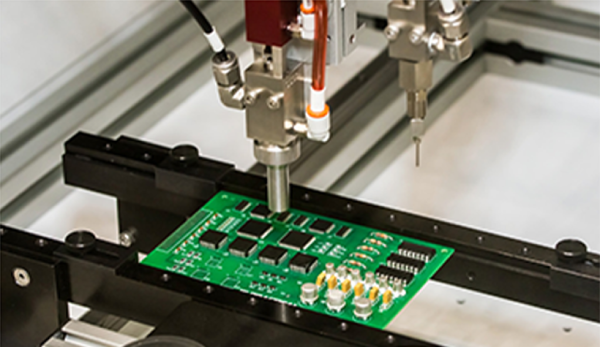

Conformal Coating

Improved moisture resistance of the circuit boards to prevent corrosion.

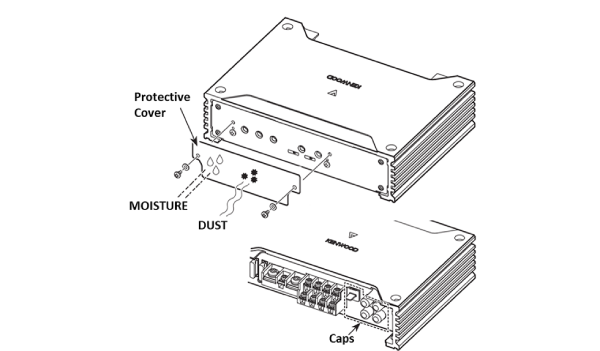

Protective Caps and Cover

All control holes,RCA, wired remote and Speaker Level input terminals are coverd with caps and plastic covers to avoid from moisture and dust.

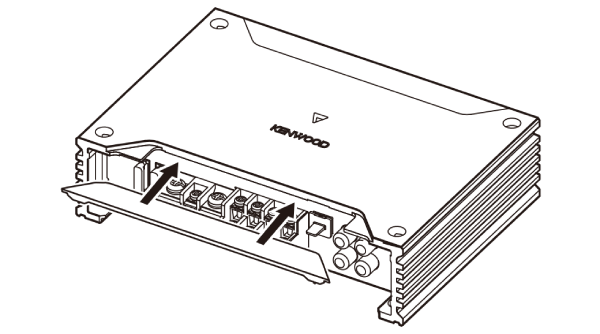

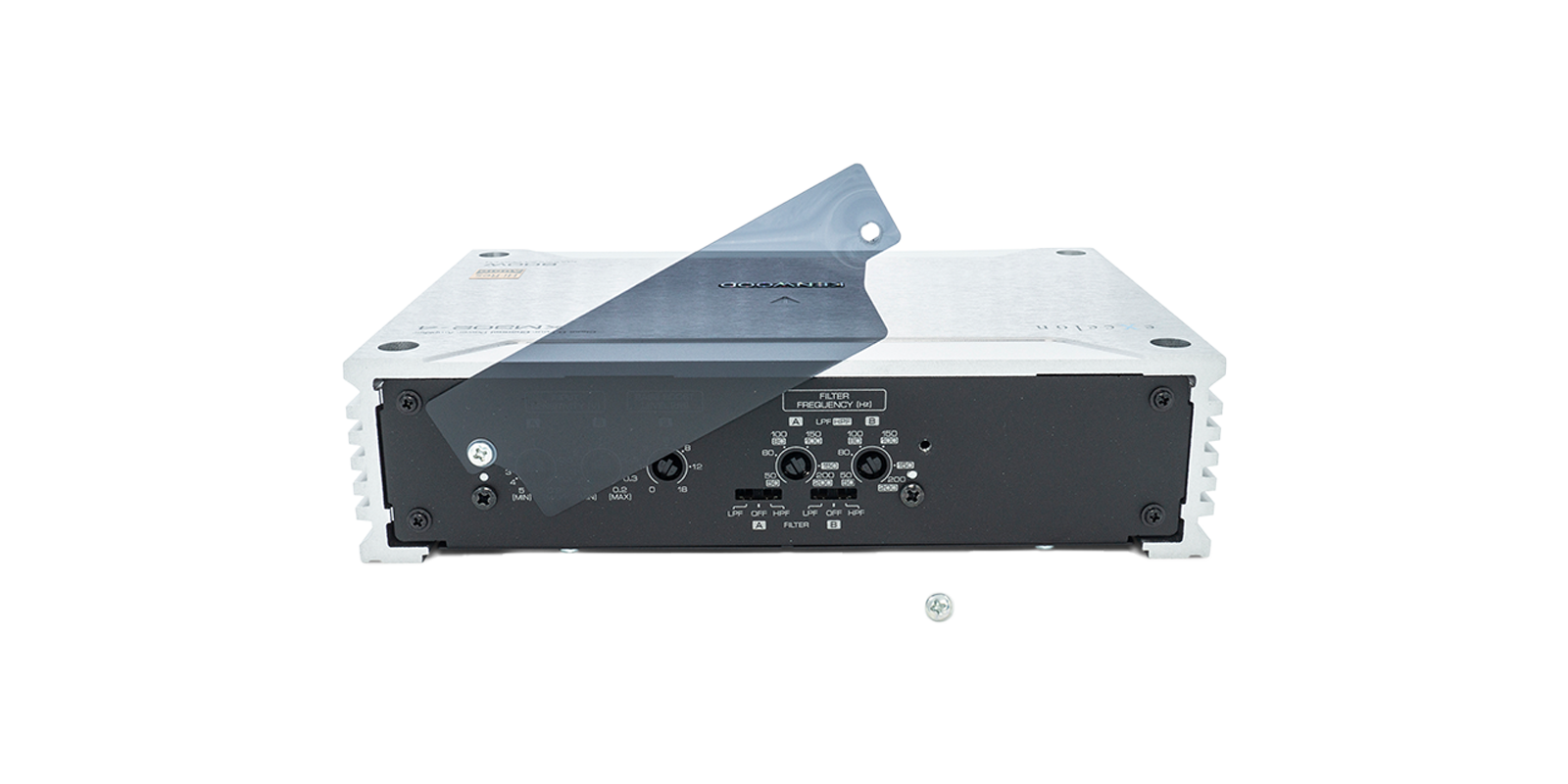

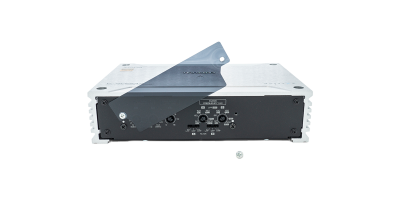

Sliding Terminal Cover

Detachable sliding terminal cover offers a sleek design and easier installation.

One-side Connection

All terminals and connections are on one side for easier installation and a cleaner look.

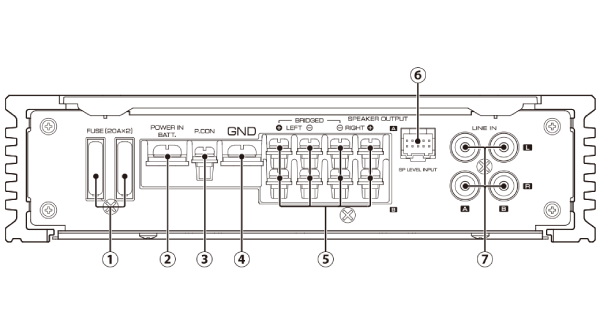

①Fuse (20A x2)
②Battery terminal (POWER IN BATT.)
③Power control terminal
④Ground terminal (GND)

⑤Speaker output terminals (A.ch/B.ch)
⑥Speaker level input terminal
⑦Line in terminal

Variable Gain Circuit

Improved Signal to Noise Ratio

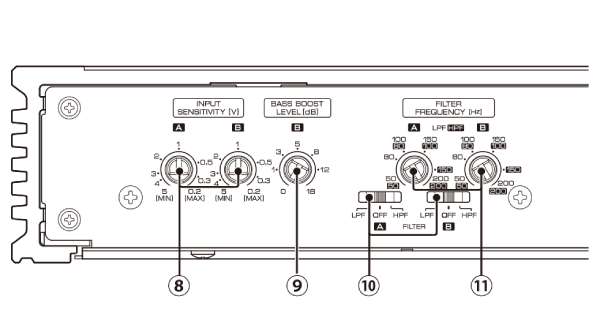

⑧Input sensitivity control（A.ch/B.ch）
⑨Bass Boost Level control (B.ch）

⑩Filter switch (A.ch/B.ch)
⑪Filter frequency control (A.ch/B.ch)

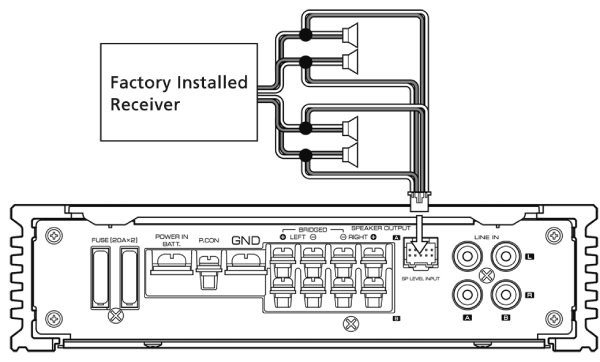

Speaker Level Input Harness

Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.

Key Features

High-Res Audio Compliant
CTA-2006 Compliant
2 Ohms Load Capability
One Sided Connection
Speaker Level Input with Signal Sensing Turn-on
Signal Sensing Turn-On
Terminal Cover
Power MOS-FET Switching Power Supply
Extruded Aluminum Heat Sink Design

CTA-2006 Primary Ratings
Power Output	50 Watts RMS x 4 at 4 Ohms and ≤1%THD+N
General
Dimensions(WxHxD)	(W)8-3/8” x (H)2-1/16” x (D)5-7/8”
Dimensions(WxHxD)	(W) 213mm x (H) 53mm x (D) 149mm
Rated Power Output at 14.4V
A/B (2 Ohms)	75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD)
A/B (4 Ohms)	50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD)
Maximum Power Output
MAX POWER	600W
CTA-2006 Primary Ratings
Signal-to-Noise Ratio	85dBA (Reference: 1Watt into 4Ohms)
Rated Power Output at 14.4V
SUB (4 Ohms)	-
SUB (2 Ohms)	-
A/B (Bridged 4Ohms)	150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD)
Specifications
Signal to Noise Ratio	100dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response	20Hz-50kHz (+0dB, -3dB)
Frequency Response	-
Input Impedance	10k ohm
Bridged Connection	4Ω to 8Ω allowable
Speaker Impedance	4Ω (2Ω to 8Ω allowable)
Audio Section
Low-Pass Filter	50Hz-200Hz, -12dB/oct (A/B)
High-Pass Filter	50Hz-200Hz, -12dB/oct (A/B)
Infrasonic Filter	-
Bass Boost	40Hz, 0dB - +18dB (Bch)
RCA Input Sensitivity	0.2[V] - 5.0 [V]
Speaker Level Input Sensitivity	4.0[V] - 12.0 [V]
Terminals
Speaker Output	M4 Screw Type Terminal Block
Battery & Ground	M6 Screw Type Terminal Block
General
Operating Voltage	14.4V（11-16V allowable）
Current Consumption	20[A]
