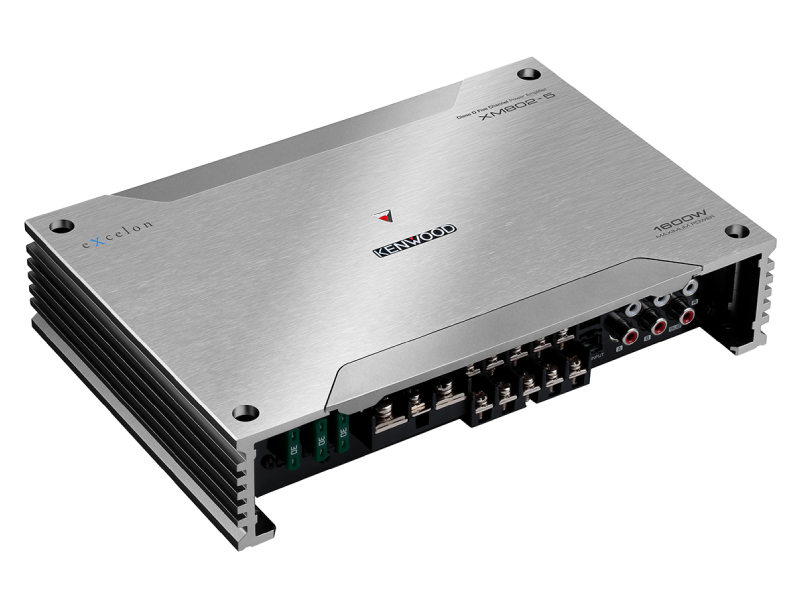

Kenwood Class D 5-Channel Power Amplifier - XM802-5

Authorized Dealer Price Match Guarantee

Price Match Guarantee

The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Price	$649.00
Savings	$51.00
Our Price	$598.00 CAD

Or as low as $199.33/month over 3 months. Apply Now

Kenwood Class D 5-Channel Power Amplifier - XM802-5

XM802-5

^$598.00$649.00

Quote Request

Description
Features

Quote Request

Availability
Call for availability

XM802-5
Best Deal Promise

Literature

Description
Features

RMS 50W x4 + 300W (4Ω)
RMS 75W x4 + 500W (2Ω)
Variable High & Low Pass Filter
Bass Boost
Conformal Coating
Protective Terminal Cover
Size (inch) (W) 9-3/4" x (H) 2-1/16" x (D) 6-5/8"
Optional Wired Remote Ready

Product Overview

Smooth waveforms

Loss of smoothness

Fine waveforms

Rich and Immersive High-Resolution Audio

High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.

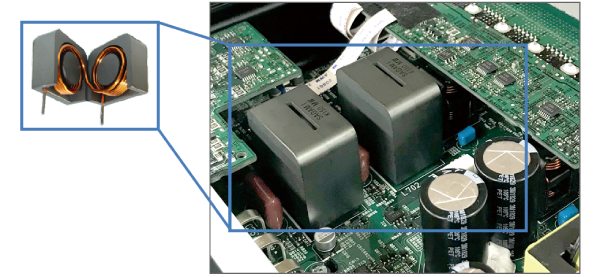

Output Coil with Magnetic Shield

Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.

Conformal Coating

Improved moisture resistance of the circuit boards to prevent corrosion.

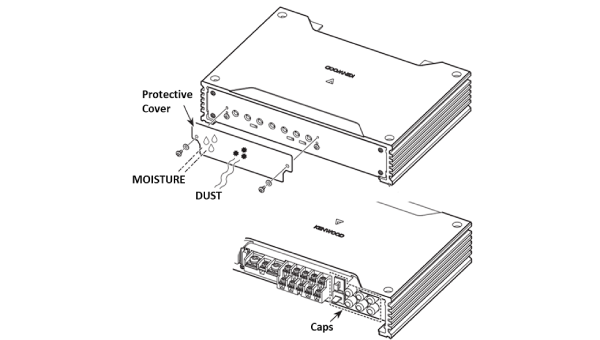

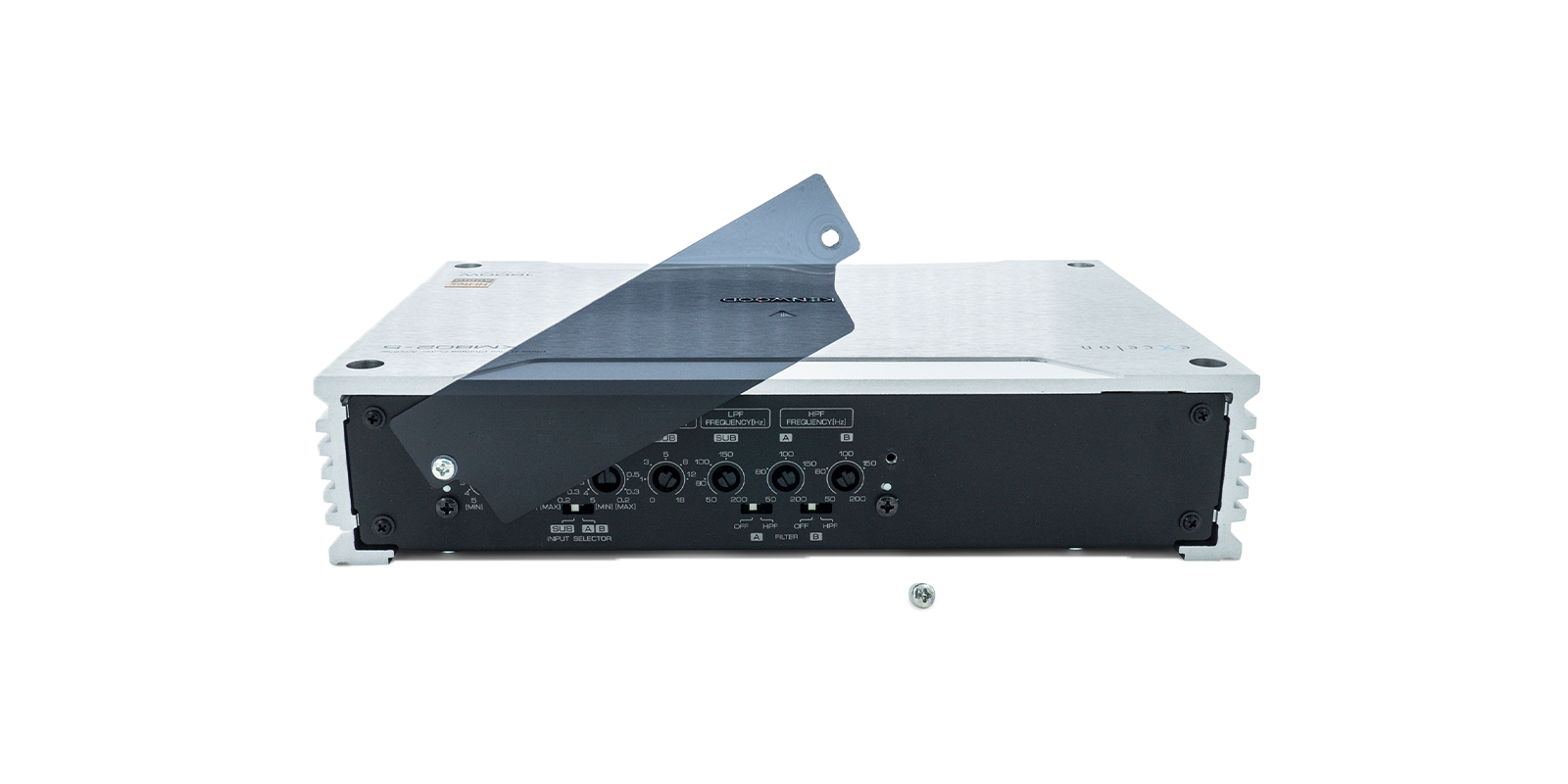

Protective Caps and Cover

All control holes,RCA, wired remote and Speaker Level input terminals are coverd with caps and plastic covers to avoid from moisture and dust.

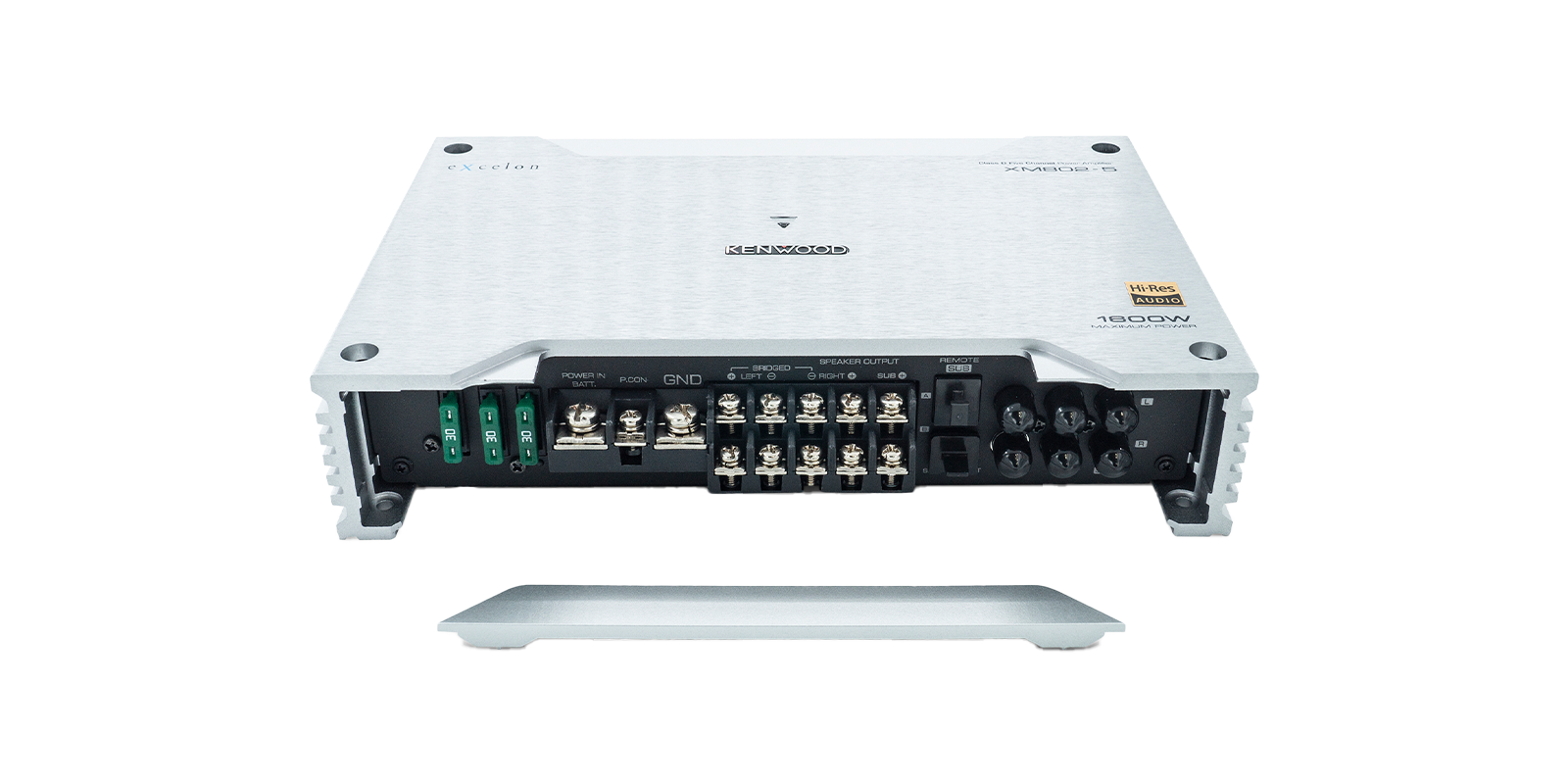

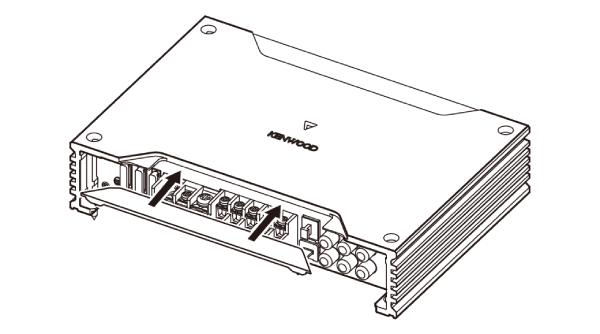

Sliding Terminal Cover

Detachable sliding terminal cover offers a sleek design and easier installation.

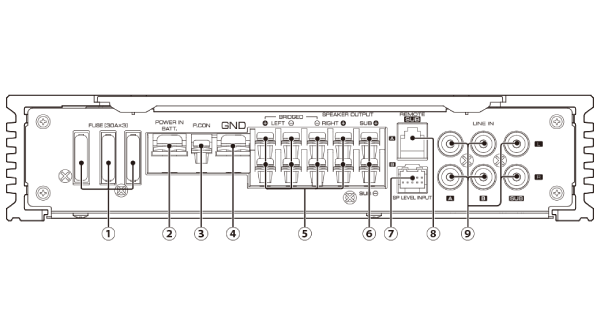

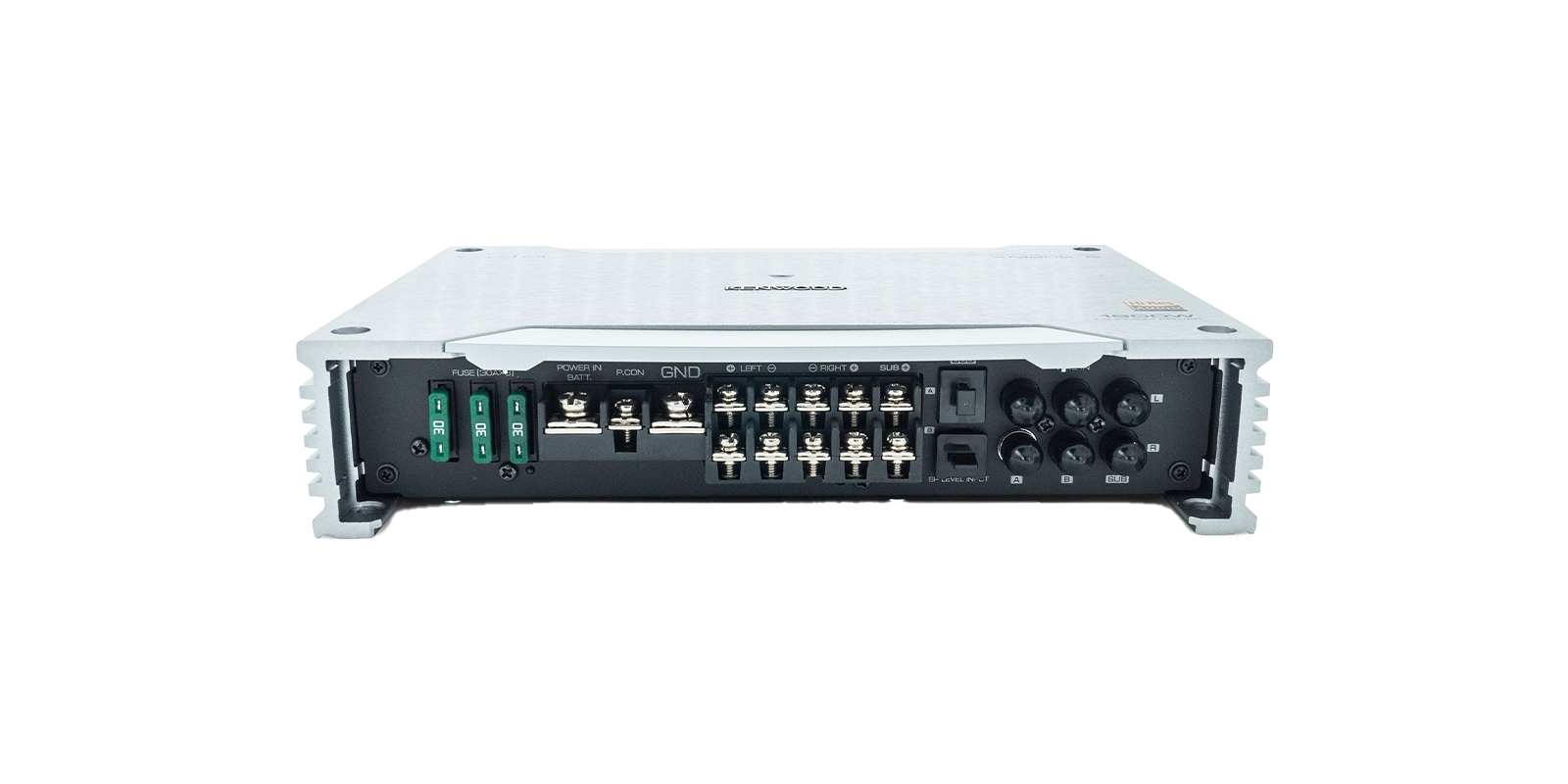

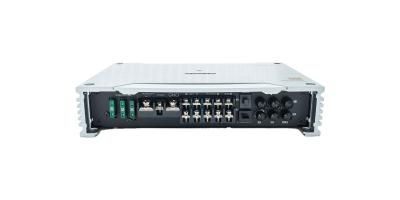

One-side Connection

All terminals and connections are on one side for easier installation and a cleaner look.

①Fuse (30A x3)
②Battery terminal (POWER IN BATT.)
③Power control terminal
④Ground terminal (GND)
⑤Speaker output terminals (A.ch/B.ch)

⑥Speaker output terminals (Sub)
⑦Speaker level input terminal
⑧Remote terminal (Optional Remote Controler for Sub)
⑨Line in terminal (A.ch/B.ch/Sub)

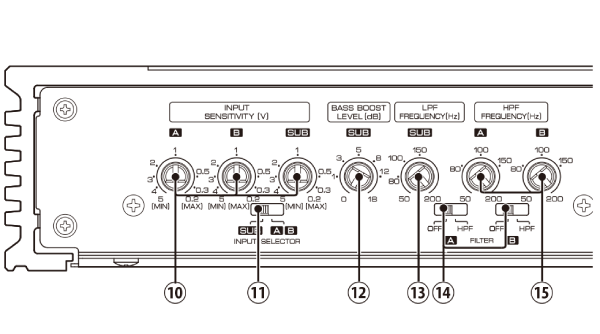

Variable Gain Circuit

Improved Signal to Noise Ratio

⑩Input sensitivity control（A.ch/B.ch/Sub）
⑪Input selector switch
⑫Bass Boost Level control (Sub)

⑬LPF frequency control (SUB)
⑭Filter switch (A.ch/B.ch)
⑮HPF frequency control (A.ch/B.ch)

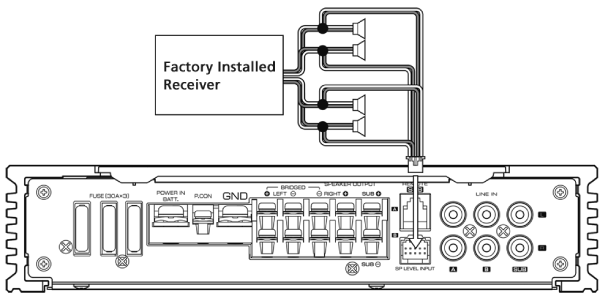

Speaker Level Input Harness

Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.

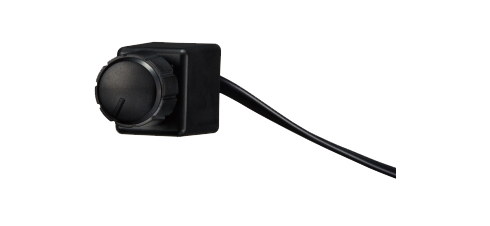

Optional Wired Level Control Ready

The optional KCA-RC01A wired remote level control allows you to easily adjust the subwoofer volume.

*Control unit does not support conformal coarting or water-proof.

Key Features

High-Res Audio Compliant
CTA-2006 Compliant
2 Ohms Load Capability
One Sided Connection
Speaker Level Input with Signal Sensing Turn-on
Signal Sensing Turn-On
Remote Level Control Ready ( Optional KCA-RC01A)
Terminal Cover
Power MOS-FET Switching Power Supply
Extruded Aluminum Heat Sink Design
A B Sub Independent Gain Adjustment
A B AB(MIX) Independent Gain Adjustment

General
Dimensions(WxHxD)	(W) 248mm x (H) 53mm x (D) 169mm
Weight	4.6 lbs ( 2.1 kg)
Dimensions(WxHxD)	(W)9-3/4" x (H) 2-1/16” x (D)6-5/8”
CTA-2006 Primary Ratings
Power Output	50 Watts RMS x 4 + 300 Watts RMS x 1 at 4 Ohms and ≤1%THD+N
Signal-to-Noise Ratio	80dBA (Reference: 1Watt into 4Ohms)
Rated Power Output at 14.4V
A/B (2 Ohms)	75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD)
A/B (4 Ohms)	50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD)
Maximum Power Output
MAX POWER	1600W
Rated Power Output at 14.4V
SUB (4 Ohms)	300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD)
SUB (2 Ohms)	500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD)
A/B (Bridged 4Ohms)	150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD)
Specifications
Signal to Noise Ratio	100dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response	20Hz-50kHz (+0dB, -3dB) A/B
Audio Section
Low-Pass Filter	50Hz-200Hz, -24dB/oct (SUB)
Specifications
Bridged Connection	4Ω to 8Ω allowable
Speaker Impedance	4Ω (2Ω to 8Ω allowable)
Input Impedance	10k ohm
Frequency Response	20Hz-200Hz (+0dB, -3dB) SUB
Audio Section
High-Pass Filter	50Hz-200Hz, -12dB/oct (A/B)
Infrasonic Filter	-
Bass Boost	40Hz, 0dB - +18dB (SUB)
RCA Input Sensitivity	0.2[V] - 5.0 [V]
Speaker Level Input Sensitivity	4.0[V] - 12.0 [V]
Terminals
Battery & Ground	M6 Screw Type Terminal Block
Speaker Output	M4 Screw Type Terminal Block
General
Current Consumption	42[A]
Operating Voltage	14.4V（11-16V allowable）
