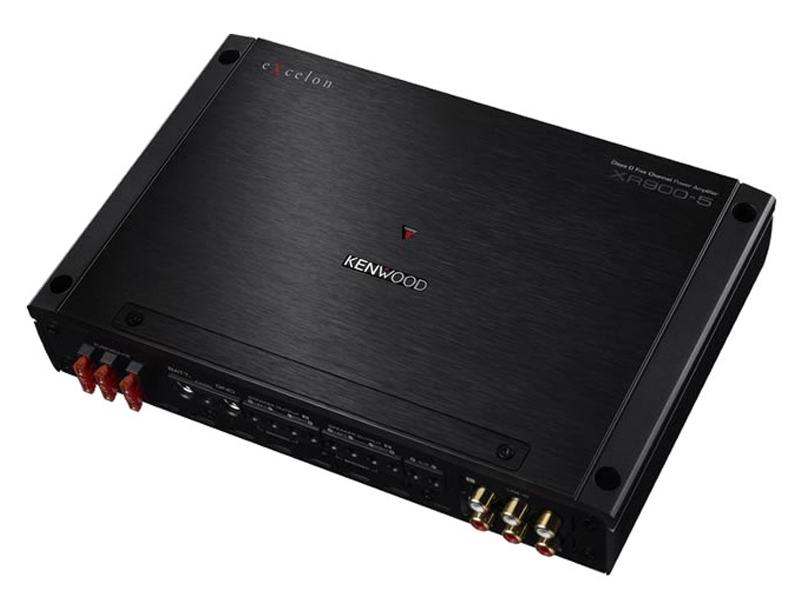

Kenwood Class D 5 Channel Power Amplifier - XR901-5
Authorized Dealer
Price Match Guarantee
| Price | $699.00 |
| Savings | $51.00 |
| Our Price |
$648.00 CAD |
Or as low as $216.00/month over 3 months. Apply Now
Rich and Immersive
High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.

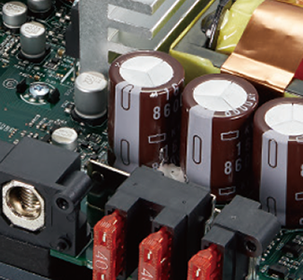

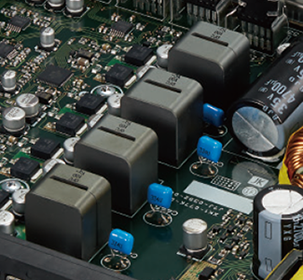

HIGH PERFORMANCE PARTS
Special capacitors and inductors have been carefully selected for the digital amplifier’s LC filter, which is essential for achieving highresolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality.
DEEP BASS SOUND
By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.

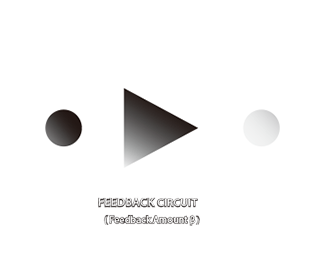

ENHANCED SIGNAL TO NOISE RATIO
The feedback value of the current XR Amplifier has been optimized to improve the S/N ratio. As a result, the noise level has been reduced by up to 40%.

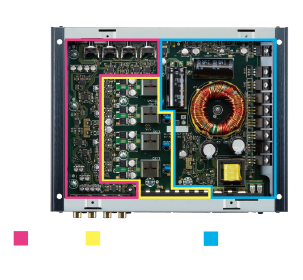

SPECIALIZED CIRCUIT DESIGN
The noise reduction system employs a special layout that separates the analog circuit, digital amplifier circuit and power supply circuit. This keeps interference between the circuits to a minimum, decreasing noise and thereby achieving high performance and sound quality.
WIRED REMOTE CONTROL
The wired remote control allows you to adjust the volume of a subwoofer when connected to the head unit.
Features
- Operating Voltage: 14.4V (11 - 16 V allowable)
- Current Consumption: 80 A
- Dimensions (W x H x D): 260 x 51 x 169 mm (10-1/4 x 2 x 6-5/8)
- Weight: 2.4 kg (5.2 lbs)
- Warranty: 2-Year
| Rated Power Output | |
|---|---|
| 14.4 V | - |
| Specification | |
| Max Power Output | - |
| Rated Power Output | |
| 60 W x 4 / 400W x 1 | (4Ω) (20 Hz - 20 kHz, 1.0% THD) (20 Hz - 200 Hz, 1.0% THD) |
| 75 W x 4 / 600W x 1 | (2Ω) (1 kHz, 1.0% THD) (100 Hz, 1.0% THD) |
| Specifications | |
| Frequency Response | 20-20kHz(±1dB) |
| Input Sensitivity | 0.2 V - 5.0 V (MIN-MAX) |
| Input Impedance | 10 kΩ |
| Signal to Noise Ratio | 100 dB |
| Low Pass Filter Frequency | |
| (-24dB/oct) | - |
| 50 Hz - 200 Hz (variable) | Low-Pass Filter Frequency |
| High Pass Filter Frequency | |
| (-12 dB/oct.) | - |
| 50 Hz - 200 Hz (variable) | High-Pass Frequency |
| Specification | |
| Dimensions (W x H x D) | 260 x 51 x 169 mm (10-1/4 x 2 x 6-5/8) |
| CEA-2006 Standard | |
| 78dB | Signal to Noise Ratio (Reference: 1 Watt into 4 ohms) |
| 400 W x 1 | RMS Watts per channel @ 4 ohms, 1% THD+N |
| 60 W x 4 | RMS Watts per channel @ 4 ohms, 1% THD+N |
