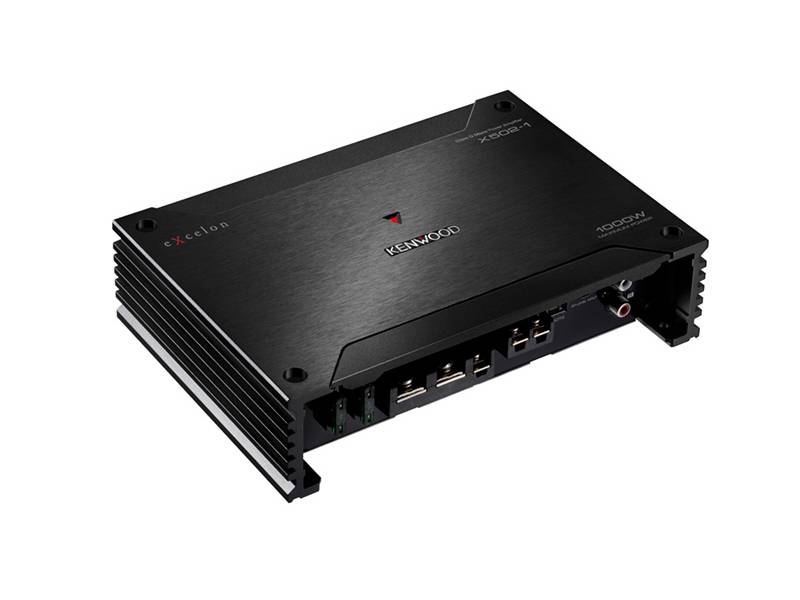

Kenwood Class D Mono Power Amplifier - X502-1
Authorized Dealer
Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
| Price | $349.00 |
| Savings | $51.00 |
| Our Price |
$298.00 CAD |
- Max Power 1000W
- Size (inch) (W) 8-3/8" x (H) 2-1/16" x (D) 5-7/8"
- Variable Low Pass Filter
- Bass Boost
- Optional Wired Remote Ready
Output Coil with Magnetic Shield
Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.
Sliding Terminal Cover
Detachable sliding terminal cover offers a sleek design and easier installation.
Variable Gain Circuit
Improved Signal to Noise Ratio

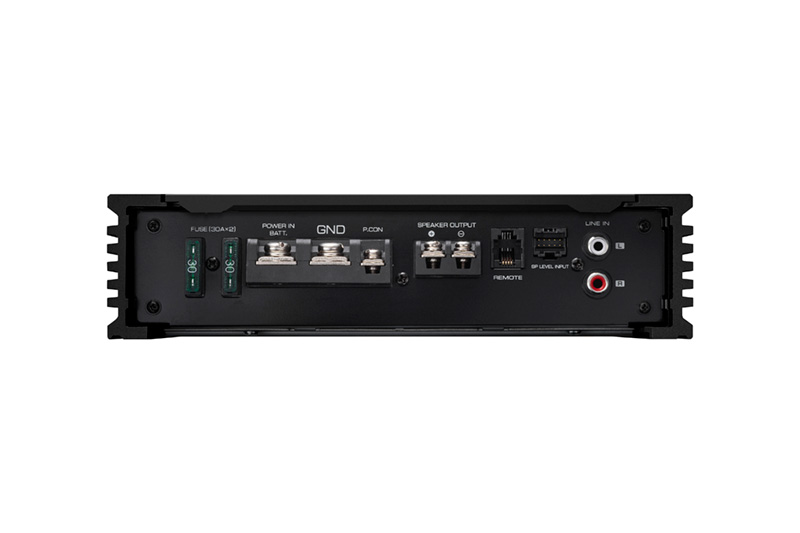

One-side Connection
All terminals and connections are on one side for easier installation and a cleaner look.
Speaker Level Input Harness
Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.
Optional Wired Level Control Ready
The optional KCA-RC01A wired remote level control allows you to easily adjust the subwoofer volume.
| CTA-2006 Primary Ratings | |
|---|---|
| Power Output | 300 Watts RMS x 1 at 4 Ohms and ≤1%THD+N |
| Signal-to-Noise Ratio | 85dBA (Reference: 1Watt into 4Ohms) |
| Maximum Power Output | |
| MAX POWER | 1000W |
| Rated Power Output at 14.4V | |
| A/B (4 Ohms) | - |
| A/B (2 Ohms) | - |
| SUB (4 Ohms) | 300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD) |
| SUB (2 Ohms) | 500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD) |
| A/B (Bridged 4Ohms) | - |
| Specifications | |
| Signal to Noise Ratio | 100dB (Reference: Rated Power into 4Ohms at 14.4V) |
| Frequency Response | 20Hz-200Hz (+0dB, -3dB) |
| Frequency Response | - |
| Input Impedance | 10k ohm |
| Speaker Impedance | 4Ω (2Ω to 8Ω allowable) |
| Bridged Connection | - |
| Audio Section | |
| Low-Pass Filter | 50Hz-200Hz, -24dB/oct |
| High-Pass Filter | - |
| Bass Boost | 40Hz, 0dB - +18dB |
| Infrasonic Filter | 25Hz, -24dB |
| RCA Input Sensitivity | 0.2[V] - 5.0 [V] |
| Speaker Level Input Sensitivity | 4.0[V] - 12.0 [V] |
| Terminals | |
| Battery & Ground | M6 Screw Type Terminal Block |
| Speaker Output | M4 Screw Type Terminal Block |
| General | |
| Dimensions(WxHxD) | (W)8-3/8” x (H)2-1/16” x (D)5-7/8” |
| Dimensions(WxHxD) | (W) 213cm x (H) 53cm x (D) 149cm |
| Weight | 3.3 lbs ( 1.5kg) |
| Operating Voltage | 14.4V（11-16V allowable） |
| Current Consumption | 25 [A] |
| Key Features | CTA-2006 Compliant 2 Ohms Load Capability One Sided Connection Speaker Level Input with Signal Sensing Turn-on Signal Sensing Turn-On |
| Accessorries | Remote Level Control Ready ( Optional KCA-RC01A) Terminal Cover Power MOS-FET Switching Power Supply Extruded Aluminum Heat Sink Design |
