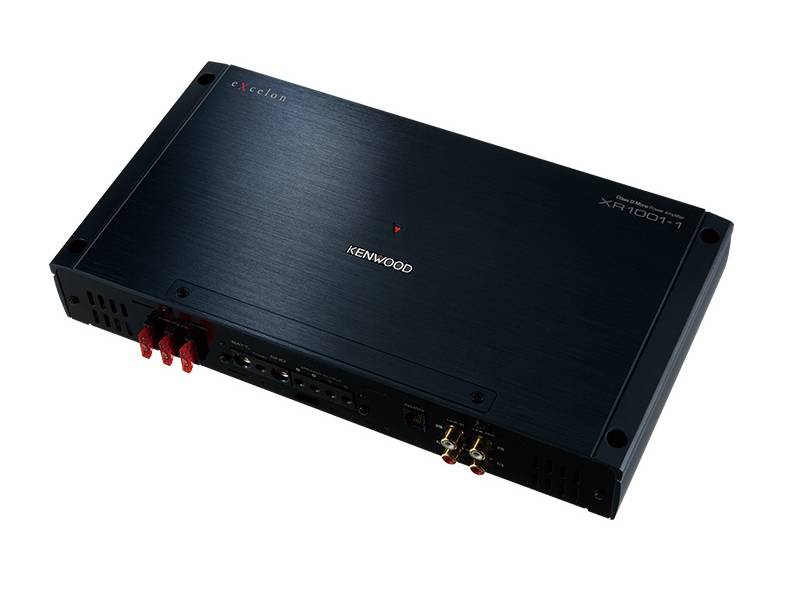

Kenwood Class D Mono Power Amplifier - XR1001-1
Authorized Dealer
Price Match Guarantee
| Price | $699.00 |
| Savings | $51.00 |
| Our Price |
$648.00 CAD |
Or as low as $216.00/month over 3 months. Apply Now
Key Features
- CTA-2006 Compliant
- Class D
- 2 Ohms Load Capability
- Dual Σdrive
- Speaker Level Input
- Signal Sensing Turn-on
- Terminal Cover
- Cooling Fan
- Power MOS-FET Switching Power Supply
- Extruded Aluminum Heat Sink Design
- Line Output Terminals for Extension
- Speaker Level Input
- Signal Sensing Turn-on
- Infrasonic Filter

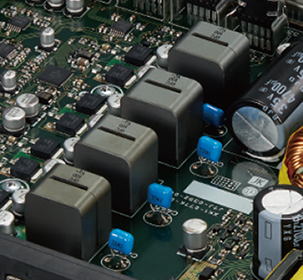

HIGH PERFORMANCE PARTS
Special capacitors and inductors have been carefully selected for the digital amplifier’s LC filter, which is essential for achieving highresolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality.
DEEP BASS SOUND
By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.

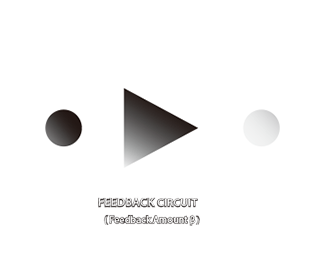

ENHANCED SIGNAL TO NOISE RATIO
The feedback value of the current XR Amplifier has been optimized to improve the S/N ratio. As a result, the noise level has been reduced by up to 40%.

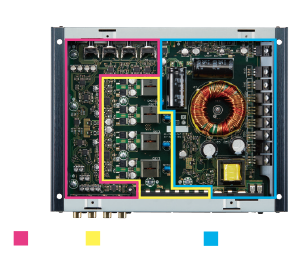

SPECIALIZED CIRCUIT DESIGN
The noise reduction system employs a special layout that separates the analog circuit, digital amplifier circuit and power supply circuit. This keeps interference between the circuits to a minimum, decreasing noise and thereby achieving high performance and sound quality.

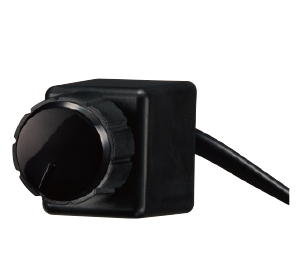

WIRED REMOTE CONTROL
The wired remote control allows you to adjust the volume of a subwoofer when connected to the head unit.
| Terminals | |
|---|---|
| Line Out | RCA (Gold Colored) |
| Line In | RCA (Gold Colored) |
| Speaker Output | XR Series Type Terminal (capable for 8 guage) |
| Battery & Ground | XR Series Type Terminal (capable for 4 guage)(Ni) |
| P.CON | XR Series Type Terminal (capable for 8 guage) |
| Audio Section | |
| Speaker Level Input Sensitivity | 4.0[V] - 12.0[V] |
| RCA Input Sensitivity | 0.2[V] - 5.0[V] |
| Bass Boost | Built in Bass Boost Control (40Hz, 0dB-+18dB) |
| Infrasonic Filter | Built in Variable Infrasonic Filter (15Hz-40Hz, -24dB/oct) |
| Low-Pass Filter | Built in Variable Low-Pass Filter (50Hz-200Hz, -12/-24dB/oct) |
| Specifications | |
| Speaker Impedance | Bridged connection 4Ω (2Ω to 8Ω allowable) |
| Input Impedance | 10k ohm |
| Frequency Response | 20Hz-200Hz (+0dB, -3dB) |
| Signal to Noise Ratio | 100dB (Reference: Rated Power into 4Ohms at 14.4V) |
| Maximum Power Output | |
| MAX POWER | 2000W |
| Power Output | |
| Rated Power at 14.4V | 500Watts RMS x [ch] (4 Ohms, 20-200Hz, ≤1.00% THD) 1000Watts RMS x [ch] (2 Ohms, 100Hz, ≤1.00% THD) |
| CTA-2006 Primary Ratings | |
| Signal-to-Noise Ratio | 85dBA (Reference: 1Watt into 4Ohms) |
| Power Output | 500Watts RMS x 1 at 4 Ohms and ≤1%THD+N |
| Features | |
| Series | eXcelon |
| Amplifier Type | Class D |
| Title | Class D Mono Power Amplifier |
| Terminals | |
| Speaker Input | RCA IN A Channel |
| General | |
| Dimensions(WxHxD) | 320 [mm] x 51 [mm] x 169 [mm] 12-5/8 inch x 2 inch x 6-5/8 inch |
| Operating Voltage | 14.4V（11-16V allowable） |
| Current Consumption | 60 [A] |
| Features | |
| Others | Triangle Indicator |
| Max Power | 2000W |
| RMS Power | 500W x 1 (4Ω) 1000W x 1 (2Ω) |
| (W) x (H) x (D) | 12-5/8" x 2" x 6-5/8" |
| Low Pass Filter | 50 - 200 Hz (-12/-24 dB / oct.) |
| Bass Boost | 40 Hz (0 - +18 dB) |
