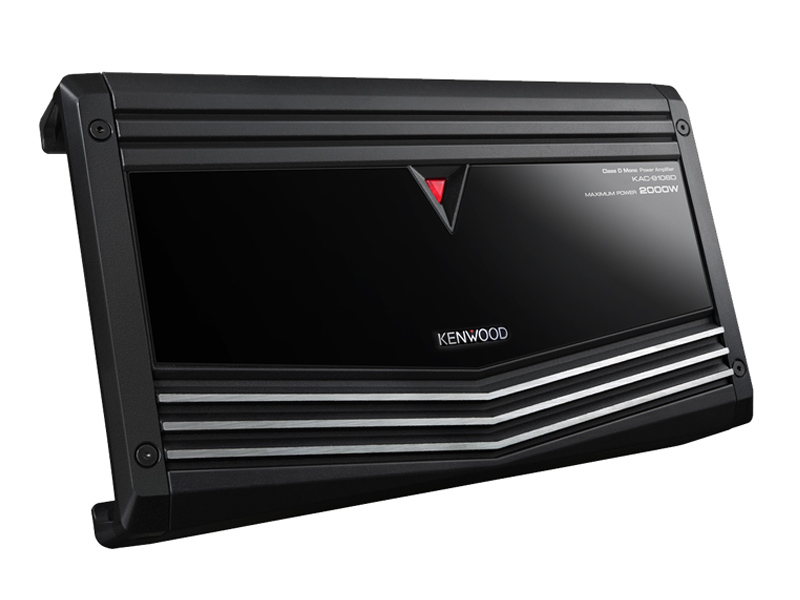

Kenwood Class D Mono Power Amplifier - KAC-9106D
Authorized Dealer
Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
| Our Price | $499.00 CAD |
Or as low as $166.33/month over 3 months. Apply Now
Literature
Max Power2000W
Rated Input Power
4 ohms 500W x 1
2 ohms 1000W x 1
Specifications
Signal to Noise Ratio: 100 dB1
Low Pass Filter: 50 - 200 Hz (-24 dB / oct.)1
Infrasonic Filter: 20 - 50 Hz (-24 dB / oct.)1
Bass Boost: 40 Hz (0 - +18 dB)1
Size(inch): (W)13-3/16" x (H)2-3/16" x (D)7-9/16"1
Weight(lbs): 6.2
| Audio Section | |
|---|---|
| RCA Input Sensitivity | 0.2[V] - 5.0 [V] |
| Bass Boost | Built in Bass Boost Control (40Hz, 0dB-+18dB) |
| Infrasonic Filter | Built in Variable Infrasonic Filter (20Hz-50Hz, -24dB/oct) |
| Low-Pass Filter | Built in Variable Low-Pass Filter (50Hz-200Hz, -24dB/oct) |
| Specifications | |
| Speaker Impedance | 4Ω (2Ω to 8Ω allowable) |
| Input Impedance | 10k ohm |
| Frequency Response | 20Hz-200Hz (+0dB, -3dB) Class D |
| Signal to Noise Ratio | 100dB (Reference: Rated Power into 4Ohms at 14.4V) |
| Power Output | |
| Rated Power at 14.4V | 500Watts RMS x [ch] (4 Ohms, 20-200Hz, ≤1.0% THD) 1000Watts RMS x [ch] (2 Ohms, 100Hz, ≤1.0% THD) |
| Maximum Power Output | |
| MAX POWER | 2000W |
| CEA-2006 Primary Ratings | |
| Signal-to-Noise Ratio | 76dBA (Reference: 1Watt into 4Ohms) |
| Power Output | 500Watts RMS x 1 at 4 Ohms and ≤1%THD+N |
| General | |
| Current Consumption | 65 [A] |
| Operating Voltage | 14.4V（11-16V allowable） [V] |
| Weight (kg) | 2.8 [kg] 6.2 [lbs] |
| Dimensions(WxHxD) | 335 [mm] x 56 [mm] x 192 [mm] 13-3/16 inch x 2-3/16 inch x 7-9/16 inch |
| Terminals | |
| Line Out | RCA (Ni) |
| Speaker Input | JST Connector |
| Line In | RCA (Ni) |
| Speaker Output | Screw Type Terminal Block (Ni) (M4) |
| Battery & Ground | Screw Type Terminal Block (Ni) (M6) |
| Audio Section | |
| Speaker Level Input Sensitivity | 4.0[V] - 12.0 [V] |
