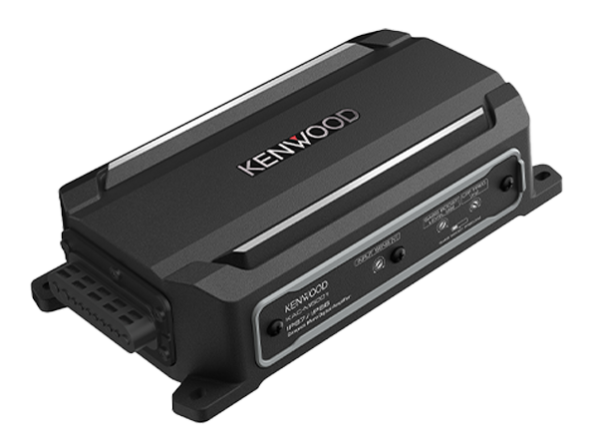

Kenwood Compact Mono Digital Amplifier - KAC-M5001
Authorized Dealer
Price Match Guarantee
| Price | $499.00 |
| Savings | $51.00 |
| Our Price |
$448.00 CAD |
Or as low as $149.33/month over 3 months. Apply Now
Your EVERWHERE Audio Experience
- IP67/IP66 Certified Waterproof & Dustproof
- RMS 200W (4Ω)
- RMS 300W (2Ω)
- Speaker Level Input
- Signal Sensing Turn-on
- Wired Level Control Included
- (W)7-13/16” x (H)1-15/16” x (D)4-1/8”
EXTREME Durability
WaterPROOF & DustPROOF
IPX7/IPX6/IP6X certified. The amplifier can be submerged in up to 3.3 feet of water for 30 minutes, and can resist high-pressure, heavy sprays of water.
Salt Spray PROOF
ASTM B117 salt spray (or salt fog) corrosion testing ensures the amplifier will not corrode or fail in saltwater and other harsh environments.
Vibration PROOF
Thick 1/4" die-cast frame suppresses vibration.
Raised drain tunnel prevents moisture buildup.
ULTIMATE Performance
Increased Power Flow
Metal studs enable high current flow for connections between the amplifier and battery, resulting in powerful bass reproduction.
High Quality Capacitors
PMLCAP's (Polymer Multi-Layer Capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.
Magnetic Shielding
Magnetic shields for the output coils reduce radiated noise, further contributing to smooth and accurate bass frequency signals.
Selectable Connection
Speaker Level Input
If your receiver does not have RCA outputs, you can connect your speaker cables directly to the KAC-M5001's RCA cables to use as an audio signal input.

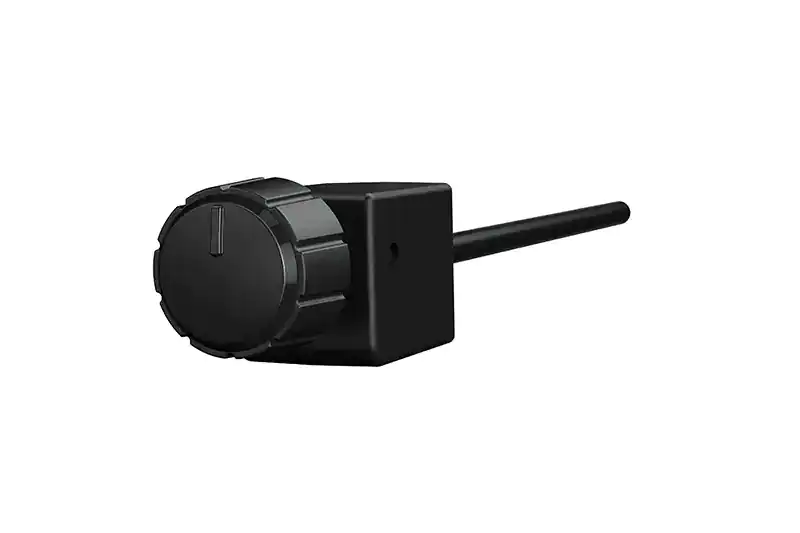

Wired Level Control Included
Waterproof certified wired remote level control allows you to easily adjust the subwoofer volume.
System EXPANSION Ready
KENWOOD Audio Receivers and the KAC-M5024BT have RCA outputs to expand the system to connect to the KAC-M5001 mono amplifier and subwoofer. ＊Subwoofers pictured here are not water-resistant

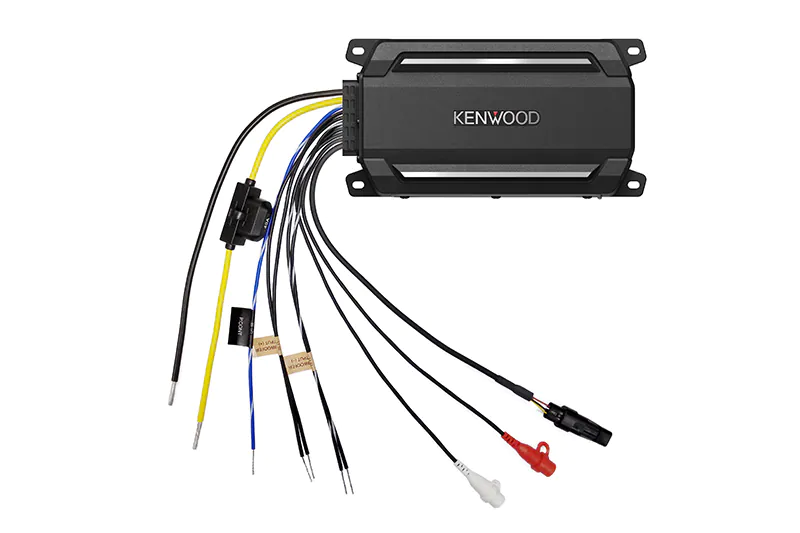

x2 Paired Parallel Speaker cables
for easier connection to 2 subwoofers or a single Dual Voice Coil subwoofer.
Take CONTROL
| Specifications | |
|---|---|
| Key Features | One-Sided Connection |
| Key Features | 2 Ohms Load Capability |
| Key Features | Power MOS-FET Switching Power Supply |
| Key Features | Class D |
| General | |
| Fuse | 40A |
| Specifications | |
| Key Features | CTA-2006 Compliant |
| General | |
| Current Consumption | 14A |
| Operating Voltage | 14.4V (11-16V allowable) |
| Weight (kg) | 1.2 [kg] 2.7 [lbs] |
| Dimensions(WxHxD) | 7-13/16" x 1-15/16" x 4-1/8" |
| Dimensions(WxHxD) | 198[mm] x 48.5 [mm] x 104 [mm] |
| TERMINAL | |
| Connector for Wired Remote Controller | Pigtail Connector (4pin) |
| Speaker Input (Pigtail RCA In) | Yes |
| Pre Out (Pigtail RCA) | No |
| Line In (Pigtail RCA) | Yes |
| Speaker Output | 12" 18-gauge x2(Parallel) Pigtail Cable with Molded Strain Relief Bushing |
| Battery & Ground | 12" 10-gauge Pigtail Cable with Molded Strain Relief Bushing |
| Audio Section | |
| Speaker Level Input Sensitivity | 4.0 (V) - 12.0 (V) |
| RCA Input Sensitivity | 0.2 (V) - 5.0 (V) |
| Bass Boost Control | 40/60/80Hz, 0dB - +18dB |
| Infrasonic Filter | 20Hz, -24dB/oct |
| High-pass Filter | - |
| Low-pass Filter | 50-200Hz, -24dB/oct |
| Specifications | |
| Speaker Impedance | 4Ω ( 2Ω to 8Ω allowable) |
| Input Impedance | 10k ohm |
| Frequency Response | 20Hz-200Hz (+0dB, -3dB) |
| Signal to Noise Ratio | 97dB (Reference: Rated Power into 4Ohms at 14.4V) |
| RMS Power at 14.4V | |
| 2 Ohms | 300Watts RMS x 1 at 2 Ohms, 100Hz, ≤1%THD+N |
| 4 Ohms | 200Watts RMS x 1 at 4 Ohms, 20-200Hz , ≤1% THD+N |
| Maximum Power Output | |
| MAX POWER | 600W |
| CEA-2006 Primary Ratings | |
| Signal-to-Noise Ratio | 78dBA (Reference: 1Watt into 4Ohms) |
| Specifications | |
| Amplifier Type | Class D |
| CEA-2006 Primary Ratings | |
| Power Output | 200Watts RMS x 1 at 4 Ohms, ≤1%THD+N |
| Specifications | |
| Key Features | Drain Tunnel |
| Key Features | Corrosion-Resistant Sealed Cast Aluminum Chassis |
| Key Features | Audio Controls on the Side |
| Key Features | Terminal Cover |
| Key Features | Remote Level Control |
| Key Features | Signal Sensing Turn-on |
| Key Features | Line Input Terminals |
| Key Features | Speaker Level Input |
| Accessories | Nut,1pc and Washer,1pc for remote unit mounting |
| Accessories | Wired Remote Control Unit with Attached 23.6' (6m) Cable |
| Other Features | Fuse Rubber Cover |
| Key Features | UV Resistant ( Remote Control) |
| Key Features | ASTM B117 (Main Unit) |
| Key Features | Water-proof (Remote Control) |
| Key Features | Water-proof & Dust-proof (Main Unit/DC cable) |
| Accessories | Warranty Card |
| Accessories | Instruction Manual |
| Accessories | 4" Plastic Wire Tie, 1pc |
| Accessories | Stainless Steel Self-tapping Screw (Φ4 x 16mm) 4pcs |
