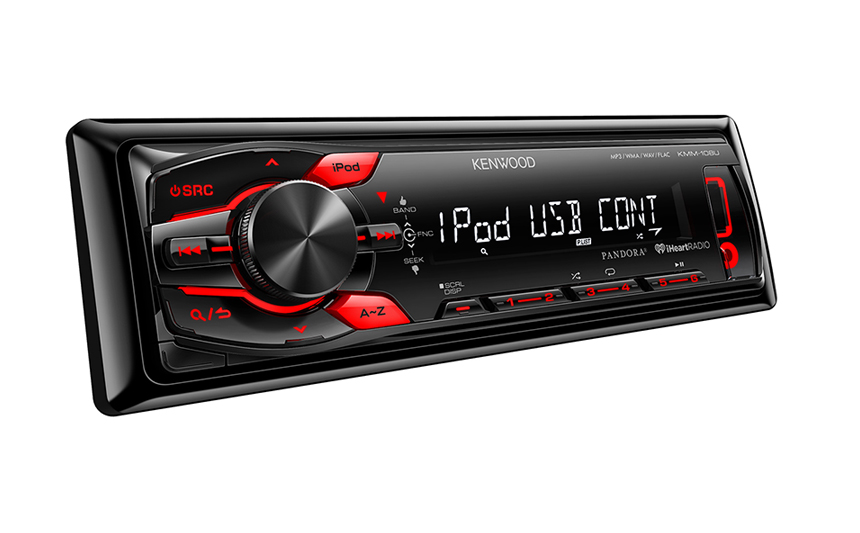

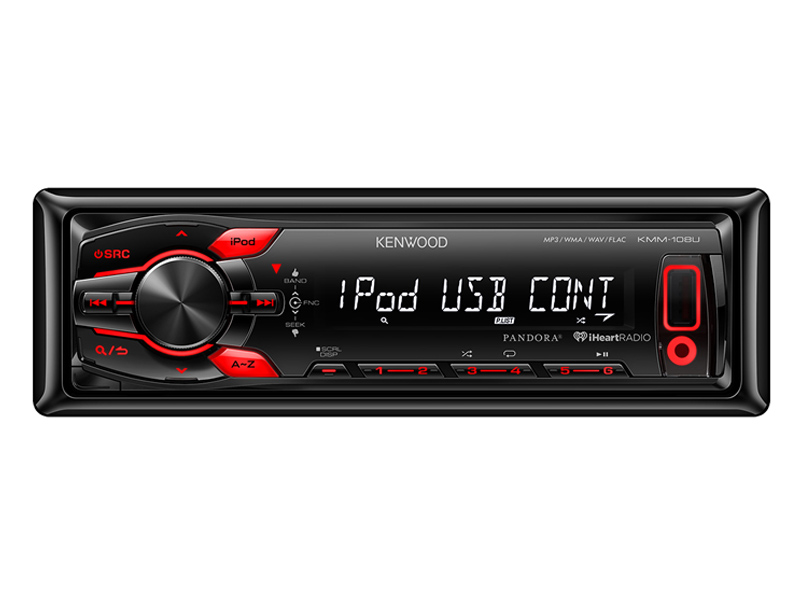

Kenwood Digital Media Receciver With Front USB And AUX Inputs - KMM-108U

Discontinued

Authorized Dealer Price Match Guarantee

Price Match Guarantee

The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Our Price

$109.00 CAD

Kenwood Digital Media Receciver With Front USB And AUX Inputs - KMM-108U

KMM-108U

^$109.00

Description
Features

Availability
Call for availability

KMM-108U
DISCONTINUED
Best Deal Promise

Literature

Description
Features

TDF(Theft Deterrent Faceplate)
Rotary Encoder and Direct Key (iPod & Alphabet) for easy operation
Front AUX & USB Interface with slide protection cover
Sound Reconstruction
MP3/WMA/WAV/FLAC Files Playback with ID-3 Tag Display

Feature Highlights

Drive EQ
Road noise is the enemy of all audio systems found in vehicles. The inherent
frequencies of road noise masks a wide range of the audio signal found in music,
and this is the reason KENWOOD engineers developed Drive EQ. Drive EQ boosts
specific frequencies in the audio signal to compensate the negative impact of road
noise.

The Perfect Entertainment Package

Works with Pandora Internet Radio For iPhone & Android
Customized internet radio that plays music based on your favorite
artists. KENWOOD receivers provide a rich Pandora experience.

KENWOOD Music Control For Android Smartphone
Download this free application from Google Play and use the search function to
easily find a track you would like to listen by using the artist name or the
like.*Compatible only with Android smartphones supporting mass storage devices.

General Features
TDF(Theft Deterrent Faceplate)
13 Segment 13 Digit LCD Display
Rotary Encoder and Direct Key (iPod & Alphabet) for easy operation
Music Search & Mixed Preset memory function
Digital Clock (12H)
Key Illumination (Red)
Manual Dimmer Control Function (on/off)

Audio Features
Maximum Output Power : 50W x 4 (MOSFET Power IC)
Front AUX & USB Interface with slide protection cover
1 Preout (2.5V)
Sound Reconstruction
Drive EQ
Rear/Subwoofer Switchable
Subwoofer Level Adjustable
System Q
Bass Boost
Loudness
Built-in LPF

USB Features
MP3, WMA, WAV, FLAC Files Playback with ID-3 Tag Display
iPod/iPhone Direct Connection with Optional cable
iPod Alphabet/Skip/2 Speed Search Function
Pandora / App Ready (iPhone App)
TuneIn / TuneIn Pro / Aupeo! Support (iPhone App)
Compatible with KENWOOD Music Control for Android

Tuner Features
FM/AM 24 Station Presets (18FM, 6AM)
Backup Memory for Tuner Preset
AME (Automatic Memory Entry)
Up/Down Seek Tuning
FM Stereo/Mono Selector

External Media Control Features
OEM Remote Interface

AM
Usable Sensitivity	S/N:20dB 29dBμ (28.2μv)
Channel Space Selection	-
Frequency Range	(Frequency step) 530kHz - 1700kHz (10kHz)
FM
Stereo Separation	40dB(1kHz)
S/N	64.0dB(MONO)
Frequency Response(±3.0dB)	30Hz-15kHz
Quieting SensitivityS/N 46dB	17.2dBf (2.0μV/75Ω）
Usable SensitivityS/N:30dB	8.2dBf (0.71μV/75Ω）
Channel Space Selection	-
Frequency Range	(Frequency Step) 87.9MHz - 107.9MHz (200kHz)
GENE
Net Weight 0.54(kg)	1.19(lbs)
Installation Size (W) (H) (D)	182(mm) 7-3/16(in), 53(mm) 2-1/8(in), 159(mm) 4-3/16(in)
Operational Temperature Range	'0°C to +40°C
Maximum Current Consumption	10A
Operating voltage (10.5v - 16v allowable)	14.4v
TONE
Treble	12.5kHz ±8dB
Middle	2.5kHz ±8dB
Bass	200Hz ±8dB
AMP
Full Bandwidth Power (at less than 1%THD)	22wx4
Maximum Power	50wx4
AUX Input
Input Impedance	30KΩ
Input Maximum Voltage	1200mV
Frequency Response	20 - 20KHz ±3dB
Specifications
Speaker Impedance(Ω)	4-8Ω
Preout Impedance(Ω)	≦600Ω
Preout Level(mV)/Load-Unbalanced	2500mV/10kΩ(CD)
USB
FLAC Decode	FLAC files
WAV Decode	RIFF waveform Audio Format (Linear PCM only)
AAC Decode	-
WMA Decode	Compliant with WINDOWS MEDIA AUDIO
MP3 Decode	Compliant with MPEG-1/2 Audio Layer-3
Channel Separation	90dB
Dynamic Range	88dB
S/N Ratio (dB)	105dB(1kHz)
Frequency Response	20-20kHz(±1dB)
Maximum Supply current	DC5V(DC logo) 1A
USB Standard	USB1.1/2.0 full speed
File System	FAT 12/16/32
