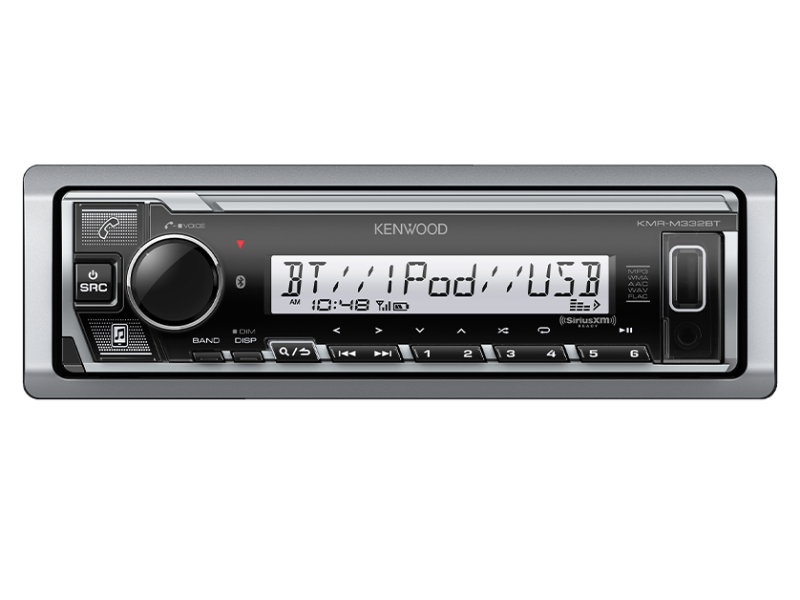

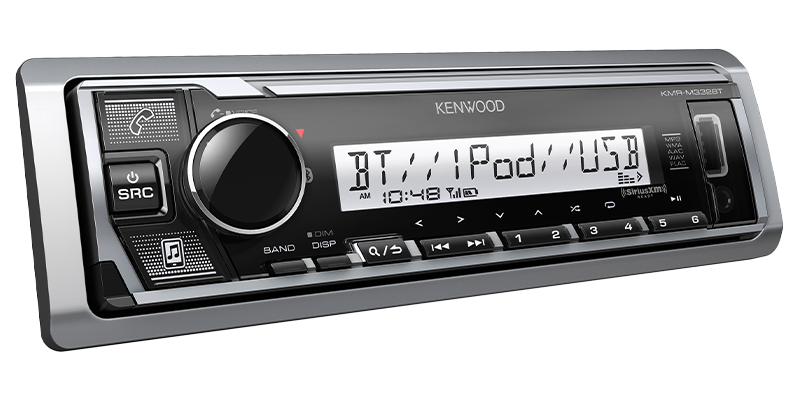

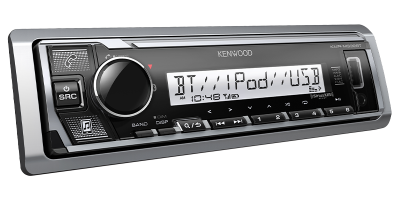

Kenwood Digital Media Receiver with Bluetooth - KMR-M332BT
Authorized Dealer
Price Match Guarantee
| Price | $219.00 |
| Savings | $21.00 |
| Our Price |
$198.00 CAD |
- 255 Segment 1.5 Line Text Display
- Bluetooth Direct Access Button
- Variable Color Illumination
- 13Band EQ & DTA
- Conformal Coating
- Optional Wired Remote Control Ready
- Front USB & AUX IN
- 3 Preouts 4.0V
Features

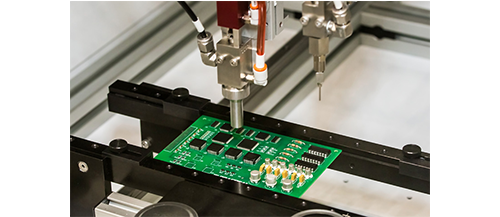

Conformal Coating
Improved moisture resistance of the circuit boards to prevent corrosion.
Graphic EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
Music Mix
Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
Drive EQ
Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Variable Color Illumination
Bright variable color LEDs can be adjusted to match any color dash lighting.
Remote App
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Short Chassis
With receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.
Smartphone Connectivity
Equipped with the Intuitive KENWOOD Music Mix
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

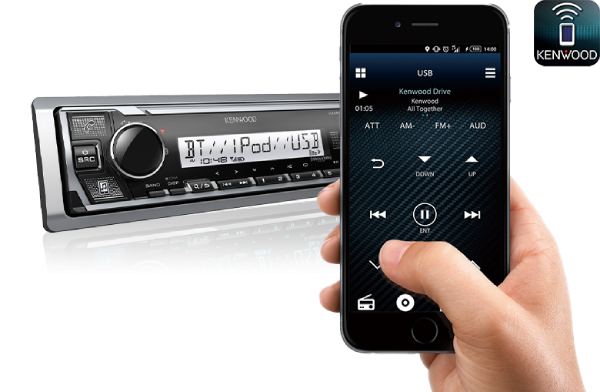

Control the Receiver from Your Smartphone with the KENWOOD Remote App
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.

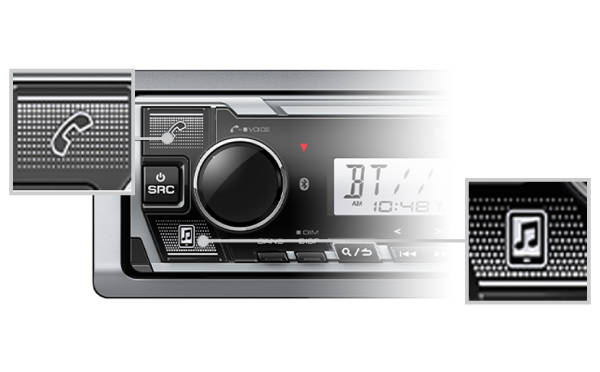

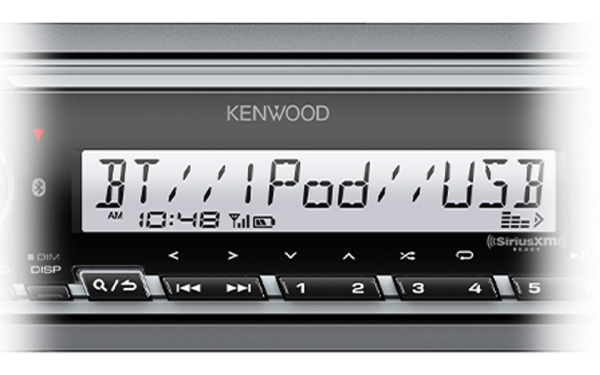

Designed for Ease of Use
Direct Bluetooth keys allow you to access quickly to answering to and making a
And Vertical Alignment LCD display secures higher visibility during day-time drive.
Front USB and AUX Input Compatible with a Variety of USB-Enabled Devices
Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.
The Best Audio Experience
13-Band EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.

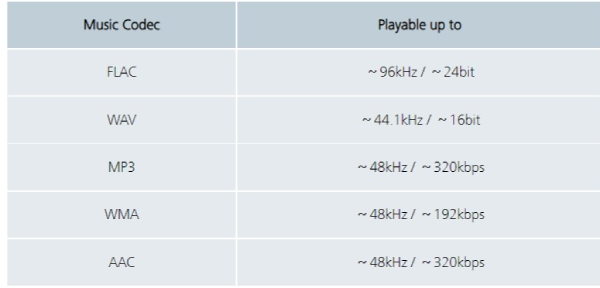

Playable USB Files
Compatible with a broad range of audio file formats from FLAC and WAV, to MP3, WMA and AAC.

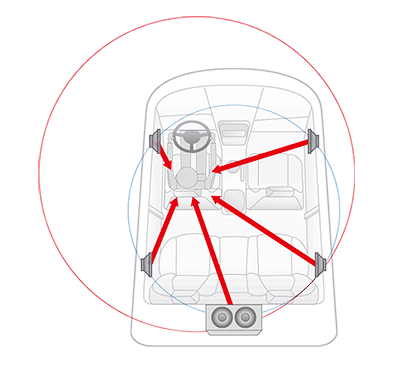

Digital Time Alignment
Sound coming from a variety of speakers located within your car are time aligned to arrive at your ear at exactly the same time.

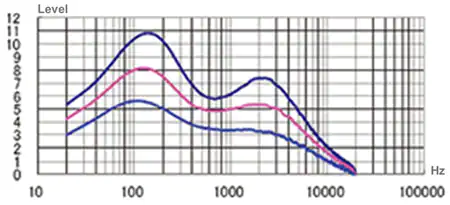

Drive Equalizer
Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise.

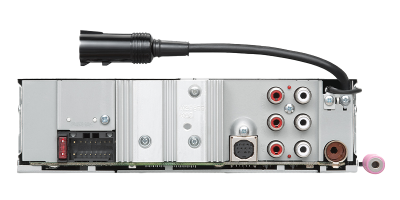

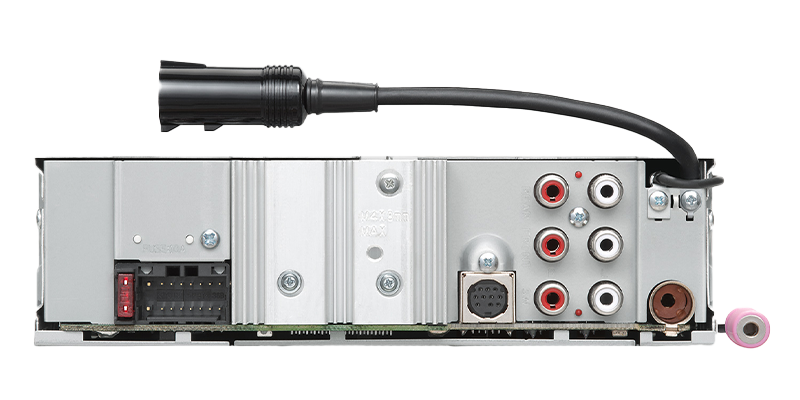

System EXPANSION Ready
The KENWOOD receiver has RCA outputs to expand the system to connect to an additional amplifier or powered subwoofer.
Additional Features

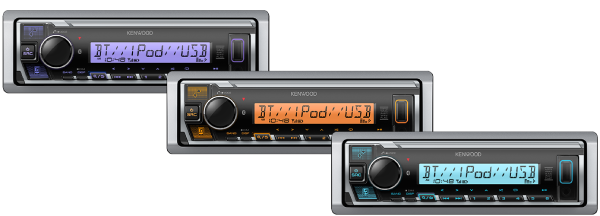

Variable Color Display
Bright variable color LED's can be adjusted to match your environment.
Short Chassis Design
With audio receivers shorter in depth, installation is made easier in a wider range of cars.

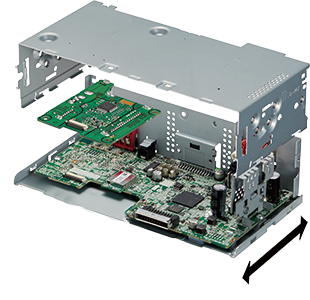

Conformal Coating
Improved moisture resistance of the circuit boards to prevent corrosion.
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio.(Optional SiriusXM tuner required, sold separately)
Spanish and French Text Display
On-screen display menu now available in Spanish and French.
Wired Remote Control (Optional)
Remote control and remote extension cables are optionally available.
| USB I/F | |
|---|---|
| USB | USB 1.1 / 2.0 High Speed |
| File System | FAT12 / 16 / 32 |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decode | Compliant with Windows Media Audio |
| AAC Decode | AAC-LC ".aac",".m4a" files |
| WAV Decode | Linear-PCM |
| FLAC Decode | FLAC file (Up to 24bit/96kHz) |
| AUX Input | |
| Frequency Response | 20Hz to 20kHz ±3dB |
| Input Maximum Voltage | 1000mV |
| Input Impedance | 30kΩ |
| AMP | |
| PWR(MAX) | 50Wx4 |
| Full Bandwidth Power (at less than 1%THD) | 22Wx4 |
| TONE | |
| Band1 | 62.5Hz ±9dB |
| Band2 | 100Hz ±9dB |
| Band3 | 160Hz ±9dB |
| Band4 | 250Hz ±9dB |
| Band5 | 400Hz ±9dB |
| Band6 | 630Hz ±9dB |
| Band7 | 1kHz ±9dB |
| Band8 | 1.6kHz ±9dB |
| Band9 | 2.5kHz ±9dB |
| Band10 | 4kHz ±9dB |
| Band11 | 6.3kHz ±9dB |
| Band12 | 10kHz ±9dB |
| Band13 | 16kHz ±9dB |
| Bluetooth | |
| Version | Bluetooth 4.2 |
| Frequency Range | 2.402 to 2.480GHz |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 |
| USB I/F | |
| S/N Ratio (dB) | 98dB(1kHz) |
| Frequency Response | 20Hz to 20kHz(±1dB) |
| Maximum Supply current | DC5V(DC logo) 1.5A |
| Dynamic Range | 93dB |
| Channel Separation | 91dB |
| Bluetooth | |
| Maximum Communication range | Line of sight approx.10m(32.8ft) |
| Profile | HFP 1.7.1 (Hands Free Profile) |
| Profile | SPP(Serial Port Profile) |
| Profile | PBAP(Phonebook Access Profile) |
| Profile | A2DP(Advanced Audio Distribution Profile) |
| Profile | AVRCP 1.6.1 (Audio/Video Remote Control Profile) |
| GENE | |
| Operating voltage | 12V DC car battery |
| Net Weight | 0.7(kg) 1.5(lbs) (Trim plate and Mounting sleeve: Included) |
| Specifications | |
| Speaker Impedance(Ω) | 4 to 8Ω |
| Preout Impedance(Ω) | =<600Ω |
| Preout Level(mV)/Load -Unbalanced | 4000mV/10kΩ |
| MW (AM) | |
| (S/N 20dB) | - |
| Usable Sensitivity | 29dBμ (28.2μV) |
| (Frequency step) | (10kHz) |
| Frequency Range(kHz) | 530kHz to 1700kHz |
| FM | |
| Stereo Separation | 40dB(1kHz) |
| S/N(dB) | 64.0dB(MONO) |
| DIN S/N:46dB | (2.0μV/75Ω） |
| Frequency Response(±3.0dB) | 30Hz to 15kHz |
| Quieting Sensitivity | 17.2dBf |
| S/N:30dB | (0.71μV/75Ω） |
| Usable Sensitivity | 8.2dBf |
| (Frequency step) | (200kHz) |
| Frequency Range(MHz) | 87.9MHz to 107.9MHz |
| GENE | |
| Installation Size (W) (H) (D) | 182(mm) 7-3/16(in), 53(mm) 2-1/16(in), 100(mm) 3-15/16(in) |
Write a review
Featured Products

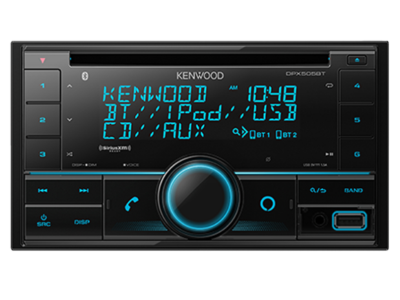

DPX505BT
