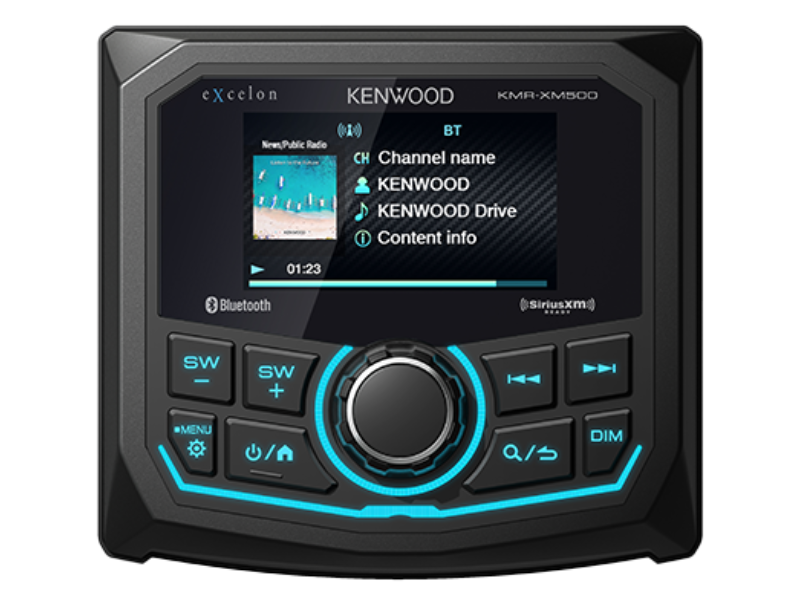

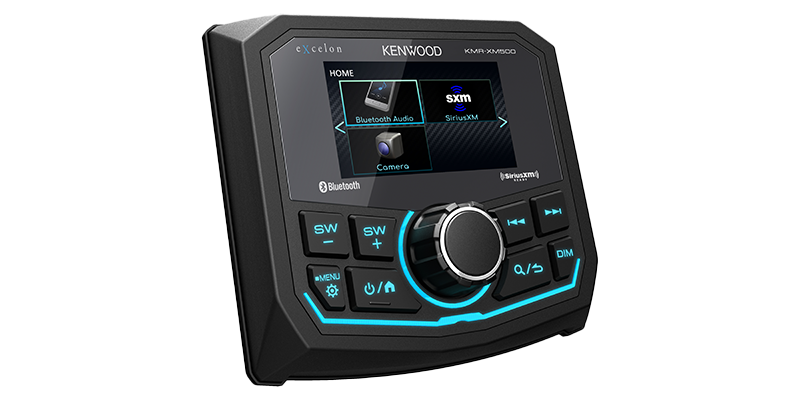

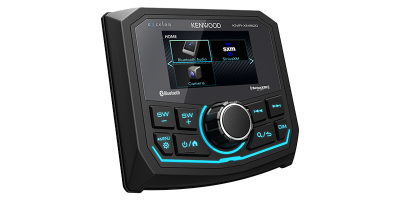

Kenwood Digital Media Receiver with Bluetooth - KMR-XM500
Authorized Dealer
Price Match Guarantee
| Price | $699.00 |
| Savings | $51.00 |
| Our Price |
$648.00 CAD |
Or as low as $216.00/month over 3 months. Apply Now
- 3” Gauge-Style Mounting
- 2.7” LCD Display
- AM/FM/Global Weather Band Tuner
- Waterproof Rating of IP66
- Wired Remote Ready (KCA-RC35MR, Sold Separately)
- SiriusXM Ready®
- Rear USB Port w/ 1.5A Charging
- Variable Color Illumination
- Bluetooth® Streaming
- Rear View Camera Input
- 50 Watts x 4
- 3 Pre-Outs (5.0V)
Features

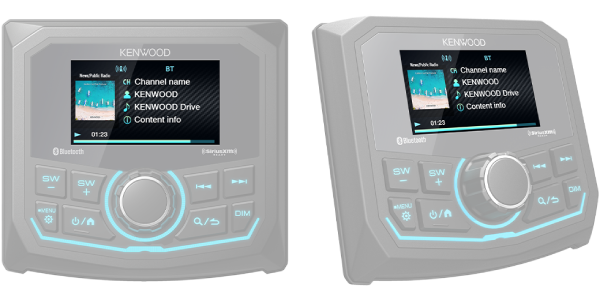

2.7 Color TFT
LCD display secures higher visibility under sunlight and day-time use.

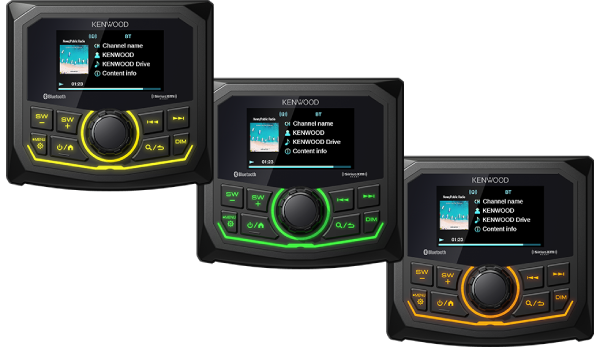

Variable Color Illumination
Bright variable color LEDs can be adjusted to match any color of lighting.
FLAC Supported
Compatible with various audio file formats from FLAC and, to MP3, WMA and AAC.

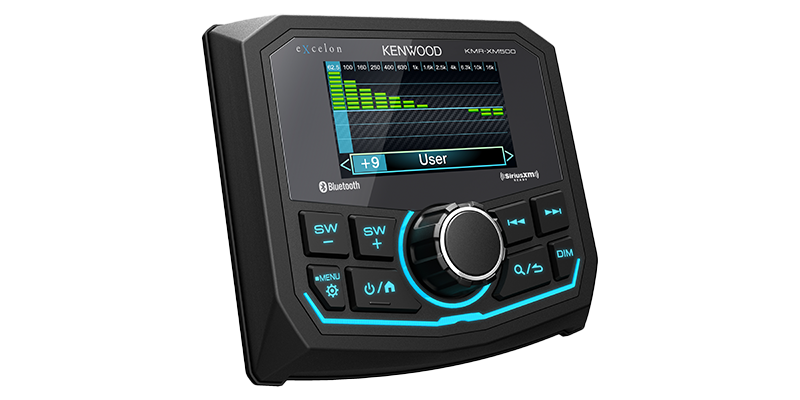

Graphic EQ
13-Band equalizer gives optimal tuning enhancements.
Global tuner
Worldwide access to local radio stations.
Conformal Coating
Improved moisture resistance of the circuit boards to prevent corrosion.

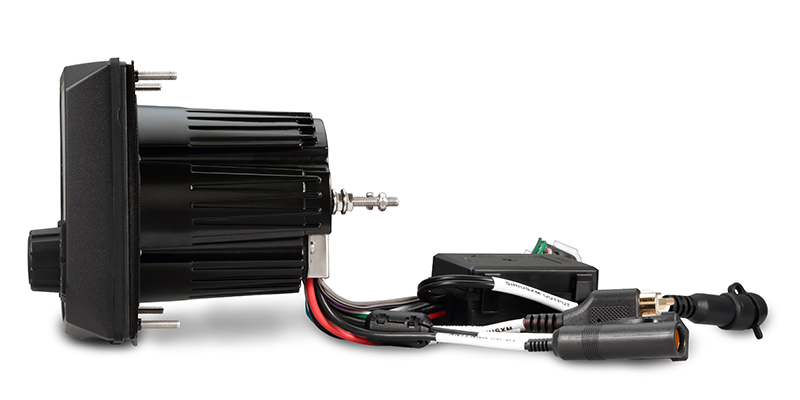

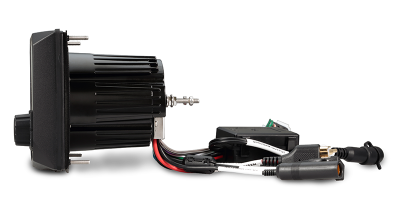

3" Hole Installation
Provides more flexibility in mounting applications and locations.
Rear USB
Enables easy placement and access of the USB input.
Rear View Camera Input

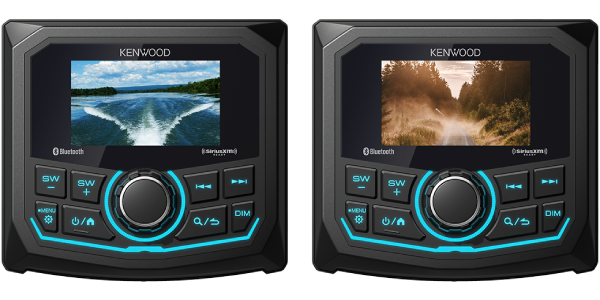

An optional rear view camera enhances safety while backing up and monitoring behind your UTV, boat, etc..
Enhanced Durability
Water-proof & Dust-proof Front Panel
IP66 certified
Salt Spray-Proof
ASTM B117 salt spray (or salt fog) corrosion test simulates harsh conditions in a salt water environment to ensure the product does not corrode or fail in these harsh conditions.
UV Protection
The unit cover satisfied ASTM D4329 UV resistant test.
Vibration Resitant
3-axis multi-freqeuncy vibration tested to withstand damaging shocks.

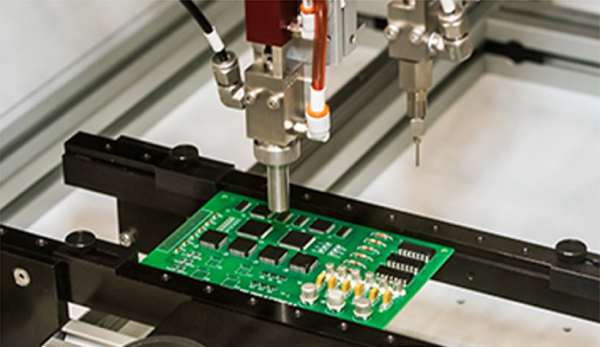

Conformal Coating
Improved moisture resistance of the circuit boards to prevent corrosion.
The Best Audio Experience
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.

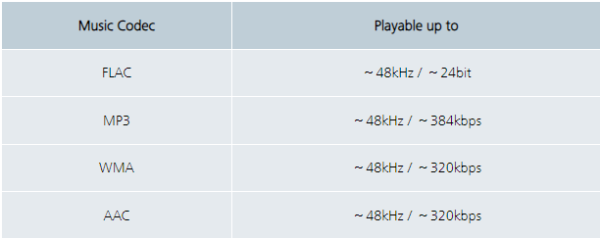

Playable USB Files
Compatible with a broad range of audio file formats from FLAC and MP3, WMA and AAC.

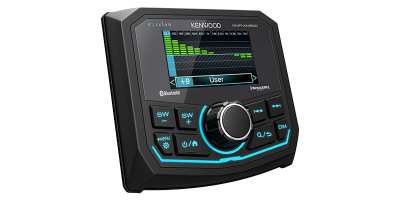

13-Band EQ
13-Band equalizer gives optimal tuning enhancements for the listener.

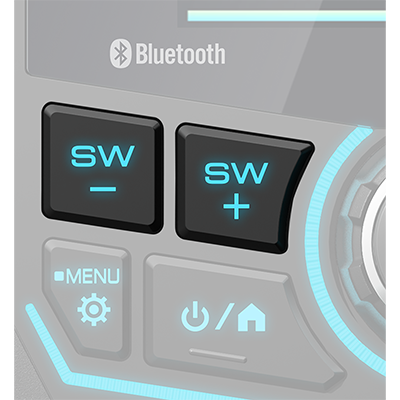

Independent Subwoofer Volume Control
allows you to easily adjust your subwoofer volume.
*The volume works when the SW RCA Output is connected to amplifier/Subwoofer.

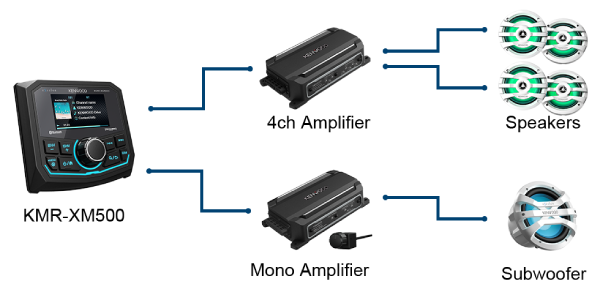

All Weather System EXPANSION Ready

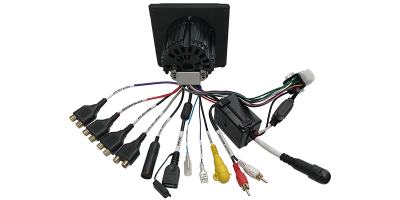

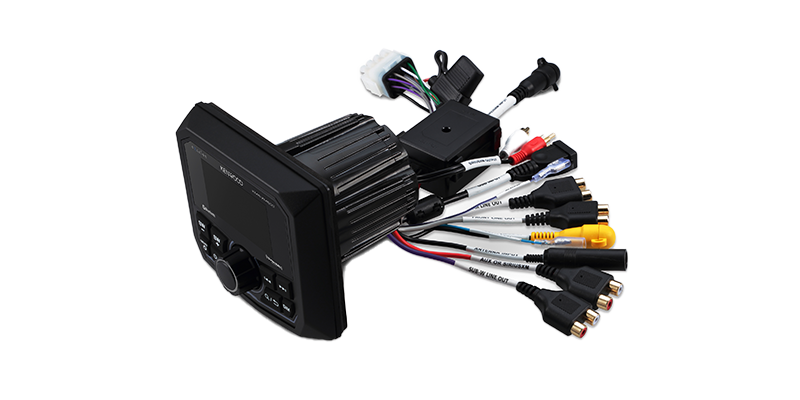

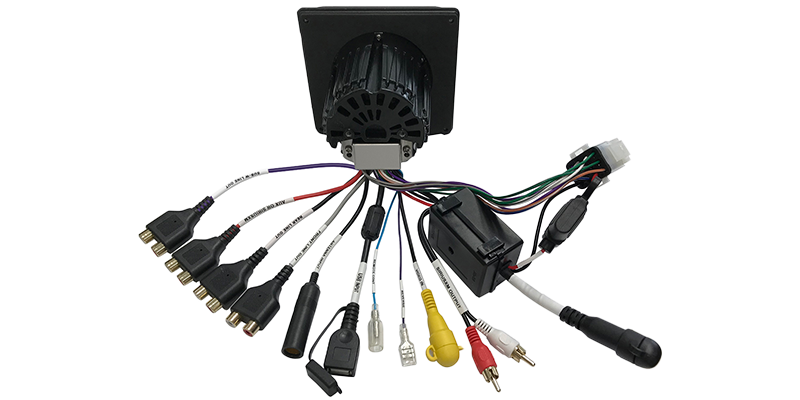

The KMR-XM500 has RCA outputs to expand the system to connect amplifiers to power additional speakers & subwoofer(s).
Additional Features
2.7" LCD Display
2.7" LCD display secures higher visibility under sunlight and daytime use.
Rear View Camera Input Support
KMR-XM500 is equipped with a rear view camera input. With an optional camera connected, you have increased safety while driving UTVs, boats, etc..
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio. (Optional SiriusXM tuner required, sold separately)
AM/FM/Global Weather Band Tuner
KMR-XM500 supports AM/FM and Global weather band.
Multicolor Illumination Controls
Bright variable color LED's can be adjusted to match your environment.
Spanish Text Display
On-screen display menu now available in Spanish.

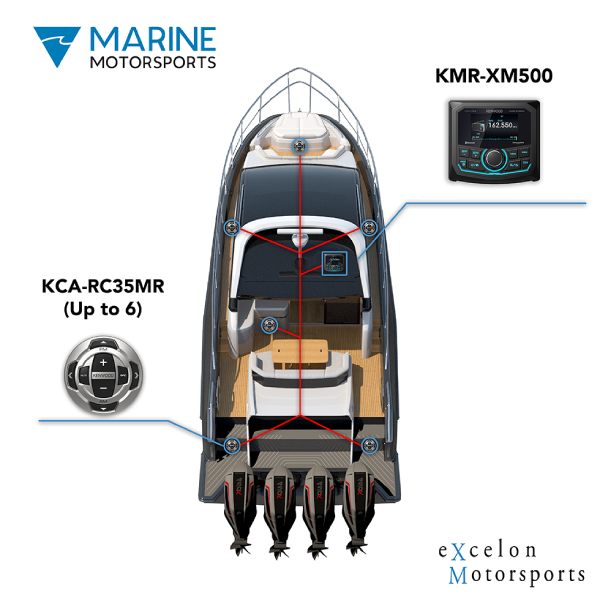

Multi-Controls

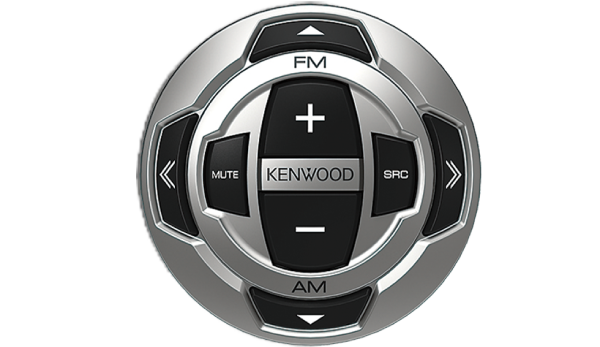

The KCA-RC35MR (Sold Separately) is designed to control the KMR-XM500 from multiple positions.
The remote controls multi-functions such as volume, source, & track from a compact size.
Multi-Wiring
You can connect up to 6 remotes in-line with each other.
| WeatherBand | |
|---|---|
| Frequency Range(Frequency step) | USA/Canada: 162.400MHz - 162.550MHz(25kHz) |
| AM | |
| Frequency Range(Frequency step) | Australia: 531kHz - 1701kHz(9kHz) |
| Frequency Range(Frequency step) | Middle East: 531kHz - 1602kHz(9kHz) |
| Frequency Range(Frequency step) | Japan: 522kHz - 1629kHz(9kHz) |
| Frequency Range(Frequency step) | Europe, Russia, Asia: 531kHz - 1611kHz(9kHz) |
| Frequency Range(Frequency step) | North America, South America, : 530kHz - 1700kHz(10kHz) |
| FM | |
| Frequency Range(Frequency step) | Japan: 76.0MHz - 99.0MHz(100kHz) |
| Frequency Range(Frequency step) | South America, Europe, Russia, Asia, Middle East, Australia: 87.5MHz - 108MHz(50kHz) |
| Frequency Range(Frequency step) | North America: 87.9MHz - 107.9MHz(200kHz) |
| MONITOR | |
| Backlight | LED |
| Picture Size | 2.7 inch Color TFT |
| Specification | |
| Water proof | IP66 (Equivalent to IEC standard publication 60529 IP66) (IP66 Faceplate, IPX4 Body) |
| GENE | |
| Net Weight(includes Trim Bezel, Mounting Plate, Screws) | 0.9(kg), 2.0(lbs) |
| (D) | 74(mm), 2-15/16(in) |
| (H) | 106(mm), 4-3/16(in) Panel 77(mm), 3-1/16(in) body |
| (W) | 115(mm), 4-9/16(in) Panel77(mm), 3-1/16(in) body |
| Operating voltage | 12V DC battery |
| Equalizer | |
| Level | -9dB to 9dB |
| Frequency | 62.5 / 100 / 160 / 250 / 400 / 630 / 1k / 1.6k / 2.5k / 4k / 6.3k / 10k / 16k Hz |
| Band | 13 Band |
| AMP | |
| Full Bandwidth Power | 19W x 4 ( 4 ohm, RMS), 28W x 4 ( 2 ohm, RMS) |
| Maximum Power | 34W x 4 ( 4 ohm, Peak), 50W x 4 ( 2 ohm, Peak) |
| Bluetooth | |
| Profile | AVRCP 1.5(Audio/Video Remote Control Profile) |
| Profile | A2DP(Advanced Audio Distribution Profile) |
| Profile | - |
| Pairing | SSP(Secure Simple Pairing) |
| Maximaum Communication range | Line of sight approx.10m(32.8ft) |
| RF Output Power | 0dBm(AVE), Power Class 2 |
| Frequency Range | 2.4GHz - 2.4835GHz |
| Version | Bluetooth 5.0 |
| Specification | |
| Speaker Impedance() | 2-8 |
| Preout Impedance() | 500 |
| Preout Level(mV)/Load -Unbalanced | 5000mV/10k |
| USB I/F | |
| FLAC Decode | FLAC file, up to 24bit/48kHz |
| WMA decode | Compliant with Windows Media Audio |
| AAC Decode | Compliant with MPEG2/4 AAC LC |
| WAV Decode | - |
| MP3 decode | Compliant with MPEG-1 Audio Layer-3 |
| Frequency Response | 20Hz - 20,000Hz |
| Maximum Supply current | DC5V 1.5A |
| Capacity | 32 GB max, 255 Folders max, 999 Files per Folder max |
| File System | FAT16, FAT32, ExFAT |
| Compatible Devices | Mass storage class |
| USB | USB 2.0 (Full speed) |
