Kenwood Digital Media Receiver with Bluetooth & HD Radio - KMM-X705
Authorized Dealer
Price Match Guarantee
| Price | $249.00 |
| Savings | $51.00 |
| Our Price |
$198.00 CAD |

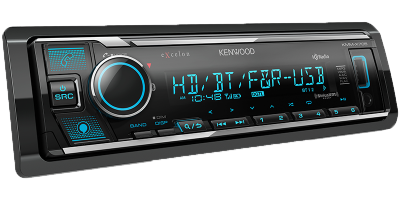

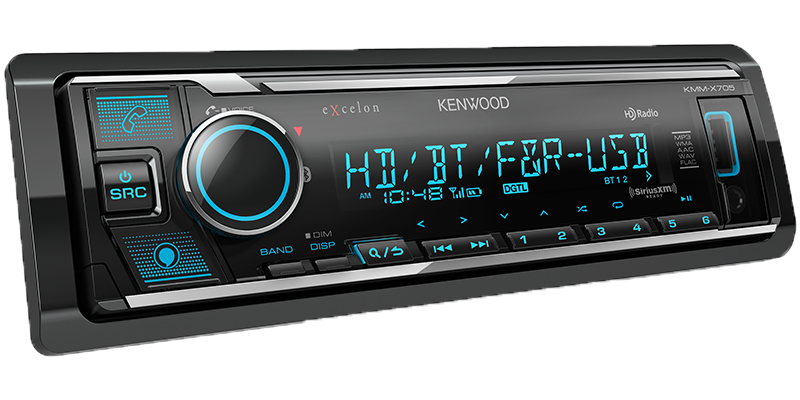

Kenwood Digital Media Receiver with Bluetooth & HD Radio - KMM-X705
KMM-X705
Music Mix
Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Remote App
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Graphic EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
Drive EQ
Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.
DUAL USB
Multiple USB ports provide additional inputs for music sources or smartphone battery charging.
Variable Color Illumination
Bright variable color LEDs can be adjusted to match any color dash lighting.
Short Chassis
With receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars.
Smartphone Connectivity
Amazon Alexa Compatible
With Alexa on your KENWOOD Receivers, you can use your voice to control your music and much more. Using Alexa is as easy as asking a question. Just ask and Alexa can play your favorite song, skip to the next track, change the volume, read you the news and more.
Using Alexa on the KENWOOD Receiver is simple and hands-free, just ask and Alexa will respond instantly, or press the Amazon Alexa key on the KENWOOD receiver, you can easily activate Alexa and get voice control.
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.
Equipped with the Intuitive KENWOOD Music Mix
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

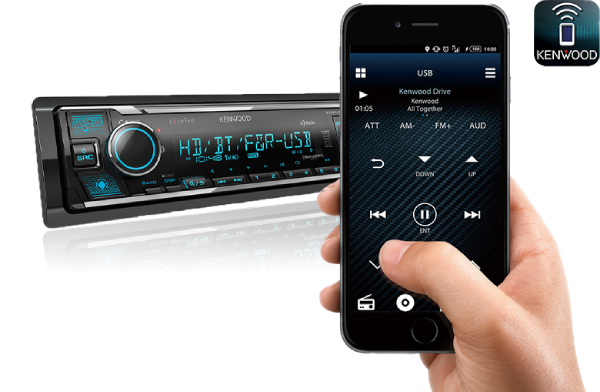

Control the Receiver from Your Smartphone with the KENWOOD Remote App
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Front USB and AUX Input Compatible with a Variety of USB-Enabled Devices
Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.
The Best Audio Experience
13-Band EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.
Playable USB Files
Compatible with a broad range of audio file formats from FLAC and WAV, to MP3, WMA and AAC.
Digital Time Alignment
Sound coming from a variety of speakers located within your car are time aligned to arrive at your ear at exactly the same time.

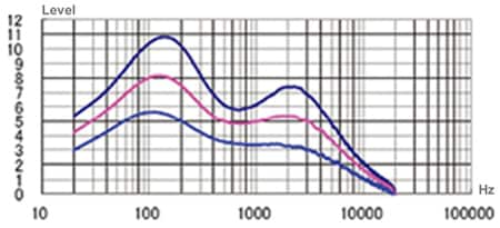

Drive Equalizer
Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise.

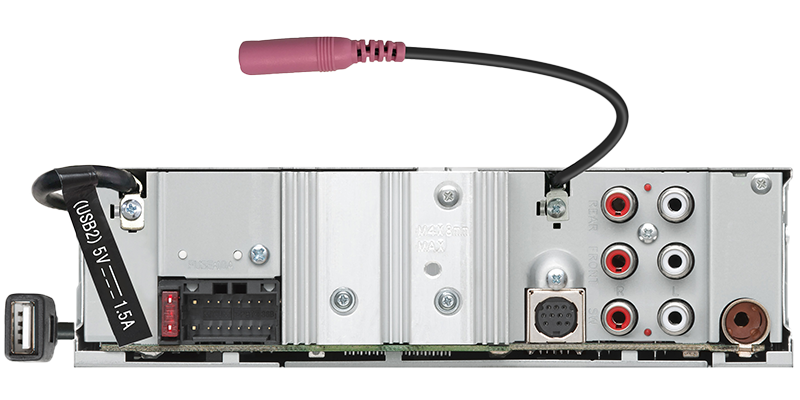

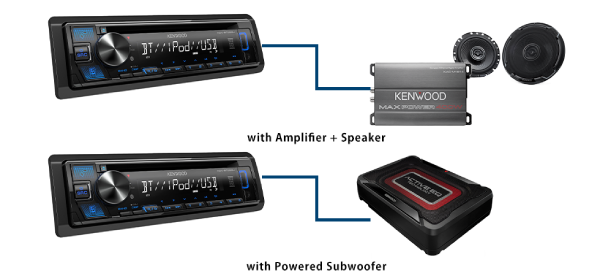

System EXPANSION Ready

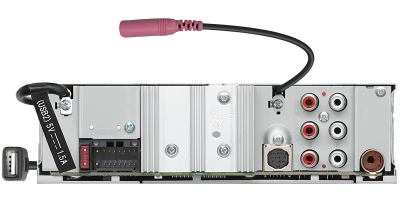

The KENWOOD receiver has RCA outputs to expand the system to connect to an additional amplifier or powered subwoofer.
Additional Features

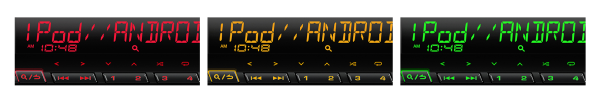

Match Your Mood with Variable Color Illumination
Bright variable color LED's can be adjusted to match any color dash lighting.
Equipped with Dual USB Ports
Play your music from one USB port and use the other to charge your device, or charge both at the same time.

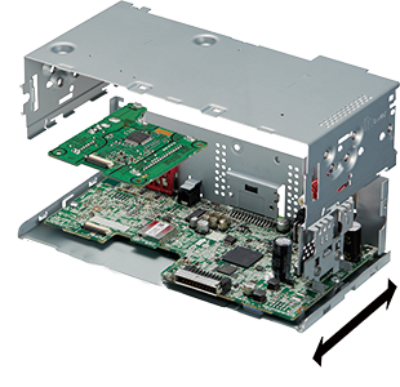

Short Chassis Design
With audio receivers shorter in depth, installation is made easier in a wider range of cars.
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio. (Optional SiriusXM tuner required, sold separately)
Built-in HD Radio Tuner
HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.
Spanish and French Text Display
On-screen display menu now available in Spanish and French.
Remote Control (Optional)
Remote control (KCA-RCDV340) is optionally available.
KCA-RCDV340
Wireless Remote for Navigation, Multimedia and Audio Receivers
| Digital AM | |
|---|---|
| S/N | 70dB(STEREO) |
| Preout Impedance(Ω) | |
| Preout Impedance(Ω) | =<600Ω |
| Preout Level(mV)/Load | |
| -Unbalanced | 5,000mV/10kΩ |
| Speaker Impedance(Ω) | |
| Speaker Impedance(Ω) | 4 to 8Ω |
| USB I/F | |
| File System | FAT12 / 16 / 32 |
| Maximum Supply current | DC5V(DC logo) 1.5A |
| USB | USB 1.1 / 2.0 High Speed |
| Frequency Response | 20Hz to 20kHz(±1dB) |
| S/N Ratio (dB) | 98dB(1kHz) |
| Dynamic Range | 93dB |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 |
| Channel Separation | 90dB |
| WMA Decode | Compliant with Windows Media Audio |
| TONE | |
| Band13 | 16kHz ±9dB |
| Bluetooth | |
| Frequency Range | 2.402 to 2.480GHz |
| Version | Bluetooth 4.2 |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 |
| Maximum Communication range | Line of sight approx.10m(32.8ft) |
| Profile | HFP 1.7.1 (Hands Free Profile) |
| Profile | SPP (Serial Port Profile) |
| Profile | PBAP (Phonebook Access Profile) |
| Profile | AVRCP 1.6.1 (Audio/Video Remote Control Profile) |
| Profile | A2DP (Advanced Audio Distribution Profile) |
| AMP | |
| Full Bandwidth Power(at less than 1%THD) | 22Wx4 |
| Maximum Power | 50Wx4 |
| AUXInput | |
| Input Impedance | 30kΩ |
| Input Maximum Voltage | 1,000mV |
| Frequency Response | 20Hz to 20kHz ±3dB |
| USB I/F | |
| AAC Decode | AAC-LC ".aac",".m4a" files |
| WAV Decode | Linear-PCM |
| TONE | |
| Band2 | 100Hz ±9dB |
| Band1 | 62.5Hz ±9dB |
| Band3 | 160Hz ±9dB |
| Band5 | 400Hz ±9dB |
| Band4 | 250Hz ±9dB |
| Band6 | 630Hz ±9dB |
| Band7 | 1kHz ±9dB |
| Band8 | 1.6kHz ±9dB |
| Band9 | 2.5kHz ±9dB |
| Band10 | 4kHz ±9dB |
| Band12 | 10kHz ±9dB |
| Band11 | 6.3kHz ±9dB |
| Digital AM | |
| Frequency Response(±3.0dB) | 40Hz to 15kHz |
| Frequency Range(kHz)(Frequency step) | 530kHz to 1700kHz(10kHz) |
| MW(AM) | |
| Usable Sensitivity(S/N 20dB) | 29dBμ (28.2μV) |
| Frequency Range(kHz)(Frequency step) | 530kHz to 1700kHz(10kHz) |
| Digital FM | |
| S/N | 75dB(STEREO) |
| Frequency Response(±3.0dB) | 20Hz to 20kHz |
| Frequency Range(kHz)(Frequency step) | 87.9MHz to 107.9MHz(200kHz) |
| FM | |
| Stereo Separation | 40dB(1kHz) |
| S/N(dB) | 68.0dB(MONO) |
| Frequency Response(±3.0dB) | 30Hz to 15kHz |
| Quieting SensitivityDIN S/N:46dB | 15.2dBf(1.58μV/75Ω） |
| Usable SensitivityS/N:30dB | 7.2dBf(0.63μV/75Ω） |
| Frequency Range(MHz)(Frequency step) | 87.9MHz to 107.9MHz(200kHz) |
| GENE | |
| Operating voltage | 12V DC car battery |
| Installation Size(W)(H)(D) | 182(mm) 7-3/16(in), 53(mm) 2-1/16(in), 100(mm) 3-15/16(in) |
| Net Weight | 0.7(kg) 1.5(lbs) (Trim plate and Mounting sleeve: Included) |
| USB I/F | |
| FLAC Decode | FLAC file (Up to 96kHz/24bit) |
