Kenwood Dual Din Sized CD Receiver with Bluetooth & HD Radio - DPX795BH
Authorized Dealer
Price Match Guarantee
| Price | $349.00 |
| Savings | $51.00 |
| Our Price |
$298.00 CAD |

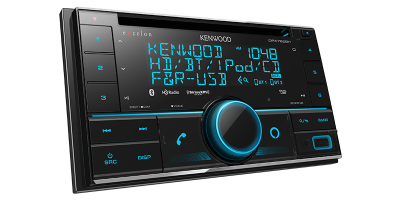

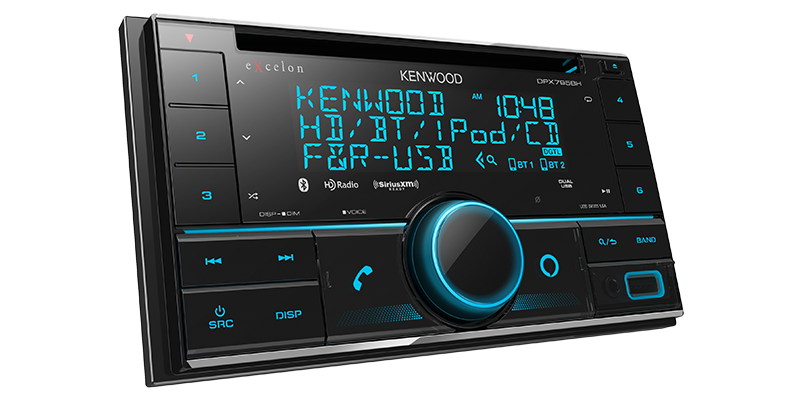

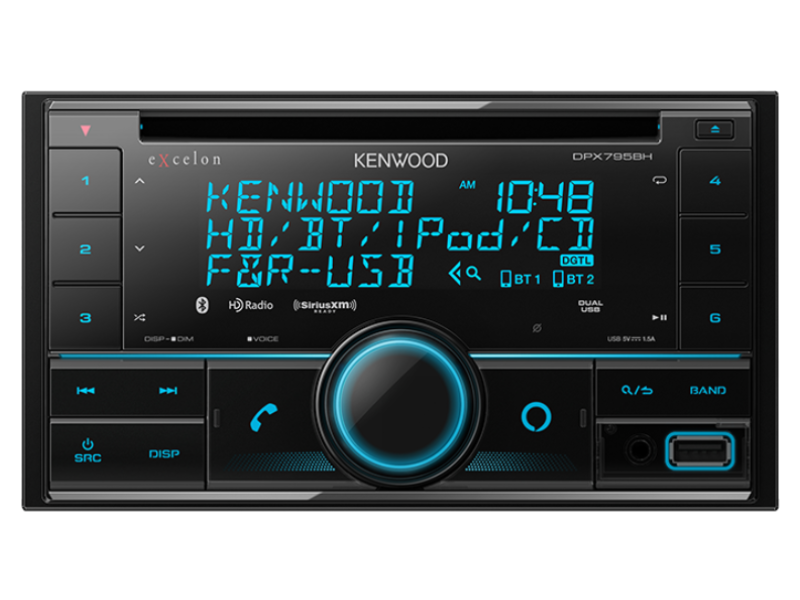

Kenwood Dual Din Sized CD Receiver with Bluetooth & HD Radio - DPX795BH
DPX795BH
- 420 Segment 3 Line Text Display
- Amazon Alexa Ready
- Built-in HD Radio Tuner
- Dual USB
- 13Band EQ & Digital Time Alignment
- Variable Color Illumination
- 200mm Escutcheon Panel Included
- 3 Preouts 5.0V
Features
Music Mix
Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Remote App
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Graphic EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
Drive EQ
Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.
DUAL USB
Multiple USB ports provide additional inputs for music sources or smartphone battery charging.
Variable Color Illumination
Bright variable color LEDs can be adjusted to match any color dash lighting.

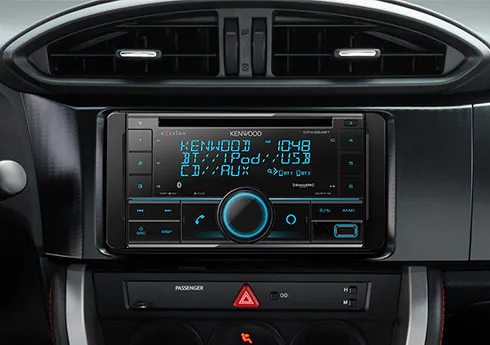

200mm ESCUTCHEON Included
A 200mm escutcheon is included to help make the fit seamless in many of the latest model Japanese and other select cars.
Smartphone Connectivity

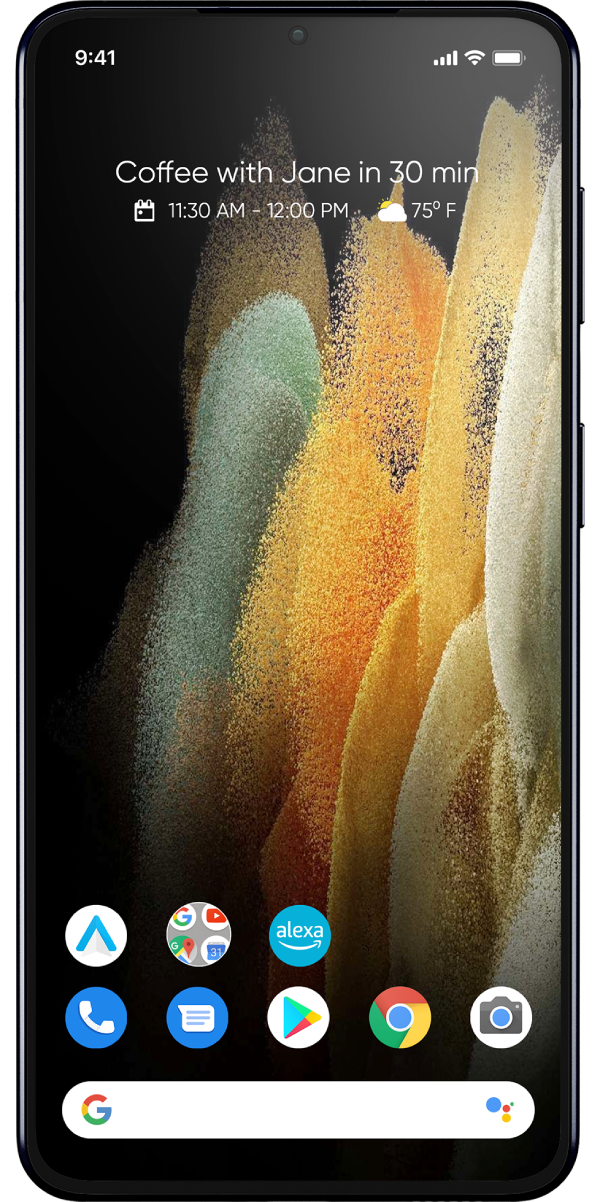

Amazon Alexa Compatible
With Alexa on your KENWOOD Receivers, you can use your voice to control your music and much more. Using Alexa is as easy as asking a question. Just ask and Alexa can play your favorite song, skip to the next track, change the volume, read you the news and more.

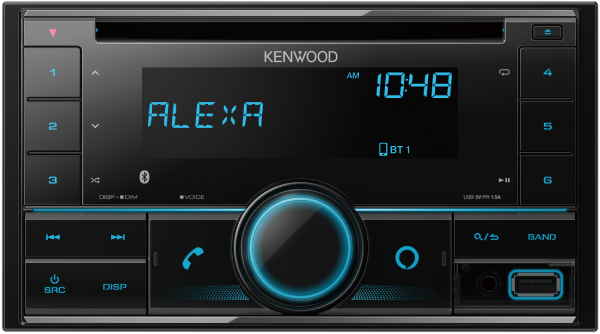

Using Alexa on the KENWOOD Receiver is simple and hands-free, just ask and Alexa will respond instantly, or press the Amazon Alexa key on the KENWOOD receiver, you can easily activate Alexa and get voice control.
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.
Equipped with the Intuitive KENWOOD Music Mix
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

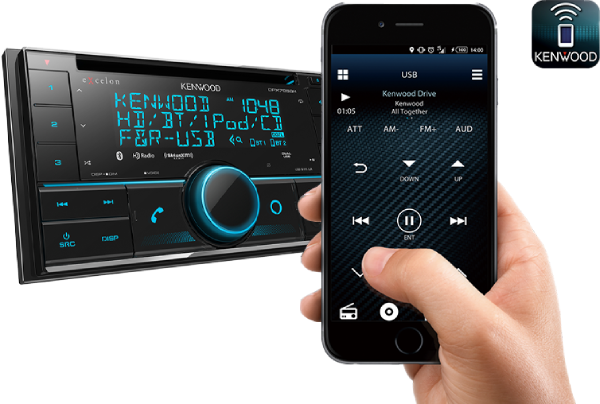

Control the Receiver from Your Smartphone with the KENWOOD Remote App
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).

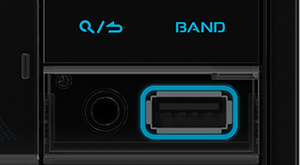

Front USB and AUX Input Compatible with a Variety of USB-Enabled Devices
Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.
The Best Audio Experience
13-Band EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.

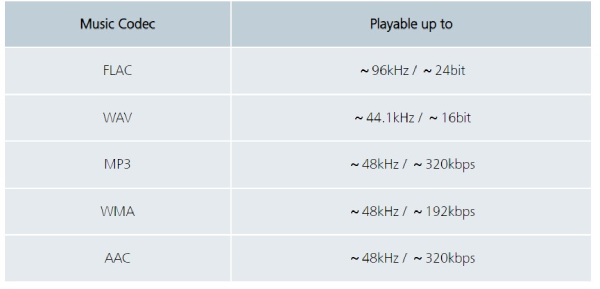

Playable USB Files
Compatible with a broad range of audio file formats from FLAC and WAV, to MP3, WMA and AAC.

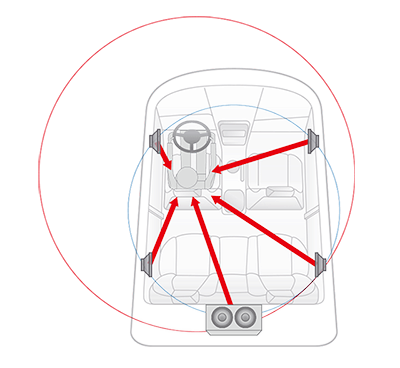

Digital Time Alignment
Sound coming from a variety of speakers located within your car are time aligned to arrive at your ear at exactly the same time.

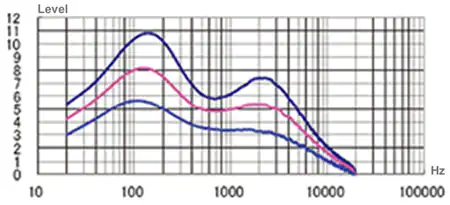

Drive Equalizer
Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise

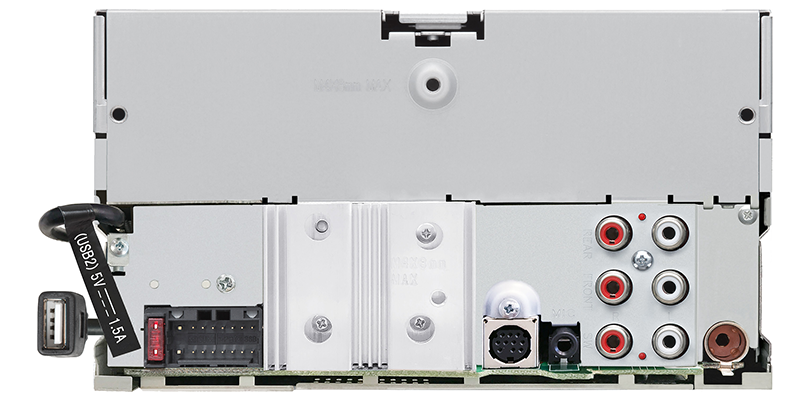

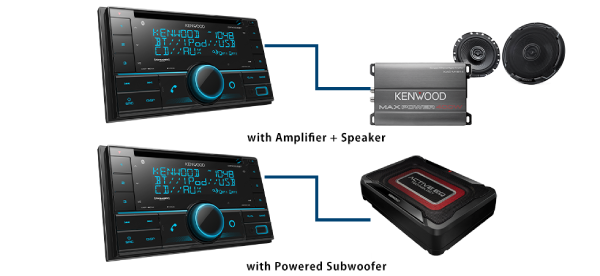

System EXPANSION Ready
The KENWOOD receiver has RCA outputs to expand the system to connect to an additional amplifier or powered subwoofer.
Additional Features

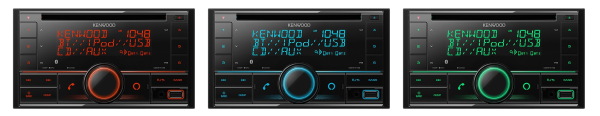

Match Your Mood with Variable Color Illumination
Bright variable color LEDs can be adjusted to match any color dash lighting.

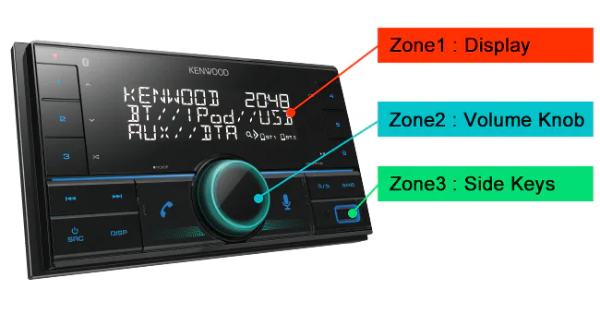

Adjustable 3-Zone Variable Color Illumination
You can adjust the front panel illumination into 3 separate color zones.
200mm Escutcheon Included
A 200mm escutcheon is included to help make the fit seamless in many of the latest model Japanese and other select cars.
Equipped with Dual USB Ports
Play your music from one USB port and use the other to charge your device, or charge both at the same time.
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio.(Optional SiriusXM tuner required, sold separately)
Built-in HD Radio Tuner
Built-in HD Radio Tuner HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.
Spanish and French Text Display
On-screen display menu now available in Spanish and French.
Remote Control (Optional)
Remote control (KCA-RCDV340) is optionally available.
KCA-RCDV340
Wireless Remote for Navigation, Multimedia and Audio Receivers
| CD | |
|---|---|
| Wow & Flutter | Below Measurable Limit |
| Total Harmonic Distortion | 0.01%(1kHz) |
| S/N Ratio (dB) | 96dB(1kHz) |
| Frequency Response | 20Hz to 20kHz(±1dB) |
| Channel Separation | 84dB |
| GENE | |
| Installation Size(W) (H) (D) | 182(mm) 7-3/16(in), 111(mm) 4-3/8(in), 156(mm) 6-1/8(in) |
| Net Weight | 1.7(kg) 3.8(lbs) (Trim plate and Mounting sleeve: Included) |
| FM | |
| S/N(dB) | 68.0dB(MONO) |
| Stereo Separation | 40dB(1kHz) |
| Frequency Response(±3.0dB) | 30Hz to 15kHz |
| Frequency Range(MHz)(Frequency step) | 87.9MHz to 107.9MHz(200kHz) |
| Digital FM | |
| Frequency Response(±3.0dB) | 20Hz to 20kHz |
| FM | |
| Quieting SensitivityDIN S/N:46dB | 15.2dBf(1.580μV/75Ω） |
| Digital FM | |
| Frequency Range(Frequency step) | 87.9MHz to 107.9MHz(200kHz) |
| FM | |
| Usable SensitivityS/N:30dB | 7.2dBf(0.63μV/75Ω） |
| Digital AM | |
| Frequency Range(Frequency step) | 530kHz to 1700kHz(10kHz) |
| Digital FM | |
| S/N | 75dB(STEREO) |
| Digital AM | |
| S/N | 70dB(STEREO) |
| CD | |
| Laser Diode | GaAlAs |
| Digital Filter(D/A) | 8 Times Oversampling |
| Digital AM | |
| Frequency Response(±3.0dB) | 40Hz to 15kHz |
| CD | |
| Spindle Speed | 500 to 200rpm (CLV) |
| Dynamic Range | 91dB |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decode | Compliant with WINDOWS MEDIA AUDIO |
| WAV Decode | - |
| AAC Decode | AAC-LC ".aac" files |
| Preout Level(mV)/Load | |
| -Unbalanced | 5,000mV/10kΩ |
| Preout Impedance(Ω) | |
| Preout Impedance(Ω) | =<600Ω |
| Speaker Impedance(Ω) | |
| Speaker Impedance(Ω) | 4 to 8Ω |
| AUXInput | |
| Frequency Response | 20Hz to 20kHz ±3dB |
| AMP | |
| Maximum Power | 50Wx4 |
| AUXInput | |
| Input Maximum Voltage | 1,000mV |
| Input Impedance | 30kΩ |
| AMP | |
| Full Bandwidth Power(at less than 1%THD) | 22Wx4 |
| TONE | |
| Band2 | 100Hz ±9dB |
| Band1 | 62.5Hz ±9dB |
| Band3 | 160Hz ±9dB |
| Band4 | 250Hz ±9dB |
| Band5 | 400Hz ±9dB |
| Band6 | 630Hz ±9dB |
| Band7 | 1kHz ±9dB |
| Band8 | 1.6kHz ±9dB |
| Band9 | 2.5kHz ±9dB |
| Band10 | 4kHz ±9dB |
| Band11 | 6.3kHz ±9dB |
| Band12 | 10kHz ±9dB |
| Band13 | 16kHz ±9dB |
| Bluetooth | |
| Version | Bluetooth 4.2 |
| Frequency Range | 2.402 to 2.480GHz |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 |
| Profile | PBAP (Phonebook Access Profile) |
| Profile | SPP (Serial Port Profile) |
| Profile | HFP 1.7.1 (Hands Free Profile) |
| Maximum Communication range | Line of sight approx.10m(32.8ft) |
| Profile | A2DP (Advanced Audio Distribution Profile) |
| Profile | AVRCP 1.6.1 (Audio/Video Remote Control Profile) |
| GENE | |
| Operating voltage | 12V DC car battery |
| MW (AM) | |
| Frequency Range(kHz) (Frequency step) | 530kHz to 1700kHz (10kHz) |
| Usable Sensitivity (S/N 20dB) | 29dBμ (28.2μV) |
| USB I/F | |
| USB | USB 1.1 / 2.0 High Speed |
| File System | FAT12 / 16 / 32 |
| Maximum Supply current | DC5V(DC logo) 1.5A |
| Frequency Response | 20Hz to 20kHz(±1dB) |
| S/N Ratio (dB) | 98dB(1kHz) |
| Dynamic Range | 93dB |
| Channel Separation | 90dB |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decode | Compliant with Windows Media Audio |
| AAC Decode | AAC-LC ".aac",".m4a" files |
| WAV Decode | Linear-PCM |
| FLAC Decode | FLAC file (Up to 24bit/96kHz) |
| AUX Input | |
| Frequency Response | 20Hz to 20kHz ±3dB |
| Input Maximum Voltage | 1,000mV |
| Input Impedance | 30kΩ |
