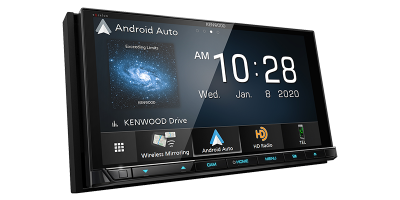

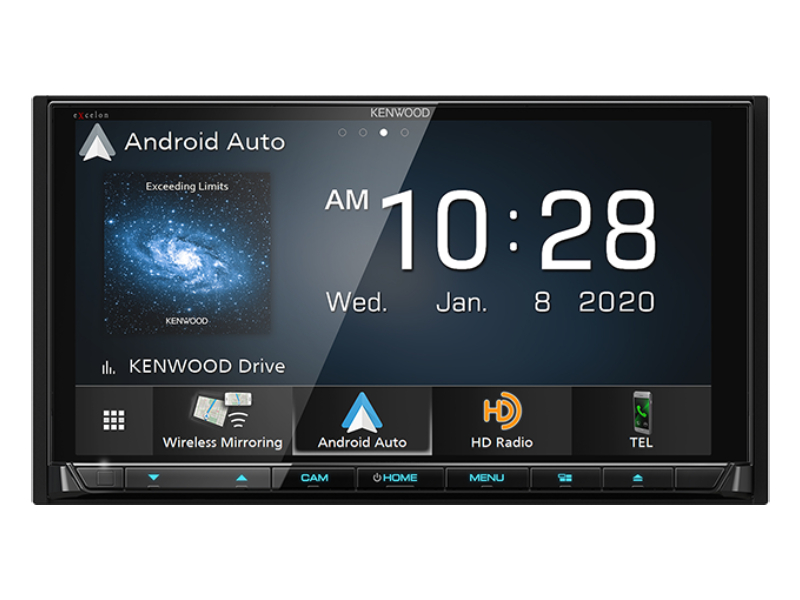

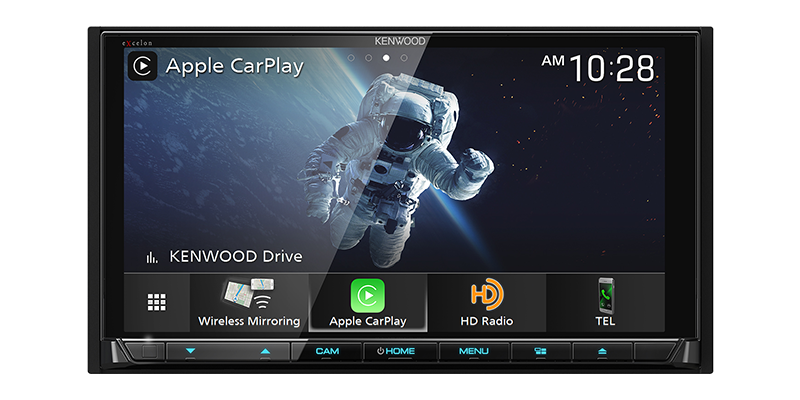

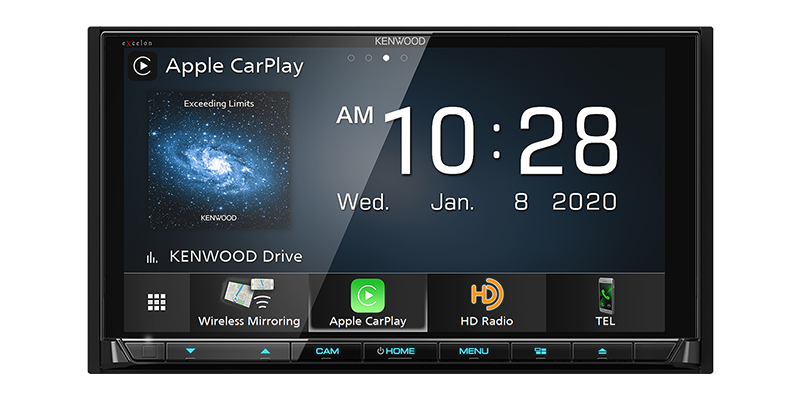

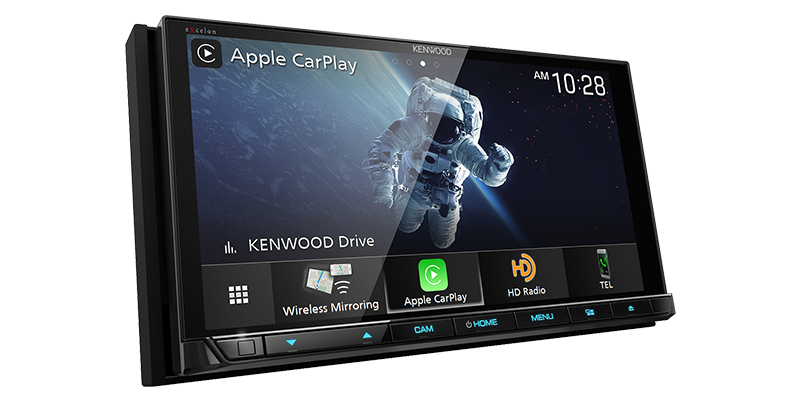

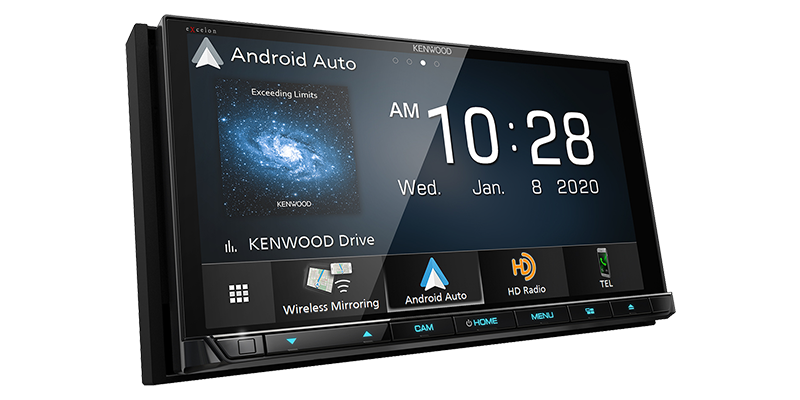

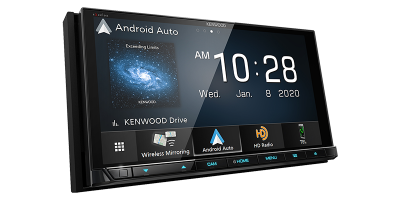

Kenwood DVD Receiver With Bluetooth And HD Radio - DDX9907XR

Authorized Dealer Price Match Guarantee

Price Match Guarantee

The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Price	$1,249.00
Savings	$101.00
Our Price	$1,148.00 CAD

Or as low as $127.56/month over 9 months. Apply Now

Quote Request

Availability
Call for availability

DDX9907XR
Best Deal Promise

Literature

Description
Features

6.8" High Definition Monitor with Capacitive Touch Panel
Android Auto™ & Android Auto™ Wireless

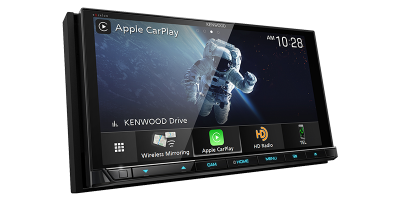

Wired and Wireless Apple CarPlay™
High-Resolution Audio Wireless
Wireless Mirroring for Android
USB Mirroring for iPhone and Android

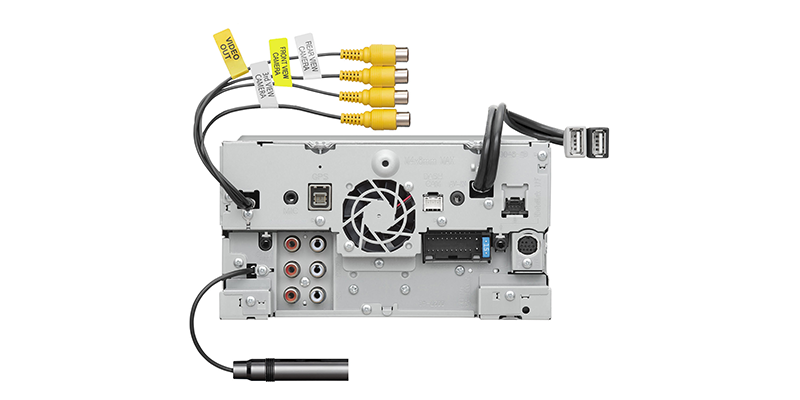

4 Camera Inputs / HD Rear Camera Ready
Built-in Bluetooth, HD Radio & WiFi
3 Preouts 5V

Smartphone Connectivity

Enjoy convenient control of popular apps like Spotify and Pandora,built-in Bluetooth for hands-free calls and streaming music,as well as the ability to use your smartphone like a wireless remote control.

The Best Audio Experience

Sound quality enthusiasts will love the playback support of various types of music formats,including compatibility with FLAC files.Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Safe Driving

Keeping you safe on the road ahead is our top priority.

Additional Features

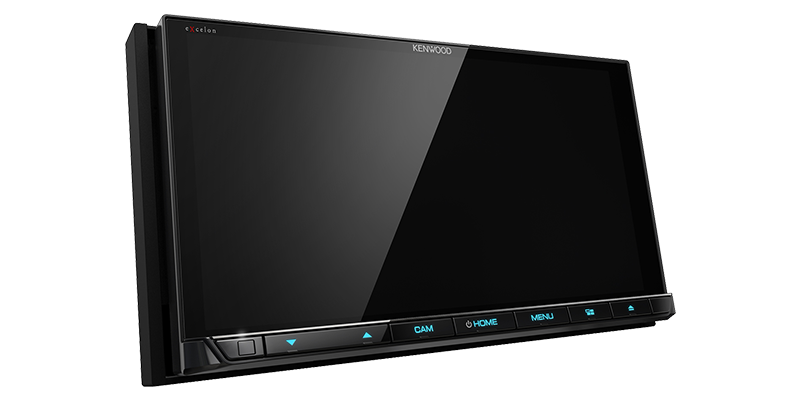

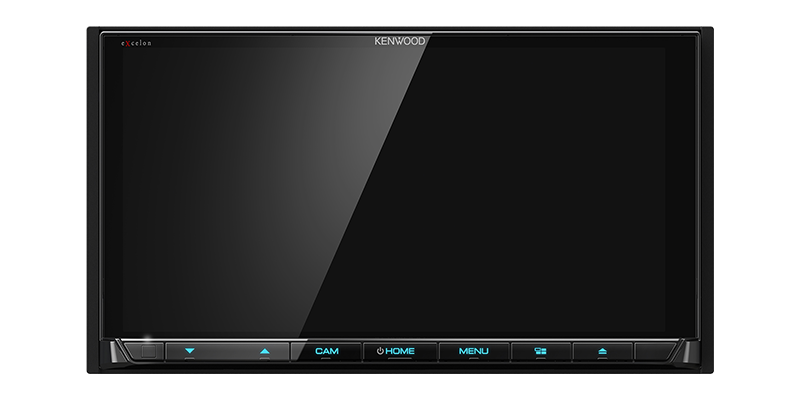

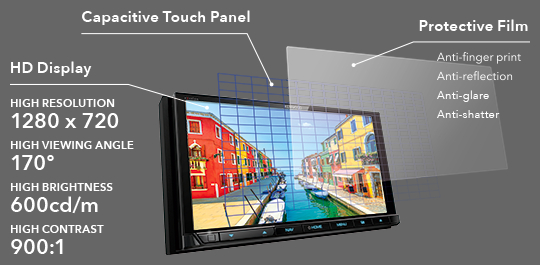

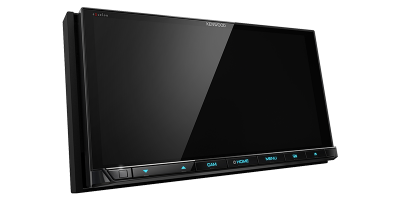

High Definition Display

HD display delivers vivid colors with high-contrast and sharpness. Featuring an all-new electrostatic capacitive touch panel and HD LCD panel, with a high luminance white LED backlight.

Convenient and Easy-to-Use Capacitive Touch Panel

Provides a high contrast ratio, crystal clear display, and vivid text. Easy to use widgets provide access to information screens with a swipe.

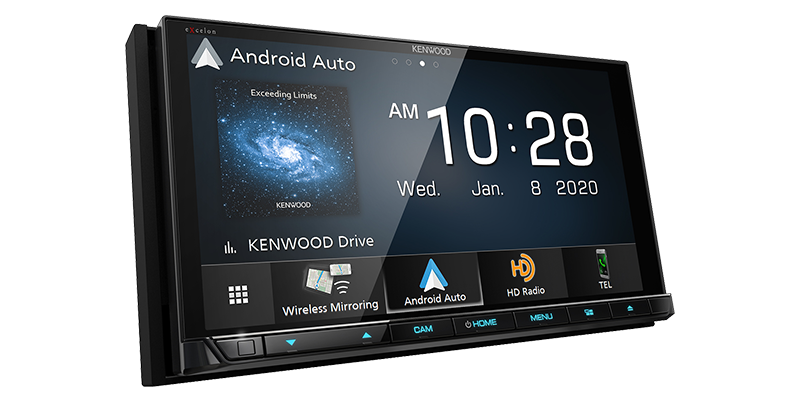

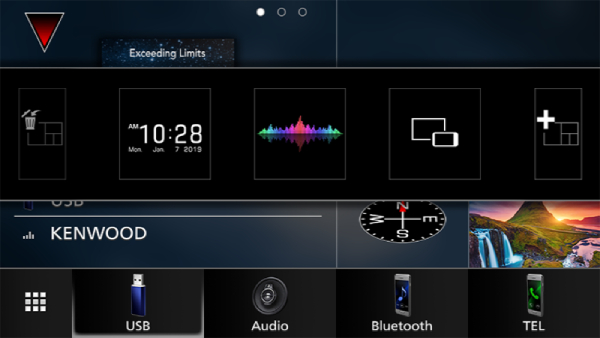

Customizable Multi Widget Screen

You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, and more.

Equipped with Dual USB Ports

Play your music from one USB port and use the other to charge your device, or charge both at the same time.

SiriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio.

Built-in HD Radio Tuner

HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.

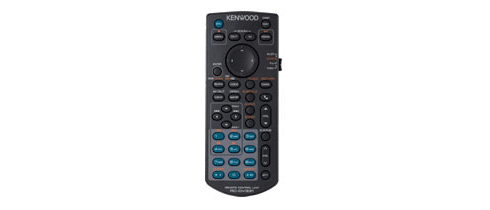

Remote Control (Optional)

This receiver unit can be operated using the optional remote control KNA-RCDV331.

DVD Section
Signal to Noise ratio	90.5dB (DVD-Video 96k)
Total harmonic distortion 1kHz	0.010%
44.1k Sampling	20 - 20,000 Hz
48k Sampling	20 - 22,000 Hz
Frequency response 96k Sampling	20 - 44,000 Hz
Wow & Flutter	Below Measurable Limit
Video Decoder	MPEG1/2,MPEG4 / WMV / H.264 / MKV
Audio Decoder	MP3 / WMA / AAC / WAV / FLAC / Vorbis
Audio Decoder	Dolby Audio
D/A Converter	24 / 32Bit
Audio Decoder	Linear PCM
Monitor Section
Back lighting	LED
Pixel arrangement	RGB striped arrangement
Effective pixels	99.99%
Number of pixels	2,764,800
Number of pixels	1280H x 720V x RGB
Drive system	TFT active matrix system
Display system	AAS LCD panel
W x H	152.1 mm x 79.5 mm, 5-63/64 x 3-1/8 inch
Picture size	6.75 inches(diagonal) wide
Bluetooth Section
Band PASS FILTER frequency	250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through
Band PASS FILTER frequency	Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz]
SLOPE	-12/-18/-24[dB/Oct.]
HIGH PASS FILTER frequency	250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
SLOPE	3Way X'Over
SLOPE	-6/-12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency	30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
SLOPE	-6/-12/-18/-24[dB/Oct.]
HIGH PASS FILTER frequency	Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
Gain	2Way X'Over
Gain	-9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
frequency (Hz) (BAND1-13)	62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
BAND	13Band
DSP Section	Graphics equalizer
Profile	PBAP (Phonebook Access Profile)
Profile	-
Profile	AVRCP (V1.6) (Audio/Video Remote Control Profile)
Profile	A2DP (Advanced Audio Distribution Profile)
Profile	SPP (Serial Port Profile)
Profile	HFP (V1.7) (Hands Free Profile)
Multi Profile Support	Multi Profile
Audio Codec	SBC / AAC / LDAC
Maximum Communication range	Line of sight approx.10m(32.8ft)
RF Output Power (E.I.R.P.)	4dBm (MAX), Power Class 2
Frequency	2.402 2.480 GHz
Technology	Bluetooth Ver5.0
Wi-Fi
Output Power 5GHz/MIMO	11ac(20MHz):11dBm±2dB / 11ac(40MHz):11dBm±2dB / 11ac(80MHz):11dBm±2dB
Output Power 5GHz/MIMO	11n(20MHz):11dBm±2dB / 11n(40MHz):11dBm±2dB /
Output Power 5GHz/SISO	11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB
Output Power 5GHz/SISO	11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB /
Output Power 5GHz/SISO	11a:9dBm±2dB /
Output Power 2.4GHz/SISO	11n(20MHz):12dBm±2dB
Output Power 2.4GHz/SISO	11b:14dBm±2dB / 11g:13dBm±2dB /
Transfer rates (MAX)	11ac: 867 Mbps
Transfer rates (MAX)	11g: 54 Mbps / 11n: 300 Mbps /
Transfer rates (MAX)	11a: 54 Mbps / 11b: 11 Mbps /
Channels	Auto(149,153,157,161ch)
Channels	Auto(1-11ch)
Frequency Range	Dual Band ( 2.4GHz / 5GHz )
IEEE Standard	802.11 a/b/g/n/ac
Wireless Mirroring Section
Touch Control	UIBC
Copyright protection	HDCP2.2
Mode	Sink
USB I/F Section
Video Decoder	MPEG1/2,MPEG4 / WMV / H.264 / MKV
DVD Section
Dynamic range	89dB (DVD-Video 96k)
DISC Format	DVD-Video / VIDEO-CD / CD-DA
Quantifying bit number	16 / 20 / 24bit
USB I/F Section
USB Standard	USB2.0 High Speed
File System	FAT 16/32, exFAT, NTFS
Maximum Power Supply Current	DC5V=1.5A
D/A Converter	24/32Bit
Audio Decoder	MP3 / WMA / AAC / WAV / FLAC / Vorbis
Audio
Preout impedance ()	=< 300 Ohms
Preout level (V)	5V / 10kOhms
Output frequency band	20 - 88,000Hz
Typical Power Output (Front&Rear)	22Wx4
Typical Power Output (Front&Rear)	(at less than 1%THD)
Typical Power Output (Front&Rear)	Full Bandwidth Power
Maximum Power Output (Front&Rear)	50Wx4
Video
Analog RGB input	-
Audio Output level (Mini jacks)	0.9 V / 10 kOhms
Audio Output level (RCA jacks)	-
Video Output level (RCA jacks)	1 Vp-p / 75 Ohms
Video Input level (RCA jacks)	1 Vp-p / 75 Ohms
External audio max input level (Mini jacks)	2 V / 25 kOhms
External audio max input level (RCA jacks)	-
External video input level (Mini jacks)	1 Vp-p / 75 Ohms
External video input level (RCA jacks)	-
Color system of external video input	NTSC/PAL
AM
Usable sensitivity	28dB
(Frequency step)	(10kHz)
Frequency Range	530kHz - 1700kHz
FM
Stereo separation	45dB (1kHz)
Selectivity	Over 80dB (
S/N (dB)	65dB (MONO)
Frequency response	(
Frequency response	30Hz - 15kHz
DIN S/N 46dB	1.13V / 75Ohms
Quieting sensitivity	10.2dBf
S/N30dB	0.8V/75
Usable sensitivity	9.3dBf
(Frequency step)	(200kHz)
Frequency Range	87.9MHz - 107.9MHz
Digital AM
S/N	80dB (STEREO)
Frequency Response	(
(Frequency step)	(10kHz)
Frequency Response	40Hz - 15kHz
Digital FM
S/N	80dB (STEREO)
Digital AM
Frequency Range	530kHz - 1700kHz
Digital FM
Frequency Response	(
Frequency Response	20Hz - 20kHz
(Frequency step)	(200kHz)
Bluetooth Section
Subwoofer Level	-50 to 10dB
Digital FM
Frequency Range	87.9MHz - 107.9MHz
Bluetooth Section
Gain	-8 to 0dB
Front / Rear /Subwoofer Delay	0 - 20.01ft (0.03or0.04ft Step)
SLOPE	Position
SLOPE	-12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency	30/40/50/60/70/80/90/100/120/150/Through[Hz]
SLOPE	-12/-18/-24[dB/Oct.]
Navigation Section
Weight Main unit	(Excluding trim plate and sleeve)
Weight Main unit	5.3 lb
Weight Main unit	2.4 kg
(with Sleeve)	7-3/16 x 4-7/16 x 6-7/16 inch
(with Sleeve)	182mm x 112mm x 163mm
Audio
Speaker Impedance ()	4-8 Ohms
Navigation Section
Operating voltage	12V DC Car Battery
Installation Dimensions WxHxD	178mm x 100mm x 160mm
Installation Dimensions WxHxD	7 x 3-15/16 x 6-5/16 inch
