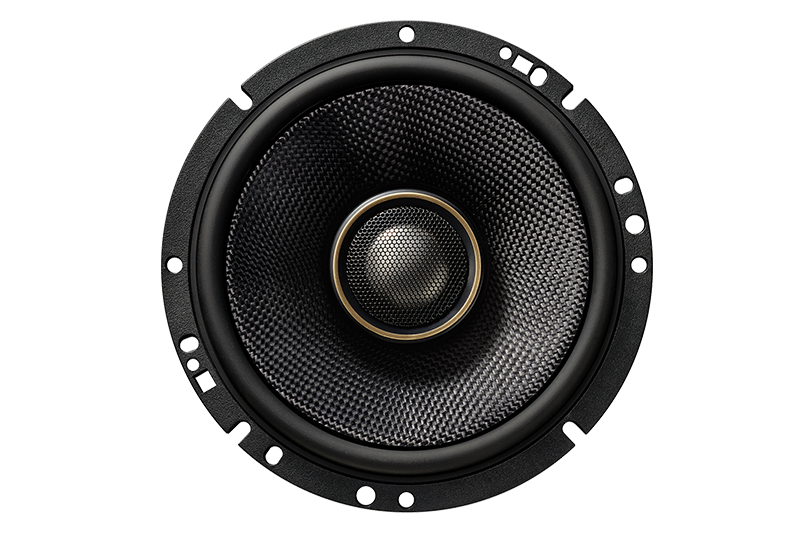

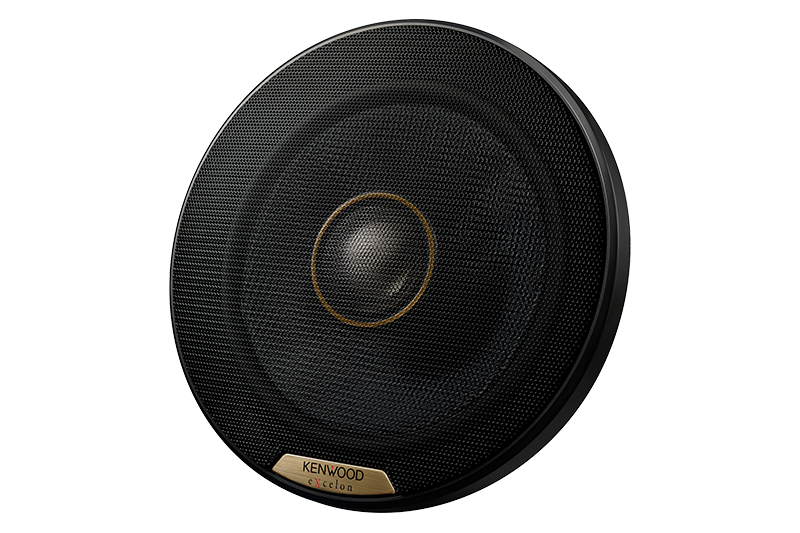

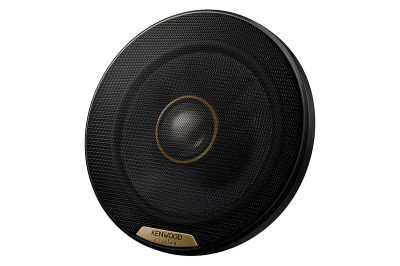

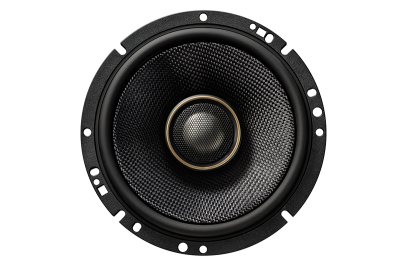

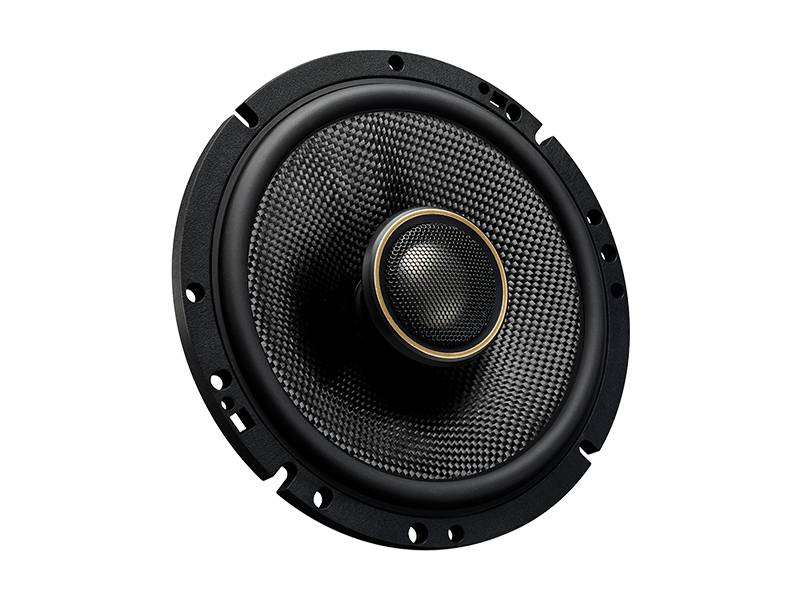

Kenwood High-Resolution Audio Certified 2-Way Speaker - XR-1701
XR-1701
- Glass Fiber Cone
- 1-3/16” Hard Dome Tweeter
- GM Bracket
RICH AND IMMERSIVE HIGH-RESOLUTION AUDIO
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.

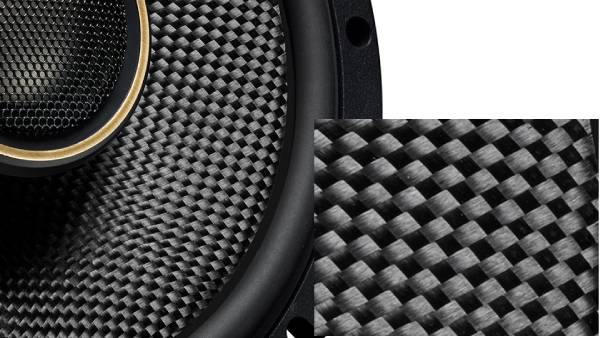

GLASS FIBER CONE
The glass fiber cone combines high-strength with lightweight materials, allowing the speaker to reproduce all sounds from impactful bass notes to delicate tones

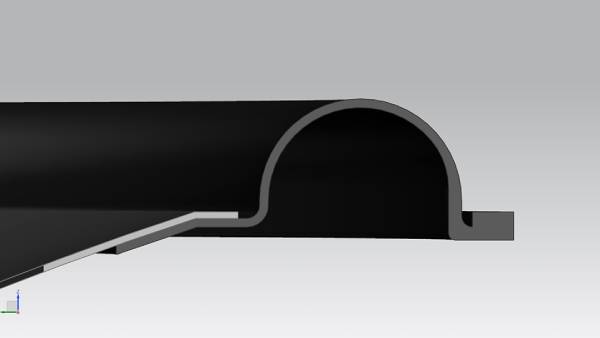

SURROUND ROLL SHAPE
Asymmetrical thickness of the surround roll shape provides better focussed bass.

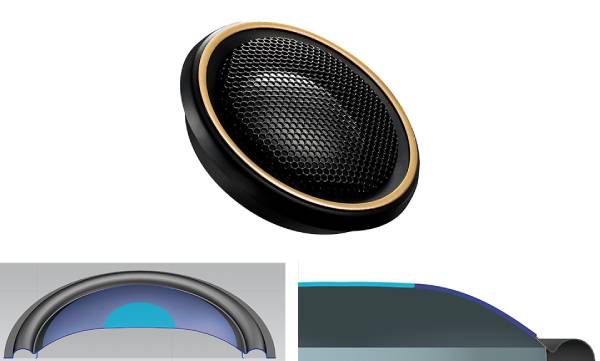

1-3/16” LARGE TWEETER DESIGNED FOR HIGH RESOLUTION
1-3/16” (30mm) tweeters have a larger surface area than most tweeters which allows clear reproduction of vocal sound up through ultra high frequency range.
With its compound curvature diaphragm, a large 1-3/16” (30mm) titanium hard dome provides the ultimate in high frequency performance.

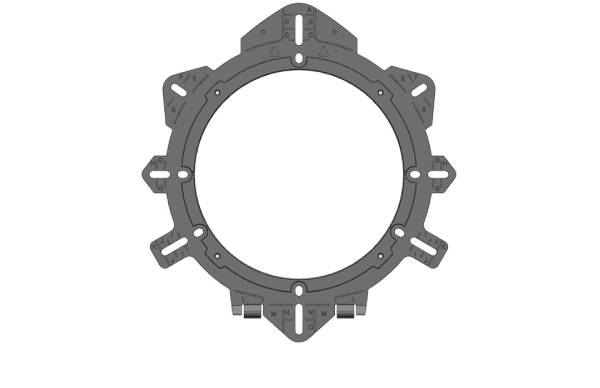

WOOFER MULTI-BRACKET
A multi-bracket is included to make installation easier in a varierty of vehicle types.
| Weight | |
|---|---|
| Net Weight with Grille | 1,130ｇ , 2.5 lb |
| Dimension | |
| Mounting Depth | 59 mm , 2-5/16 inch |
| Height from the mounting surface without Grille | 21 mm , 13/16 inch |
| Height from the mounting surface with Grille | 24.5 mm , 15/16 inch |
| Cut-out Diameter | 140 mm , 5-1/2 inch |
| Depth | 83.5 mm , 3-5/16 inch |
| Height | 180 mm , 7-1/16 inch |
| Width | 180 mm , 7-1/16 inch |
| Network | |
| Tweeter | HPF , -12dB/oct |
| Tweeter | |
| Magnet | Neodymium |
| Size | 30mm , 1-3/16inch |
| Diaphragm | Titanium Dome |
| Woofer | |
| Surround | Rubber |
| Magnet | Ferrite , φ90 x t15 |
| Size | 165 mm , 6-1/2 inch |
| Diaphragm | Glass Fiber |
| CTA Standards | |
| Frequency Response | 64 Hz~35,000 Hz (-3dB) |
| Sensitivity | 87dB/ W at 1 m |
| Power Handling | |
| Power Handling | 300W |
| Frequency Response | 45 Hz~40,000 Hz (-10dB) |
| CTA Standards | |
| RMS Power | 100Watts RMS |
| Impedance | 3Ω |
| Weight | |
| Net Weight without Grille | 1,050g , 2.3 lb |
| Gross Weight | 3.4 kg , 7.5 lb |
| Accessory | Grille Assy 2pcs |
| Accessory | Bracket (WF) 2pcs |
| Accessory | Adhesive Tape 1set |
| Accessory | Tapping Screw (φ4x25mm) 12pcs |
| Accessory | Tapping Screw (φ4x18mm) 8pcs |
| Accessory | Speed Nut (φ4) 16pcs |
| Accessory | Manual |
| Accessory | Warranty Card |
