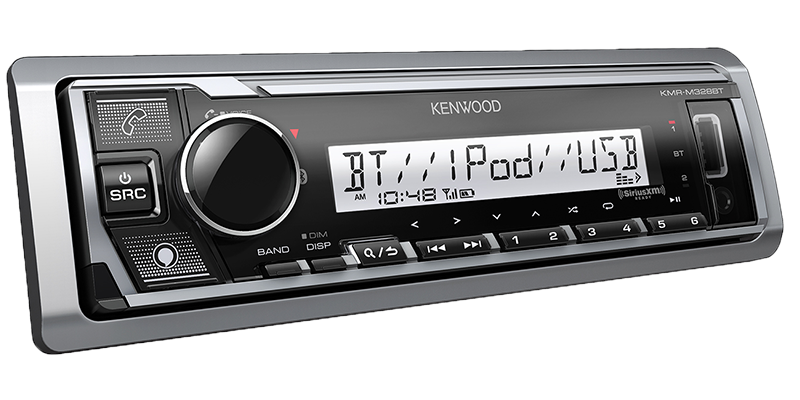

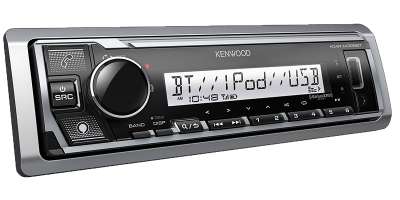

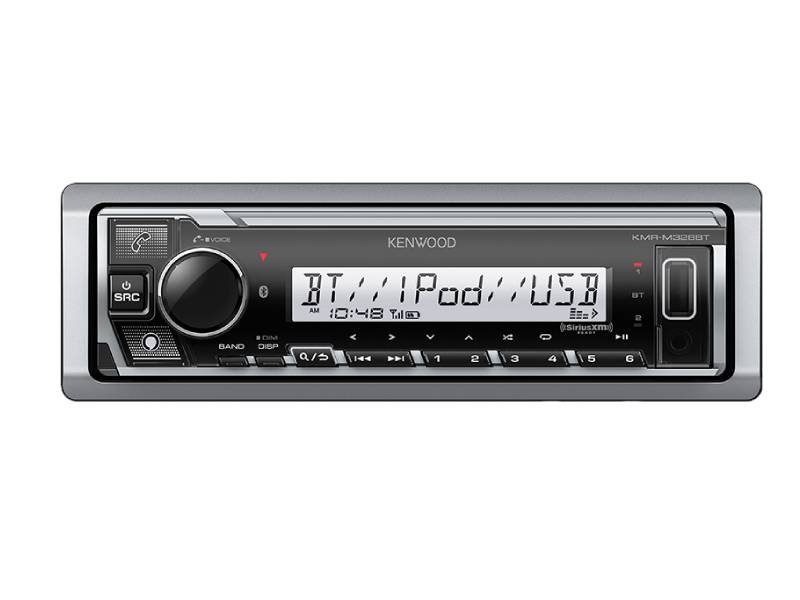

Kenwood Marine,Motorsports Digital Media Receiver with Bluetooth - KMR-M328BT
KMR-M328BT
- 255 Segment 1.5 Line Text Display
- Amazon Alexa Ready
- Spotify Ready
- Bluetooth Direct Access Button
- Variable Color Illumination
- Conformal Coating
- 3 Preouts 4.0V
Smartphone Connectivity
Enjoy convenient control of popular apps like Spotify and Pandora,built-in Bluetooth for hands-free calls and streaming music,as well as the ability to use your smartphone like a wireless remote control.

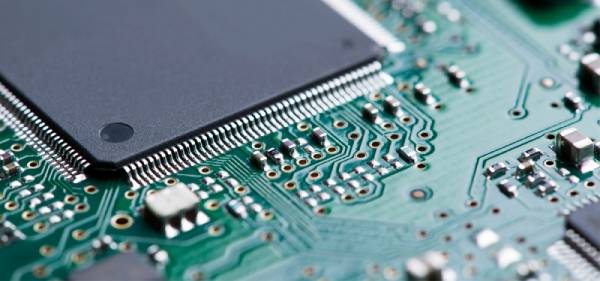

The Best Audio Experience
Sound quality enthusiasts will love the playback support of various types of music formats,including compatibility with FLAC files.
Simple sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

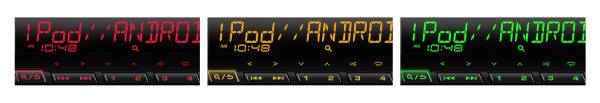

Match Your Mood with Variable Color Illumination
Bright variable color LED's can be adjusted to match any color dash lighting.

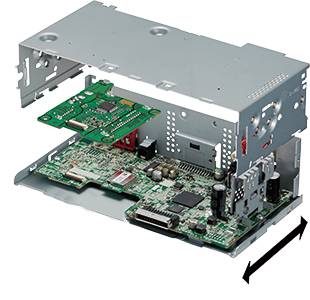

Short Chassis Design
With audio receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.

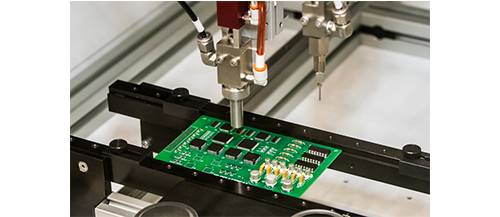

Conformal Coating
Improved moisture resistance of the circuit boards to prevent corrosion.
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio.
(Optional SiriusXM tuner required, sold separately)
Spanish and French Text Display
On-screen display menu now available in Spanish and French.

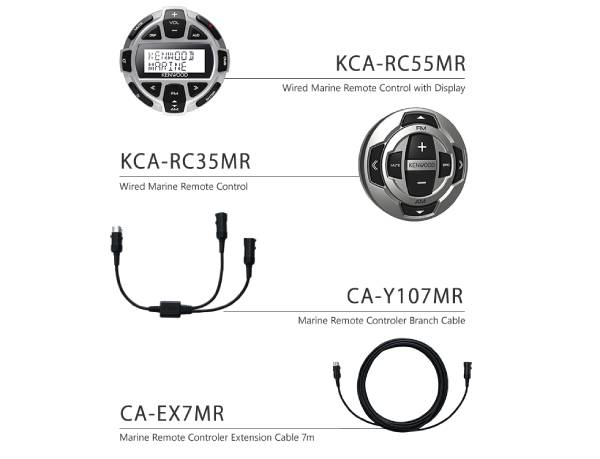

Wired Remote Control (Optional)
Remote control and extensional remote cable are optionally available.
| FM | |
|---|---|
| Frequency Range(Frequency step) | 87.9MHz to 107.9MHz(200kHz) |
| Usable SensitivityS/N30dB | 8.2dBf(0.71μV/75Ω） |
| Quieting SensitivityDIN S/N 46dB | 17.2dBf(2.0μV/75Ω） |
| Frequency Response (±3.0dB) | 30Hz to 15kHz |
| S/N | 64.0dB(MONO) |
| Stereo Separation | 40dB(1kHz) |
| AM | |
| Frequency Range(Frequency step) | 530kHz to 1700kHz(10kHz) |
| Usable SensitivityS/N:20dB | 29dBμ (28.2μ) |
| Preout Level(mV)/Load-Unbalanced | 4000mV/10kΩ |
| Preout Impedance(Ω) | ≦600Ω |
| Speaker Impedance(Ω) | 4 to 8Ω |
| USB I/F | |
| USB | USB 1.1 / 2.0 High Speed |
| File System | FAT12 / 16 / 32 |
| Maximum Supply current | DC5V(DC logo) 1.5A |
| Frequency Response | 20Hz to 20kHz(±1dB) |
| S/N Ratio (dB) | 98dB(1kHz) |
| Dynamic Range | 93dB |
| Channel Separation | 92dB |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decode | Compliant with Windows Media Audio |
| AAC Decode | AAC-LC ".aac", ".m4a" files |
| WAV Decode | Linear-PCM |
| FLAC Decode | FLAC file (Up to 96kHz/24bit) |
| AUX | |
| Frequency Response | 20Hz to 20kHz ±3dB |
| Input | |
| Input Maximum Voltage | 1000mV |
| Input Impedance | 30kΩ |
| AMP | |
| Maximum Power | 50Wx4 |
| Full Bandwidth Power (at less than 1%THD) | 22Wx4 |
| TONE | |
| Band1 | 62.5Hz ±9dB |
| Band2 | 100Hz ±9dB |
| Band3 | 160Hz ±9dB |
| Band4 | 250Hz ±9dB |
| Band5 | 400Hz ±9dB |
| Band6 | 630Hz ±9dB |
| Band7 | 1kHz ±9dB |
| Band8 | 1.6kHz ±9dB |
| Band9 | 2.5kHz ±9dB |
| Band10 | 4kHz ±9dB |
| Band11 | 6.3kHz ±9dB |
| Band12 | 10kHz ±9dB |
| Band13 | 16kHz ±9dB |
| Bluetooth | |
| Version | Bluetooth 4.2 |
| Frequency Range | 2.402 to 2.480GHz |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 |
| Maximum Communication range | Line of sight approx.10m(32.8ft) |
| Profile | HFP 1.7.1 (Hands Free Profile) |
| Profile | SPP(Serial Port Profile) |
| Profile | PBAP(Phonebook Access Profile) |
| Profile | A2DP(Advanced Audio Distribution Profile) |
| Profile | AVRCP 1.6.1 (Audio/Video Remote Control Profile) |
| GENE | |
| Operating voltage | 12V DC car battery |
| Installation Size (W)(H)(D) | 182(mm) 7-3/16(in)53(mm) 2-1/16(in)100(mm) 3-15/16(in) |
| Net Weight (Trim plate and Mounting sleeve: Included) | 0.7(kg) 1.5(lbs) |
