Kenwood Motorsports HD Dash Camera With GPS - STZ-RF200WD
STZ-RF200WD
Call for availability

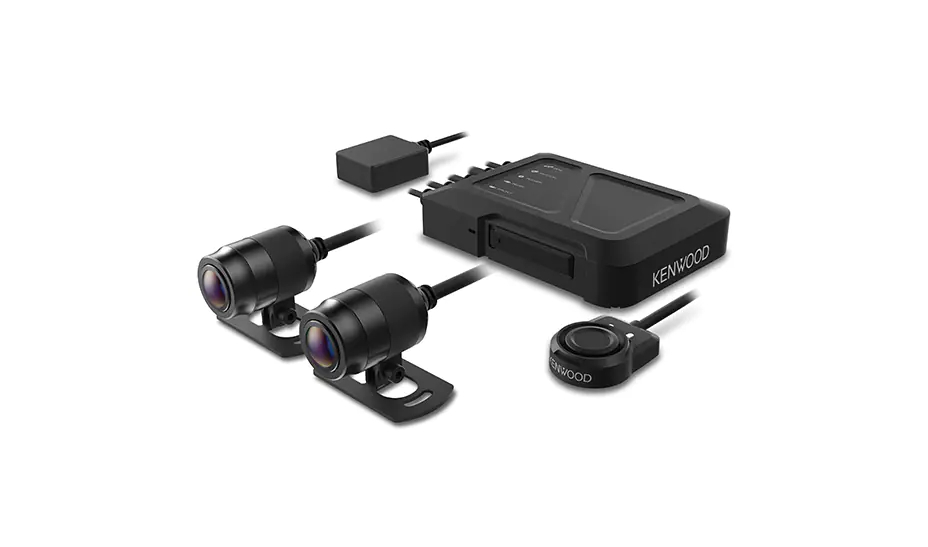

Catch ALL of the ACTION

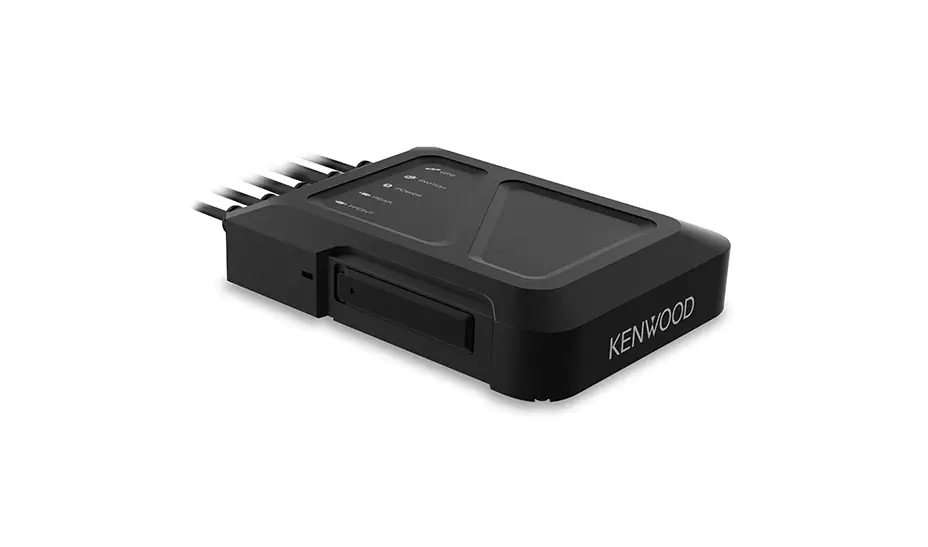

Introducing a motorsports-grade Dual Camera recording system with hide-a-way control box for stealth installations in motorcycles, side-by-sides/UTV's, ATV's, watercraft & more.

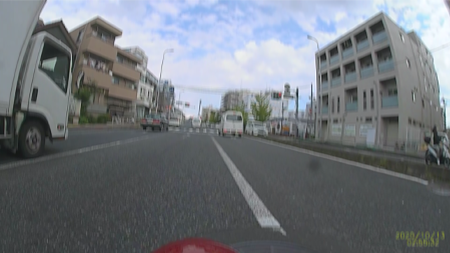

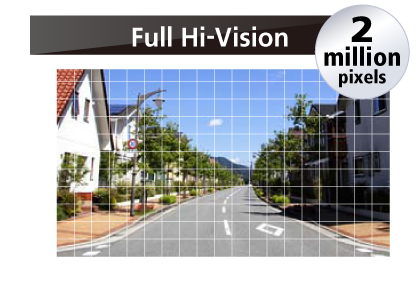

2 Megapixel HIGH DEFINITION Recording
Captures clear video from both directions.

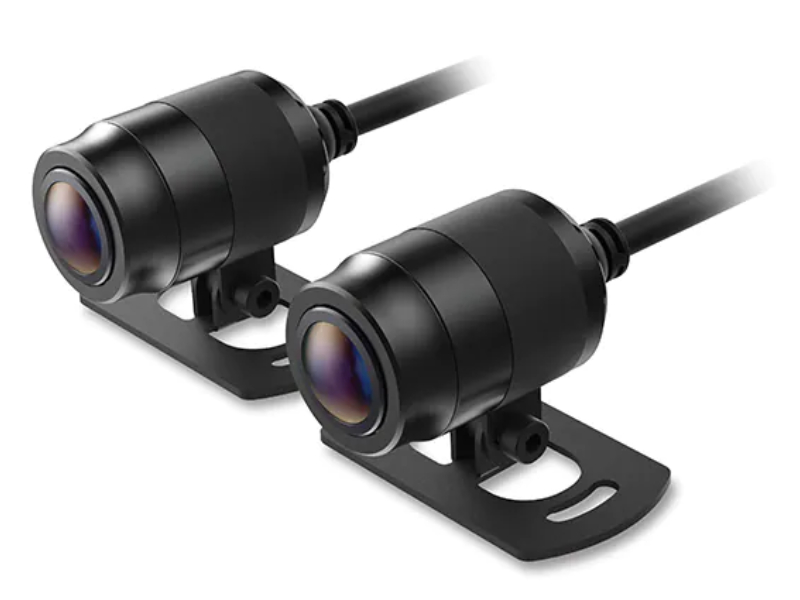

FRONT & REAR View Recording
The STZ-RF200WD includes 2 cameras: 1 to record in front of your vehicle and 1 to record behind your vehicle, all at the same time.

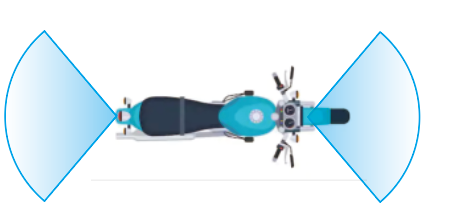

EXTRA WIDE VIEW Camera Coverage
Both cameras cover a 195° (diagonal) extra wide range field of view.

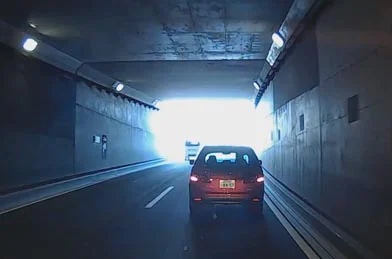

HDR (High Dynamic Range) for Backlighting
Built-in HDR easily records clear images in dark or well lit environments without underexposing or overexposing the image, ensuring superior night vision recording.

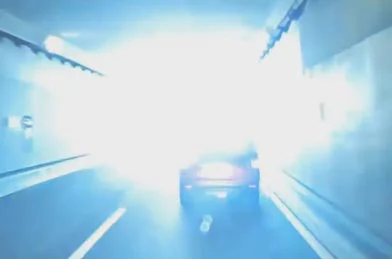

without HDR
with HDR
EIS (Electronic Image Stablization)
Bumpy roads and surfaces have met their match! Count on smooth and steady images with effective compensation for camera shakes with its built in image stabilization.
without EIS
with EIS

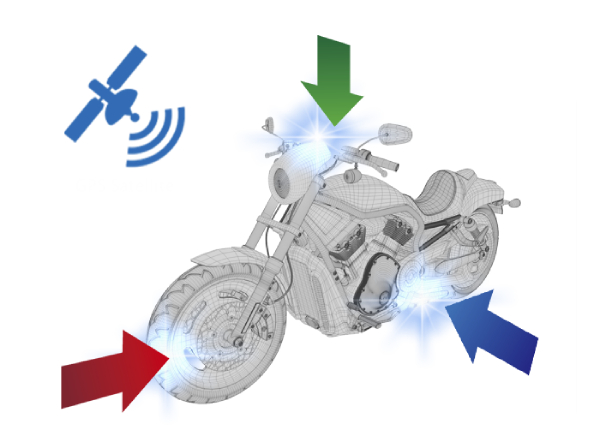

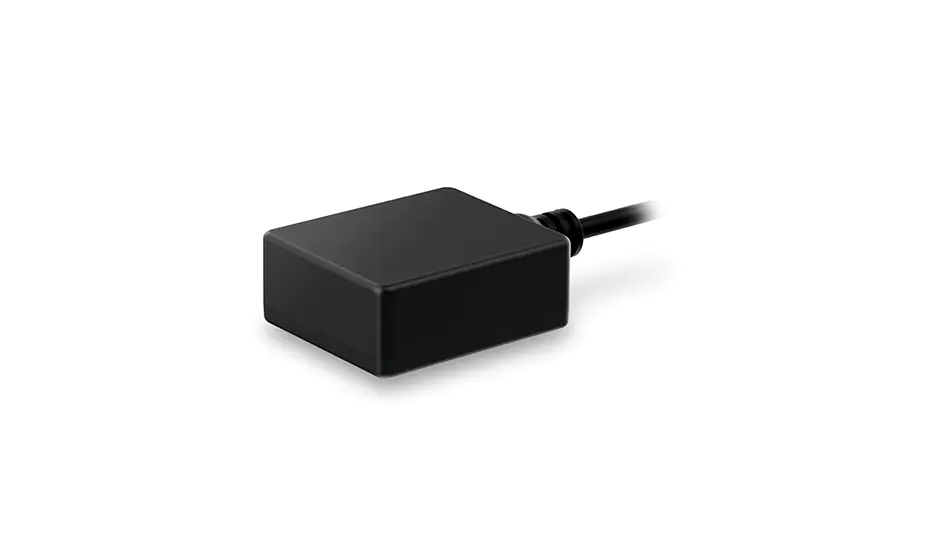

3-axis G-sensor & GPS
The STZ-RF200WD is equipped with a 3-axis G-Sensor designed to detect a collision and GPS that records speed, latitude, and longitude.
Waterproof & Dustproof
The cameras, GPS, and switch all carry an IP66/67, meaning that they can resist high-pressure, heavy sprays of water. They are also fully sealed against dust entry. The main unit carries an IP55 rating, meaning that it is protected against dust ingress and low pressure water jets.
MEMORY Included
A 32GB microSD card is included so that you can be ready to catch all of the action right out of the box. The system supports up to a 256GB microSD card (sold separately).
SUPER Capacitor
If power is lost, this prevents the recorded video file from being corrupted, as it provides enough power to allow the video file to close properly.

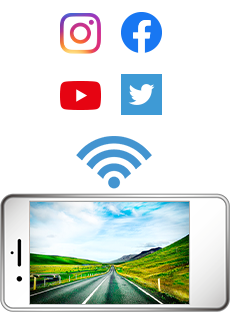

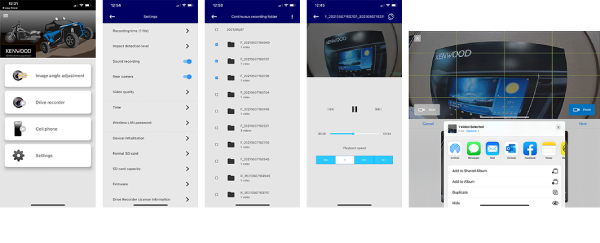

WIRELESS Link
Enables video playback, file transfer, and easy setup via the KENWOOD Motorsports CAM smartphone app
Once files are transferred to device, you can easily share recorded videos.

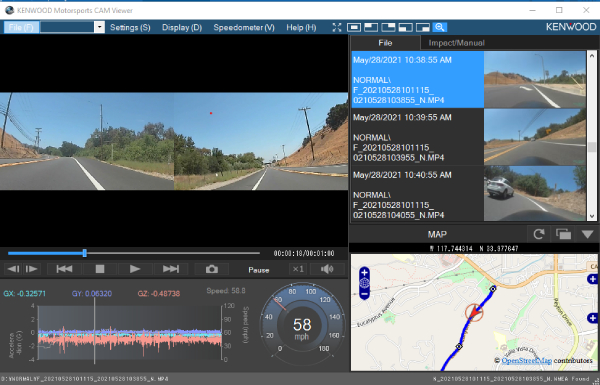

Review the ACTION
KENWOOD Motorsports CAM Viewer is a desktop software for displaying video recorded with this system.

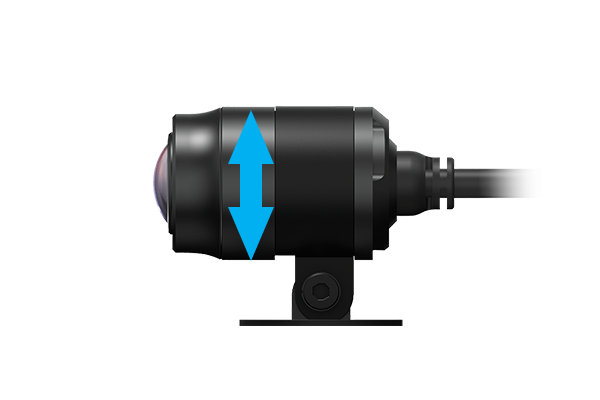

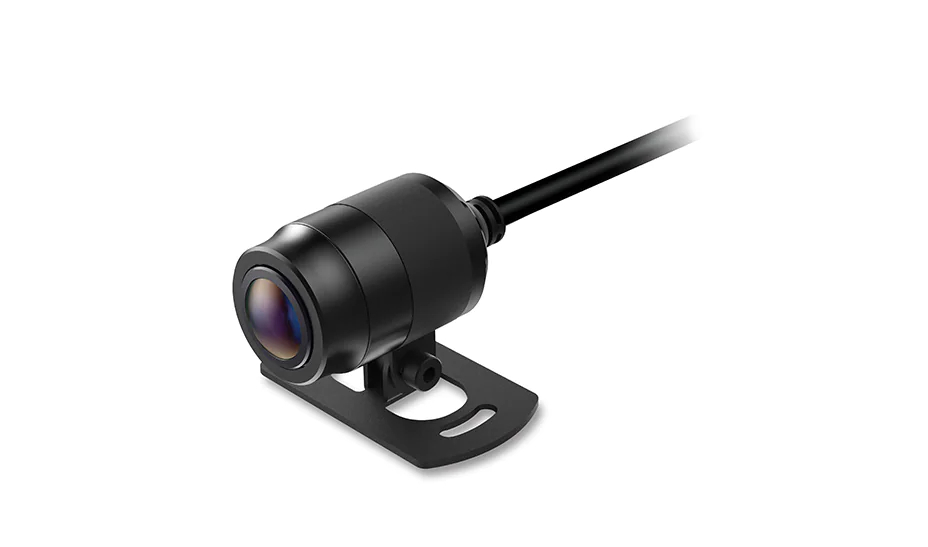

Compact Front & Rear Cameras
Small camera size provides for a stealthy look and easier installation in various locations.

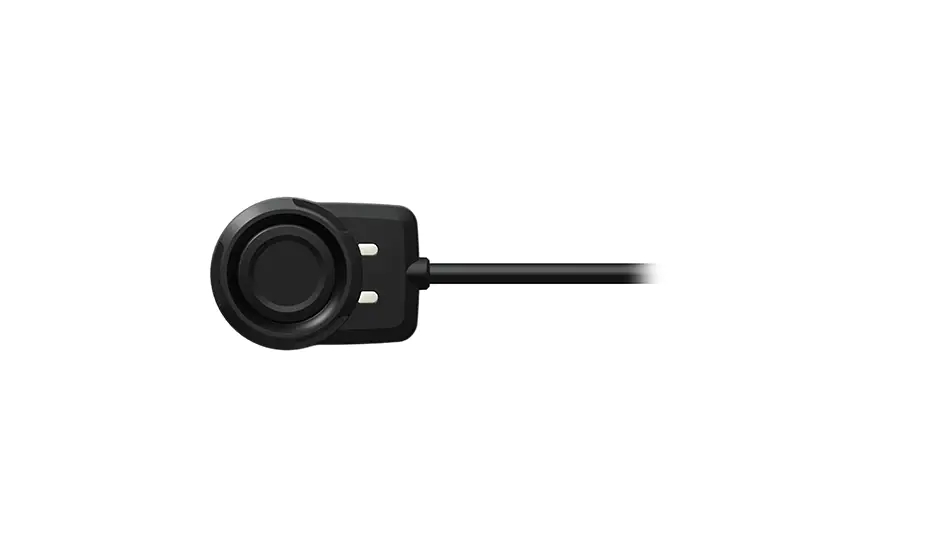

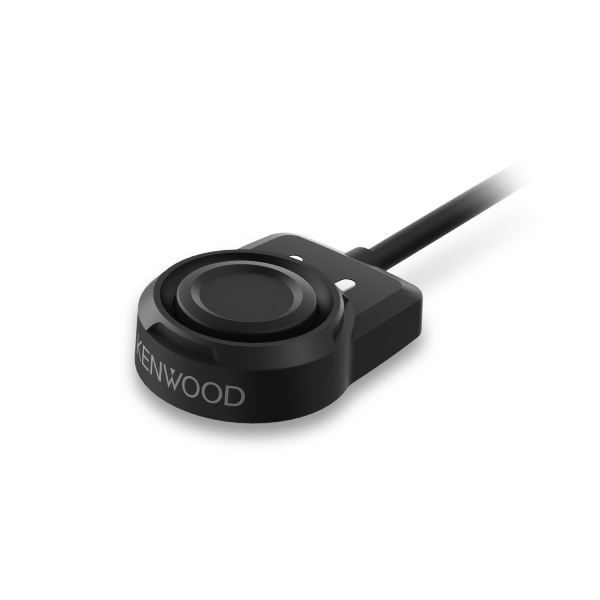

YOU are in CONTROL
Multi-function control switch for simplified system control.
System Installation Example
- Cable Length(Total connected length from main unit)
- GPS Antenna : 6.6ft / 2m
- Switch : 6.6ft / 2m
- Front Camera : 6.6ft / 2m
- Rear Camera : 6.6ft / 2m
- Power Cable : 3.3ft / 1m

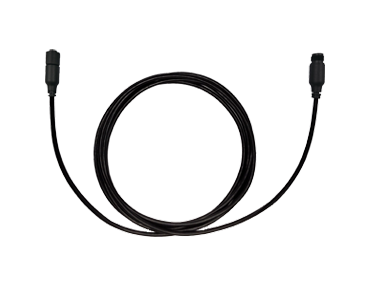

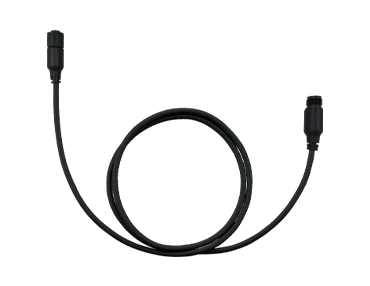

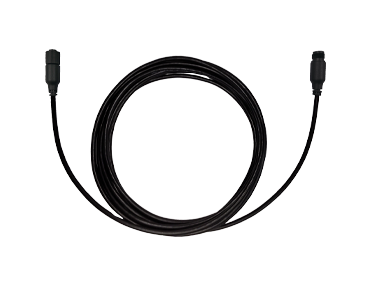

EXPAND Your Options
Optional camera extension cables to enable installation in a larger variety of vehicle types.
STZ-RFCC500
16ft (5m) Extensional Cable
STZ-RFCC300
9ft (3m) Extensional Cable
STZ-RFCC100
3.3ft (1m) Extensional Cable
| Waterproofing/Dustproofing | |
|---|---|
| Main Unit | IP55 |
| Cameras | IP66/67 |
| GPS/GLONASS Antenna | IP66/67 |
| Control Switch | IP66/67 |
| Front & Rear CameraUnits | |
| Image Sensors | 2 Megapixels ( effective pixels : 1.86 megapixels) |
| Lens Viewing Angle | 195° Diagonal (effective angle: 181°) |
| Frame Rate | 27.5 fps |
| F-number | 2.2 |
| Recording Resolution | |
| Recording Resolution | 1920 x 1080 |
| Video Quality | |
| Video Quality | Fine / Normal |
| Video File Format | |
| Video File Format | MP4 ( Video format : H.264 audio format : AAC) |
| Recorded File Length | |
| Recorded File Length | 30 seconds / 1 minute / 3minutes (Recording time for one file) |
| Recording Mode | |
| Recording Mode | Continuous recording, event recording, manual recording |
| Data Recorded | |
| Data Recorded | Video file, time and date, speed, location information |
| Audio Recording | |
| Audio Recording | ON / OFF |
| HDR | |
| HDR | Yes |
| G-sensor | |
| G-sensor | Yes (5 impact sensitivity settings / OFF) |
| GPS | |
| GPS | Yes |
| Electronic ImageStabilization | |
| Electronic ImageStabilization | Yes |
| Positioning Satelites | |
| Positioning Satelites | GPS / GLONASS |
| Storage Media | |
| Storage Media | microSDHC, microSDXC Class 10 UHS-I |
| Storage Media | 16GB to 256GB |
| Recorded video Playback Methods | |
| Recorded video Playback Methods | KENWOOD Motorsports CAM App |
| Recorded video Playback Methods | -iOS 11 or later |
| Recorded video Playback Methods | -Android 7 or later |
| Recorded video Playback Methods | KENWOOD Motorsports CAM Viewer |
| Recorded video Playback Methods | - Apple Mac OS 10.14(Mojave) or later |
| Recorded video Playback Methods | - Microsoft Windows 10 |
| POWER SUPPLY | |
| Power Supply | DC 12V |
| Power Consumption | |
| Power Consumption | 0.48 A |
| Measurement( W x D x H) | |
| Main unit | 79 × 104 × 22.5 mm, 3-1/8 x 4-1/8 x 7/8 inches |
| Camera /pc | 23.5 (Φ) × 34.4 mm, 15/16(Φ) x 13/8 inches |
| GPS/GLONASS Antenna | 27.4 × 33 × 13 mm, 1-1/8 x 1-5/16 x 1/2 inches |
| Control Switch | 25.8 × 36.9 × 9.5 mm, 1 x 1-7/16 x 3/8 inches |
| Weight(Excluding Cable) | |
| Main unit | 105 g (0.2315 lb) |
| Camera / pc | 42 g (0.0926 lb) |
| GPS/GLONASS Antenna | 14 g (0.0309 lb) |
| Control Switch | 9 g (0.0918 lb) |
| Operating Temprature | |
| Operating Temprature | -20 °C to +60 °C, (-4 °F to 140 °F) |
| Warrantly | |
| Warrantly | 1year |
