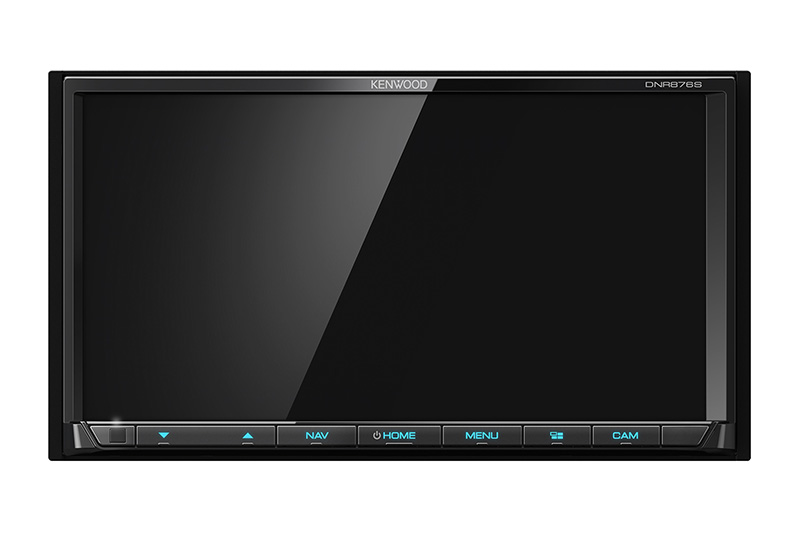

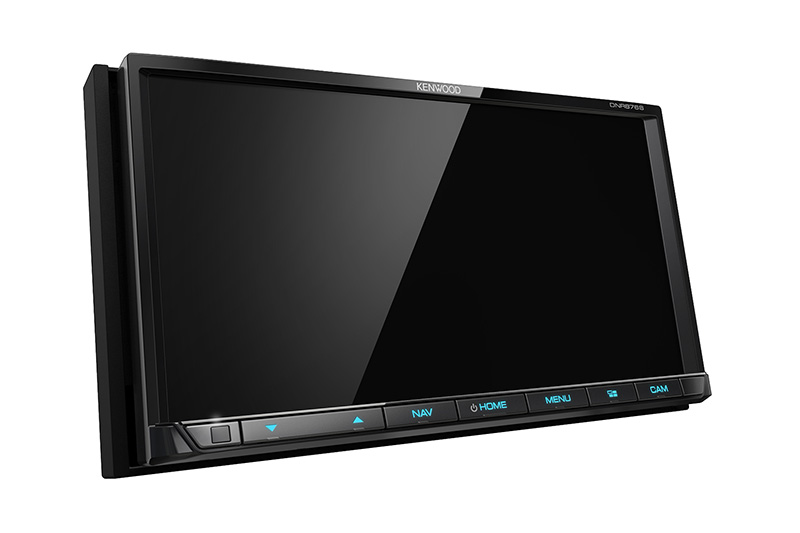

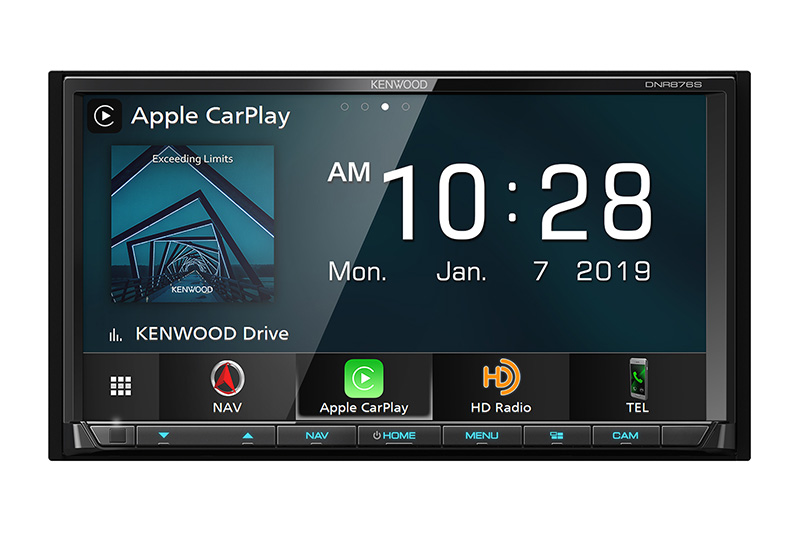

Kenwood Navigation Digital Multimedia Receiver with Bluetooth & HD Radio - DNR876S
Authorized Dealer
Price Match Guarantee
| Our Price | $1,149.00 CAD |
Or as low as $127.67/month over 9 months. Apply Now
Kenwood Navigation Digital Multimedia Receiver with Bluetooth & HD Radio - DNR876S
DNR876S
- 6.95" WVGA Monitor

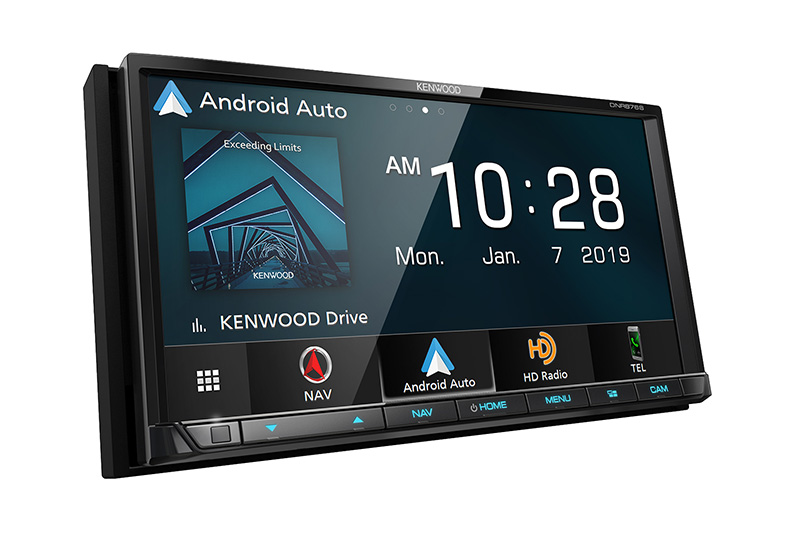

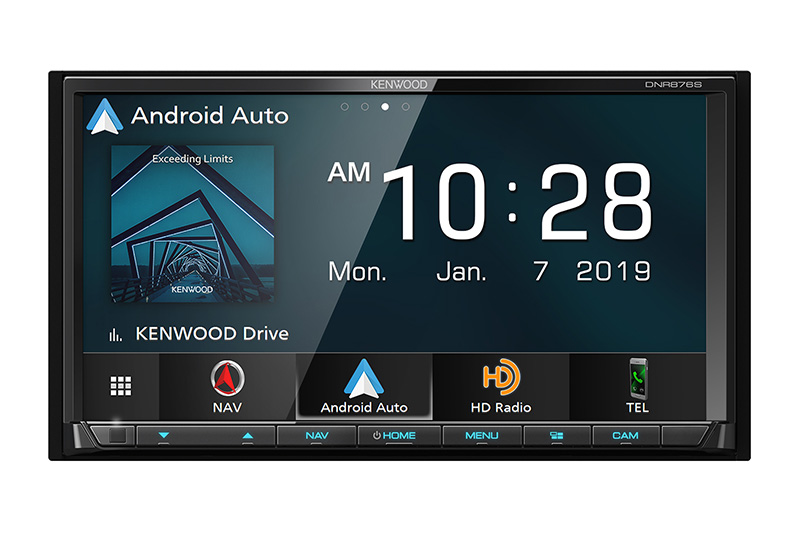

- Android Auto™ & Android Auto™ Wireless Ready

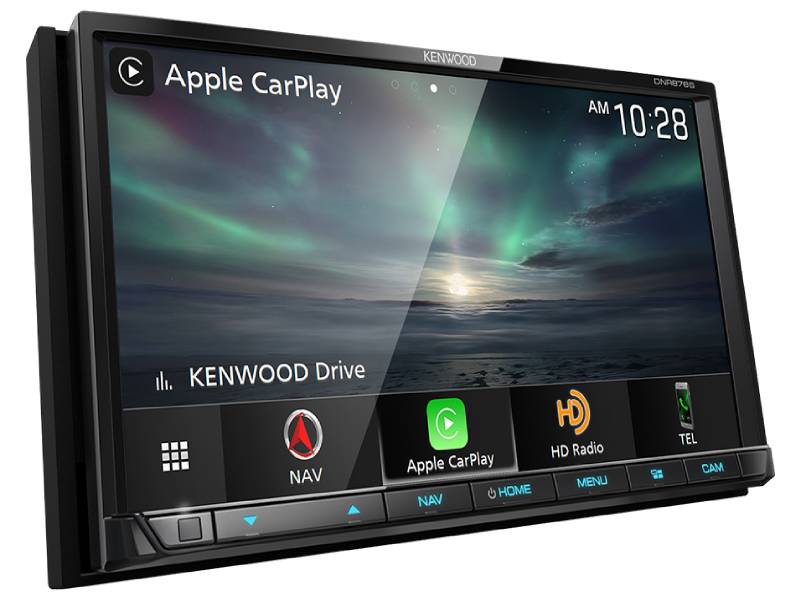

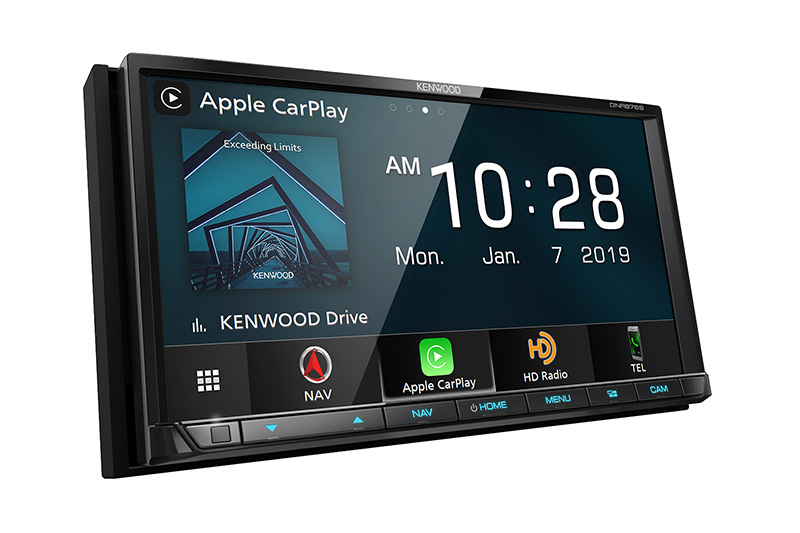

- Wired and Wireless Apple CarPlay® Ready
- High-Resolution Audio Ready
- Customizable Multi Widget Screen
- Built-in Bluetooth, HD Radio & WiFi
- Wireless Mirroring for Android
- 3 Preouts 4V

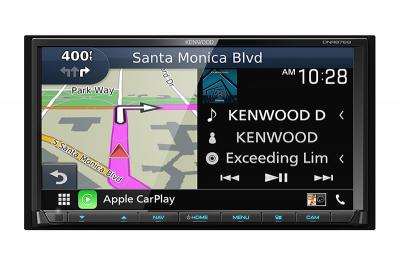

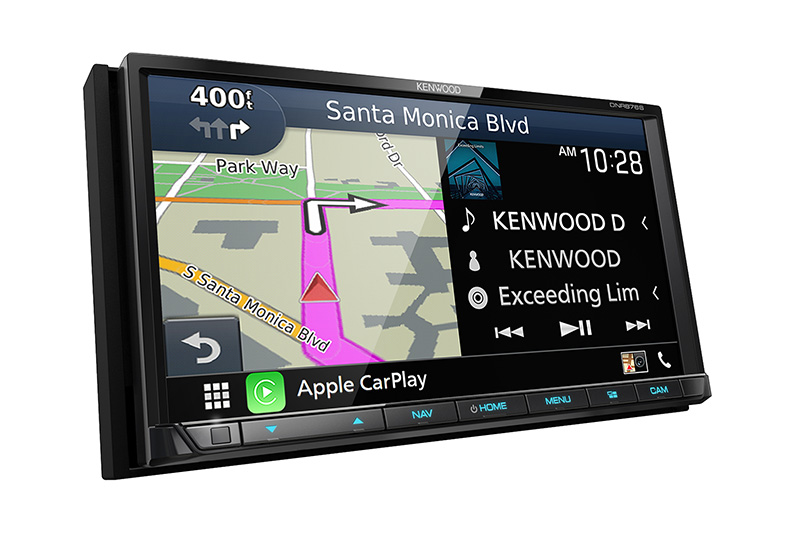

Advanced Navigation
Equipped with the industry leading Garmin navigation software, offering a variety of display options to make your driving easier.

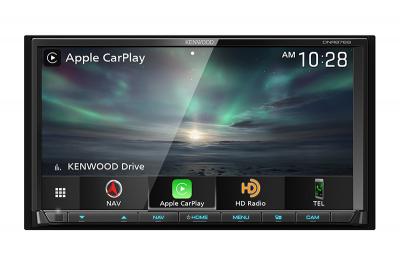

Smartphone Connectivity
Enjoy convenient control of popular apps like Spotify and Pandora, built-in Bluetooth for hands-free calls and streaming music, as well as the ability to use your smartphone like a wireless remote control.
The Best Audio Experience
Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
Safe Driving
Keeping you safe on the road ahead is our top priority.

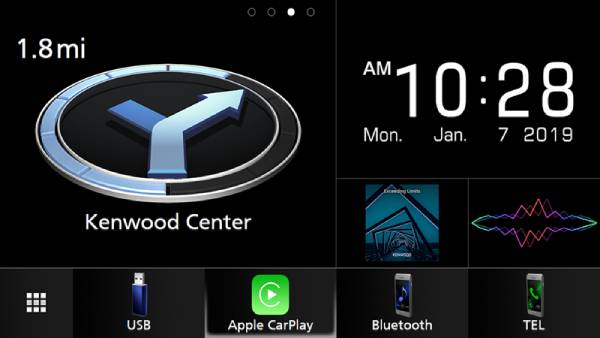

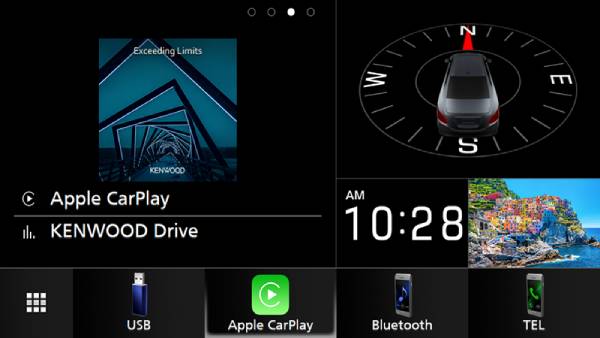

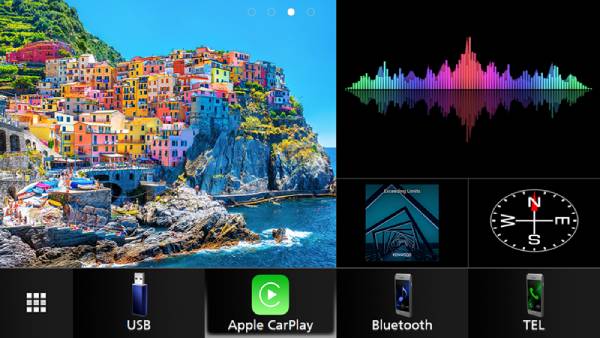

Customizable Multi Widget Screen
You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, weather, turn-by-turn, Garmin navigation and more.

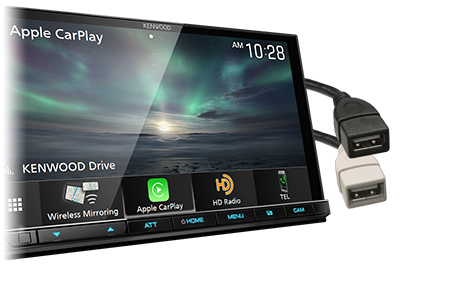

Equipped with Dual USB Ports
Play your music from one USB port and use the other to charge your device, or charge both at the same time.
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio. (Optional SiriusXM tuner required, sold separately)
Built-in HD Radio Tuner
HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.
| USB I/F Section | |
|---|---|
| Frequency response 44.1k Sampling | 20 - 20,000 Hz |
| Frequency response 48k Sampling | 20 - 22,000 Hz |
| Frequency response 96k Sampling | 20 - 44,000 Hz |
| Frequency response 192k Sampling | 20 - 88,000 Hz |
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV |
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis |
| D/A Converter | 24/32Bit |
| Maximum Power Supply Current | DC5V=1.5A |
| File System | FAT 16/32, exFAT, NTFS |
| USB Standard | USB2.0 High Speed |
| Monitor Section | |
| Back lighting | LED |
| Pixel arrangement | RGB striped arrangement |
| Effective pixels | 99.99% |
| Number of pixels | 1,152,000 800H x 480V x RGB |
| Drive system | TFT active matrix system |
| Picture size | 6.95 inches(diagonal) wide |
| W x H | 156.6 mm x 81.6 mm , 6-3/16 x 3-3/16 inch |
| Display system | TN LCD panel |
| SD Section | |
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV |
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis |
| Data Transfer Rate | Maximum 25MB/sec |
| Capacity | Maximum 2T Byte |
| Compatible File System | FAT 16/32, exFAT, NTFS |
| SD Standard | SD / SDHC / SDXC |
| USB I/F Section | |
| Dynamic range | 89dB |
| Signal to Noise ratio | 98.5dB |
| Total harmonic distortion 1kHz | 0.0001% |
| Wi-Fi | |
| Output Power 5GHz/MIMO | 11n(20MHz):11dBm±2dB / 11n(40MHz):11dBm±2dB / 11ac(20MHz):11dBm±2dB / 11ac(40MHz):11dBm±2dB / 11ac(80MHz):11dBm±2dB |
| Output Power 5GHz/SISO | 11a:9dBm±2dB / 11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB / 11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB |
| Output Power 2.4GHz/SISO | 11b:14dBm±2dB / 11g:13dBm±2dB / 11n(20MHz):12dBm±2dB |
| Transfer rates (MAX) | 11a: 54 Mbps / 11b: 11 Mbps / 11g: 54 Mbps / 11n: 300 Mbps / 11ac: 867 Mbps |
| Channels | Auto(1-11ch) Auto(149,153,157,161ch) |
| Frequency Range | Dual Band ( 2.4GHz / 5GHz ) |
| IEEE Standard | 802.11 a/b/g/n/ac |
| Wireless Mirroring | |
| Touch Control | UIBC |
| Copyright protection | HDCP2.2 |
| Mode | Sink |
| Bluetooth Section | |
| Technology | Bluetooth Ver5.0 |
| Frequency | 2.402 – 2.480 GHz |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 |
| Maximum Communication range | Line of sight approx.10m(32.8ft) |
| Audio Codec | SBC / AAC |
| Multi Profile Support | Multi Profile |
| Profile | HFP (V1.7) (Hands Free Profile) SPP (Serial Port Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (V1.6) (Audio/Video Remote Control Profile) PBAP (Phonebook Access Profile) |
| DSP Section | |
| Graphics equalizer BAND | 13Band |
| Graphics equalizer frequency (Hz) (BAND1-13) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k |
| Graphics equalizer Gain | 9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB] |
| 2Way X'Over HIGH PASS FILTER frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] |
| 2Way X'Over SLOPE | -6/-12/-18/-24[dB/Oct.] |
| 2Way X'Over LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz] |
| 2Way X'Over SLOPE | -6/-12/-18/-24[dB/Oct.] |
| Position Front / Rear /Subwoofer Delay | 0 - 20.01ft (0.03or0.04ft Step) |
| Position Gain | -8 to 0dB |
| Position Subwoofer Level | -50 to +10dB |
| Digital FM | |
| Frequency Range (Frequency step) | 87.9MHz - 107.9MHz (200kHz) |
| Frequency Response (±3.0 dB) | 20Hz - 20kHz |
| S/N | 80dB (STEREO) |
| Digital AM | |
| Frequency Range (Frequency step) | 530kHz - 1700kHz (10kHz) |
| Frequency Response (±3.0 dB) | 40Hz - 15kHz |
| S/N | 80dB (STEREO) |
| FM | |
| Frequency Range (Frequency step) | 87.9MHz - 107.9MHz (200kHz) |
| Usable sensitivity | 9.3dBf |
| S/N30dB | 0.8μV/75Ω |
| Quieting sensitivity | 10.2dBf |
| DIN S/N 46dB | 1.13μV / 75Ohms |
| Frequency response (±3.0dB) | 30Hz - 15kHz |
| S/N (dB) | 65dB (MONO) |
| Selectivity | Over 80dB (±400kHz) |
| Stereo separation | 45dB (1kHz) |
| AM | |
| Frequency Range (Frequency step) | 530kHz - 1700kHz (10kHz) |
| Usable sensitivity | 28dBμ |
| Video | |
| Color system of external video input | NTSC/PAL |
| External video input level (Mini jacks) | 1 Vp-p / 75 Ohms |
| External audio max input level (Mini jacks) | 2 V / 25 kOhms |
| Video Input level (RCA jacks) | 1 Vp-p / 75 Ohms |
| Video Output level (RCA jacks) | 1 Vp-p / 75 Ohms |
| Audio Output level (Mini jacks) | 0.9 V / 10 kOhms |
| Audio | |
| Maximum Power Output (Front&Rear) | 50Wx4 |
| Typical Power Output (Front&Rear) | Full Bandwidth Power (at less than 1%THD) 22Wx4 |
| Output frequency band | 20 - 88,000Hz |
| Preout level (V) | 4V / 10kOhms |
| Preout impedance (Ω) | =< 300 Ohms |
| Speaker Impedance (Ω) | 4-8 Ohms |
| Navigation Section | |
| Receiver | High-sensitivity GNSS receiver |
| Receiving frequency | GPS：1575.42MHz GLONASS：1598．0625～1605.375MHz (C/A code ) |
| Acquisition Times | Cold: 26 seconds(typ) All satellites at -130dBm Without aiding |
| Update Rate | 1/second, continuous |
| Accuracy | Position: < 2.0meters,CEP, at -130dBm |
| Accuracy | Velocity: 0.05meter/sec |
| Positioning Method | GPS/GLONASS |
| Antenna | External GNSS Antenna |
| General | |
| Operating voltage | 12V DC Car Battery |
| Maximum Current consumption | 15A |
| Operational temperature range | -10°C to +60°C |
| Weight Main unit | 1.9 kg 4.2 lb |
| Installation Dimensions WxHxD | 178mm x 100mm x 160mm 7 x 3-15/16 x 6-5/16 inch |
| (with Sleeve) | 182mm x 112mm x 163mm 7-3/16 x 4-7/16 x 6-7/16 inch |
