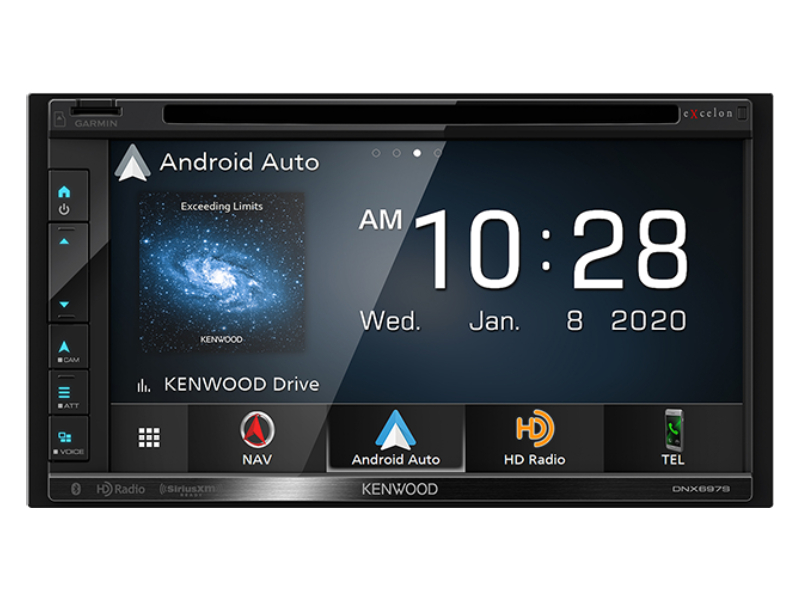

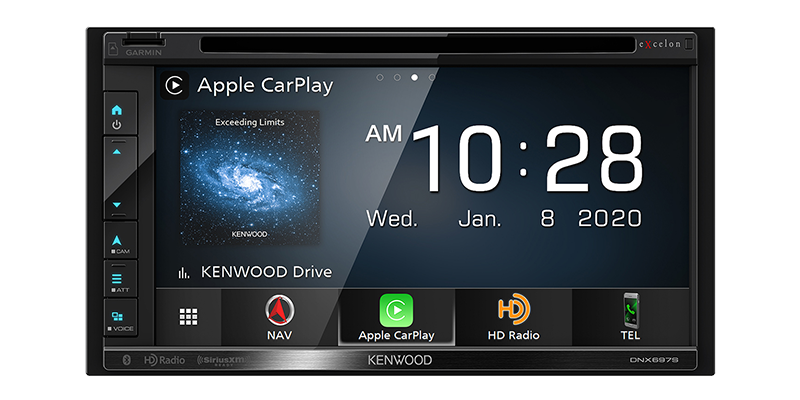

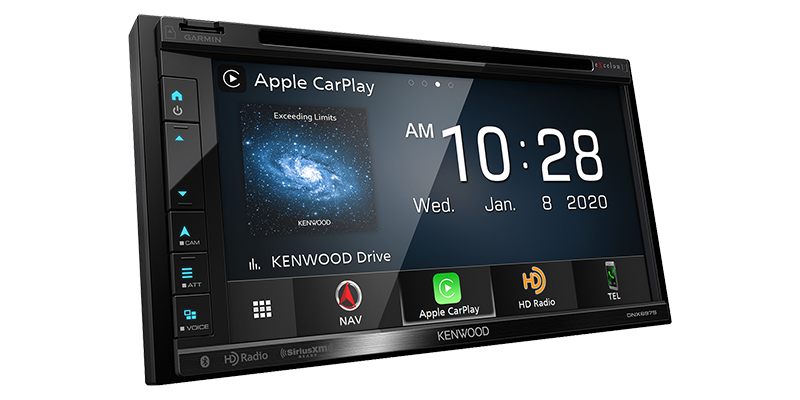

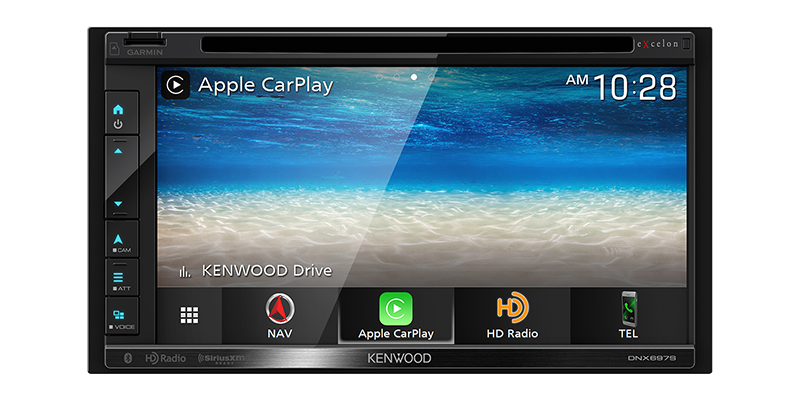

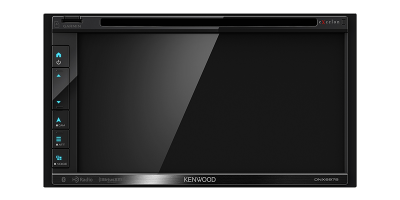

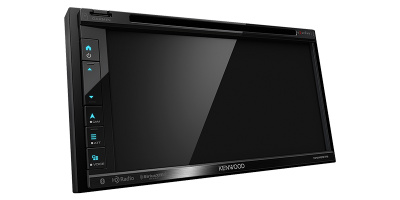

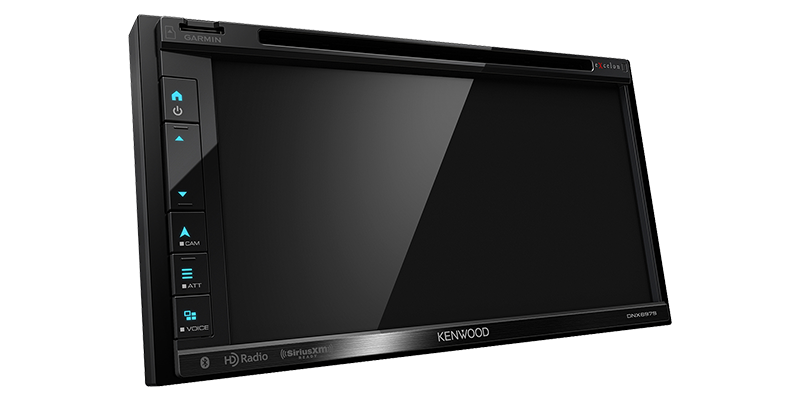

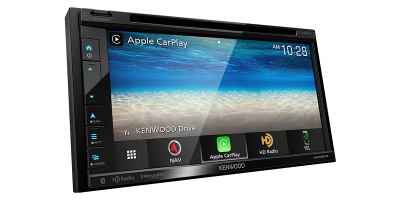

Kenwood Navigation DVD Receiver With Bluetooth And HD Radio - DNX697S

Authorized Dealer Price Match Guarantee

Price Match Guarantee

The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Price	$1,249.00
Savings	$101.00
Our Price	$1,148.00 CAD

Or as low as $127.56/month over 9 months. Apply Now

Quote Request

Availability
Call for availability

DNX697S
Best Deal Promise

Literature

Description
Features

6.8" WVGA Monitor

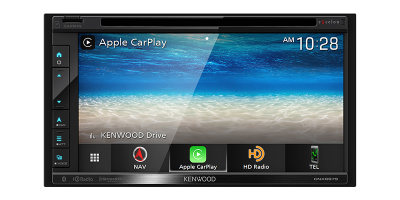

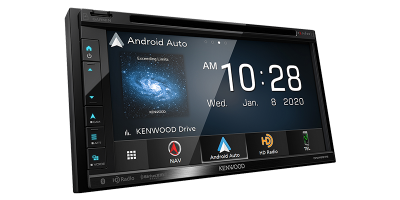

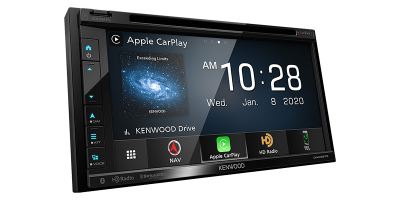

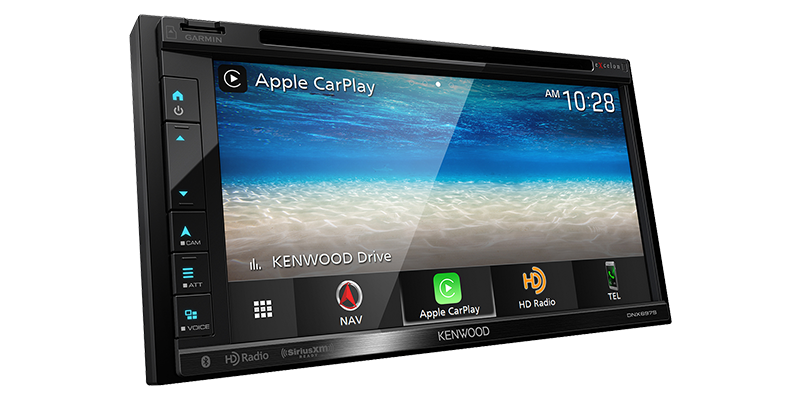

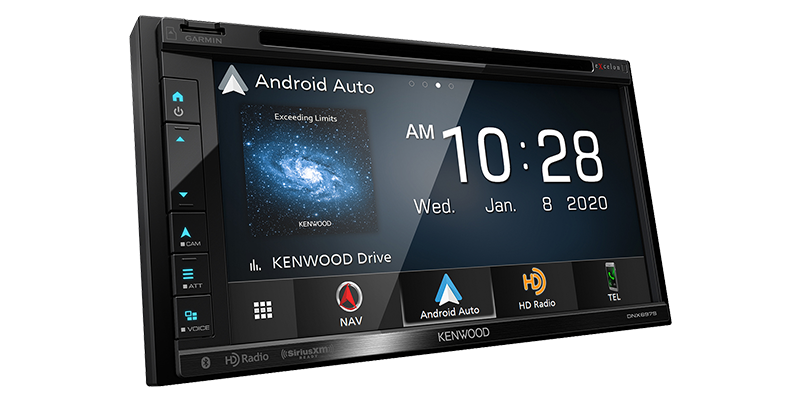

Apple CarPlay™ & Android Auto™
High-Resolution Audio
Customizable Multi Widget Screen
USB Mirroring for iPhone and Android
Dash Camera Link

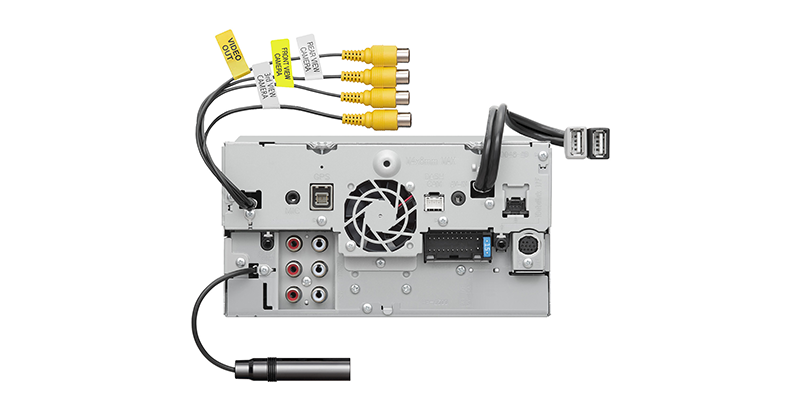

4 Camera Inputs
Built-in Bluetooth & HD Radio
3 Preouts 5V
Garmin Navigation with 3D Terrain View

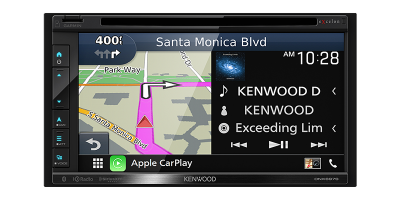

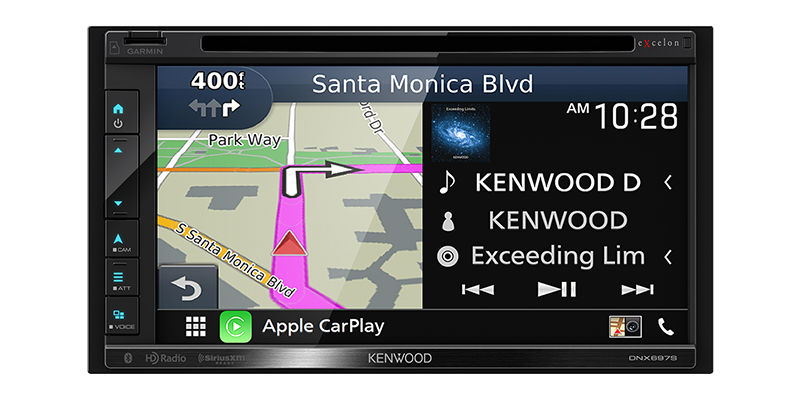

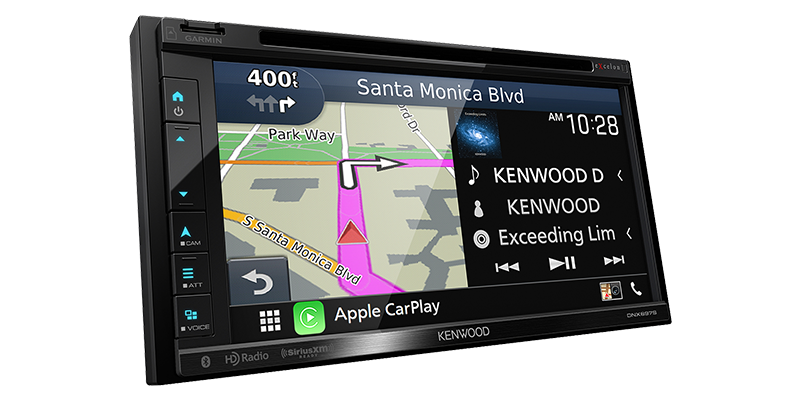

Advanced Navigation

Equipped with the industry leading Garmin navigation software,offering a variety of display options to make your driving easier.

Smartphone Connectivity

Enjoy convenient control of popular apps like Spotify and Pandora,built-in Bluetooth for hands-free calls and streaming music,as well as the ability to use your smartphone like a wireless remote control.

The Best Audio Experience

Sound quality enthusiasts will love the playback support of various types of music formats,including compatibility with FLAC files. Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Safe Driving

Keeping you safe on the road ahead is our top priority.

Additional Features

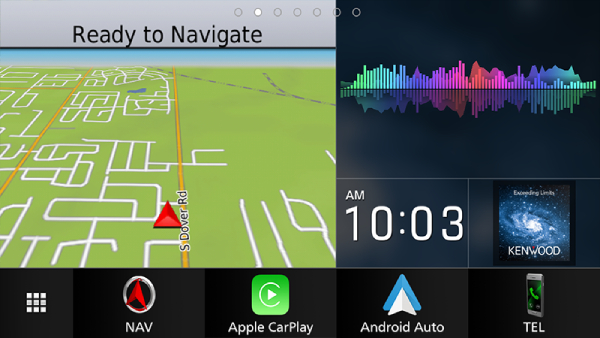

Customizable Multi Widget Screen

You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, weather, turn-by-turn, Garmin navigation and more.

Equipped with Dual USB Ports

Play your music from one USB port and use the other to charge your device, or charge both at the same time.

SiriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio.

Built-in HD Radio Tuner

HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.

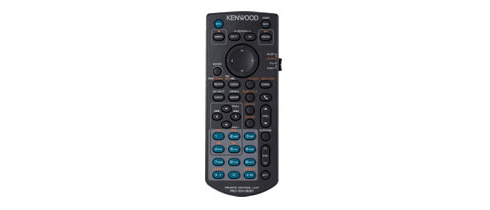

Remote Control (Optional)

This receiver unit can be operated using the optional remote control KNA-RCDV331.

SD Section
Video Decoder	MPEG1/2,MPEG4 / WMV / H.264 / MKV
Audio Decoder	MP3 / WMA / AAC / WAV / FLAC / Vorbis
Data Transfer Rate	Maximum 25MB/sec
Capacity	Maximum 2T Byte
Compatible File System	FAT 16/32, exFAT, NTFS
SD Standard	SD / SDHC / SDXC
USB I/F Section
Video Decoder	MPEG1/2,MPEG4 / WMV / H.264 / MKV
Audio Decoder	MP3 / WMA / AAC / WAV / FLAC / Vorbis
D/A Converter	24/32Bit
Maximum Power Supply Current	DC5V=1.5A
File System	FAT 16/32, exFAT, NTFS
USB Standard	USB2.0 High Speed
DVD Section
Quantifying bit number	16 / 20 / 24bit
DISC Format	DVD-Video / VIDEO-CD / CD-DA
Dynamic range	89dB (DVD-Video 96k)
Signal to Noise ratio	90.5dB (DVD-Video 96k)
Total harmonic distortion 1kHz	0.010%
44.1k Sampling	20 - 20,000 Hz
48k Sampling	20 - 22,000 Hz
Frequency response 96k Sampling	20 - 44,000 Hz
Wow & Flutter	Below Measurable Limit
Video Decoder	MPEG1/2,MPEG4 / WMV / H.264 / MKV
Audio Decoder	MP3 / WMA / AAC / WAV / FLAC / Vorbis
Audio Decoder	Dolby Audio
Audio Decoder	Linear PCM
D/A Converter	24 / 32Bit
Monitor Section
Back lighting	LED
Pixel arrangement	RGB striped arrangement
Effective pixels	99.99%
Number of pixels	800H x 480V x RGB
Number of pixels	1,152,000
Drive system	TFT active matrix system
Display system	TN LCD panel
Picture size	6.75 inches(diagonal) wide
W x H	151.8 mm x 79.68 mm, 5-31/32 x 3-1/8 inch
Video
Color system of external video input	NTSC/PAL
Usable sensitivity
Usable sensitivity	28dB
FM
Frequency Range	530kHz - 1700kHz
(Frequency step)
(Frequency step)	(10kHz)
FM
Stereo separation	45dB (1kHz)
Selectivity	Over 80dB (
S/N (dB)	65dB (MONO)
DIN S/N 46dB	1.13V / 75Ohms
Frequency response	30Hz - 15kHz
Quieting sensitivity	10.2dBf
S/N30dB	0.8V/75
(Frequency step)	(200kHz)
Usable sensitivity	9.3dBf
Frequency Range	87.9MHz - 107.9MHz
S/N
S/N	80dB (STEREO)
Frequency Response
Frequency Response	40Hz - 15kHz
(Frequency step)
(Frequency step)	(10kHz)
Digital FM
Frequency Range	530kHz - 1700kHz
S/N	80dB (STEREO)
Frequency Response	20Hz - 20kHz
(Frequency step)	(200kHz)
Frequency Range	87.9MHz - 107.9MHz
Subwoofer Level
Subwoofer Level	-50 to 10dB
Gain
Gain	-8 to 0dB
Front / Rear /Subwoofer Delay
Front / Rear /Subwoofer Delay	0 - 20.01ft (0.03or0.04ft Step)
SLOPE
SLOPE	-12/-18/-24[dB/Oct.]
Low Pass Filter Frequency
LOW PASS FILTER frequency	30/40/50/60/70/80/90/100/120/150/Through[Hz]
SLOPE
SLOPE	-12/-18/-24[dB/Oct.]
Band PASS FILTER frequency
Band PASS FILTER frequency	250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through
Band PASS FILTER frequency	Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz]
SLOPE
SLOPE	-12/-18/-24[dB/Oct.]
High Pass Filter Frequency
HIGH PASS FILTER frequency	250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
SLOPE
SLOPE	-6/-12/-18/-24[dB/Oct.]
Low Pass Filter Frequency
LOW PASS FILTER frequency	30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
SLOPE
SLOPE	-6/-12/-18/-24[dB/Oct.]
High Pass Filter Frequency
HIGH PASS FILTER frequency	Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
Gain
Gain	-9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
frequency (Hz) (BAND1-13)
frequency (Hz) (BAND1-13)	62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
BAND
BAND	13Band
Bluetooth Section
Profile	PBAP (Phonebook Access Profile)
Profile	-
Profile	AVRCP (V1.6) (Audio/Video Remote Control Profile)
Profile	A2DP (Advanced Audio Distribution Profile)
Profile	SPP (Serial Port Profile)
Profile	HFP (V1.7) (Hands Free Profile)
Multi Profile Support	Multi Profile
Audio Codec	SBC / AAC
Maximum Communication range	Line of sight approx.10m(32.8ft)
Technology	Bluetooth Ver5.0
Frequency	2.402 2.480 GHz
RF Output Power (E.I.R.P.)	4dBm (MAX), Power Class 2
Navigation Section
Weight Main unit	(Excluding trim plate and sleeve)
Weight Main unit	4.6 lb
Weight Main unit	2.1 kg
(with Sleeve)	7-3/16 x 4-7/16 x 6 inch
(with Sleeve)	182mm x 112mm x 153mm
Installation Dimensions WxHxD	7 x 3-15/16 x 6-1/8 inch
Installation Dimensions WxHxD	178mm x 100mm x 155mm
Antenna	External GPS Antenna
Positioning Method	GPS
Accuracy	Velocity: 0.1meter/sec
Accuracy	Position: < 2.5meters,CEP, at -130dBm
Update Rate	1/second, continuous
Acquisition Times	All satellites at -130dBm Without aiding
Acquisition Times	Cold: 29 seconds(typ)
Receiving frequency	1575.42MHz (C/A code )
Receiver	High-sensitivity GPS receiver
Audio
Speaker Impedance ()	4-8 Ohms
Preout impedance ()	=< 300 Ohms
Preout level (V)	5V / 10kOhms
Output frequency band	20 - 88,000Hz
Typical Power Output (Front&Rear)	22Wx4
Typical Power Output (Front&Rear)	(at less than 1%THD)
Typical Power Output (Front&Rear)	Full Bandwidth Power
Maximum Power Output (Front&Rear)	50Wx4
Video
Analog RGB input	-
Audio Output level (Mini jacks)	0.9 V / 10 kOhms
Audio Output level (RCA jacks)	-
Video Output level (RCA jacks)	1 Vp-p / 75 Ohms
Video Input level (RCA jacks)	1 Vp-p / 75 Ohms
External audio max input level (Mini jacks)	2 V / 25 kOhms
External audio max input level (RCA jacks)	-
External video input level (RCA jacks)	-
External video input level (Mini jacks)	1 Vp-p / 75 Ohms
